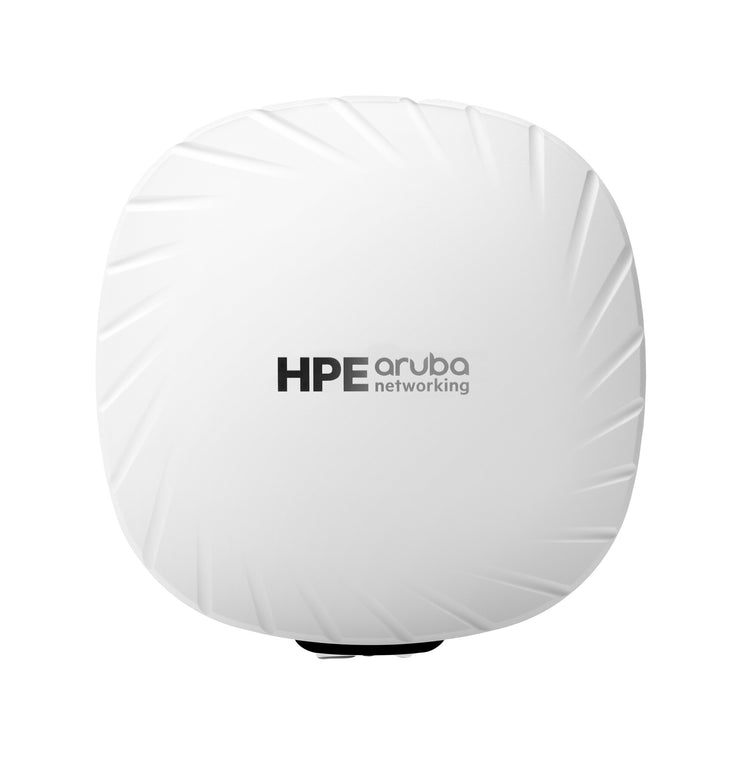

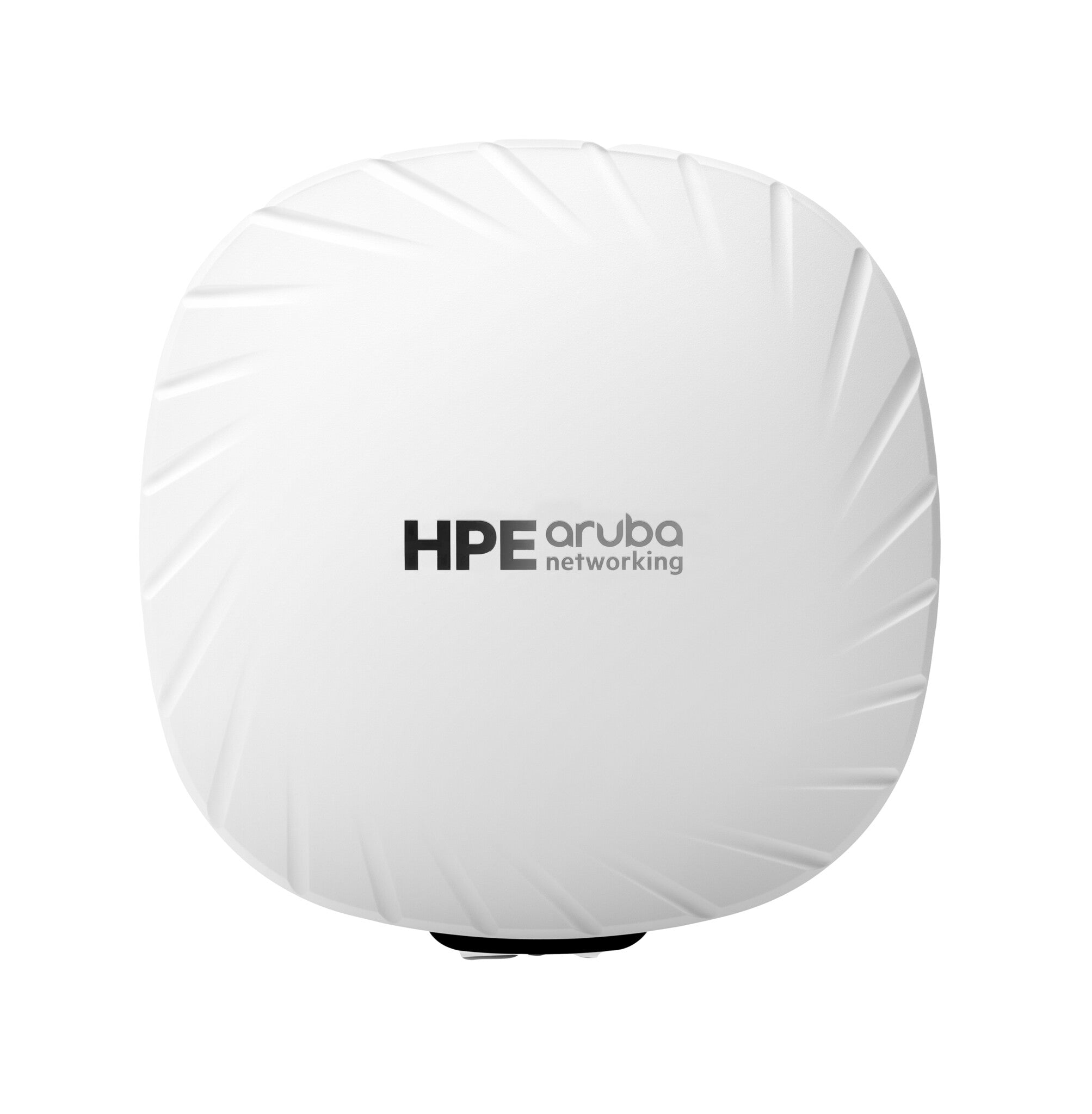

HPE Aruba Networking AP-503-RW Dual Radio 2x2 802.11ax Wi-Fi 6 Campus Access Point
Couldn't load pickup availability
- 2.4 GHz
- 5 GHz
- Maximum data transfer rate: 1490 Mbit/s
- IEEE 802.11ax
- WPA3, WPA, WPA2
- Power over Ethernet (PoE)
- Internal
HPE Aruba Networking 503 Series Campus Access Points deliver affordable Wi-Fi 6 coverage for indoor environments such as mid-sized offices, schools, and retail spaces where fewer people are on the network at the same time. With 1.49 Gbps maximum combined data rate, the 503 Series delivers cost-effective and reliable Wi-Fi for low to medium density environments. The 503 Series is Wi-Fi CERTIFIED and supports 802.11ax features: OFDMA for multi-user efficiency, target wake time (TWT) to extend the battery life of connected IoT devices, and WPA3 and Enhanced Open for greater password and guest security. The 503 Series includes a limited lifetime warranty.
What is new supporting point:
Flexible management with AI-powered HPE Aruba Networking Central.
Available as optional eco-friendly 10-packs.
Supports Wi-Fi 6 (802.11ax) features including OFDMA for enhanced multi-user efficiency and WPA and Enhanced Open for greater security.
Dynamic Segmentation and policy enforcement firewalls automatically enforce consistent policies across wired and wireless networks, enhancing user and device security.
Cost-effective Wi-Fi 6 access points provide up to 1.49 Gbps maximum combined data rate.
| Features | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| MIMO | Yes |
| Cabling technology | 10/100/1000Base-T(X) |
| Networking standards | IEEE 802.11ax |
| Maximum data transfer rate | 1490 Mbit/s |
| 5 GHz | Yes |
| 6 GHz | No |
| 2.4 GHz | Yes |
| Security | |
|---|---|
| Security algorithms | WPA3, WPA, WPA2 |
| Ports & interfaces | |
|---|---|
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | Reset, Status, System |
| Reset button | Yes |
| Product colour | White |
| Antenna | |
|---|---|
| Antenna gain level (max) | 4.8 dBi |
| Antenna direction type | Omni-directional |
| Antenna type | Internal |
| General | |
|---|---|
| Product family | Aruba Networking |
| Certificates | |
|---|---|
| Certification | None |
| Compliance certificates | Low Voltage Directive (LVD) |
| Weight & dimensions | |
|---|---|
| Weight | 255 g |
| Height | 145 mm |
| Depth | 35 mm |
| Width | 145 mm |
| Packaging data | |
|---|---|
| Package weight | 515 g |
| Package height | 67 mm |
| Package depth | 183 mm |
| Package width | 196 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 100% |
| Storage temperature (T-T) | -25 - 55 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 5 - 95% |
