£1,310.99

Stock Available: 0
  • 2.4 GHz
  • 5 GHz
  • Maximum data transfer rate: 1733 Mbit/s
  • IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az
  • IPSec
  • Power over Ethernet (PoE)

802.11 ac Wave 2 APs for harsh, weather-protected environments.

Industrial design for harsh, weather-protected environments

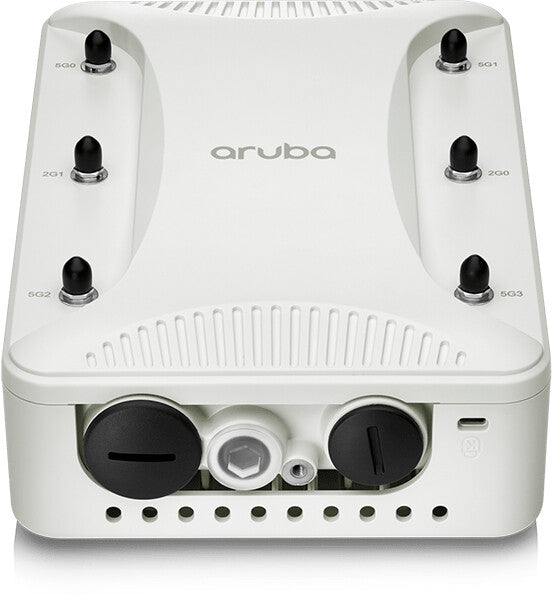

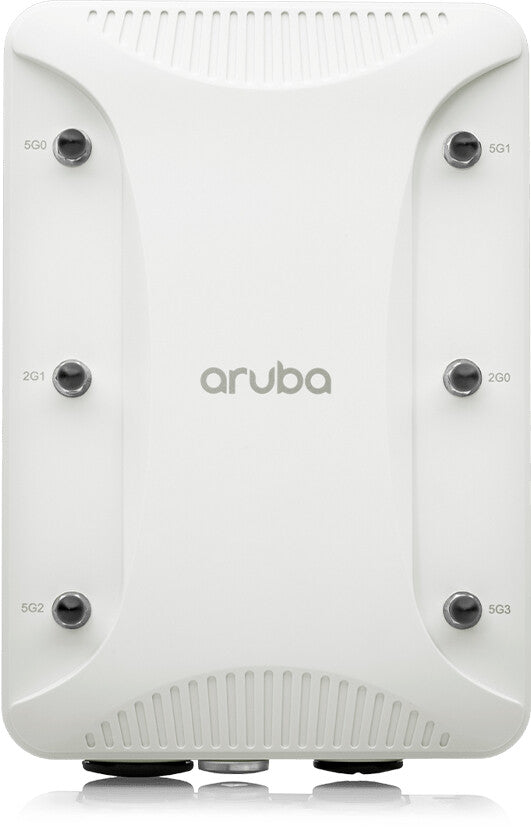

The ruggedized Aruba 318 Series access points deliver Wi-Fi 5 (802.11ac Wave 2) gigabit performance for client devices in extreme environments such as warehouses, industrial freezers, or for use in under-seat enclosures in stadiums and arenas.

High-performance Wi-Fi 5 for harsh environments
The 318 Series delivers ruggedized access points for connectivity across the most extreme environments.

Maximum concurrent data rate of 2 Gbps
Offering 5GHz: 1,733 Mbps and 2.4GHz: 300 Mbps, the 318 Series can quickly add capacity to existing or new wireless networks in temperature-sensitive, dust-ridden, or other extreme environments.

Dynamic Segmentation and policy-enforcement firewalls
Flexible and scalable, our access points automatically enforce consistent policies across wired and wireless networks.

Dual Radio 802.11ac access point with downlink MU-MIMO
Supports up to 1,733 Mbps in the 5GHz band (with 4SS/VHT80 or 2SS/VHT160 clients) and up to 300 Mbps in the 2.4GHz band (with 2SS/HT40 clients).

Built-in Bluetooth Low-Energy (BLE)
Enables location-based services with BLE-enabled mobile devices receiving signals from multiple Aruba Beacons at the same time.

Advanced cellular co-location
Reduces cellular interference with Advanced Cellular Coexistence (ACC) to minimize the impact of interference from high-powered cellular base stations.

Features
Modulation 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, QPSK
Spread spectrum method DSSS, OFDM
Auto MDI/MDI-X Yes
Networking standards IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3at, IEEE 802.3az
Ethernet LAN data rates 10,100,1000 Mbit/s
Maximum data transfer rate 1733 Mbit/s
5 GHz Yes
6 GHz No
2.4 GHz Yes
Security
Security algorithms IPSec
Ports & interfaces
USB connector type Micro-USB
USB 2.0 ports quantity 1
Ethernet LAN (RJ-45) ports 1
Power
Power consumption (typical) 23 W
Power over Ethernet (PoE) Yes
Design
Internal No
Cable lock slot type Kensington
Cable lock slot Yes
Placement Wall
Antenna
Number of connectors 6
Antenna connector type RP-SMA
General
Product family Aruba Networking
Weight & dimensions
Weight 1.23 kg
Height 75 mm
Depth 222 mm
Width 150 mm
Operational conditions
Operating altitude 0 - 3000 m
Storage temperature (T-T) -40 - 70 °C
Operating temperature (T-T) -40 - 60 °C
Operating relative humidity (H-H) 5 - 95%
