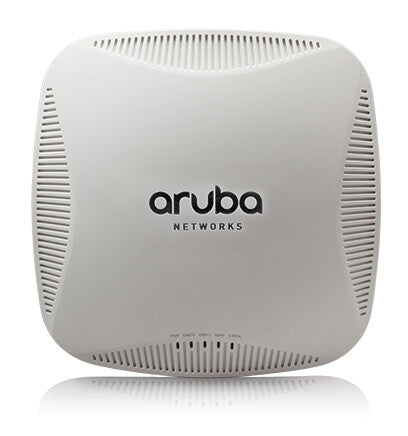

HPE Aruba Networking AP-224 1900 Mbit/s White Power over Ethernet (PoE)
£1,151.99
Couldn't load pickup availability
- 2.4 GHz 600 Mbit/s
- 5 GHz 1300 Mbit/s
- Maximum data transfer rate: 1900 Mbit/s
- IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az
- Power over Ethernet (PoE)
- External Detachable antenna
| Features | |
|---|---|
| Transmitting power | 23 dBmW |
| Quality of Service (QoS) support | Yes |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, CCK, OFDM, QPSK |
| Spread spectrum method | DSSS |
| MIMO | Yes |
| Auto MDI/MDI-X | Yes |
| Channel bandwidth | 80 MHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 600 Mbit/s |
| Maximum data transfer rate | 1900 Mbit/s |
| 5 GHz | Yes |
| 2.4 GHz | Yes |
| Management features | |
|---|---|
| Firmware upgradeable | Yes |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| WAN connection | Ethernet (RJ-45) |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (max) | 17 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
|---|---|
| LED indicators | Yes |
| Reset button | Yes |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Product colour | White |
| Antenna | |
|---|---|
| Number of connectors | 3 |
| Antenna connector type | RP-SMA |
| Antenna gain level (max) | 3 dBi |
| Antenna features | Detachable antenna |
| Antenna type | External |
| General | |
|---|---|
| Product family | Aruba Networking |
| Certificates | |
|---|---|
| Certification | FCCCER&TTE 1999/5/ECLow Voltage 2006/95/ECEN 300 328EN 301 489EN 301 893UL/IEC/EN 60950EN 60601-1-1, EN60601-1-2 |
| Weight & dimensions | |
|---|---|
| Weight | 750 g |
| Height | 54 mm |
| Depth | 203 mm |
| Width | 203 mm |
| Packaging data | |
|---|---|
| Package type | Box |
| Package weight | 1.25 kg |
| Package height | 100 mm |
| Package depth | 265 mm |
| Package width | 315 mm |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| AC adapter included | No |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -40 - 70 °C |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 85176990 |
