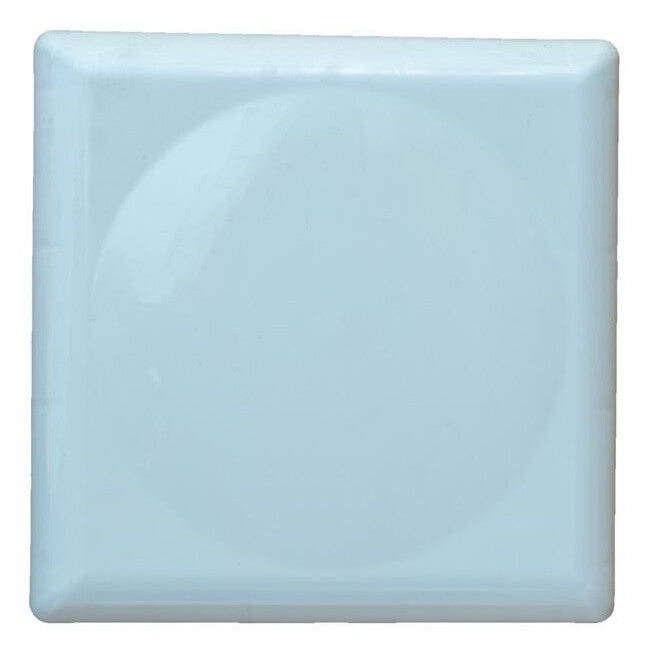

HPE Aruba Networking ANT-4x4-D707 Dual-Band 60x60deg 7dBi Panel V/H/+/-45 4 Element MIMO Outdoor Ant

HPE Aruba Networking ANT-4x4-D707 Dual-Band 60x60deg 7dBi Panel V/H/+/-45 4 Element MIMO Outdoor Ant

Hewlett Packard Enterprise
£526.99
Stock Available: 0
  • MIMO directional antenna N-type
  • 7.5 dBi
  • 2.4 - 2.5/4.9 - 6 GHz
  • 50 Ω
  • Dual polarization Female
  • Wall/Pole

.

Performance
Horizontal beam width (5 GHz) 56°
Vertical beam width (5 GHz) 56°
Horizontal beam width (2.4 GHz) 70°
Vertical beam width (2.4 GHz) 70°
Impedance 50 Ω
Antenna gain (2.4 GHz) 7.5 dBi
Antenna gain (5 GHz) 7.5 dBi
Frequency band 2.4 - 2.5/4.9 - 6 GHz
Antenna gain level (max) 7.5 dBi
Features
Mounting Wall/Pole
Housing material Aluminium, Plastic
Voltage Standing Wave Ratio (VSWR) 2:1
Polarization Dual polarization
Antenna connector type N-type
Connector gender Female
Antenna type MIMO directional antenna
Operational conditions
Operating temperature (T-T) -45 - 70 °C
Weight & dimensions
Weight 997.9 g
Height 190 mm
Depth 31 mm
Width 190 mm
General
Product family Aruba Networking
