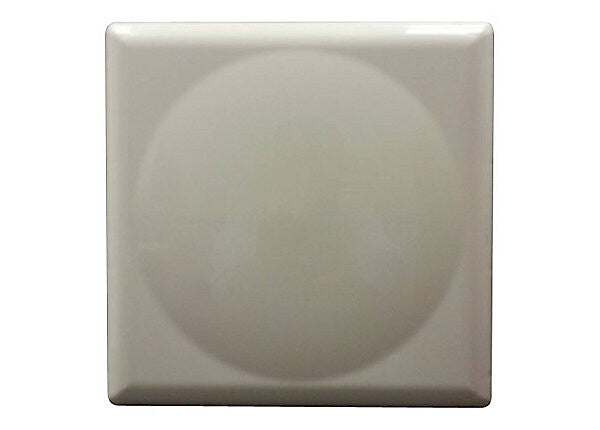

HPE Aruba Networking ANT-3x3-5712 network antenna N-type 11.5 dBi
£430.99
Couldn't load pickup availability
- N-type White
- 11.5 dBi
- 4.9 - 6 GHz
- 50 Ω
- Dual polarization Female
- Wall/Pole
ANT-3x3-5712 is a multipolarized antenna with 70° horizontal and 25° vertical beamwidths. This antenna is ideally suited for 5-GHz point-to-multipoint mesh connections.
| Performance | |
|---|---|
| Horizontal beam width | 70° |
| Vertical beam width | 25° |
| Impedance | 50 Ω |
| Antenna gain (5 GHz) | 11.5 dBi |
| Frequency band | 4.9 - 6 GHz |
| Antenna gain level (max) | 11.5 dBi |
| Features | |
|---|---|
| Mounting | Wall/Pole |
| Purpose | Outdoor |
| Housing material | Aluminium |
| Product colour | White |
| Voltage Standing Wave Ratio (VSWR) | 2.0:1 |
| Polarization | Dual polarization |
| Antenna connector type | N-type |
| Connector gender | Female |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1 kg |
| Height | 190 mm |
| Depth | 30 mm |
| Width | 190 mm |
| General | |
|---|---|
| Product family | Aruba Networking |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Quantity per pack | 1 pc(s) |
