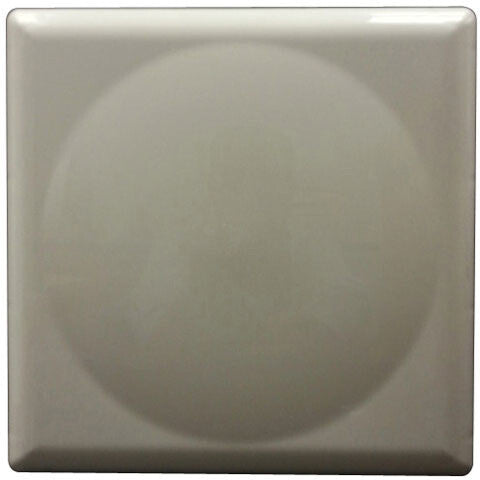

HPE Aruba Networking ANT-2x2-2314 network antenna N-type 14 dBi
£361.99
Couldn't load pickup availability
- N-type
- 14 dBi
- 2.4 - 2.5 GHz
- 50 Ω
- Dual polarization Female
- Wall/Pole
ANT-2x2-2314 is a dual-polarized antenna with 30° H x 30° V beamwidths. This antenna is well suited for coverage along a street, spot coverage, or for covering a seating section in stadiums and other large public venues.
| Performance | |
|---|---|
| Antenna gain level (max) | 14 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Antenna gain (2.4 GHz) | 14 dBi |
| Impedance | 50 Ω |
| Vertical beam width | 30° |
| Horizontal beam width | 30° |
| Features | |
|---|---|
| Connector gender | Female |
| Antenna connector type | N-type |
| Polarization | Dual polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5:1 |
| Housing material | Aluminium |
| Purpose | Outdoor |
| Mounting | Wall/Pole |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -45 - 65 °C |
| Weight & dimensions | |
|---|---|
| Width | 260 mm |
| Depth | 30 mm |
| Height | 261 mm |
| Weight | 1 kg |
| General | |
|---|---|
| Product family | Aruba Networking |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
