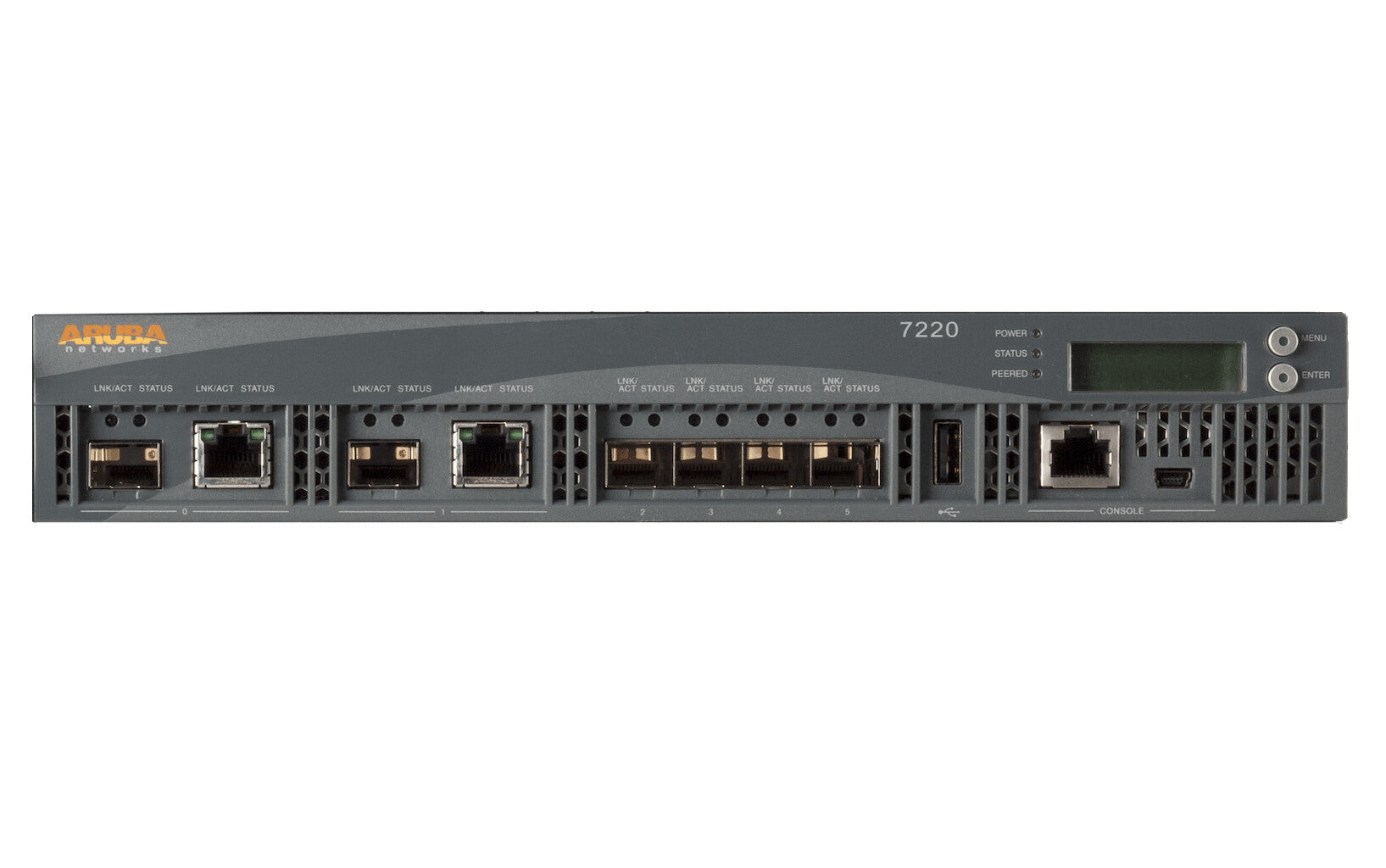

HPE Aruba Networking 7220 (RW) network management device 40000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

HPE Aruba Networking 7220 (RW) network management device 40000 Mbit/s Ethernet LAN Power over Ethernet (PoE)

Hewlett Packard Enterprise
£22,143.99
Stock Available: 0
  • Firewall throughput: 40000 Mbit/s
  • Number of LAN Access Points (max): 1024
  • Number of Remote Access Points (max): 1024
  • Ethernet LAN IEEE 802.11ac VLAN support
  • RJ-45
  • 350 W Power over Ethernet (PoE)

Optimized for 802.11ac, the 7200 series features a central processor with eight CPU cores to support over 32,000 devices and stateful firewall policy enforcement at 40 Gbps.

New levels of visibility offered by AppRFTM technology allow IT to see applications by user, prioritize them, and control access based on policies.

It also manages authentication, encryption, VPNs, IPv4/IPv6 services, the Policy Enforcement FirewallTM, Adaptive Radio ManagementTM, and RFProtectTM spectrum analysis and wireless intrusion protection.

Performance
Number of VLANs 4094
Concurrent connections 24576
Concurrent IPSec tunnels 24576
Number of Remote Access Points (max) 1024
Number of LAN Access Points (max) 1024
Firewall throughput 40000 Mbit/s
Network
Networking standards IEEE 802.11ac
Ethernet LAN data rates 1000,10000 Mbit/s
Ethernet LAN Yes
Management features
VLAN support Yes
Ports & interfaces
USB 2.0 ports quantity 1
Console port RJ-45
Installed SFP modules quantity 4
Ethernet LAN (RJ-45) ports 2
Power
Power consumption (typical) 125 W
Power over Ethernet (PoE) Yes
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Power supply 350 W
Design
Product colour Grey
Rack capacity 1U
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Storage temperature (T-T) -40 - 70 °C
Weight & dimensions
Weight 7.45 kg
General
Product family Aruba Networking
