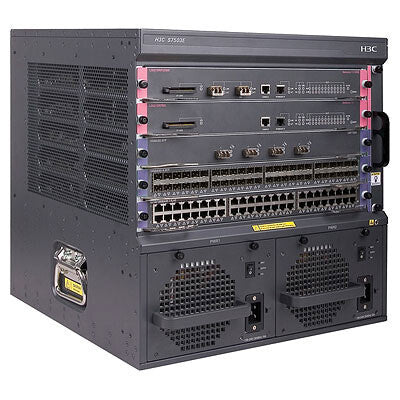

HPE 7503 Switch Chassis network equipment chassis 9U
£2,323.99
Couldn't load pickup availability
The HP 7500 Switch Series is a versatile modular switch designed to meet the evolving needs of integrated services networks. It can be deployed at the enterprise LAN core, aggregation layer and wiring closet edge and offers 40GbE connectivity, cost-effective wire-speed 10GbE ports, high density PoE/PoE+, advanced functionality with service modules and BYOD-ready features with the wired-WLAN module.
With HP Intelligent Resilient Fabric (IRF) technology, the HP 7500 Switch Series can be virtualized across four chassis with a single management interface—enabling flatter, more agile networks.
| Technical details | |
|---|---|
| Switching capacity | 1920 Gbit/s |
| Memory and processor | Fabric : MIPS64 @ 600 MHz, 64 MB flash, 512 MB RAM I/O module : MIPS64 @ 400 MHz, 512 MB RAM I/O module : MIPS64 @ 1000 MHz, 1 GB RAM |
| Throughput | 966 |
| Management platform | IMC - Intelligent Management Center |
| Rack capacity | 9U |
| Ports & interfaces | |
|---|---|
| I/O ports | (3) I/O module slotsSupports a maximum of 28 10GbE ports or 144 autosensing 10/100/1000 ports or 144 SFP ports or 12 40GbE ports, or a combination |
| Weight & dimensions | |
|---|---|
| Weight | 66.7 kg |
| Width | 436 mm |
| Depth | 420 mm |
| Height | 441 mm |
