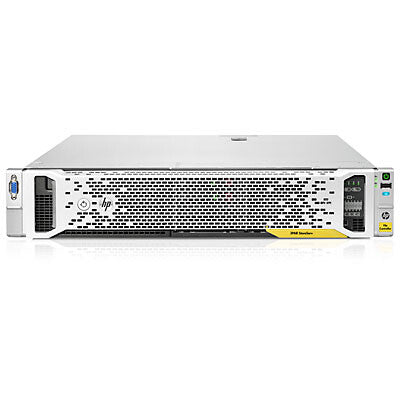

HPE 3PAR StoreServ NAS Rack (2U) Intel Xeon E5 v3 E5-2609V3 32 GB 0 TB Windows Storage Server 2012 R2 White
Couldn't load pickup availability
- Large Enterprise Business NAS Rack (2U) White
- Windows Storage Server 2012 R2
- SSD
- Intel Xeon E5 v3 E5-2609V3 1.9 GHz
- 32 2133 MHz
- Ethernet LAN
- 800 W
With HP 3PAR StoreServ File Services you get an efficient, bulletproof and effortless way to provide file storage from HP 3PAR StoreServ Storage. 3PAR StoreServ Files Services save you time and money by supporting hundreds to thousands of concurrent users and diverse file workloads. It also has non-intrusive data deduplication that provides an average 50-60% in space savings. It provides security through features such as built-in encryption, sophisticated access controls, online snapshots, and the ability to run endpoint protection and backup software onboard so that data is protected at rest and in flight. HP 3PAR File Services are clustered file gateway configurations with transparent failover and online rolling maintenance updates that deliver continuous availability of data to users, servers, and applications. With a straightforward and consistent management experience, HP 3PAR File Services provides robust capabilities for demanding 24 x 7 file storage environments.
| Storage | |
|---|---|
| RAID levels | 0, 1, 1+0, 5+0, 5 |
| RAID support | Yes |
| Storage drive interface | Serial ATA |
| Supported storage drive types | SSD |
| Installed storage drive type | No |
| Total installed storage capacity | 0 TB |
| Storage drives installed | No |
| Processor | |
|---|---|
| Conflict-Free processor | No |
| Memory bandwidth supported by processor (max) | 51 GB/s |
| Maximum internal memory supported by processor | 768 GB |
| CPU configuration (max) | 2 |
| Processor codename | Haswell |
| Tcase | 70.9 °C |
| Bus type | QPI |
| Processor series | Intel Xeon E5-2600 v3 |
| Scalability | 2S |
| System bus rate | 6.4 GT/s |
| ECC supported by processor | Yes |
| PCI Express slots version | 3.0 |
| Physical Address Extension (PAE) | 46 bit |
| Processor cache type | Smart Cache |
| Processor lithography | 22 nm |
| Processor operating modes | 64-bit |
| Processor package size | 52.5 x 45 mm |
| Processor socket | LGA 2011-v3 |
| Stepping | M1 |
| Thermal Design Power (TDP) | 85 W |
| L2 cache | 15 MB |
| Processor cache | 15 MB |
| Processor threads | 6 |
| Processor cores | 6 |
| Processor frequency | 1.9 GHz |
| Processor model | E5-2609V3 |
| Processor family | Intel Xeon E5 v3 |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory clock speed | 2133 MHz |
| Internal memory | 32 GB |
| Network | |
|---|---|
| Wi-Fi | No |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Ports & interfaces | |
|---|---|
| USB port | No |
| Ethernet LAN (RJ-45) ports | 2 |
| Design | |
|---|---|
| Product colour | White |
| Chassis type | Rack (2U) |
| Performance | |
|---|---|
| Device class | Large Enterprise Business |
| Type | NAS |
| Software | |
|---|---|
| Operating system installed | Windows Storage Server 2012 R2 |
| Power | |
|---|---|
| Number of power supply units | 2 |
| Power supply unit (PSU) capacity | 800 W |
| Weight & dimensions | |
|---|---|
| Weight | 6.47 kg |
| Height | 83.6 mm |
| Depth | 691.5 mm |
| Width | 179.5 mm |
| Processor special features | |
|---|---|
| Memory types supported by processor | DDR4-SDRAM |
| Memory channels supported by processor | Quad |
| Embedded options available | Yes |
| Execute Disable Bit | Yes |
| Intel 64 | Yes |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel® AES New Instructions (Intel® AES-NI) | Yes |
| Intel® Hyper Threading Technology (Intel® HT Technology) | No |
| Intel® Turbo Boost Technology | No |
| Maximum number of PCI Express lanes | 40 |
| Physical Address Extension (PAE) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel® OS Guard | Yes |
| Intel® Secure Key | Yes |
| Intel Demand Based Switching | Yes |
| Intel Flex Memory Access | No |
| Intel Identity Protection Technology version | 0.00 |
| Intel® Identity Protection Technology (Intel® IPT) | No |
| Enhanced Intel SpeedStep Technology | Yes |
| Idle States | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Intel TSX-NI | No |
| Intel TSX-NI version | 0.00 |
| Number of QPI links | 2 |
| Intel® Smart Cache | Yes |
| Thermal Monitoring Technologies | Yes |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -30 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 10 - 35 °C |
| Other features | |
|---|---|
| I/O ports | 2 x 1GbE ports included standard as part of node |
| Processor ARK ID | 81897 |
| Host interface | RJ-45 |
| Compatible operating systems | Windows Storage Server 2012 R2 Standard pre-installed |
