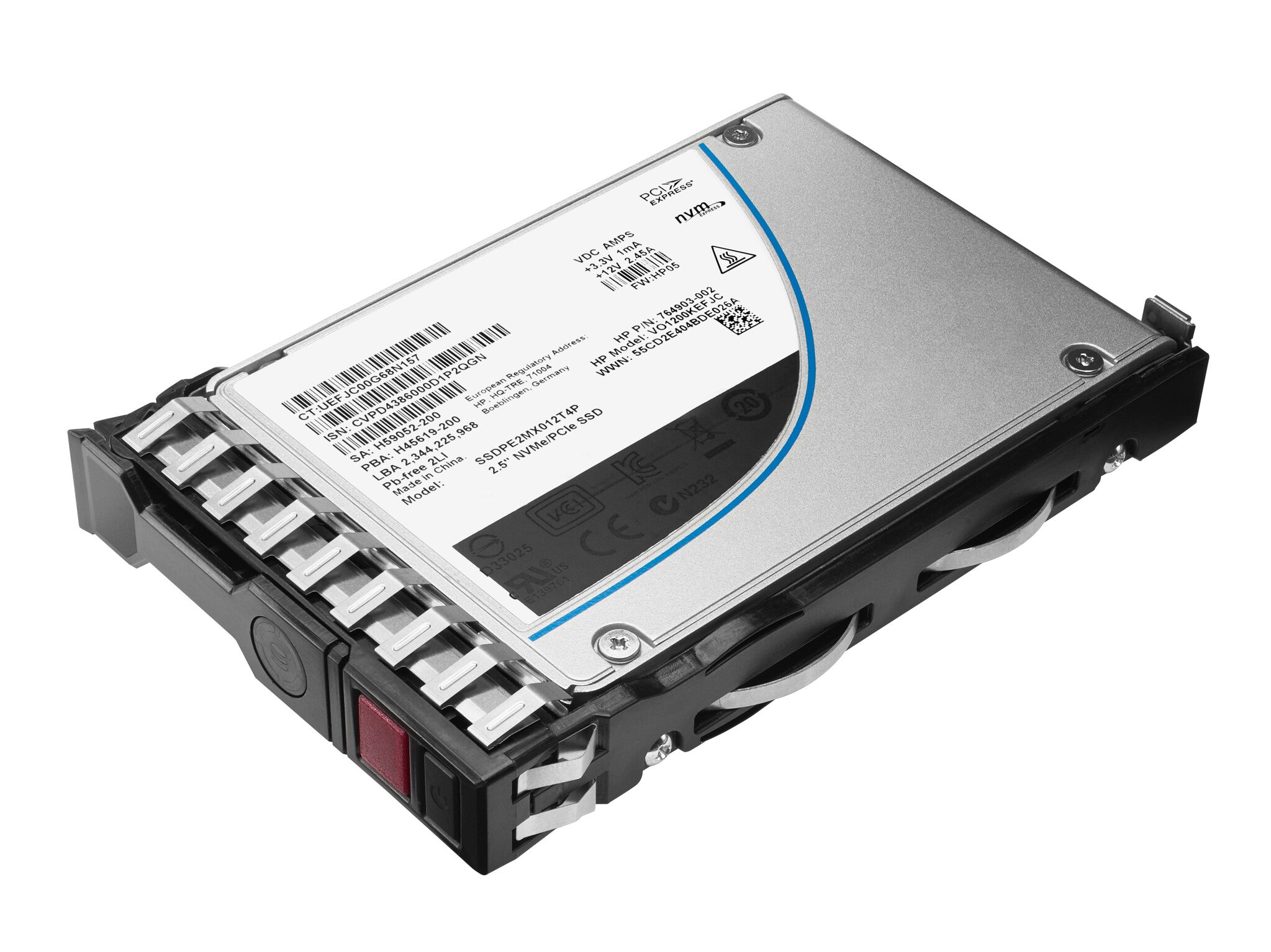

HPE 12.8TB NVMe Gen4 High Performance Mixed Use SFF SCN U.3 PM1735 SSD
Couldn't load pickup availability
- 12.8 TB 2.5" PCI Express 4.0
- Read speed: 7000 MB/s 165000 IOPS
- Write speed: 3700 MB/s 265000 IOPS
- TLC NVMe
- Component for: Server
Do you need to accelerate the performance of your mixed use applications? HPE NVMe High Performance Mixed Use (MU) SSDs are best suited for high I/O applications that require a balanced performance between reads and writes to deliver high performance and endurance for data intensive applications. NVMe High Performance MU SSDs communicate directly to applications via the PCIe bus to boost I/O bandwidth and reduce latency. HPE NVMe High Performance MU SSDs deliver high performance and lower latency data transfers from storage significantly faster than SAS or SATA SSDs. It utilizes the high bandwidth of PCIe Gen4 in select servers for mixed use workloads such as Big Data analytics, HPC, and virtualization.
What is new supporting point:
Offer HPE 1.6 TB, 3.2 TB, and 6.4 TB NVMe High Performance Mixed Use SFF SSDs.
| Features | |
|---|---|
| Drive writes per day (DWPD) | 3 |
| Hot-Plug support | Yes |
| Read latency | 88 µs |
| Random write (4KB) | 265000 IOPS |
| Random read (4KB) | 165000 IOPS |
| Write speed | 3700 MB/s |
| Read speed | 7000 MB/s |
| Target workload | Mixed Use (MU) |
| Hardware encryption | No |
| Component for | Server |
| Memory type | TLC |
| NVMe | Yes |
| Interface | PCI Express 4.0 |
| SSD form factor | 2.5" |
| SSD capacity | 12.8 TB |
| Power | |
|---|---|
| Power consumption (average) | 18.5 W |
| Weight & dimensions | |
|---|---|
| Weight | 680 g |
| Height | 146.1 mm |
| Depth | 228.6 mm |
| Width | 219.2 mm |
| Other features | |
|---|---|
| Compatible products | HPE Compute Mainstream Platforms, see QuickSpecs for more information |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84717070 |
