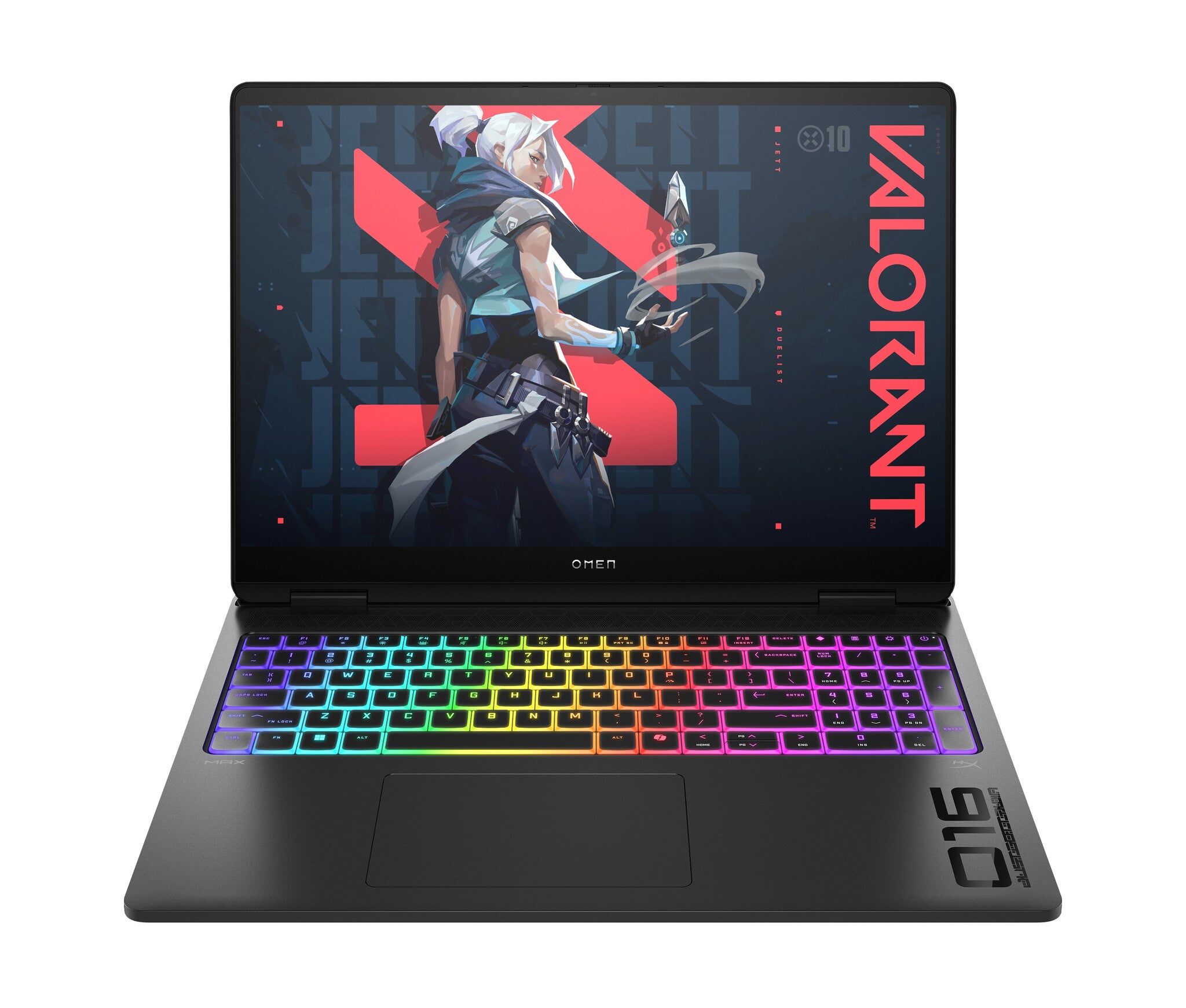

HP OMEN MAX 16-ah0007na Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5080 Wi-Fi 7 (802.11be) Windows 11 Home AI PC Black
£3,273.99
Couldn't load pickup availability
- Intel Core™ Ultra 9 275HX (up to 5.4 GHz with Intel Turbo Boost Technology, 36 MB L3 cache, 24 cores, 24 threads)
- Windows 11 Home
- 40.6 cm (16") diagonal WQXGA display
- NVIDIA GeForce RTX™ 5080 Laptop GPU (16 GB GDDR7 dedicated)
- 32 GB DDR5-5600 MT/s (2 x 16 GB), 1 TB PCIe Gen5 NVMe™ Performance M.2 SSD
Built to break limits
The OMEN 16 MAX gaming laptop provides unparalleled performance both at-home or on-the-go. With next-gen NVIDIA GPUs and Intel Core™ Ultra CPUs[1], a new Unleashed Mode for manual overclocking, and a thermal architecture built to cut down on both throttling and long term wear, dedicated gamers can achieve their best for years to come.
| Design | |
|---|---|
| Product type | Laptop |
| Product colour | Black |
| Colour name | Shadow black |
| Form factor | Clamshell |
| Market positioning | Gaming |
| Introduction year | 2025 |
| Country of origin | China |
| Original brand name | HP |
| Display | |
|---|---|
| Display diagonal | 40.6 cm (16") |
| Display resolution | 2560 x 1600 pixels |
| Touchscreen | No |
| HD type | WQXGA |
| Panel type | IPS |
| LED backlight | Yes |
| Native aspect ratio | 16:10 |
| Anti-glare screen | Yes |
| Display bezel technology | Micro-Edge |
| Display brightness | 500 cd/m² |
| Colour gamut | 100% |
| RGB colour space | sRGB |
| Display diagonal (metric) | 40.6 cm |
| Display response rise/fall | 3 ms |
| Maximum refresh rate | 240 Hz |
| sRGB coverage (typical) | 100% |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel Core Ultra 9 |
| Processor generation | Intel Core Ultra (Series 2) |
| Processor model | 275HX |
| Processor cores | 24 |
| Processor threads | 24 |
| Processor boost frequency | 5.4 GHz |
| Performance cores | 8 |
| Efficient cores | 16 |
| Performance-core Max Turbo Frequency | 5.4 GHz |
| Efficient-core Max Turbo Frequency | 4.6 GHz |
| Performance-core base frequency | 2.7 GHz |
| Efficient-core base frequency | 2.1 GHz |
| Processor cache | 36 MB |
| Processor cache type | L3 |
| Maximum turbo power | 160 W |
| Processor base power | 55 W |
| Neural processor unit (NPU) | |
|---|---|
| Neural processor unit (NPU) | Intel AI Boost |
| Sparsity support | Yes |
| Windows Studio effects support | Yes |
| AI software frameworks supported by NPU | DirectML, OpenVINO, Windows ML, ONNX RT, WebNN |
| Total processor performance up to | 36 TOPs |
| NPU performance up to | 13 TOPs |
| GPU performance up to | 8 TOPs |
| Memory | |
|---|---|
| Internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Memory form factor | SO-DIMM |
| Memory clock speed | 5600 MHz |
| Memory layout (slots x size) | 2 x 16 GB |
| Memory slots (available) | 2 |
| Maximum internal memory | 32 GB |
| Storage | |
|---|---|
| Total storage capacity | 1 TB |
| Storage media | SSD |
| Total SSDs capacity | 1 TB |
| Number of SSDs installed | 1 |
| SSD capacity | 1 TB |
| NVMe | Yes |
| SSD interface | PCI Express 5.0 |
| SSD form factor | M.2 |
| Optical drive type | No |
| Graphics | |
|---|---|
| On-board graphics card | Yes |
| Discrete graphics card | Yes |
| Discrete GPU manufacturer | NVIDIA |
| Discrete graphics card model | NVIDIA GeForce RTX 5080 |
| Discrete graphics card memory | 16 GB |
| Discrete graphics memory type | GDDR7 |
| On-board GPU manufacturer | Intel |
| On-board graphics card family | Intel® Graphics |
| On-board graphics card model | Intel® Graphics |
| NVIDIA G-SYNC | Yes |
| Audio | |
|---|---|
| Audio system | DTS:X Ultra |
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| Number of microphones | 2 |
| Built-in microphone | Yes |
| Camera | |
|---|---|
| Front camera | Yes |
| Front camera resolution | 1920 x 1080 pixels |
| Front camera HD type | Full HD |
| Infrared (IR) camera | Yes |
| Network | |
|---|---|
| Mobile network connection | No |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Antenna type | 2x2 |
| WLAN controller manufacturer | Intel |
| WLAN controller model | Intel Wi-Fi 7 BE200 |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 2500,10,100,1000 Mbit/s |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |

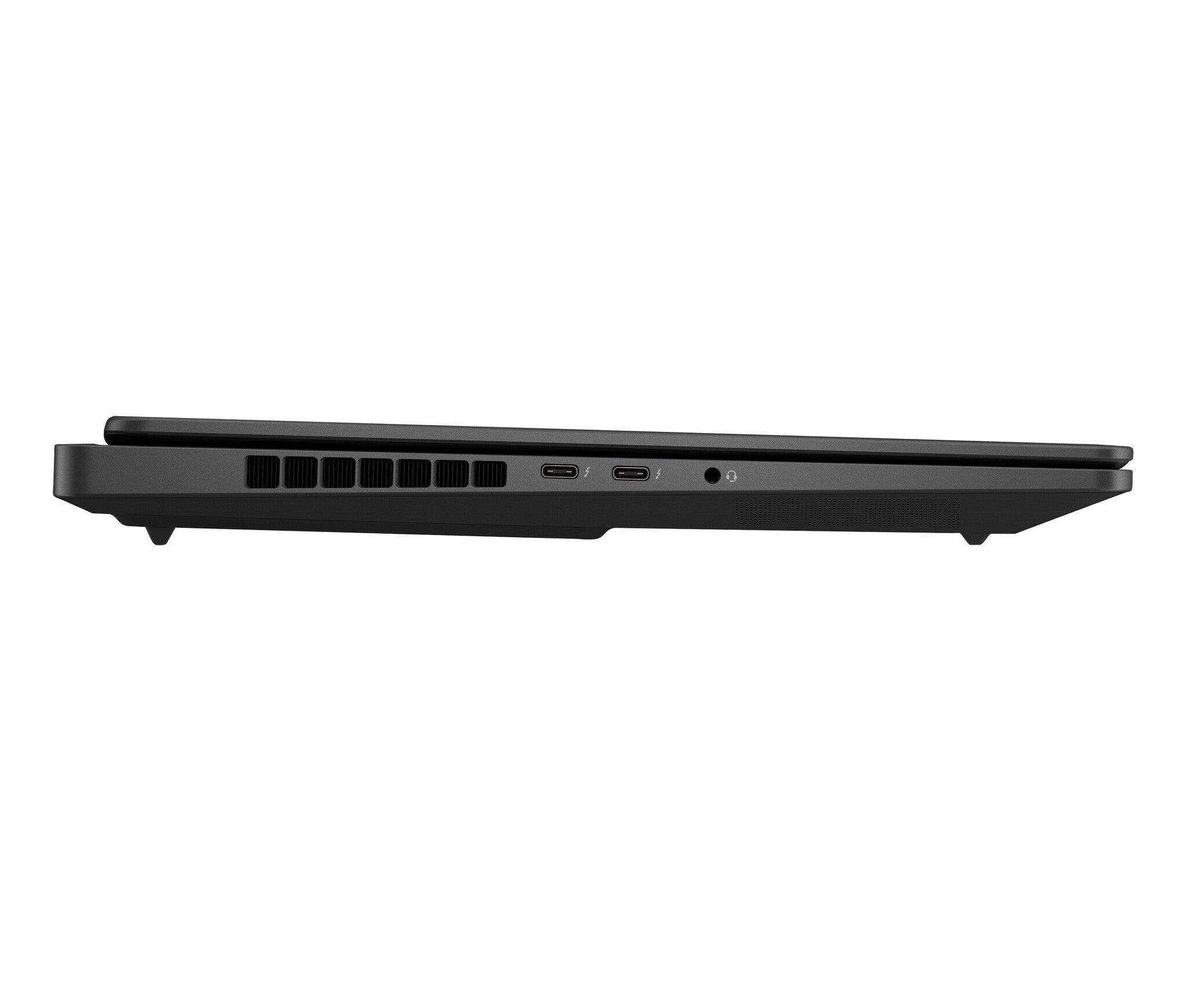

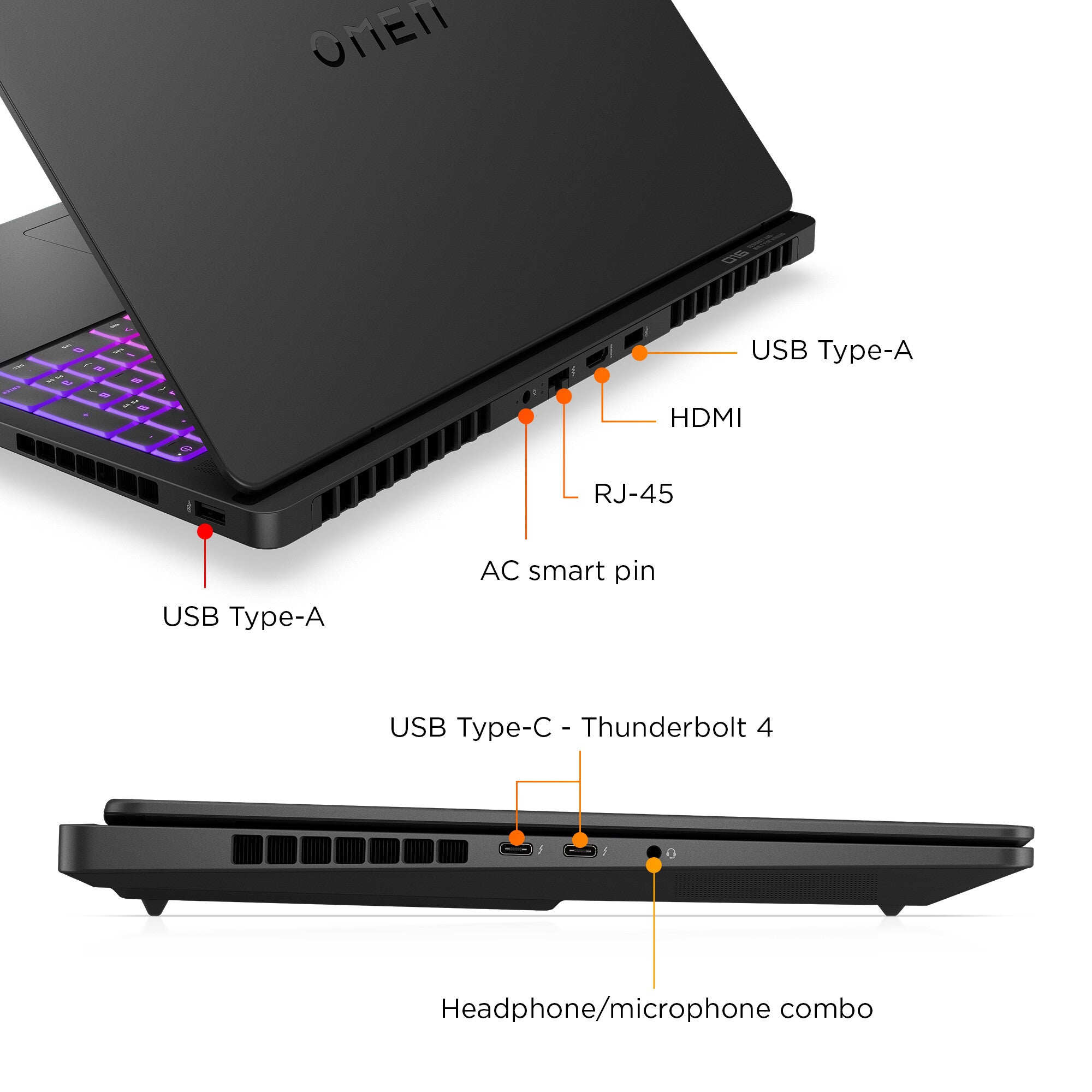

| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB4 Gen 3x2 ports quantity | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| HDMI version | 2.1 |
| Thunderbolt 4 ports quantity | 2 |
| Intel® Thunderbolt 4 | Yes |
| Microphone in | Yes |
| Combo headphone/mic port | Yes |
| USB Type-C DisplayPort Alternate Mode | Yes |
| USB Sleep-and-Charge | Yes |
| USB Sleep-and-Charge ports | 2 |
| Performance | |
|---|---|
| Motherboard chipset | Intel HM870 |
| Temperature sensor | Yes |
| Keyboard | |
|---|---|
| Pointing device | Touchpad |
| Keyboard backlit | Yes |
| Numeric keypad | Yes |
| Keyboard backlit zone | Per-key RGB |
| Keyboard backlit colour | RGB |
| Full-size keyboard | Yes |
| Keyboard colour name | Shadow black |
| Software | |
|---|---|
| Operating system installed | Windows 11 Home |
| Pre-installed software | Otter.ai, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial |
| Trial software | 100 GB Dropbox storage for 3 months |
| Processor special features | |
|---|---|
| Intel® Turbo Boost Technology | Yes |
| Brand-specific features | |
|---|---|
| HP Audio Boost | Yes |
| HP speaker type | HP Dual Speakers |
| HP Imagepad | Yes |
| HP front camera | HP TrueVision FHD IR |
| HP Security tools | Camera privacy shutter; Trusted Platform Module (Firmware TPM) support |
| HP Software provided | HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub |
| HP Artificial Intelligence | AI PC |
| HP segment | Home |
| HP GTIN (EAN/UPC) | 198990491172 |
| Battery | |
|---|---|
| Battery technology | Lithium Polymer (LiPo) |
| Number of battery cells | 6 |
| Battery capacity | 83 Wh |
| Fast charging | Yes |
| Fast charging time (50%) | 30 min |
| Power | |
|---|---|
| AC adapter power | 330 W |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter input voltage | 100 - 240 V |
| USB Type-C charging port | Yes |
| USB Power Delivery (USB PD) | Yes |
| Security | |
|---|---|
| Trusted Platform Module (TPM) | Yes |
| Password protection | Yes |
| Password protection type | BIOS, Power on |
| Sustainability | |
|---|---|
| Sustainable technologies and materials | Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s) |
| Sustainability certificates | ENERGY STAR, EPEAT, EPEAT Gold |
| Sustainability compliance | Yes |

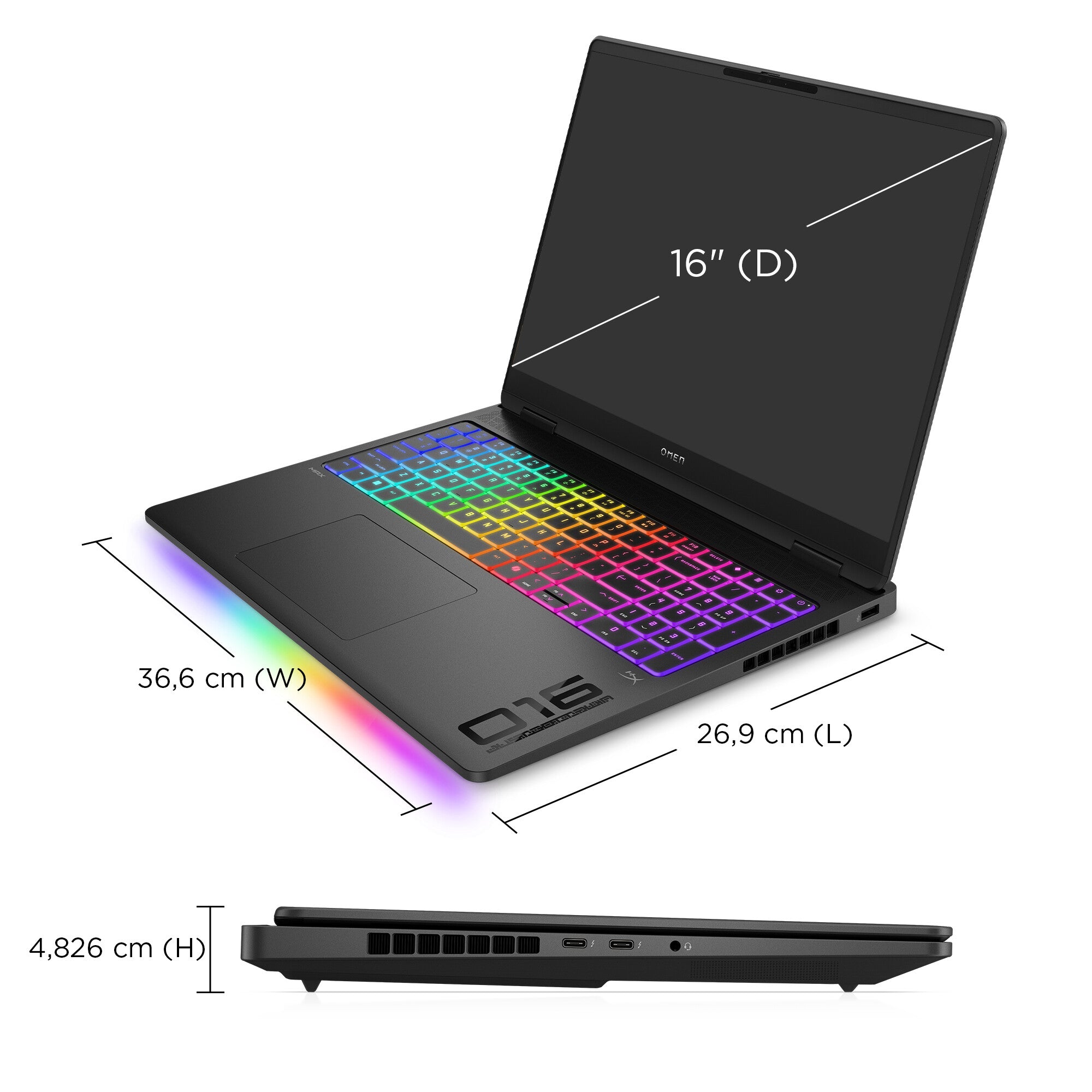

| Weight & dimensions | |
|---|---|
| Weight | 2.68 kg |
| Width | 356.5 mm |
| Depth | 269 mm |
| Height (front) | 2.29 cm |
| Height (rear) | 2.48 cm |
| Packaging data | |
|---|---|
| Package width | 94 mm |
| Package depth | 428 mm |
| Package height | 332 mm |
| Package weight | 4.74 kg |
| General | |
|---|---|
| Product family | OMEN MAX |
| Carbon footprint | |
|---|---|
| Carbon emissions, end-of-life (kg of CO2e) | 1 |
| Total carbon emissions, w/o use phase (kg of CO2e) | 20 |
| Carbon emissions, logistics (kg of CO2e) | 2 |
| Carbon emissions, manufacturing (kg of CO2e) | 119 |
| Total carbon footprint (kg of CO2e) | 140 |
| Packaging content | |
|---|---|
| Keyboard included | Yes |
| AC adapter included | Yes |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 8471300000 |
| Other features | |
|---|---|
| Manufacturer warranty | 1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Memory module type | SODIMM |
| Supplied AC adapter type | Sandblasted and paint finish |
| UNSPSC-code | 43211503 |
| Technical details | |
|---|---|
| General Product Safety Regulation (GPSR) URL | https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com |
