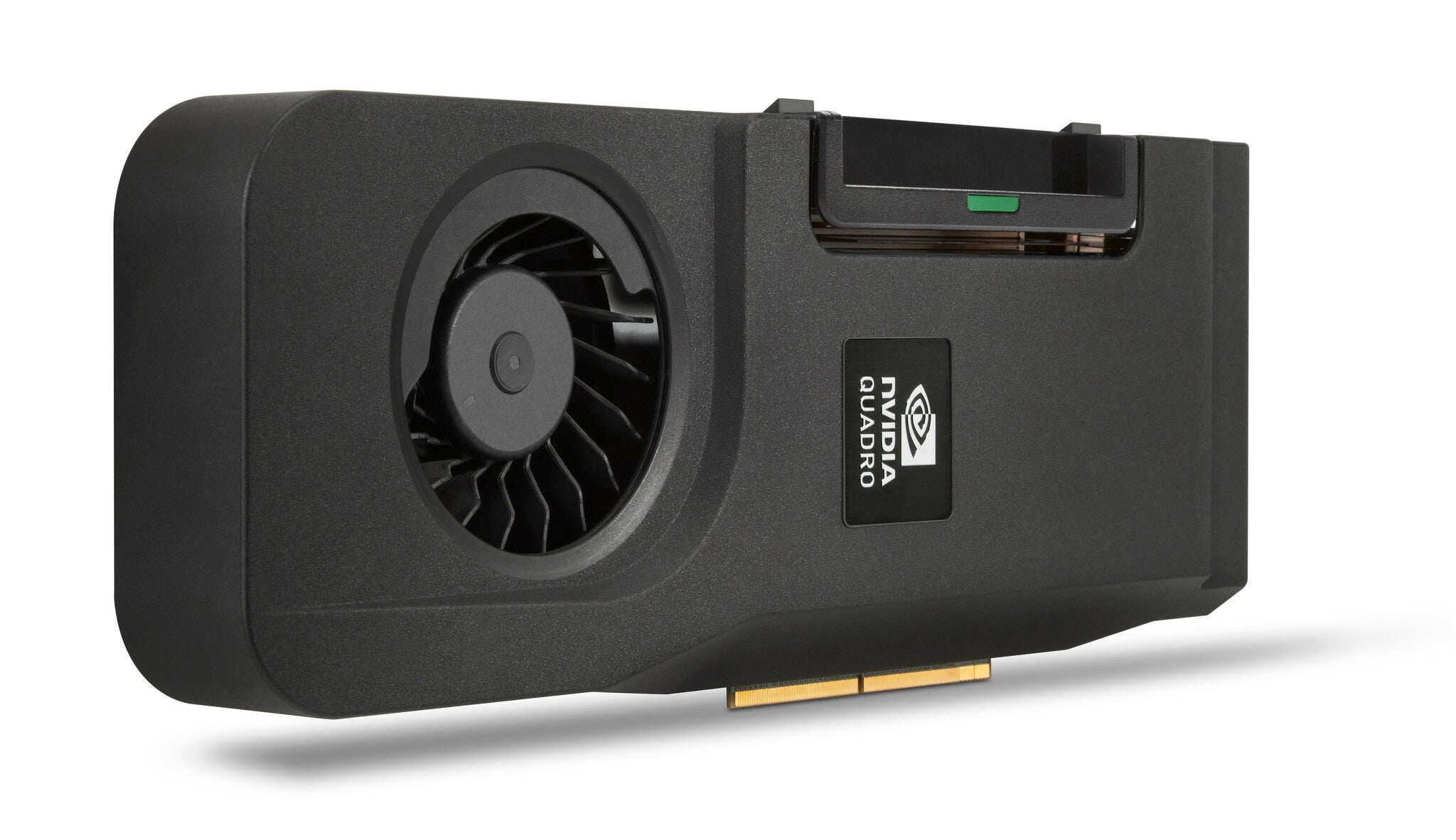

HP E5Z74AA graphics card NVIDIA Quadro K610M 1 GB GDDR5
Couldn't load pickup availability
- NVIDIA Quadro K610M 1 GB GDDR5
- 3840 x 2160 pixels 64 bit 2600 MHz PCI Express x16
- DirectX version: 11.1 OpenGL version: 4.3
Deliver impressive graphics applications and dataset performance with the NVIDIA Quadro K610M graphics board. It’s an ideal solution for entry-level professional CAD, Media & Entertainment, and visualization applications.
• Easily support your professional software application base with comprehensive ISV certifications. Get great entry 3D performance from the power-efficient Kepler GPU and 1 GB of DDR3 memory.
• Maximize your productivity by driving up to four digital displays from a single card and managing them with NVIDIA’s Mosaic and nView technology.
• Get support for the latest graphics APIs. Windows 8 compliance helps ensure reliable deployment in the newest Windows installations.
• Rest assured with a graphics card designed to the MXM v3.1 Type A specification for compatibility with the HP Z1 G2 Workstation.
| Processor | |
|---|---|
| Graphics processor family | NVIDIA |
| Graphics processor | Quadro K610M |
| Maximum resolution | 3840 x 2160 pixels |
| CUDA | Yes |
| CUDA cores | 192 |
| Memory | |
|---|---|
| Discrete graphics card memory | 1 GB |
| Graphics card memory type | GDDR5 |
| Memory bus | 64 bit |
| Memory clock speed | 2600 MHz |
| Memory bandwidth (max) | 20.8 GB/s |
| Ports & interfaces | |
|---|---|
| Interface type | PCI Express x16 |
| Performance | |
|---|---|
| PhysX | No |
| TV tuner integrated | No |
| DirectX version | 11.1 |
| Shader model version | 5.0 |
| OpenGL version | 4.3 |
| NVIDIA 3D Vision | Yes |
| Design | |
|---|---|
| Cooling type | Active |
| Number of fans | 1 fan(s) |
| Illumination | No |
| Product colour | Black |
| System requirements | |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Weight & dimensions | |
|---|---|
| Depth | 70 mm |
| Height | 82 mm |
| Other features | |
|---|---|
| Graphics card interface | MXM v3.1 Typ A (82 mm x 70 mm) |
