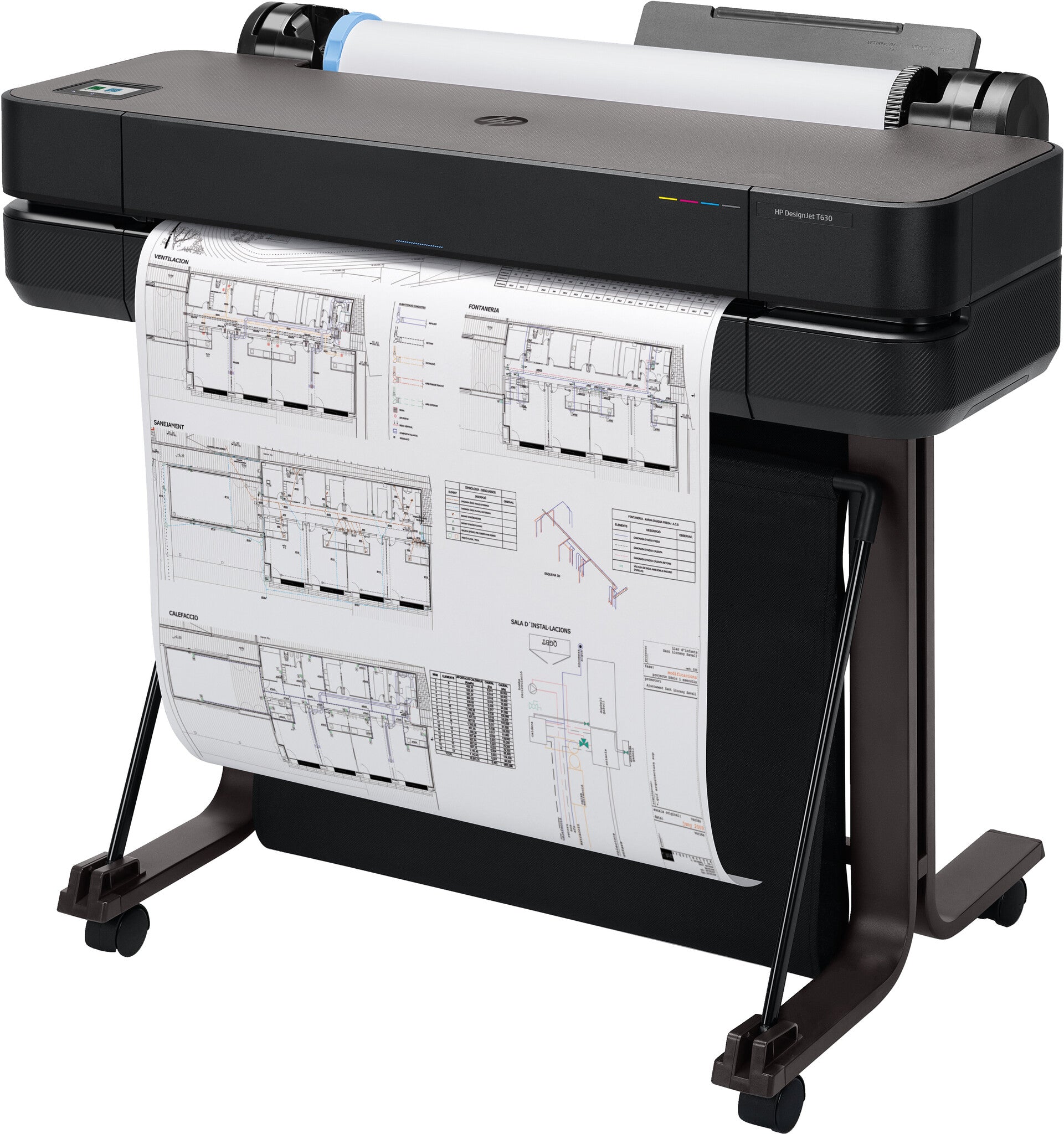

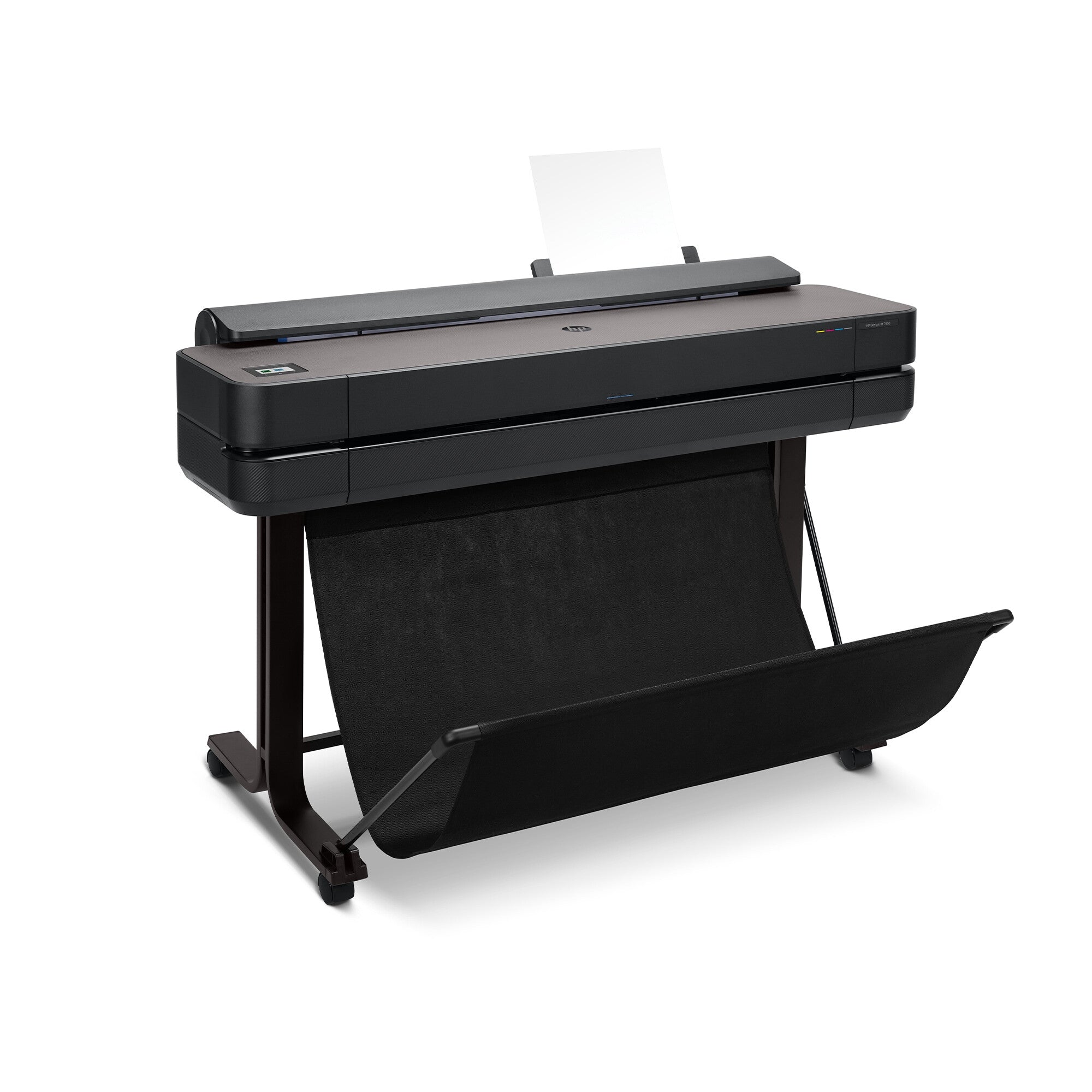

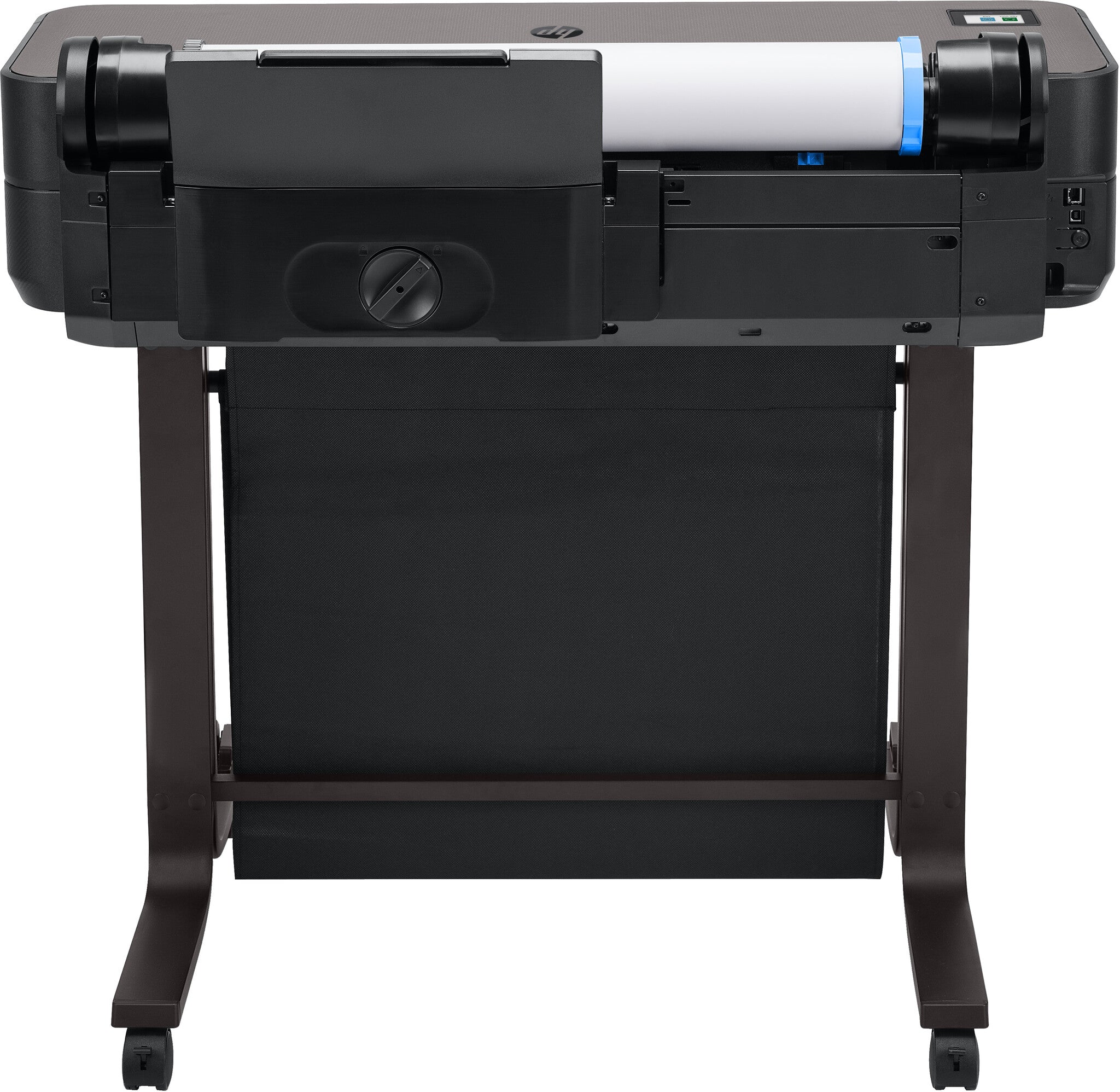

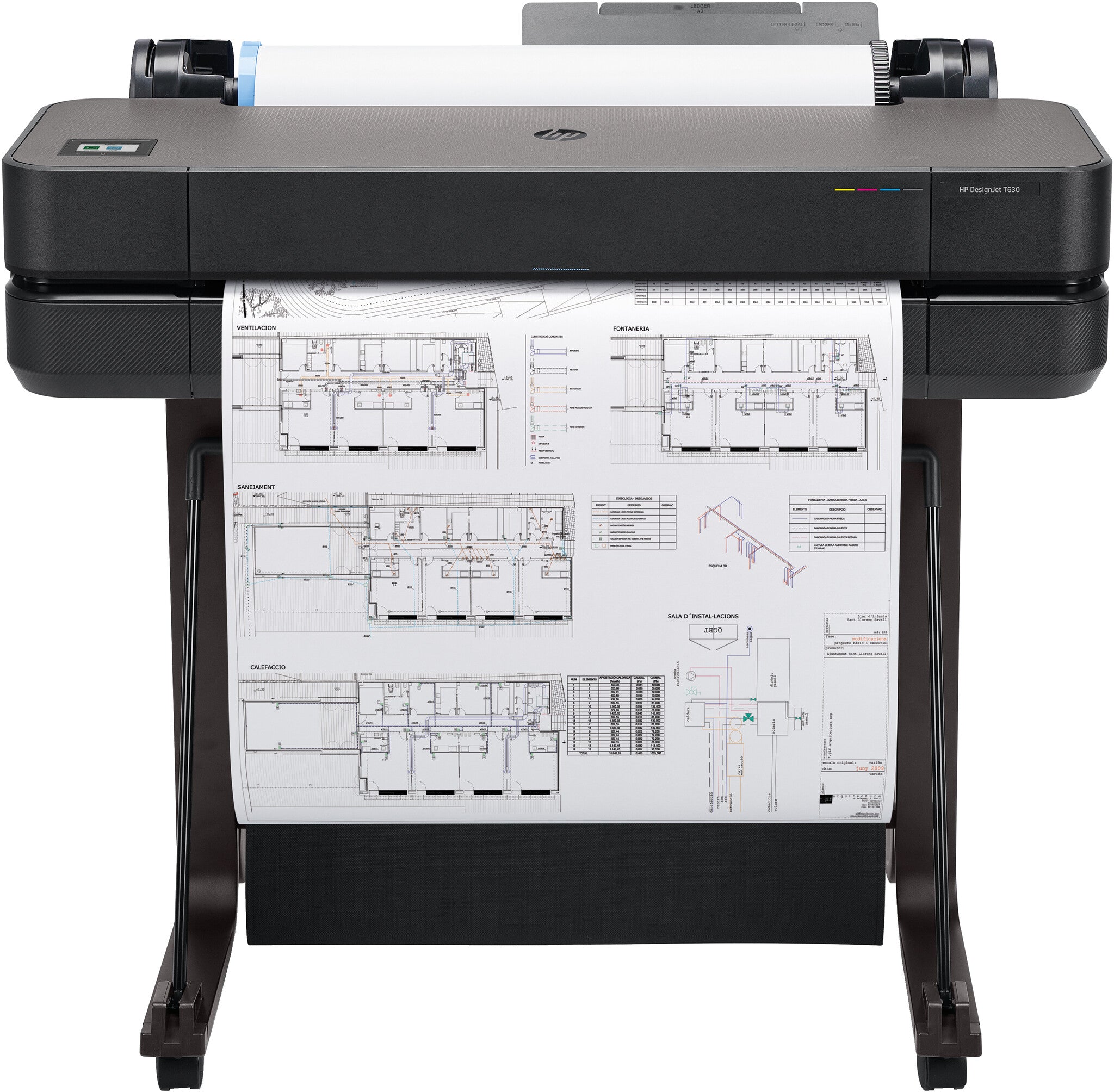

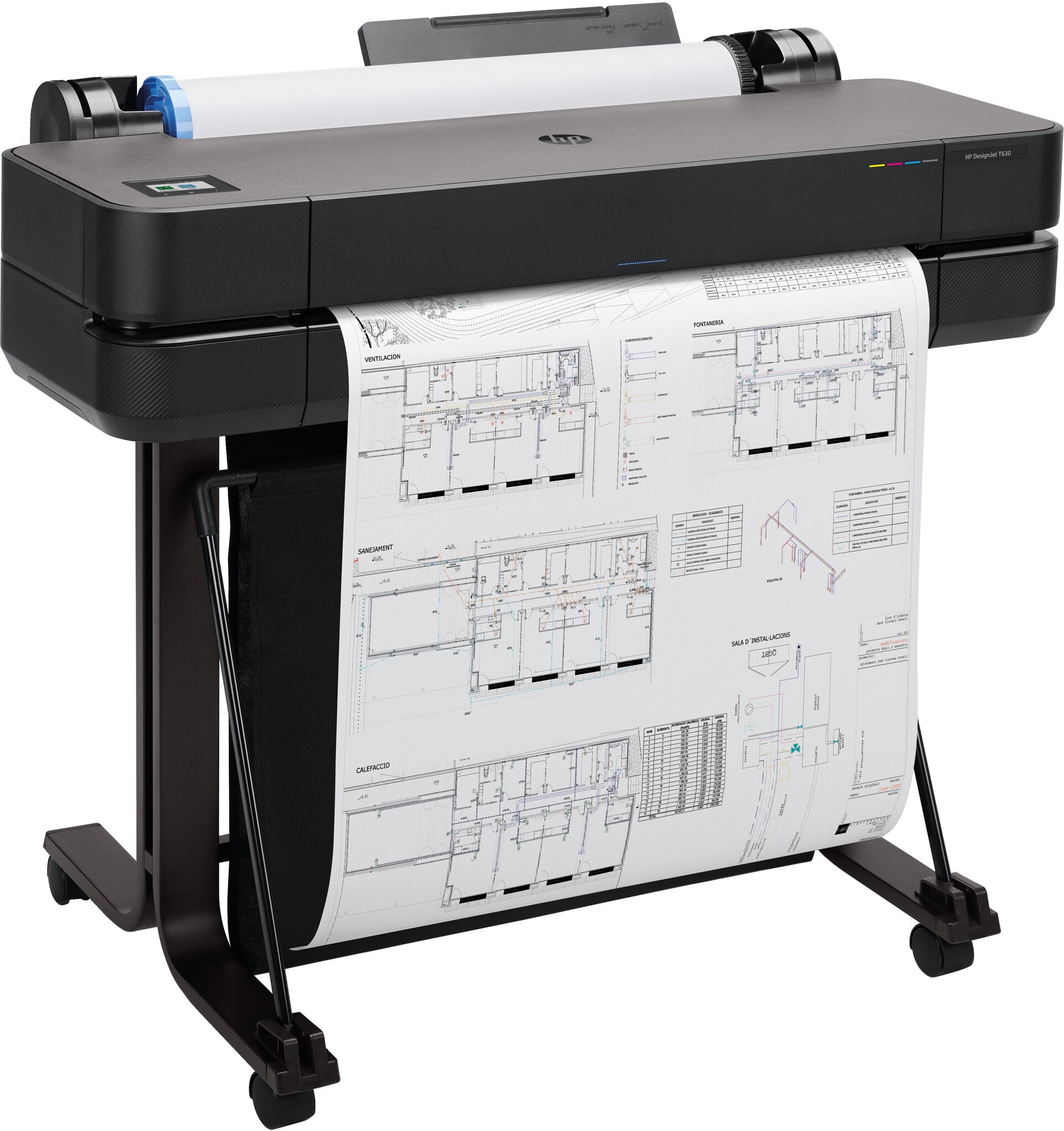

HP Designjet T630 24-in Printer 2025 edition
Couldn't load pickup availability
Focus on the project, not your plotter. This printer delivers incredible ease of use with HP Click Print solutions.[2] It's responsibly designed to help you save energy[4] and reduce plastics use[7]. Plus, it’s compact and adaptable—to fit the way you work.
Dynamic security enabled printer Certain HP printers are intended to work only with cartridges that have a new or reused HP chip or electronic circuitry. These printers use dynamic security measures to block cartridges using a non-HP chip or electronic circuitry. Periodic firmware updates will maintain the effectiveness of these measures and block cartridges that previously worked. Reused HP chips and electronic circuitry enable the use of reused, remanufactured, and refilled cartridges.
| Printing | |
|---|---|
| Print technology | Thermal inkjet |
| Colour | Yes |
| Maximum resolution | 2400 x 1200 DPI |
| Print resolution colour | 2400 x 1200 DPI |
| Number of print cartridges | 4 |
| Page description languages | HP-GL/2, JPEG, HP-RTL, CALS G4, URF |
| Printing colours | Black, Cyan, Magenta, Yellow |
| Print speed (normal quality, A1) | 76 pph |
| Copying | |
|---|---|
| Copying | No |
| Scanning | |
|---|---|
| Scanning | No |
| Paper handling | |
|---|---|
| Maximum print size | A1 (594 x 841 mm) |
| Paper tray media types | Coated paper, Plain paper, Semi-glossy paper, Glossy paper, Bond paper, Photo paper, Matte paper, Heavy paper, Satin paper |
| ISO A-series sizes (A0...A9) | A1, A2, A3, A4 |
| Cut sheets | Yes |
| Media thickness | 0.3 mm |
| Maximum roll width | 61 cm |
| Maximum roll diameter | 10 cm |
| Custom media sizes | Auto sheet feeder: 210 x 279 to 330 x 482 mm; manual feed: 210 x 279 to 610 x 1897 mm |
| Recommended media weight | 60 - 280 g/m² |
| Ports & interfaces | |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi Direct | Yes |
| Performance | |
|---|---|
| Product colour | Black |
| Built-in display | No |
| Internal memory | 1024 MB |
| Introduction year | 2024 |
| Country of origin | China |
| Certification | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| HP segment | Business |
| Brand-specific features | |
|---|---|
| HP dynamic security | Yes |
| Power | |
|---|---|
| Power consumption (typical) | 35 W |
| Power consumption (standby) | 0.2 W |
| Power consumption (sleep) | 2.1 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Operating altitude | 0 - 3000 m |
| Storage relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -25 - 55 °C |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Sustainability compliance | Yes |
| Weight & dimensions | |
|---|---|
| Width | 1013 mm |
| Depth | 605 mm |
| Height | 932 mm |
| Weight | 28.9 kg |
| Packaging data | |
|---|---|
| Package width | 1155 mm |
| Package depth | 575 mm |
| Package height | 475 mm |
| Package weight | 38 kg |
| Bundled software | HP Click App for Windows and macOS, HP Click Driver for Windows 11, HP app for Windows, macOS, Android and iOS |
| General | |
|---|---|
| Product family | Designjet |
| Other features | |
|---|---|
| Electromagnetic compatibility | Compliant with Class B requirements, including: USA (FCC rules), Canada (ICES), EU (EMC/RED Directives), Australia (ACMA), New Zealand (RSM), China (CCC), Japan (VCCI); Certified as Class B product: Korea (KCC) |
| UNSPSC-code | 43212104 |
| Technical details | |
|---|---|
| Box contents | HP DesignJet T630 24-in Printer, printer stand, automatic sheet feeder, printhead, introductory ink cartridges, spindle, quick reference guide, setup poster, power cord |
