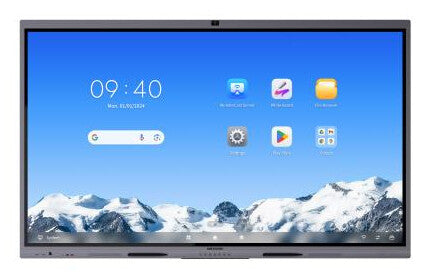

Hikvision Value Series DS-D5C86RB/B2L interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Grey

Hikvision Digital Technology
£1,343,999.99
Stock Available: 1
  • UHD 4K display with a resolution of 3840 × 2160 and 480 nits brightness.
  • Anti-glare and anti-blocking design to ensure smooth interaction.
  • Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
  • Quick response, at most 50-point touch control and smooth writing experience.
  • Built-in network switch chip eliminates the need for an external network switch.
  • Multi-button front design for convenient classroom use.
  • All-in-one design with tempered glass and intelligent temperature control, making it environmentally friendly and safety-guaranteed.
  • Built-in Android 14 system, EDLA certified.
  • Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
  • Built-in sensors for light, humidity, and temperature monitoring.
Display
Display diagonal 2.18 m (86")
Display brightness 480 cd/m²
Display number of colours 1.07 billion colours
Display resolution 3840 x 2160 pixels
HD type 4K Ultra HD
LED backlight Yes
Panel type VA
LED backlighting type Direct-LED
Native aspect ratio 16:9
Contrast ratio (dynamic) 30000:1
Contrast ratio (typical) 5000:1
Response time 2 ms
Maximum refresh rate 60 Hz
Touchscreen Yes
Multi-touch Yes
Touch technology Multi-touch
Touchscreen type Infrared
Number of simultaneous touchpoints 50
Touch resolution 32768 x 32768 pixels
Touch system response time 2 ms
Touch object size (min) 1.5 mm
Viewing angle, vertical 178°
Viewing angle, horizontal 178°
Pixel pitch 0.164 x 0.493 mm
Working area 1895.04 x 1065.96 mm
Haze rate 25%
Hardness 9H
Computer system
Operating system installed Android
Operating system version Android 14.0
Built-in processor Yes
Processor architecture ARM Cortex A76 + ARM Cortex A55
Processor frequency 2.4 GHz
Processor cores 8
User memory 128 GB
RAM capacity 8 GB
Audio
Built-in speaker(s) Yes
Number of built-in speakers 3
Camera
Built-in camera Yes
Camera resolution (numeric) 48 MP
Projector
Built-in projector No
Network
Wi-Fi Yes
Top Wi-Fi standard Wi-Fi 6 (802.11ax)
Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 6 (802.11ax)
Antenna type 2x2
Bluetooth version 5.4
Bluetooth Yes
Bluetooth Low Energy (BLE) Yes
Ethernet LAN Yes
Ethernet LAN data rates 10,100,1000 Mbit/s
Ports & interfaces
HDCP Yes
HDCP version 1.4/2.2/2.3
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 4
USB Type-C ports quantity 1
HDMI ports quantity 3
HDMI output ports quantity 1
Ethernet LAN (RJ-45) ports 2
VGA (D-Sub) ports quantity 1
Line-in Yes
Line-out Yes
RS-232 ports 1
Ergonomics
Product colour Grey
VESA mounting Yes
Panel mounting interface 800 x 600 mm
Performance
Ambient light sensor Yes
Operating hours (hours/days) 16/7
Power
Power consumption (typical) 274 W
Power consumption (standby) 0.5 W
AC input frequency 50 - 60 Hz
AC input voltage 100 - 240 V
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Operating relative humidity (H-H) 10 - 90%
Weight & dimensions
Width 1960.4 mm
Depth 82.4 mm
Height 1173.7 mm
Weight 58.9 kg
Packaging data
Package width 2157 mm
Package depth 223 mm
Package height 1345 mm
Package weight 78.9 kg
Packaging content
Quick start guide Yes
General
Product family Value Series
