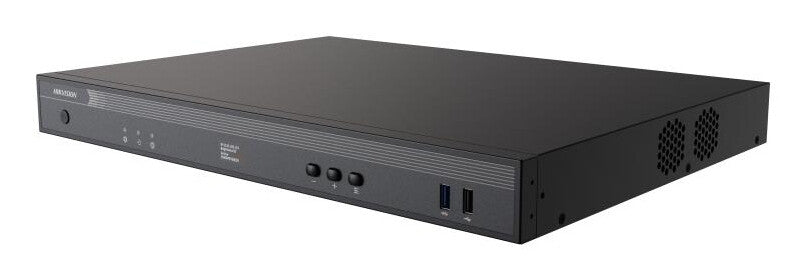

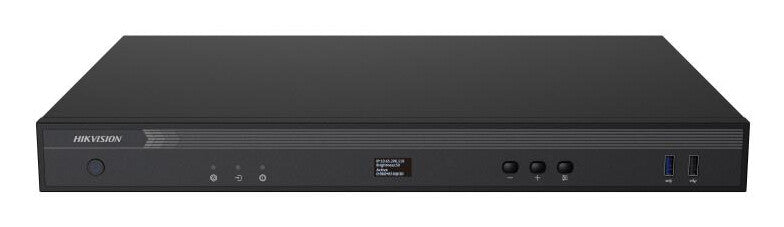

Hikvision DS-DT60P-02HDI12NO/U video wall processor Black
£1,343,999.99
Couldn't load pickup availability
The DS-DT60P-02HDI12NO/U LED controller is used with the full-color LED display. It provides seamless splicing display of large screens of any size. It is suitable for multiple occasions, such as conference rooms, studios, stadiums, airport stations, banks, advertisements, and home cinemas.
| Design | |
|---|---|
| Rack capacity | 1U |
| Rack mounting | Yes |
| Fan location | Side |
| Built-in fan | Yes |
| Control type | Buttons |
| Built-in display | No |
| Product colour | Black |
| Features | |
|---|---|
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.0 |
| HDCP version | 2.2 |
| HDCP | Yes |
| Baud rate | 115200 Kbit/s |
| Operating system installed | Android 12 |
| Internal memory | 4 GB |
| Internal storage capacity | 32 GB |
| Processor frequency | 2 GHz |
| Processor cores | 4 |
| Built-in processor | Yes |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |

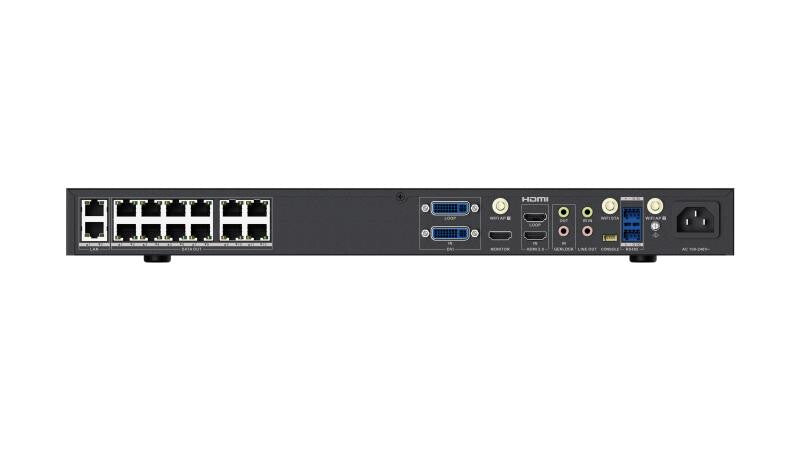

| Ports & interfaces | |
|---|---|
| 3.5 mm connector | Yes |
| USB 2.0 Type-A ports quantity | 2 |
| RJ-45 input ports | 2 |
| RJ-45 output ports | 12 |
| RJ-45 ports quantity | 14 |
| DVI output ports | 1 |
| DVI input ports | 1 |
| HDMI version | 1.4/2.0 |
| HDMI output ports quantity | 2 |
| HDMI input ports quantity | 1 |
| Power | |
|---|---|
| Power supply location | External |
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 42 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage temperature (T-T) | -10 - 50 °C |
| Operating temperature (T-T) | -10 - 50 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 4.48 kg |
| Package height | 103 mm |
| Package depth | 410 mm |
| Package width | 589 mm |
| Weight | 3.36 kg |
| Height | 44.5 mm |
| Depth | 320.8 mm |
| Width | 440 mm |
| Packaging content | |
|---|---|
| Manual | Yes |
