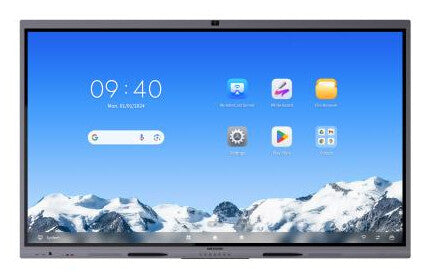

Hikvision DS-D5C86RB/B2L Signage Display Interactive flat panel 2.18 m (86") LED Wi-Fi 480 cd/m² 4K Ultra HD Grey Touchscreen Built-in processor Android 14 16/7
£1,343,999.99
Couldn't load pickup availability
- UHD 4K display with a resolution of 3840 × 2160 and 480 nits brightness.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional with 195×30×180mm OPS) saving cost and easy to use, video conferencing software is recommended to run on the Windows system.
- Quick response, at most 50-point touch control and smooth writing experience.
- Built-in network switch chip eliminates the need for an external network switch.
- Multi-button front design for convenient classroom use.
- All-in-one design with tempered glass and intelligent temperature control, making it environmentally friendly and safety-guaranteed.
- Built-in Android 14 system, EDLA certified.
- Dual full-function USB Type-C ports, supporting up to 100W total power delivery and DisplayPort 1.2 input.
- Built-in sensors for light, humidity, and temperature monitoring.
| Display | |
|---|---|
| Display diagonal | 2.18 m (86") |
| Display technology | LED |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 480 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 50 |
| Number of simultaneous touchpoints (Windows) | 50 |
| Native aspect ratio | 16:9 |
| Response time | 2 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 10.7 billion colours |
| Pixel pitch | 0.164 x 0.493 mm |
| Active display area (W x H) | 1895.04 x 1065.96 mm |
| Panel life | 50000 h |
| Surface hardness | 9H |
| Haze rate | 25% |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI input ports quantity | 2 |
| HDMI output ports quantity | 1 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| USB port | Yes |
| USB 2.0 Type-B ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 2 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | Yes |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 3 |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Grey |
| Placement supported | Indoor |
| Orientation | Landscape |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 600 mm |
| Performance | |
|---|---|
| Purpose | Corporate |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 16/7 |
| Power | |
|---|---|
| Power consumption (typical) | 274 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
|---|---|
| Computer system | Yes |
| Built-in processor | Yes |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Processor frequency | 2.4 GHz |
| Processor cores | 8 |
| Internal memory | 8 GB |
| Internal storage capacity | 128 GB |
| Operating system installed | Android 14 |
| Weight & dimensions | |
|---|---|
| Display width | 1960.4 mm |
| Display depth | 82.5 mm |
| Display height | 1173.7 mm |
| Display weight | 58.9 kg |
| Packaging data | |
|---|---|
| Package width | 2157 mm |
| Package depth | 223 mm |
| Package height | 1345 mm |
| Package weight | 78.9 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Other features | |
|---|---|
| Built-in microphone | Yes |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
| Built-in camera | Yes |
