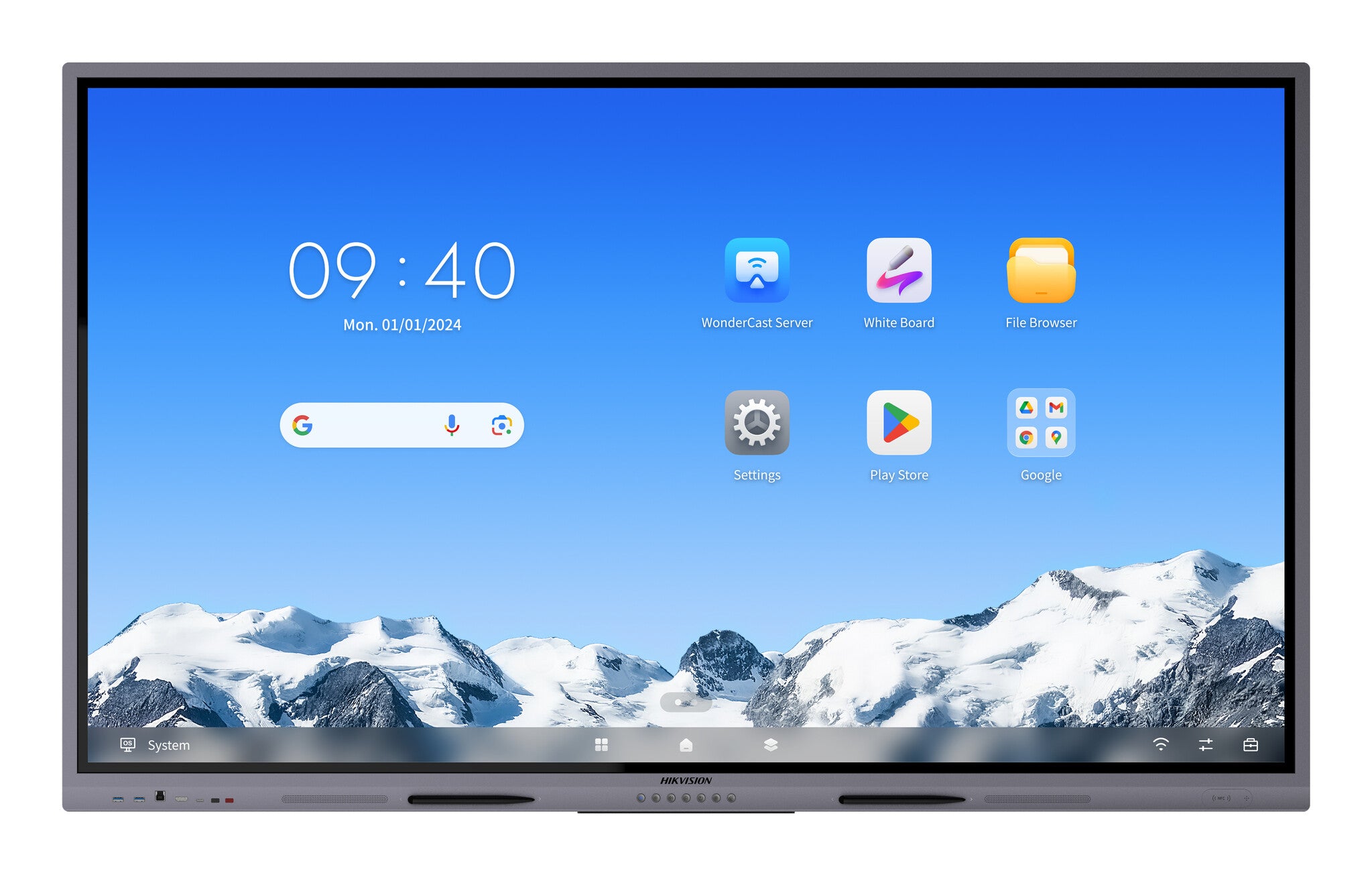

Hikvision DS-D5C75RB/A2L Signage Display Interactive flat panel 190.5 cm (75") LED Wi-Fi 480 cd/m² 4K Ultra HD Grey Touchscreen Built-in processor Android 16/7
£1,343,999.99
Couldn't load pickup availability
- UHD 4K display with resolution of 3840 × 2160.
- Anti-glare and anti-blocking design to ensure smooth interaction.
- Dual systems of Android and Windows (optional with OPS) saving cost and easy to use, video conference software are recommonded to run under Windows system.
- Quick response, at most 50-point touch control and smooth writing experience.
- Built-in network switch chip saves a network switch.
- Multi-button design in front, convenient for classroom use.
- All-in-one design with tempered glass and intelligent temperature control, making it environmental-friendly and safety-guaranteed.
- Built-in Android 14 system, EDLA Certified
The Hikvision Interactive Flat Panel is a kind of newly developed intelligent teaching assistance product which integrates with the latest technologies of touch control, HD display, video processing, network communication, interactive control, sound control. It can be widely applied to the classroom, online teaching, training center, etc.
| Display | |
|---|---|
| Display diagonal | 190.5 cm (75") |
| Display technology | LED |
| Panel type | VA |
| LED backlight | Yes |
| LED backlighting type | Direct-LED |
| Display resolution | 3840 x 2160 pixels |
| Display brightness | 480 cd/m² |
| HD type | 4K Ultra HD |
| Touchscreen | Yes |
| Touchscreen technology | Infrared |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 50 |
| Native aspect ratio | 16:9 |
| Response time | 5 ms |
| Contrast ratio (typical) | 5000:1 |
| Contrast ratio (dynamic) | 30000:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 1.07 billion colours |
| Pixel pitch | 0.143 x 0.143 mm |
| Active display area (W x H) | 1650.24 x 928.26 mm |
| Display diagonal (metric) | 189 cm |
| Panel life | 50000 h |
| Touch response time | 2 ms |
| Colour depth | 10 bit |
| Surface hardness | 9H |
| Haze rate | 25% |
| Native refresh rate | 60 Hz |
| RGB colour space | NTSC |
| Colour gamut | 72% |
| Ports & interfaces | |
|---|---|
| HDMI ports quantity | 3 |
| HDMI version | 2.0 |
| DVI port | No |
| VGA (D-Sub) input ports | 1 |
| USB port | Yes |
| USB ports quantity | 7 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
| USB connector type | USB Type-A, USB Type-B, USB Type-C |
| USB 2.0 Type-B ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB Type-C DisplayPort Alternate Mode | Yes |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 2 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| RS-232 interface | Yes |
| Card reader integrated | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 3 |
| RMS rated power | 65 W |
| Design | |
|---|---|
| Product design | Interactive flat panel |
| Product colour | Grey |
| Placement supported | Indoor |
| Orientation | Horizontal |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 800 x 400 mm |
| Anti-glare screen | Yes |
| Mounting type | Wall |
| Performance | |
|---|---|
| Purpose | Universal |
| Ambient light sensor | Yes |
| Operating hours (hours/days) | 16/7 |
| Automatic gain control | Yes |
| Optical bonding | Yes |
| HDCP version | 2.3 |
| HDCP | Yes |
| Security algorithms | WEP, WPA, WPA2 |
| Power | |
|---|---|
| Power consumption (typical) | 237 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (off) | 0.3 W |
| Energy efficiency class (SDR) | G |
| Energy efficiency class (HDR) | Not available |
| Energy consumption (SDR) per 1000 hours | 237 kWh |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Energy efficiency scale | A to G |
| Computer system | |
|---|---|
| Computer system | Yes |
| Computer system type | System on Chip (SoC) |
| Built-in processor | Yes |
| Processor manufacturer | ARM |
| Processor family | ARM Cortex |
| Processor architecture | ARM Cortex-A76+Cortex-A55 |
| Processor frequency | 2.4 GHz |
| Processor cores | 8 |
| Internal memory | 8 GB |
| On-board graphics card model | Mali G610 MC4 |
| Internal storage capacity | 128 GB |
| Operating system installed | Android |
| Operating system version | 14 |
| Weight & dimensions | |
|---|---|
| Display width | 1713.2 mm |
| Display depth | 82.5 mm |
| Display height | 1019 mm |
| Display weight | 45.4 kg |
| Packaging data | |
|---|---|
| Package weight | 63.1 kg |
| Packaging content | |
|---|---|
| Mounting kit | Yes |
| Cables included | AC, HDMI, USB |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Other features | |
|---|---|
| Subwoofer RMS power | 25 W |
| Built-in subwoofer | Yes |
| Bluetooth Low Energy (BLE) | Yes |
| Power supply type | Internal |
| USB 2.0 ports quantity | 1 |
| Bluetooth version | 5.4 |
| Bluetooth | Yes |
