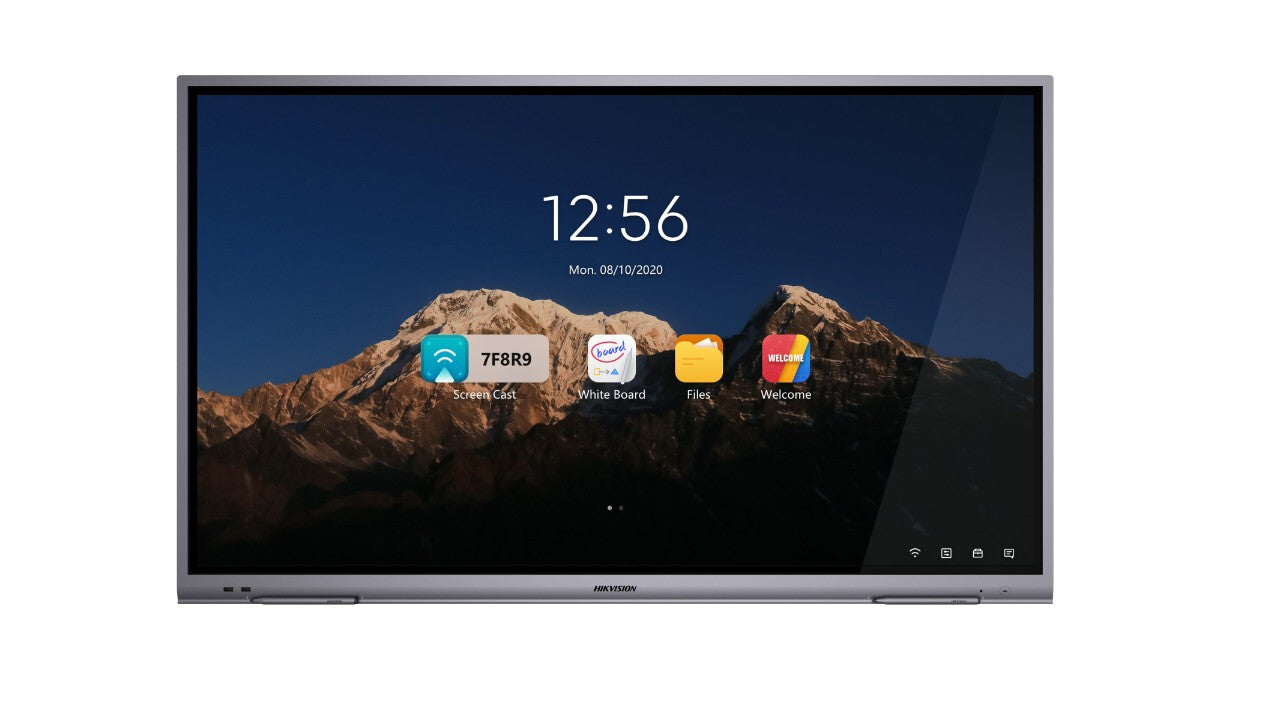

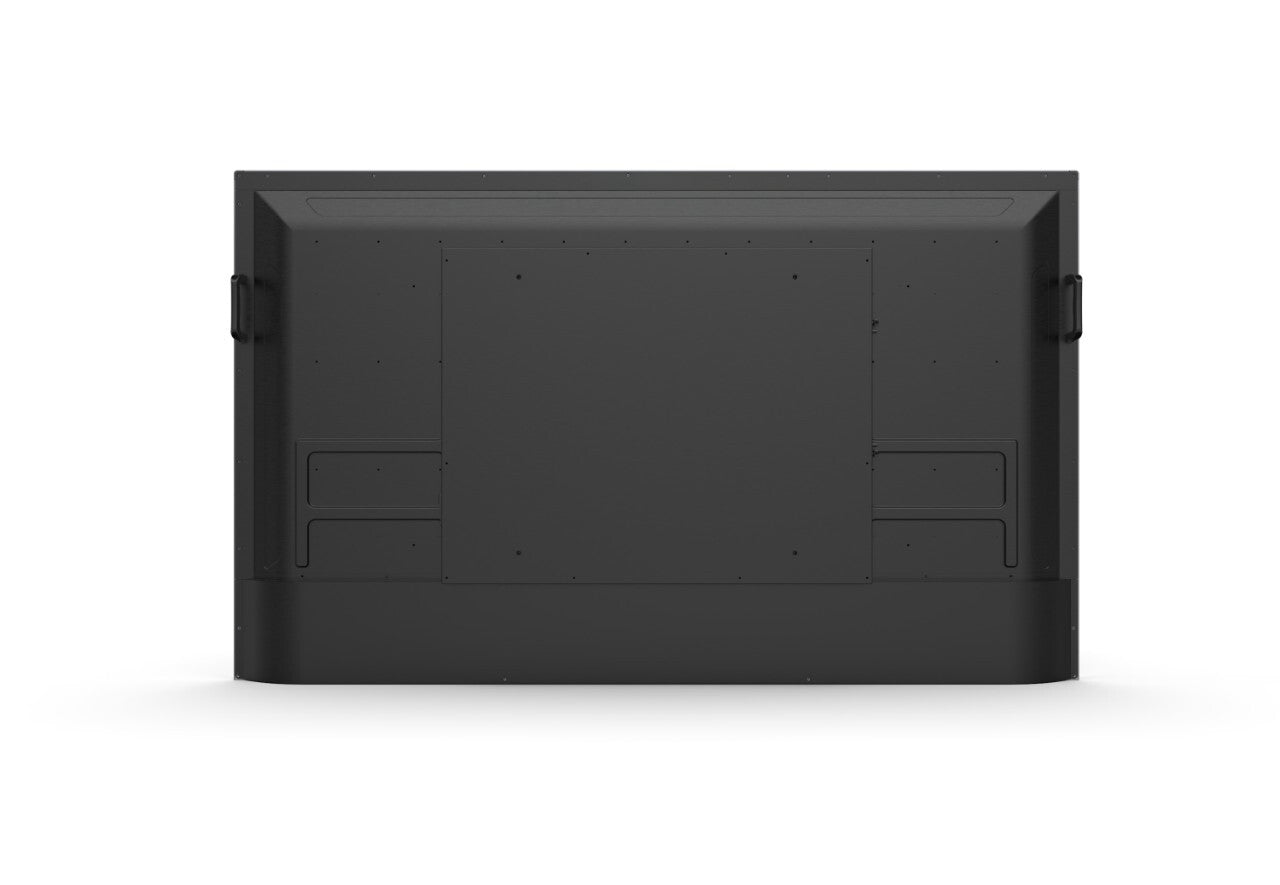

Hikvision DS-D5B86RB/A interactive whiteboard 2.18 m (86") 3840 x 2160 pixels Touchscreen Black

Hikvision Digital Technology
£1,779.99
Stock Available: 0
  • Ultra HD display with up to 3840 × 2160 resolution of input signal available
  • 20px ultra fine writing, and 2 mm diameter recognizable with the precision of 1 mm
  • Built-in Wi-Fi realizes miracasting without any cable connection
  • Built-in interactive whiteboard system allows annotating and sharing by QR code
  • Looping-out display available
  • Various audio and video interfaces for device access
  • Built-in network switch chip saves a network switch
  • Built-in Android system provides kinds of applications
  • Compatible with OPS/OPS-C devices, realizing smooth switch between built-in systems
  • Ultra-thin design with aluminum profile frame



    • Product Model

    • Product ModelDS-D5B86RB/A



    • Display

    • Screen Size86 inch LED Backlight

    • BacklightDLED

    • Pixel Pitch0.164(H) ? 0.493(V) mm

    • Resolution3840 ? 2160 @60 Hz

    • Brightness350 cd/m?

    • Color Depth10 bit

    • Contrast Ratio1200:1(Typ.)

    • Response Time6 ms

    • Color Gamut90% NTSC(CIE1931)(Typ.)

    • Refresh Rate60 Hz

    • Viewing Angle178?(H)/178?(V)



    • Built-In System

    • Operation SystemAndroid 8.0

    • Processor4-core A73 ? 2 + A53 ? 2, 1.5 GHz

    • Memory3 GB

    • Built-In Storage32 GB

    • NICBuilt-in 100 Mbps NIC, supporting routing



    • Touch

    • TypeInfrared touch screen

    • GlassAG smooth glass

    • Touch Point20 point multi-touch

    • Touch Response Time< 10 ms

    • Touch Precision?1 mm (>= 90% touching area)

    • Touch CraftFull paste



    • Internal Function

    • LoudspeakerBuilt-in 2 ? 16 W loudspeaker

    • BluetoothBuilt-in BLE (Bluetooth Low Energy) module supports Bluetooth 5.0 and previous version.



    • Interface

    • Video & Audio InputHDMI IN ? 2,MAX 4 K @ 60 Hz, LINE IN ? 1

    • Video & Audio OutputHDMI OUT ? 1,MAX 4K @ 60 Hz; LINE OUT ? 1

    • Control InterfaceRS-232 ? 1

    • Network InterfaceRJ45 (100Mbps ports) ? 2

    • Data Transmission Interface2 USB on front panel , 2 USB on rear panel



    • Power

    • Power Consumption< 420 W (full load)

    • Standby Consumption0.5 W



    • Working Environment

    • Working Temperature0 ?C~40 ?C

    • Working Humidity10%~90% RH



    • General

    • PowerAC 100 V~240 V,50/60 Hz

    • Product Dimensions1963? 1159 ? 87.5 mm

    • Package Dimensions (W ? H ? D)2187 x 1366 x 274mm

    • Net Weight65.12 kg

    • Gross Weight86.24 kg





Display
Pixel pitch 0.164 x 0.493 mm
Viewing angle, horizontal 178°
Viewing angle, vertical 178°
Touch system response time 10 ms
Number of simultaneous touchpoints 20
Touchscreen type Infrared
Touch technology Multi-touch
Touchscreen Yes
Maximum refresh rate 60 Hz
Response time 6 ms
Contrast ratio (typical) 1200:1
LED backlighting type Direct-LED
HD type 4K Ultra HD
Display resolution 3840 x 2160 pixels
Display brightness 350 cd/m²
Display diagonal 2.18 m (86")
Computer system
RAM capacity 3 GB
User memory 32 GB
Processor frequency 1.5 GHz
Processor architecture ARM Cortex A73 + ARM Cortex A53
Built-in processor Yes
Operating system version 8
Operating system installed Android
Audio
Speaker power 16 W
Number of built-in speakers 2
Built-in speaker(s) Yes
Projector
Built-in projector No
Network
Bluetooth Yes
Bluetooth version 5.0
Wi-Fi Yes
Ports & interfaces
RS-232 ports 1
Ethernet LAN (RJ-45) ports 1
HDMI output ports quantity 1
HDMI ports quantity 3
USB 2.0 ports quantity 3
Ergonomics
Product colour Black
Power
Energy efficiency scale A to G
Energy efficiency class G
AC input voltage 100 - 240 V
AC input frequency 50 - 60 Hz
Power consumption (standby) 0.5 W
Power consumption (max) 420 W
Weight & dimensions
Weight 65.1 kg
Height 1159 mm
Depth 87.5 mm
Width 1963 mm
Packaging data
Package weight 86.2 kg
Package height 1366 mm
Package depth 274 mm
Package width 2187 mm
