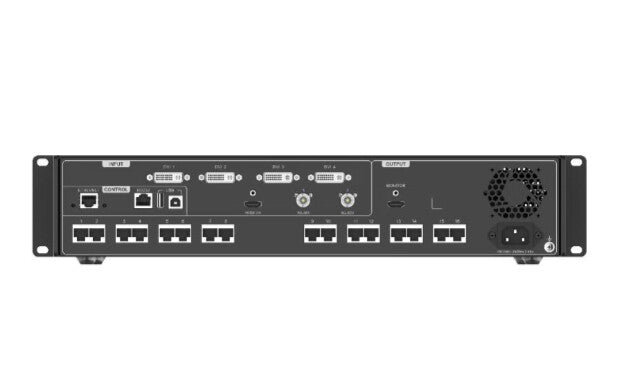

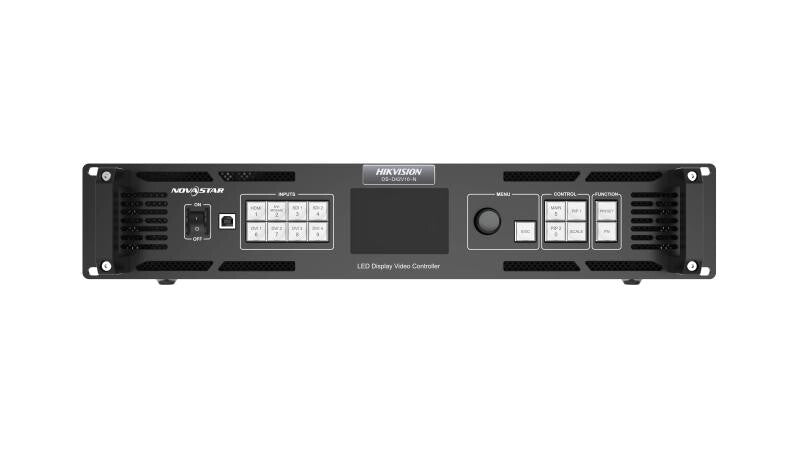

Hikvision DS-D42V16-N video wall processor Black
£1,343,999.99
Couldn't load pickup availability
- 16 Ethernet output ports load up to 10,400,000 pixels
- Up to 4 DVI inputs can form an independent input source, which is DVI Mosaic
- Supported frame rates include 23.98 Hz, 29.97 Hz, 47.95 Hz, 59.94 Hz, 71.93 Hz and 119.88 Hz
- Up to 4 devices can be linked to load a super large screen when used together with the video distributor
- Up to 10 presets can be saved for future use
- Custom EDID and standard EDID supported
- In backup mode, when the signal is lost or the Ethernet port fails on the primary device, the backup device will take over the task seamlessly
LED Controllers – Enabling seamless visual impact
Unlock seamless visual experiences with Hikvision LED controllers, the essential components of LED full-color screens. They achieve the seamless stitching of video walls of any sizes, elevating your brand presence in stadiums, airports, stations, banks, advertisements, family cinemas, and beyond.
| Design | |
|---|---|
| Rack capacity | 2.1U |
| Rack mounting | Yes |
| Control type | Buttons |
| Built-in display | No |
| Product colour | Black |
| Features | |
|---|---|
| Maximum resolution | 4096 x 2160 pixels |
| HDCP version | 1.4 |
| HDCP | Yes |
| Ethernet LAN | Yes |
| Automatic brightness control | Yes |
| Colour depth | 10 bit |
| Greyscale levels | 1024 |
| Maximum refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| RS-232/422 connector | Yes |
| USB 2.0 Type-A ports quantity | 1 |
| RJ-45 output ports | 16 |
| DVI input ports | 4 |
| HDMI input ports quantity | 1 |
| Power | |
|---|---|
| Input frequency | 50/60 Hz |
| Input voltage | 100 - 240 V |
| Power consumption (typical) | 70 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 85% |
| Operating relative humidity (H-H) | 20 - 85% |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 45 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 9.78 kg |
| Package height | 420 mm |
| Package depth | 193 mm |
| Package width | 530 mm |
| Weight | 6.22 kg |
| Height | 372.5 mm |
| Depth | 94.6 mm |
| Width | 482.6 mm |
