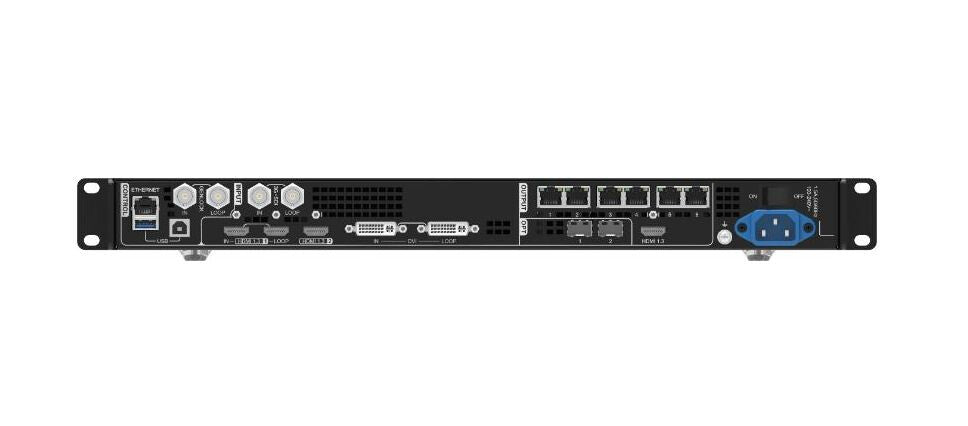

Hikvision DS-D42V06-N video wall processor Black 28 W
Hikvision DS-D42V06-N video wall processor Black 28 W
Hikvision DS-D42V06-N video wall processor Black 28 W
Hikvision DS-D42V06-N video wall processor Black 28 W

Hikvision DS-D42V06-N video wall processor Black 28 W

Hikvision Digital Technology
£1,343,999.99
Stock Available: 0
  • Thanks to the self-adaptive design, OPT 1 can be used as either an input or output connector, depending on its connected device
  • Reduce the delay from the input to receiving card to 20 lines when the low latency function and Bypass mode are both enabled
  • An internal input source or external Genlock can be used as the sync source to ensure the output images of all cascaded units in sync
  • The mosaic source is composed of two sources (2K×1K@60Hz) accessed to the OPT 1
  • Work with software to support brightness and chroma calibration on each LED, effectively removing color discrepancies and greatly improving LED display brightness and chroma consistency, allowing for better image quality
  • Up to 4 units cascaded for image mosaic

Hikvision LED displays are designed to captivate and inspire. Hikvision high-quality LED displays deliver an unparalleled visual experience that transforms any space into an immersive destination. Whether you need an LED wall for a stunning atrium or a digital signage solution for wayfinding, Hikvision LED displays always bring your vision to life and illuminate the possibilities.

Design
Control type Buttons
Built-in display No
Product colour Black
Features
Maximum resolution 10240 x 8192 pixels
Ethernet LAN Yes
Automatic brightness control Yes
Colour depth 8 bit
Greyscale levels 16
Maximum refresh rate 60 Hz
Ports & interfaces
USB 2.0 Type-A ports quantity 1
RJ-45 input ports 1
RJ-45 output ports 6
RJ-45 ports quantity 76
DVI input ports 2
HDMI output ports quantity 1
HDMI input ports quantity 3
Power
Input frequency 50/60 Hz
Input voltage 100 - 240 V
Power consumption (typical) 9 W
Power consumption (max) 28 W
Operational conditions
Storage relative humidity (H-H) 10 - 95%
Operating relative humidity (H-H) 20 - 90%
Storage temperature (T-T) -20 - 70 °C
Operating temperature (T-T) 0 - 45 °C
