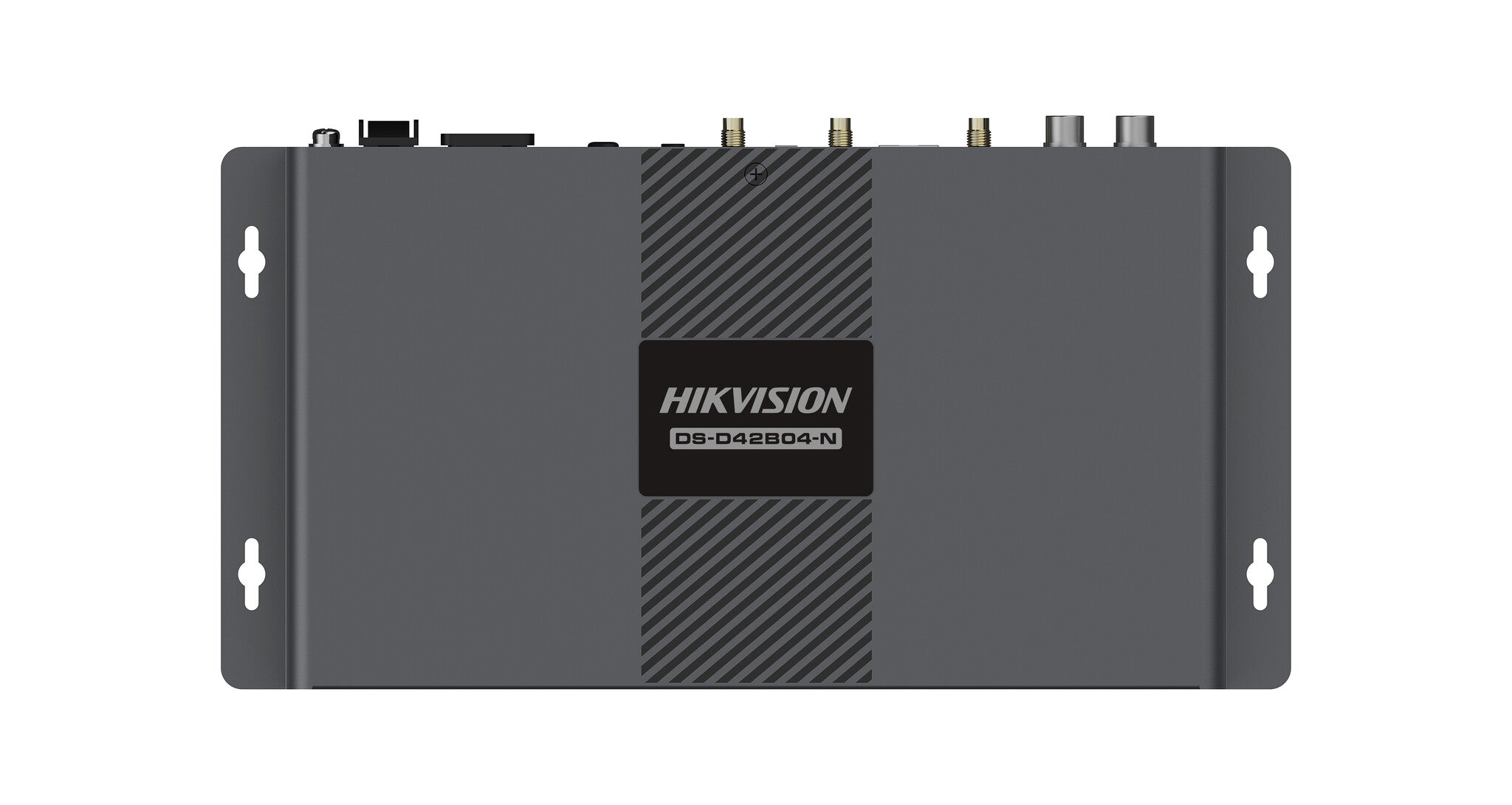

Hikvision DS-D42B04-N video wall processor Grey 16 W
£1,343,999.99
Couldn't load pickup availability
- Loading capacity up to 2,300,000 pixels, maximum width: 4096 pixels, maximum height: 4096 pixels
- 4x Gigabit Ethernet ports
- 1x HDMI1.4 output port, support up to 1080P@60Hz
- 1x HDMI1.4 input port, support full-screen scaling in synchronous mode
| Design | |
|---|---|
| Product colour | Grey |
| Features | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Colour depth | 8 bit |
| Number of colours | 281000000 M |
| Maximum refresh rate | 60 Hz |
| Scaled resolutions | 4096 x 4096 |
| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 4 |
| RJ-45 ports quantity | 5 |
| HDMI version | 1.4 |
| HDMI output ports quantity | 1 |
| HDMI input ports quantity | 1 |
| Power | |
|---|---|
| Input frequency | 50/60 Hz |
| Input voltage | 100-240 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 0 - 80% |
| Operating relative humidity (H-H) | 0 - 80% |
| Storage temperature (T-T) | -40 - 80 °C |
| Operating temperature (T-T) | -20 - 60 °C |
| Weight & dimensions | |
|---|---|
| Package weight | 1.48 kg |
| Package height | 280 mm |
| Package depth | 75 mm |
| Package width | 385 mm |
| Weight | 1.23 kg |
| Height | 139 mm |
| Depth | 40 mm |
| Width | 274.3 mm |
