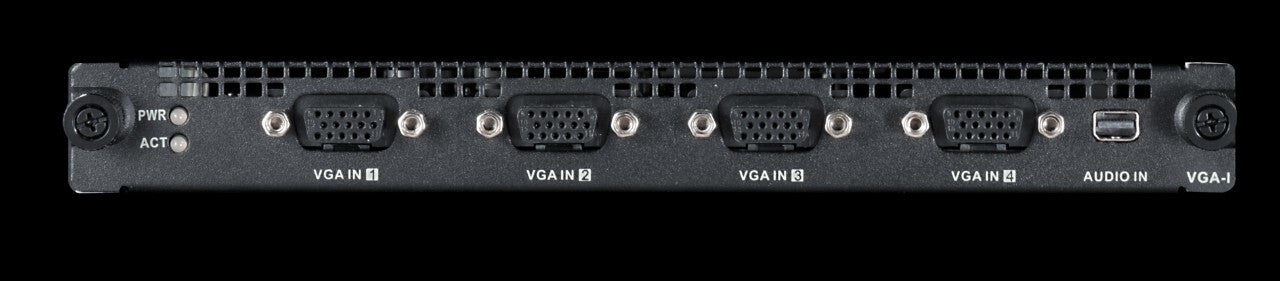

• 4 × VGA input boards: each board supports 4 VGA input and 444 collection
• Supported input resolution: 1024×768@60Hz, 1280×1024@60Hz, 1366×768@60Hz, 1440×900@60Hz, 1680×1050@60Hz, 1280×960@60Hz, 1600×1200@60Hz, 1280×720P@50Hz, 1280×720P@60Hz, 1920×1080P@50Hz, 1920×1080P@60Hz, 1920×1200@60Hz
• Each board has one audio input interface and supports 4 extended audio input

The DS-C30S video wall controller is a new-generation pure hardware image processing device based on FPGA. Compared with the traditional controller, the device has a brand-new system structure and adopts data dual exchange technology to support large-capacity data transmission and processing. With high image processing performance, the device supports the access and real- time processing of multi-channel high definition and ultra-high definition signals. Adopting the structure of main control board plus input and output board, which can be configured as required, the device supports multi-screen management. This product is mainly used in large-screen splicing control system and considered the core control device of the system.
