GIGABYTE Z890 EAGLE WIFI7 PLUS Motherboard

Gigabyte · MPN: Z890 EAGLE WIFI7 PLUS
£230.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £76.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Maximum resolution3840 x 2160 pixels
  • Wi-Fi standardsWi-Fi 7 (802.11be)
  • Weight2.51 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Ultra Turbo Mode: Unlock the Hidden performance
  • Supports Intel Core Ultra processors (Series 2)
  • Digital twin 14+1+2 phases VRM solution
  • D5 Bionic Corsa for Infinite Memory Performance
  • Premium Compatibility: 4*DDR5 with XMP Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: USB4 Type-C with DP-Alt, DisplayPort

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speed (max)9466 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Show all 106 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported4
Number of HDDs supported8
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution3840 x 2160 pixels
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2 (3.1 Gen 2) connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
Number of water pump connectors2
12V power connectorYes
Thunderbolt headers2
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4

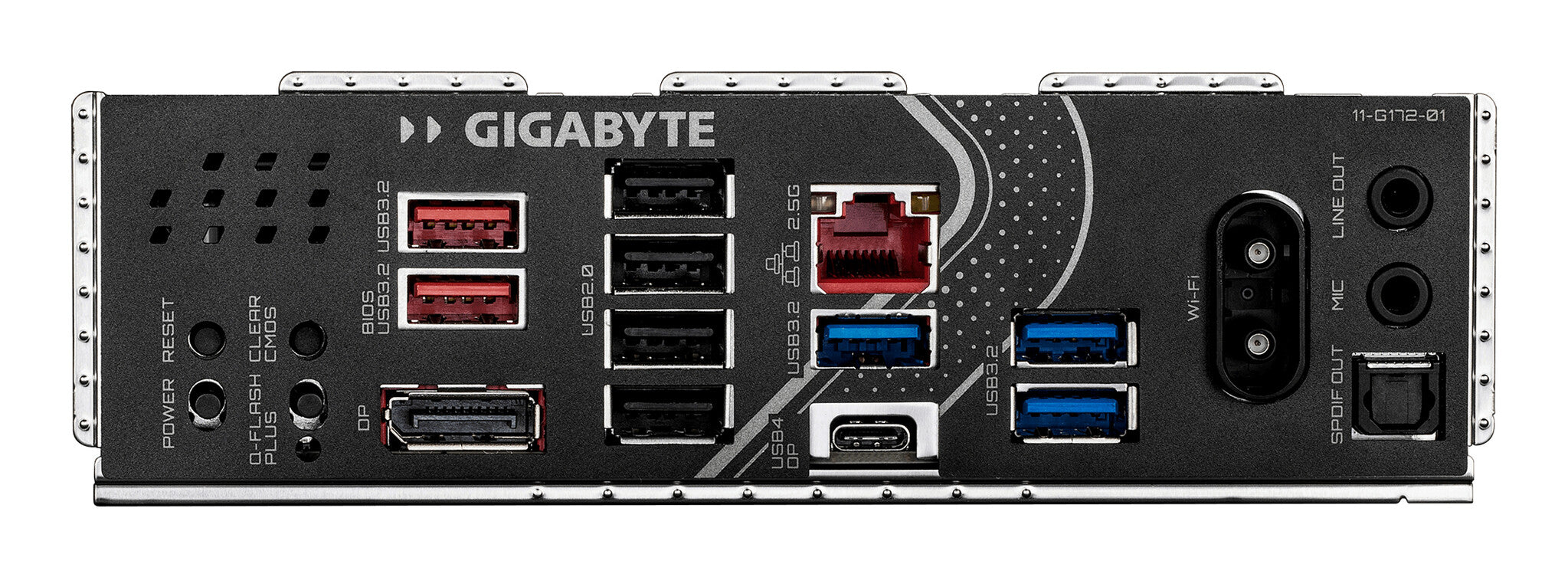

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 3x2 ports quantity1
Ethernet LAN (RJ-45) ports1
DisplayPorts quantity1
DisplayPort version2.1
Line-inYes
Headphone outputs1
S/PDIF out portYes
Digital audio optical out1
Thunderbolt ports quantity2
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8125D
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelIntel WIFI 7 BE202NGW M
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z890
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
4th M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size512 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes
Antenna includedYes
Bundled softwareNorton® Internet Security (OEM version)

Technical details

Warranty period3 year(s)

Other features

Weight2.51 kg
