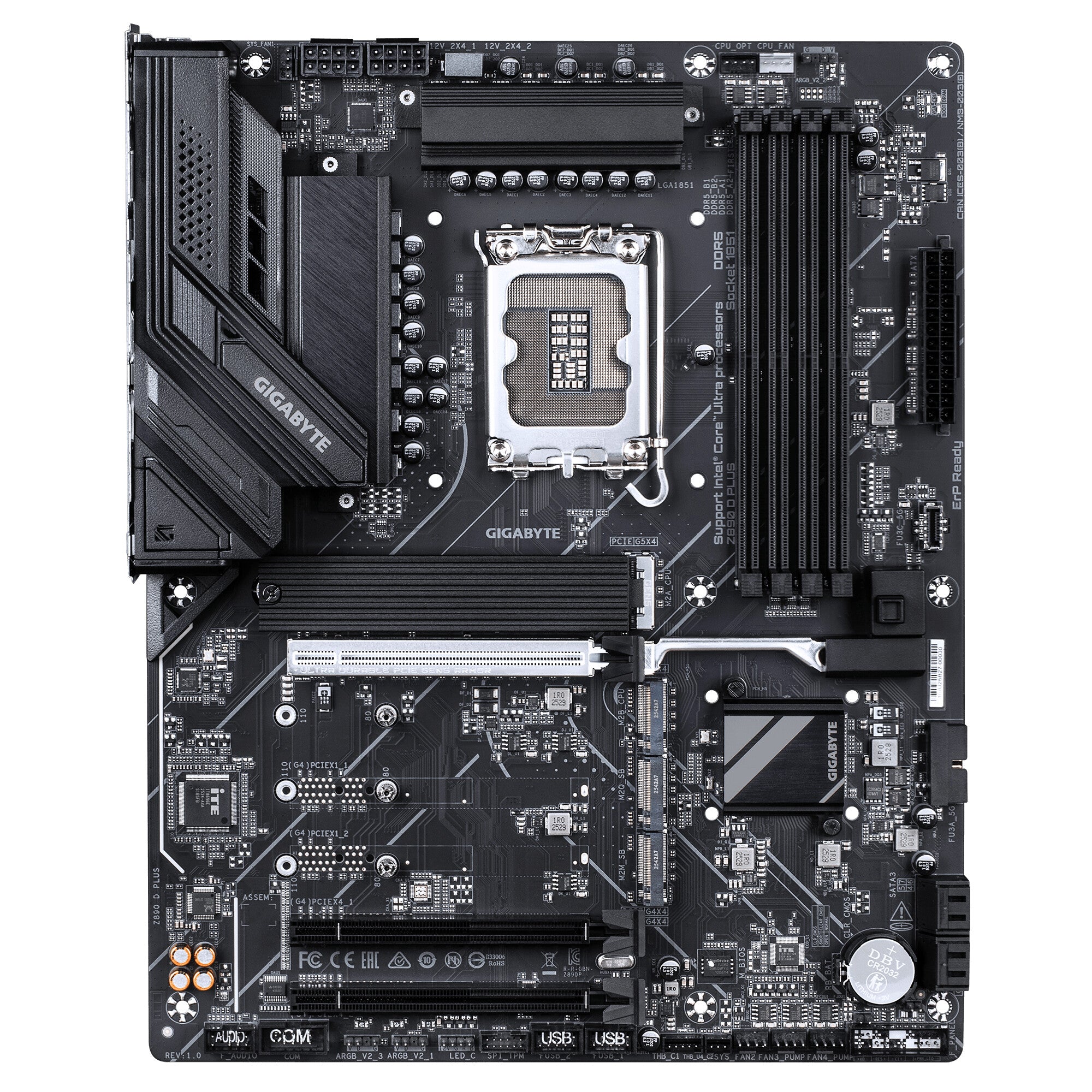

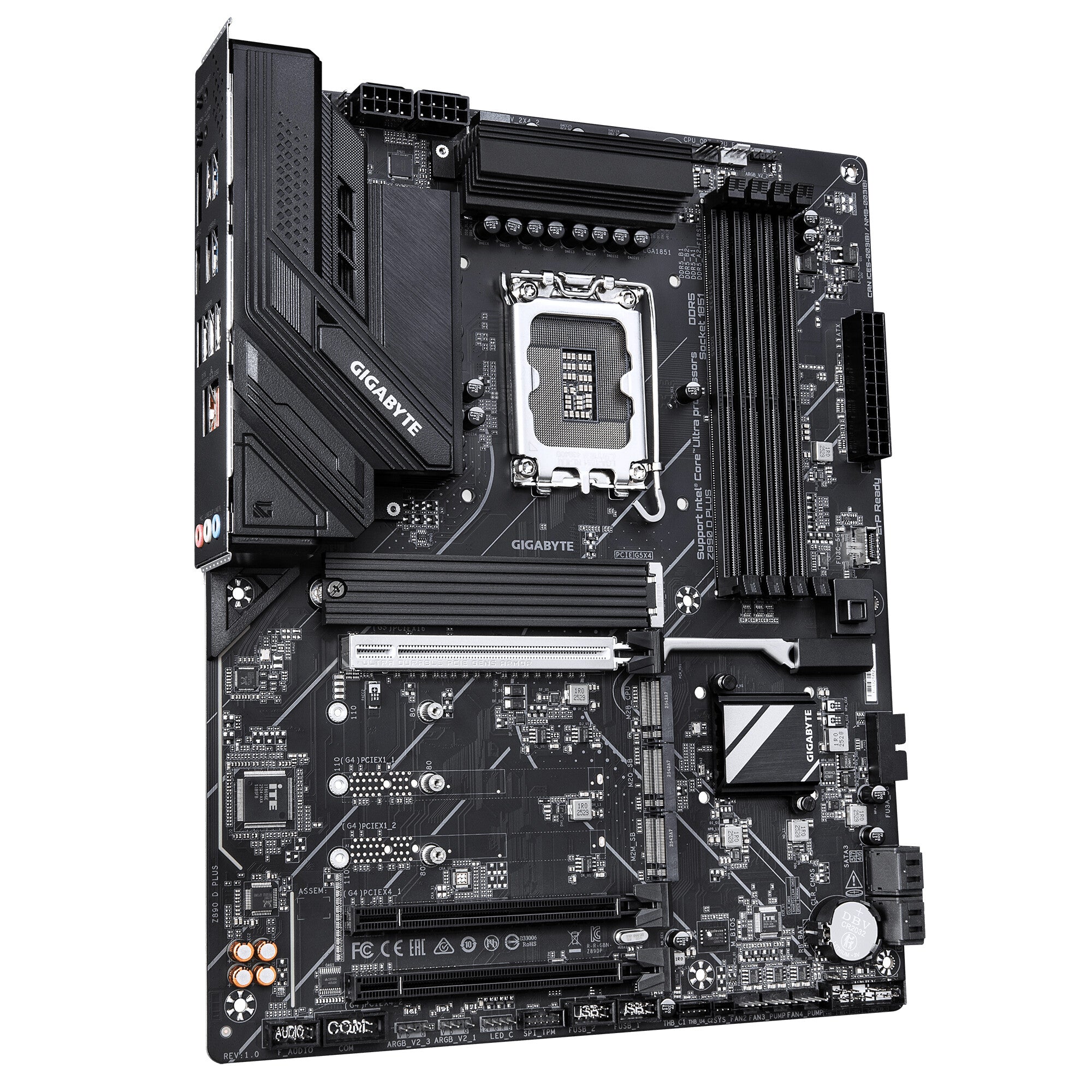

GIGABYTE Z890 D PLUS Motherboard - Supports Intel Core Ultra (Series 2) CPUs, 12+1+2 phases VRM, up to 9466MHz DDR5 (OC), 1xPCIe 5.0 M.2 + 3xPCIe 4.0 M.2, 2.5GbE LAN, USB 3.2 Gen 2
£185.99
Couldn't load pickup availability
- Ultra Turbo Mode: Unlock the Hidden performance
- Supports Intel Core Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- Premium Compatibility: 4*DDR5 with XMP Memory Module Support
- PCIe EZ-Latch Plus: PCIe slots with Quick Release & Screwless Design
- Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking: 2.5GbE LAN
- Extended Connectivity: DisplayPort
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor socket | LGA 1851 (Socket V1) |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Memory | |
|---|---|
| Supported memory types | DDR5-SDRAM |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | Non-ECC |
| Supported memory clock speed (max) | 9466 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 8 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 5, 10 |
| Graphics | |
|---|---|
| Parallel processing technology support | Not supported |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP version | 2.3 |
| HDCP | Yes |
| DirectX version | 12.0 |
| Internal I/O | |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| CPU fan connector | Yes |
| Number of CPU fan connectors | 2 |
| Number of chassis fan connectors | 4 |
| EPS power connector (8-pin) | Yes |
| Number of EPS power connectors (8-pin) | 2 |
| Number of water pump connectors | 2 |
| Serial port headers | 1 |
| Thunderbolt headers | 2 |
| TPM connector | Yes |
| RGB LED pin header | Yes |
| Number of RGB LED pin headers | 4 |

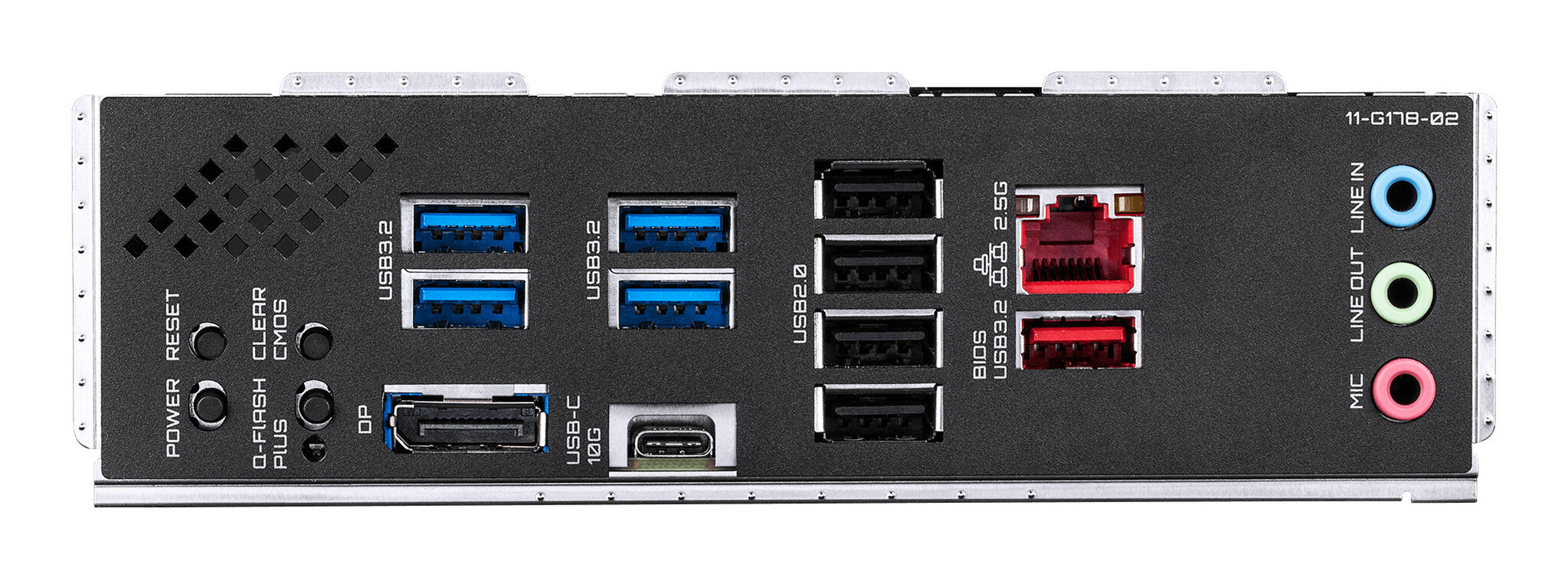

| Rear panel I/O ports | |
|---|---|
| USB 2.0 ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 2.1 |
| Line-in | Yes |
| Headphone outputs | 1 |
| Microphone in | Yes |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet, Fast Ethernet, 2.5 Gigabit Ethernet |
| LAN controller | Realtek RTL8125 |
| Wi-Fi | No |
| Features | |
|---|---|
| Component for | PC |
| Motherboard form factor | ATX |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Audio chip | Realtek ALC897 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64, Windows 10 x64 |
| Expansion slots | |
|---|---|
| PCI Express x16 (Gen 4.x) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| Number of M.2 (M) slots | 4 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Clear CMOS button | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Battery | |
|---|---|
| Lithium weight per battery | 0.07 g |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
| Packaging data | |
|---|---|
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 1.7 kg |
| Logistics data | |
|---|---|
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
|---|---|
| Width | 305 mm |
| Depth | 244 mm |
| Height | 35 mm |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Screws included | Yes |
| Bundled software | Norton® Internet Security (OEM version) |
| Technical details | |
|---|---|
| Warranty period | 3 year(s) |
| Other features | |
|---|---|
| Weight | 1.47 kg |
