GIGABYTE Z890 AORUS PRO ICE Motherboard

Gigabyte · MPN: Z890 AORUS PRO ICE
£276.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £92.33 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Wi-Fi standardsWi-Fi 7 (802.11be)
  • Weight2.27 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • Digital 16+1+2+1 Phases 90A SPS VRM with Tantalum Polymer Capacitor
  • Reinforced PCIe UD Slot X PCIe 5.0 with PCIe EZ-Latch Plus Design
  • PCIe M.2 design (Up to 25110) with M.2 EZ-Latch Plus & Thermal Guard
  • Fully Covered MOSFET Heatsinks with heatpipe/M.2 EZ-Latch Click Design
  • Intel 2x2 Wi-Fi 7 BE200 with WIFI EZ-Plug Design
  • 5GbE LAN, THUNDERBOLT 4 Type-C, USB 3.2 Gen2x2 Type-C
  • AORUS Exclusive DDR Cooling kit: DDR Wind Blade

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel Core Ultra (Series 2)
Supported processor socketsLGA 1851
Maximum internal memory supported by processor256 GB

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds5600,5800,6000,6200,6400,6600,6800,7000,7200,7400,7600,7800,7900,7950,8000,8200,8266,8400,8600,9500 MHz
Supported memory clock speed (max)9500 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory256 GB
Show all 82 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported4
Number of HDDs supported9
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

On-board graphics cardNo
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
Total number of SATA connectors4
ATX Power connector (24-pin)Yes
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes

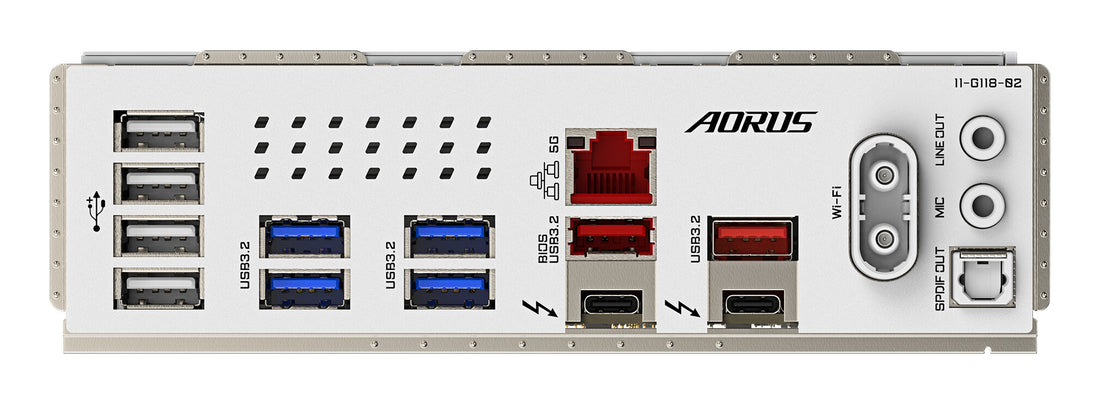

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
DisplayPorts quantity2
Microphone inYes
S/PDIF out portYes
Thunderbolt ports quantity2

Network

Ethernet LANYes
Ethernet interface type5 Gigabit Ethernet
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelIntel Wi-Fi 7 BE200
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel Z890
Audio chipRealtek ALC1220
Audio output channels7.1 channels
Product colourWhite
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots5

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Bundled softwareNorton® Internet Security (OEM version)
LAN bandwidth management software

Technical details

Warranty period3 year(s)

Other features

Weight2.27 kg
