GIGABYTE X870E EAGLE WIFI7 Motherboard - Supports AMD Ryzen 9000 CPUs, 16+2+2 Phases Digital VRM, up to 8200Hz DDR5 (OC), 1xPCIe 5.0 + 3xPCIe 4.0, Wi-Fi 7, 5GbE LAN, USB 4

Gigabyte · MPN: X870E EAGLE WF7
£245.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £81.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Maximum resolution4096 x 2304 pixels
  • Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
  • Weight1.9 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • AMD Socket AM5: Supports AMD Ryzen 9000 / 8000 / 7000 Series Processors
  • Digital twin 16+2+2 phases VRM solution
  • Dual Channel DDR5: 4*DIMMs with AMD EXPO Memory Module Support
  • WIFI EZ-Plug: Quick and easy design for Wi-Fi antenna installation
  • EZ-Latch Plus: PCIe and M.2 slots with Quick Release & Screwless Design
  • EZ-Latch Click: M.2 heatsinks with screwless design
  • Ultra-Fast Storage: 4*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Fast Networking: 5GbE LAN & Wi-Fi 7 with directional Ultra-high gain antenna
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge technology.

Specifications

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)8200 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Show all 108 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported8
Number of HDDs supported4
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2304 pixels
HDCP version2.3
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors3
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)2
Number of water pump connectors2
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4

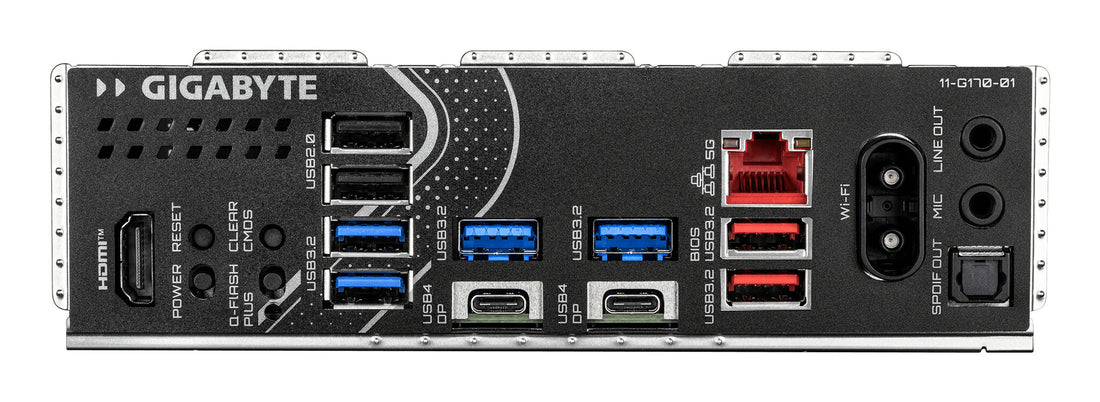

Rear panel I/O ports

USB 2.0 ports quantity2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity2
USB4 Gen 2x2 ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPort version1.4
Line-inYes
Headphone outputs1
S/PDIF out portYes
Digital audio optical out1
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet, 5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controllerRealtek RTL8126
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
WLAN controller modelRealtek RTL8922AE
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X870E
Audio chipRealtek ALC1220-VB
Audio output channels7.1 channels
Product colourBlack
PC health monitoringCPU, Fan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots1
PCI Express x16 (Gen 3.x) slots1
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots4
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size22110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size22110
3rd M.2 highest PCI Express generation4.0
4th M.2 largest key size22110
4th M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes
Antenna includedYes
Bundled softwareNorton® Internet Security (OEM version)

Technical details

Warranty period3 year(s)

Other features

Weight1.9 kg
