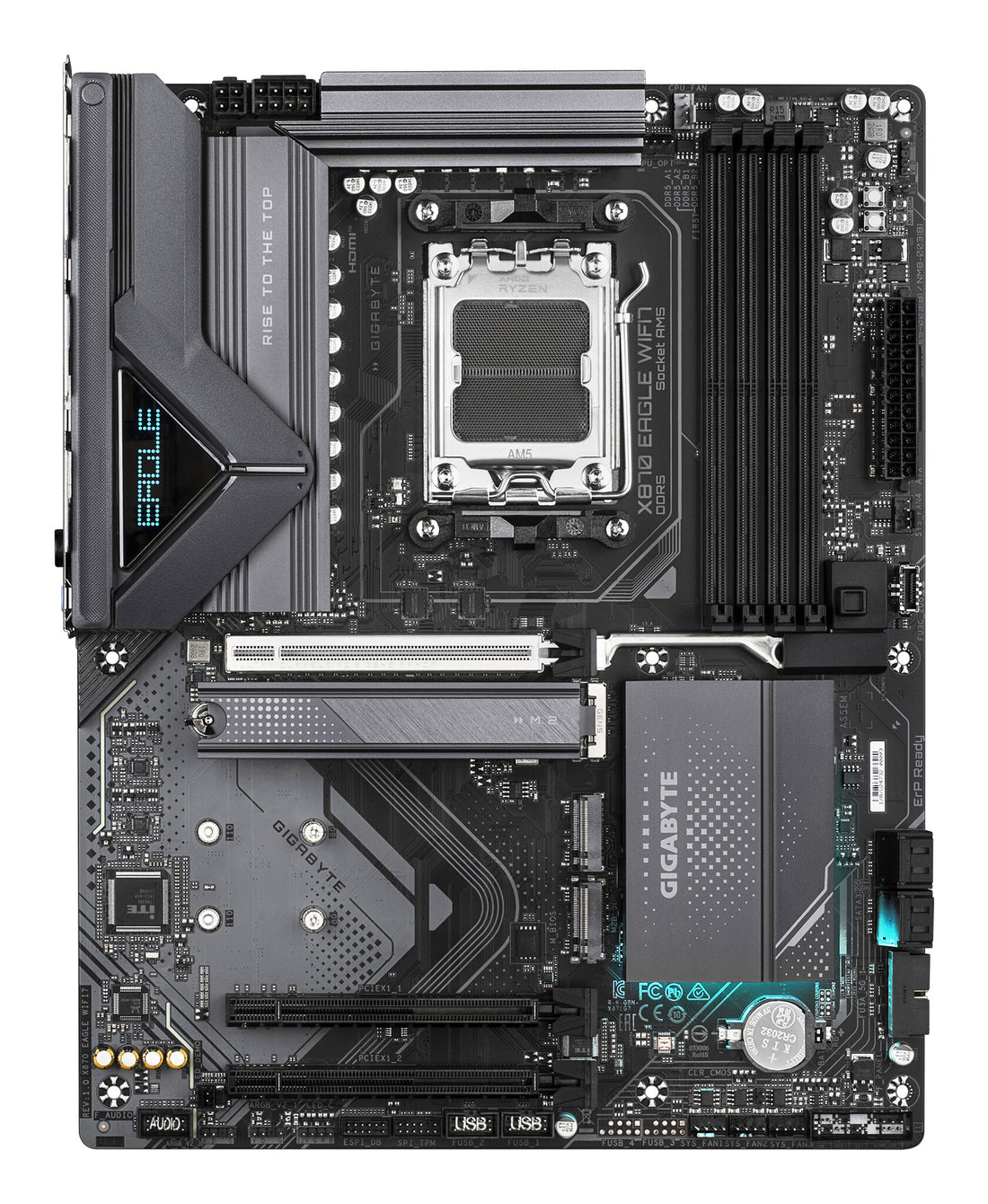

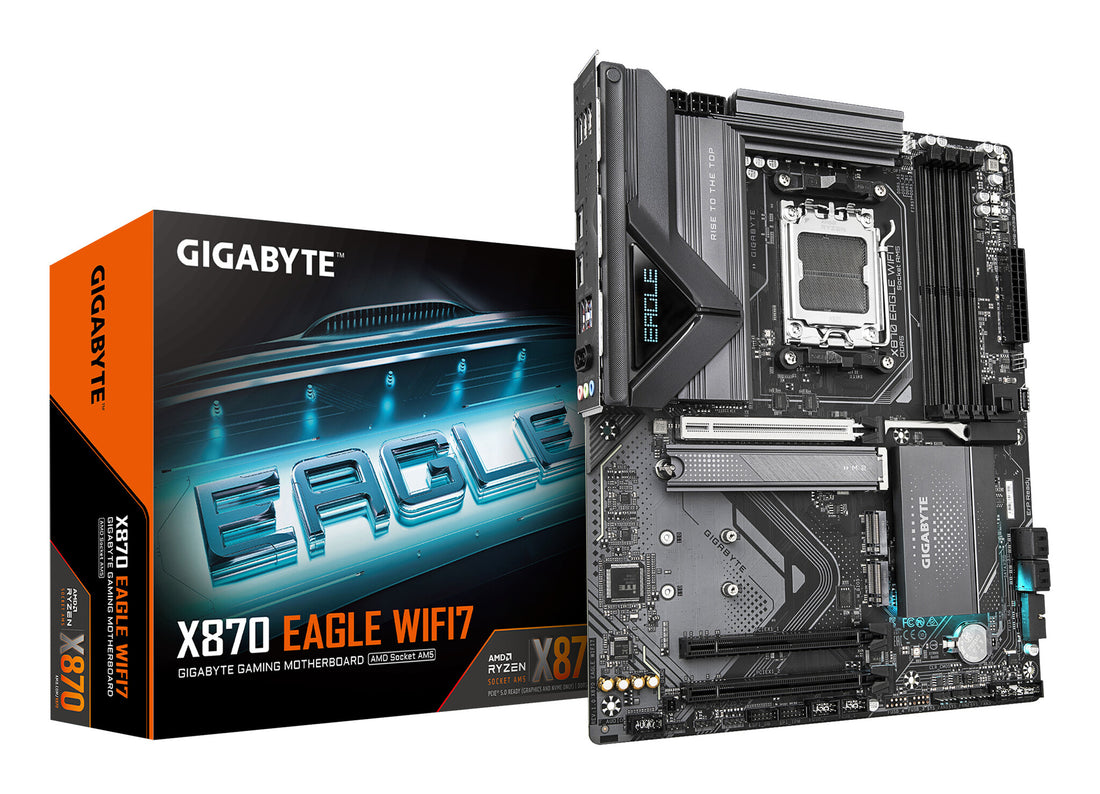

GIGABYTE X870 EAGLE WIFI7 Motherboard

Gigabyte · MPN: X870 EAGLE WIFI7
£191.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £63.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Wi-Fi standardsWi-Fi 7 (802.11be)
  • Weight1.74 kg
All specifications

Out of stock

FREE delivery

Express £9.99

Overview
  • AMD Socket AM5: Supports AMD Ryzen 9000 Series, 8000 Series, 7000 Series Processors
  • Digital twin 14+2+2 phases VRM solution
  • Dual Channel DDR5：4DIMMs with AMD EXPO Memory Module Support
  • PCIe Gen5 x16 with PCIe UD Slot X & EZ-Latch Plus
  • Ultra-Fast Storage: 3*M.2 slots, including 1* PCIe 5.0 x4
  • Efficient Overall Thermal: VRM Thermal Armor Advanced & M.2 Thermal Guard
  • Extended Connectivity: Dual USB4 Type-C with DP-Alt, HDMI
  • Fast Networking: 2.5GbE LAN & Wi-Fi 7 with Ultra-high gain antenna

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

Processor manufacturerAMD
Processor socketSocket AM5
Compatible processor seriesAMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
Supported processor socketsSocket AM5
Maximum internal memory supported by processor256 GB

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityNon-ECC
Supported memory clock speeds4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz
Supported memory clock speed (max)8200 MHz
Supported memory module capacities1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Show all 102 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported7
Number of HDDs supported4
RAID supportYes
RAID levels0, 1, 10

Graphics

Parallel processing technology supportNot supported
On-board graphics cardNo
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors1
USB 3.2 Gen 2x2 connectors1
Number of SATA III connectors4
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
Peripheral (Molex) power connectors (4-pin)1
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
Number of water pump connectors1
12V power connectorYes
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4

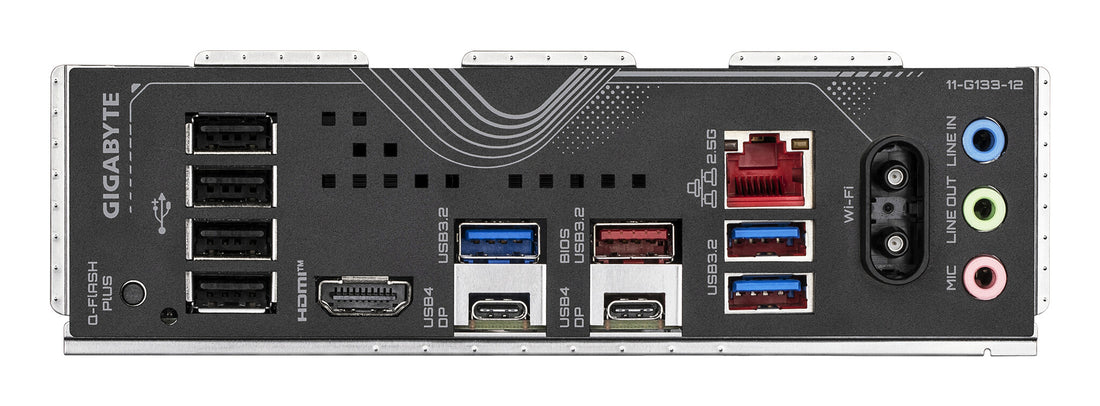

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB4 Gen 2x2 ports quantity2
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
HDMI version2.1
DisplayPort version1.4
Headphone outputs1
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125
Wi-FiYes
Top Wi-Fi standardWi-Fi 7 (802.11be)
Wi-Fi standardsWi-Fi 7 (802.11be)
WLAN controller modelMediaTek MT7925
BluetoothYes
Bluetooth version5.4

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyAMD
Motherboard chipsetAMD X870
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourBlack
PC health monitoringFan, Temperature, Voltage
Windows operating systems supportedWindows 11 x64

Expansion slots

PCI Express x16 (Gen 3.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size25110
3rd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Clear CMOS buttonYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes
Antenna includedYes
Bundled softwareNorton® Internet Security (OEM version)
LAN bandwidth management software

Technical details

Warranty period3 year(s)

Other features

Weight1.74 kg
