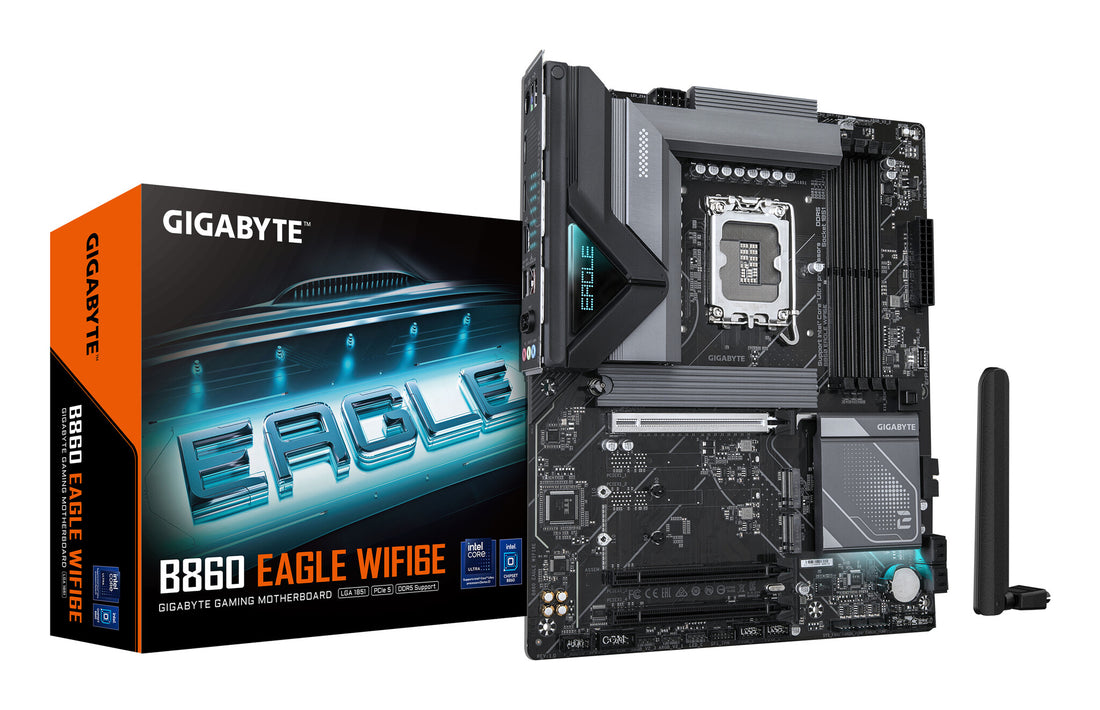

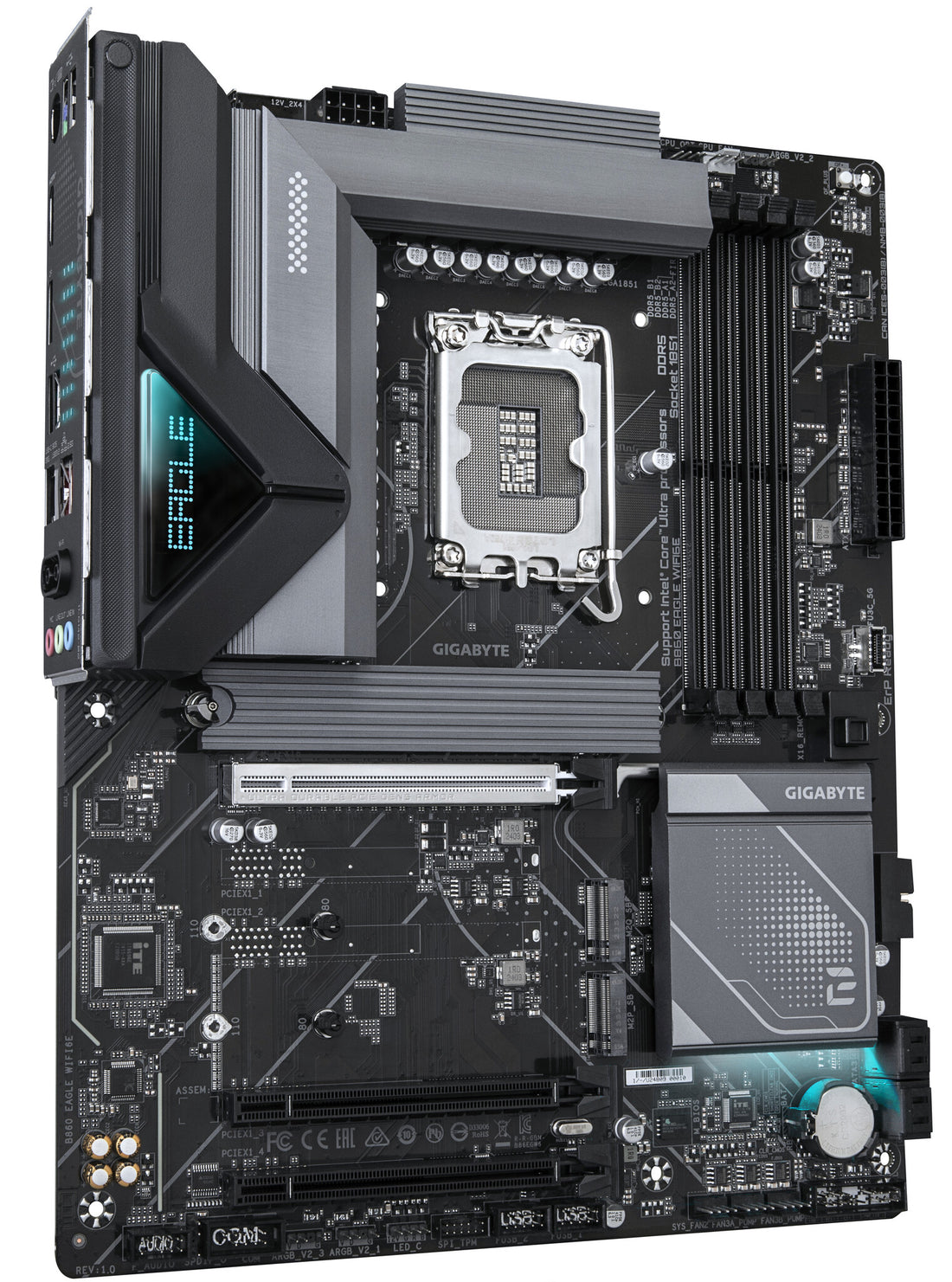

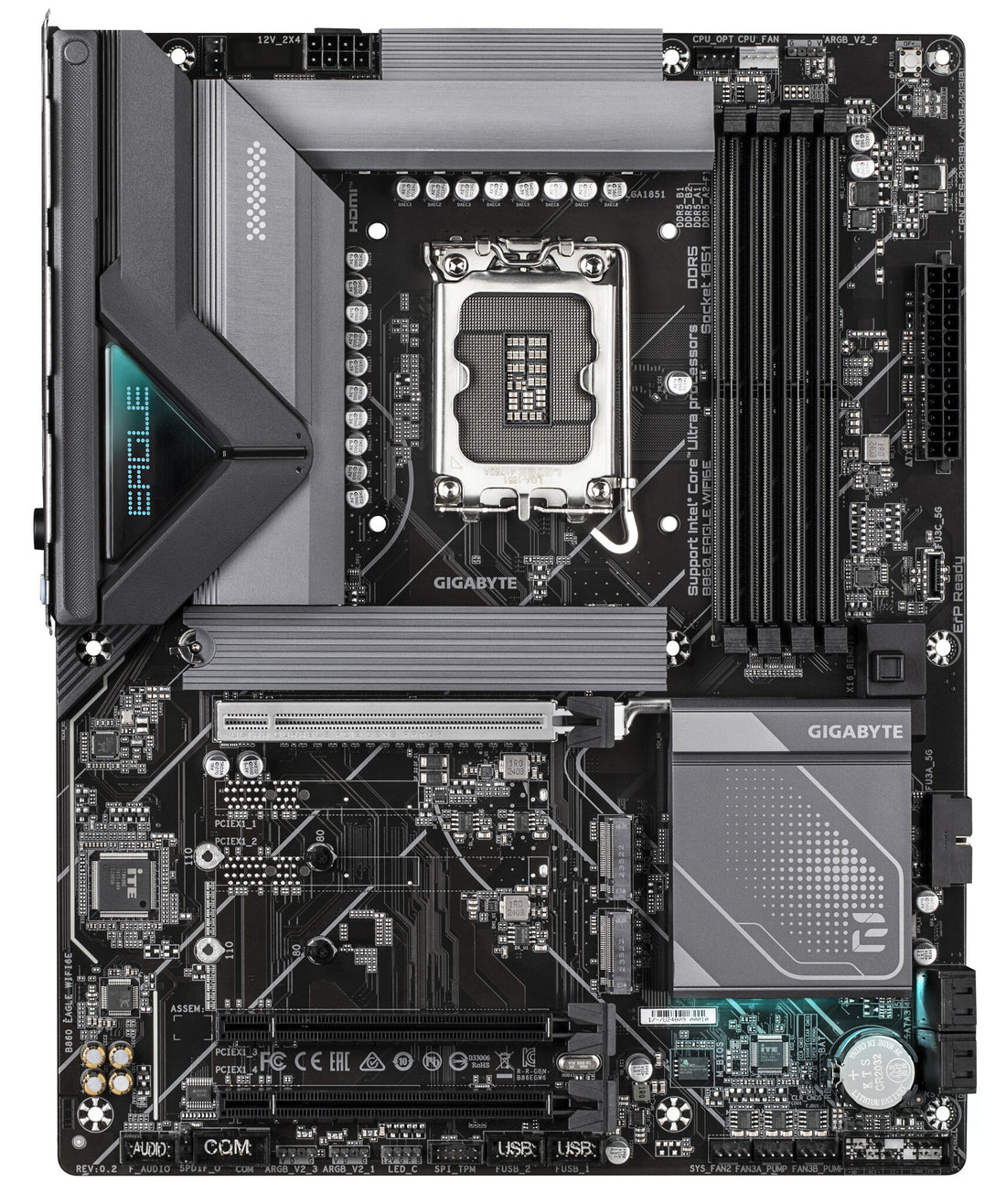

GIGABYTE B860 EAGLE WIFI6E Motherboard

Gigabyte · MPN: B860 EAGLE WIFI6E
£170.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £56.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Key specs

  • Maximum resolution4096 x 2160 pixels
  • Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
  • Weight1.72 kg
All specifications

In stock

FREE delivery

Express £9.99

Price drop alert

GIGABYTE B860 EAGLE WIFI6E Motherboard
Now £170.99

We'll email you if the price of this item drops in the next 90 days.

By setting an alert you agree to receive price drop emails from Back to the Office for this item and others you view. No newsletters. Unsubscribe at any time. Privacy policy

Overview
  • Twin Hybrid 12+1+2+1 Phases 50A PPAK VRM
  • Dual Channel DDR5：4*DIMMs
  • PCIe 5.0 x16 with PCIE UD Slot & EZ-Latch Plus
  • M.2 Gen5 (Up to 25110) with EZ-Latch Plus
  • Advanced MOSFET Heatsinks/ M.2 Thermal Guard with EZ-Latch Click
  • Realtek 2x2 Wi-Fi 6E with WIFI EZ-Plug
  • 2.5GbE LAN, USB 3.2 Gen2x2 Type-C
  • Q-Flash Plus

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Specifications

Processor

Processor manufacturerIntel
Processor socketLGA 1851 (Socket V1)
Compatible processor seriesIntel® Core™ Ultra (Series 1), Intel Core Ultra (Series 2)
Supported processor socketsLGA 1851

Memory

Supported memory typesDDR5-SDRAM
Number of memory slots4
Memory slots typeDIMM
Memory channelsDual-channel
ECC сompatibilityECC & Non-ECC
Supported memory clock speeds5600,6400,9066 MHz
Supported memory clock speed (max)9066 MHz
Maximum internal memory256 GB
Unbuffered memoryYes
Maximum internal memory per slot64 GB
Show all 104 specificationsShow fewer specifications

Storage controllers

Supported storage drive typesHDD & SSD
Supported storage drive interfacesM.2, SATA III
Number of storage drives supported7
Number of HDDs supported4
RAID supportYes
RAID levels0, 1, 5, 10

Graphics

Parallel processing technology supportNot supported
Maximum resolution4096 x 2160 pixels
HDCPYes
DirectX version12.0

Internal I/O

USB 2.0 connectors2
USB 3.2 Gen 1 (3.1 Gen 1) connectors2
Number of SATA III connectors4
S/PDIF out connectorYes
Front panel audio connectorYes
Front panel connectorYes
ATX Power connector (24-pin)Yes
CPU fan connectorYes
Number of CPU fan connectors2
Number of chassis fan connectors4
EPS power connector (8-pin)Yes
Number of EPS power connectors (8-pin)1
Number of water pump connectors3
Serial port headers1
TPM connectorYes
RGB LED pin headerYes
Number of RGB LED pin headers4

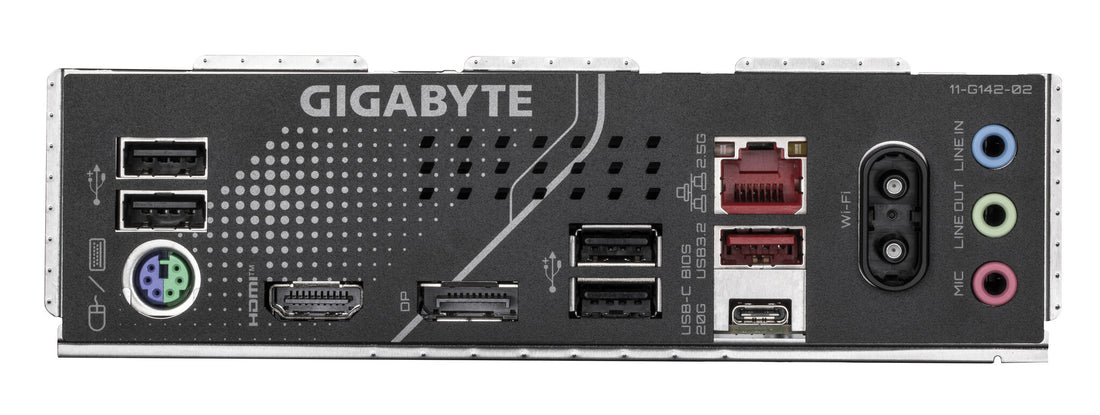

Rear panel I/O ports

USB 2.0 ports quantity4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity1
USB 3.2 Gen 2x2 Type-C ports quantity1
Ethernet LAN (RJ-45) ports1
PS/2 ports quantity1
HDMI ports quantity1
HDMI version2.1
DisplayPorts quantity1
DisplayPort version2.1
Line-inYes
Headphone outputs1
Microphone inYes
WiFi-AP antenna jack2

Network

Ethernet LANYes
Ethernet interface type2.5 Gigabit Ethernet
LAN controllerRealtek RTL8125D
Wi-FiYes
Top Wi-Fi standardWi-Fi 6E (802.11ax)
Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax)
WLAN controller modelIntel Wi-Fi 6E AX211
BluetoothYes
Bluetooth version5.3

Features

Component forPC
Motherboard form factorATX
Motherboard chipset familyIntel
Motherboard chipsetIntel B860
Audio chipRealtek ALC897
Audio output channels7.1 channels
Product colourDark brown
PC health monitoringFan, Temperature, Voltage, Water cooling
Cooling typePassive
Power source typeATX
Windows operating systems supportedWindows 10 x64, Windows 11 x64

Expansion slots

PCI Express x16 (Gen 4.x) slots2
PCI Express x16 (Gen 5.x) slots1
Number of M.2 (M) slots3
1st M.2 largest key size25110
1st M.2 highest PCI Express generation5.0
2nd M.2 largest key size25110
2nd M.2 highest PCI Express generation4.0
3rd M.2 largest key size25110
3rd M.2 highest PCI Express generation4.0

BIOS

BIOS typeUEFI AMI
BIOS memory size256 Mbit
ACPI version5.0
Clear CMOS jumperYes
Desktop Management Interface (DMI) version2.7
System Management BIOS (SMBIOS) version2.7

Battery

Lithium weight per battery0.07 g
Battery weight3 g
Number of battery cells1
Battery capacity220 mAh
Battery technologyLithium-Manganese Dioxide (LiMnO2)
Battery typeCR2032

Weight & dimensions

Width305 mm
Depth244 mm
Height35 mm

Packaging content

Batteries includedYes
Screws includedYes
Antenna includedYes
Bundled softwareNorton Internet Security (OEM version)
LAN bandwidth management software

Technical details

Warranty period3 year(s)

Other features

Weight1.72 kg
