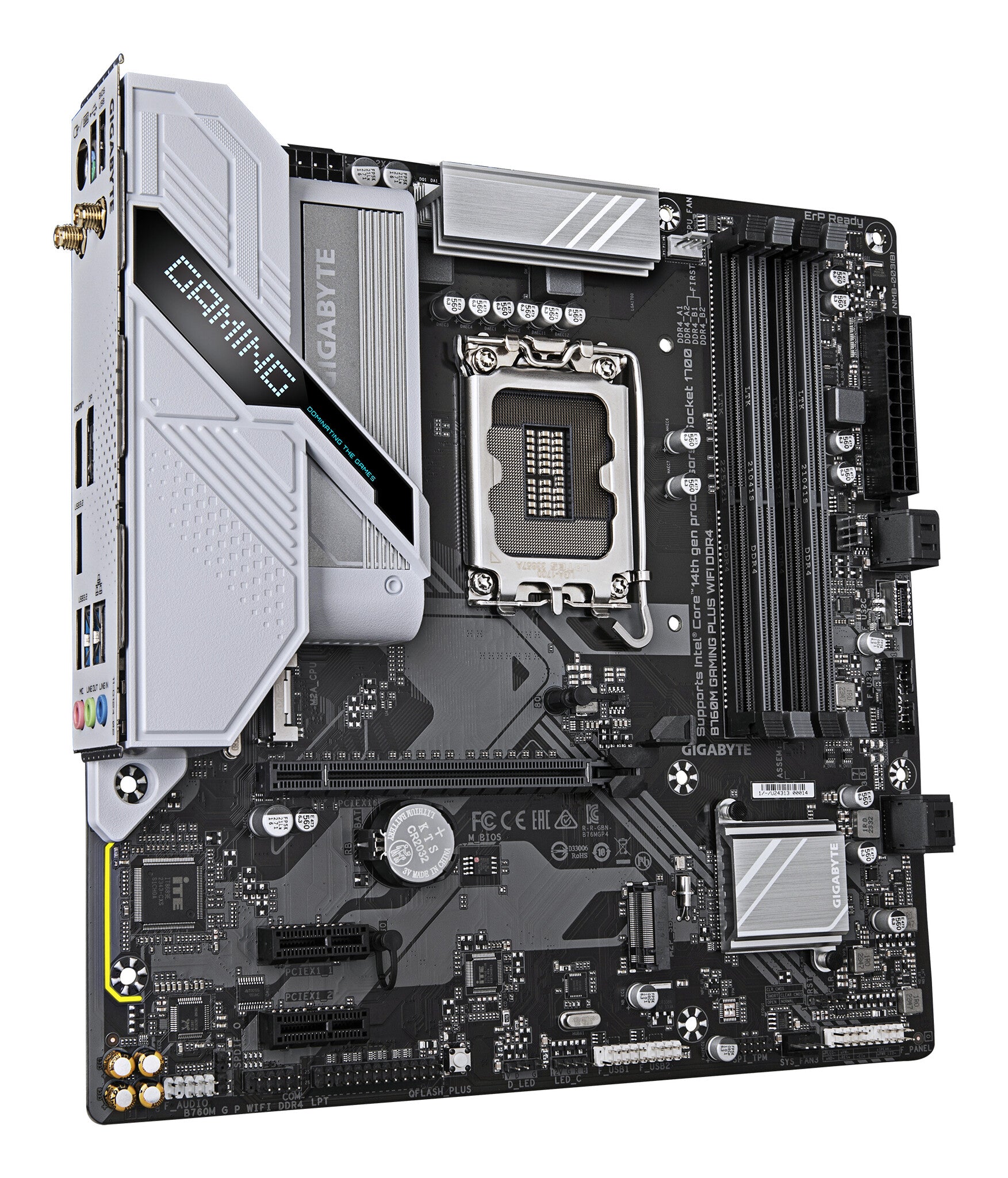

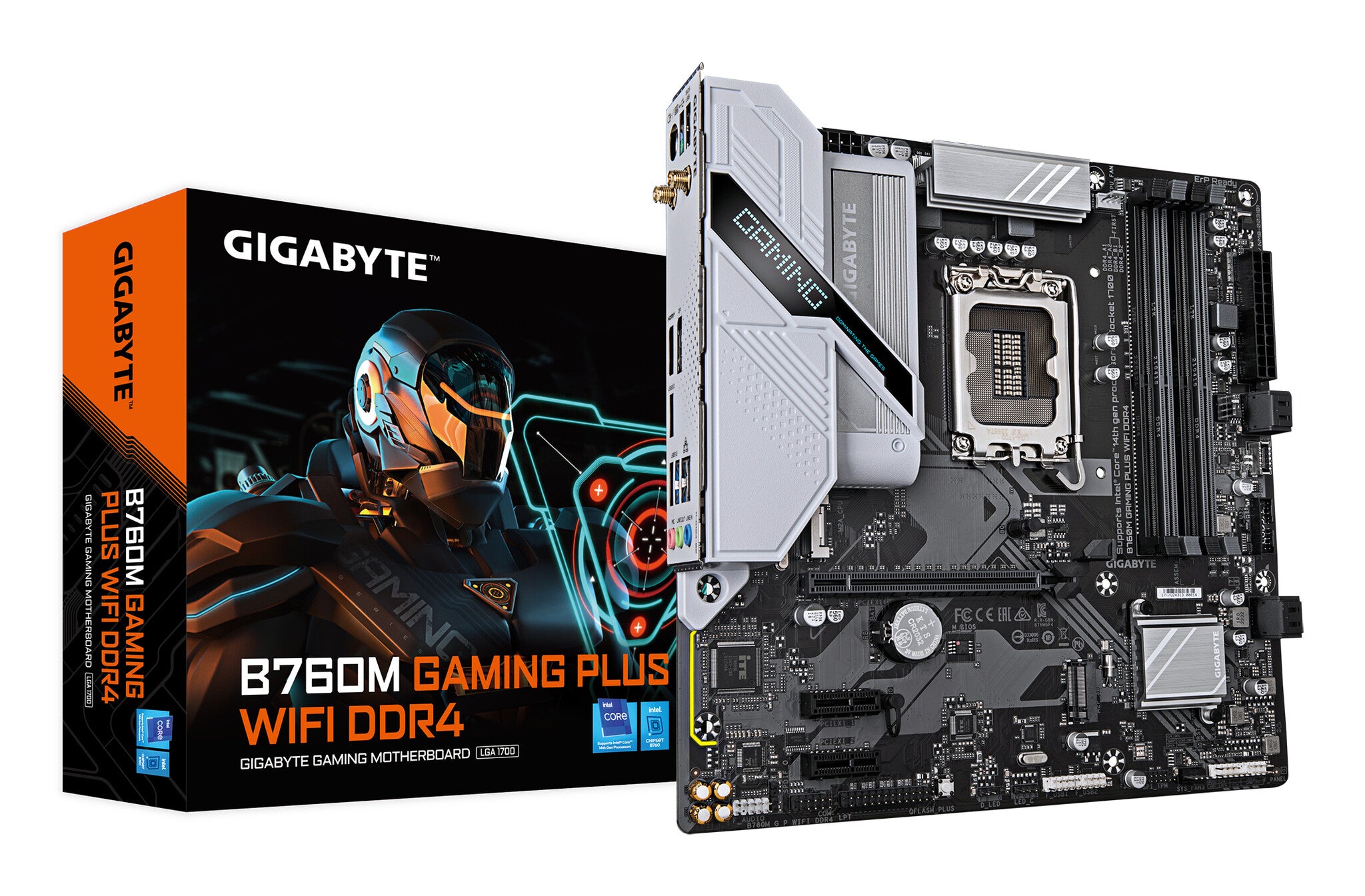

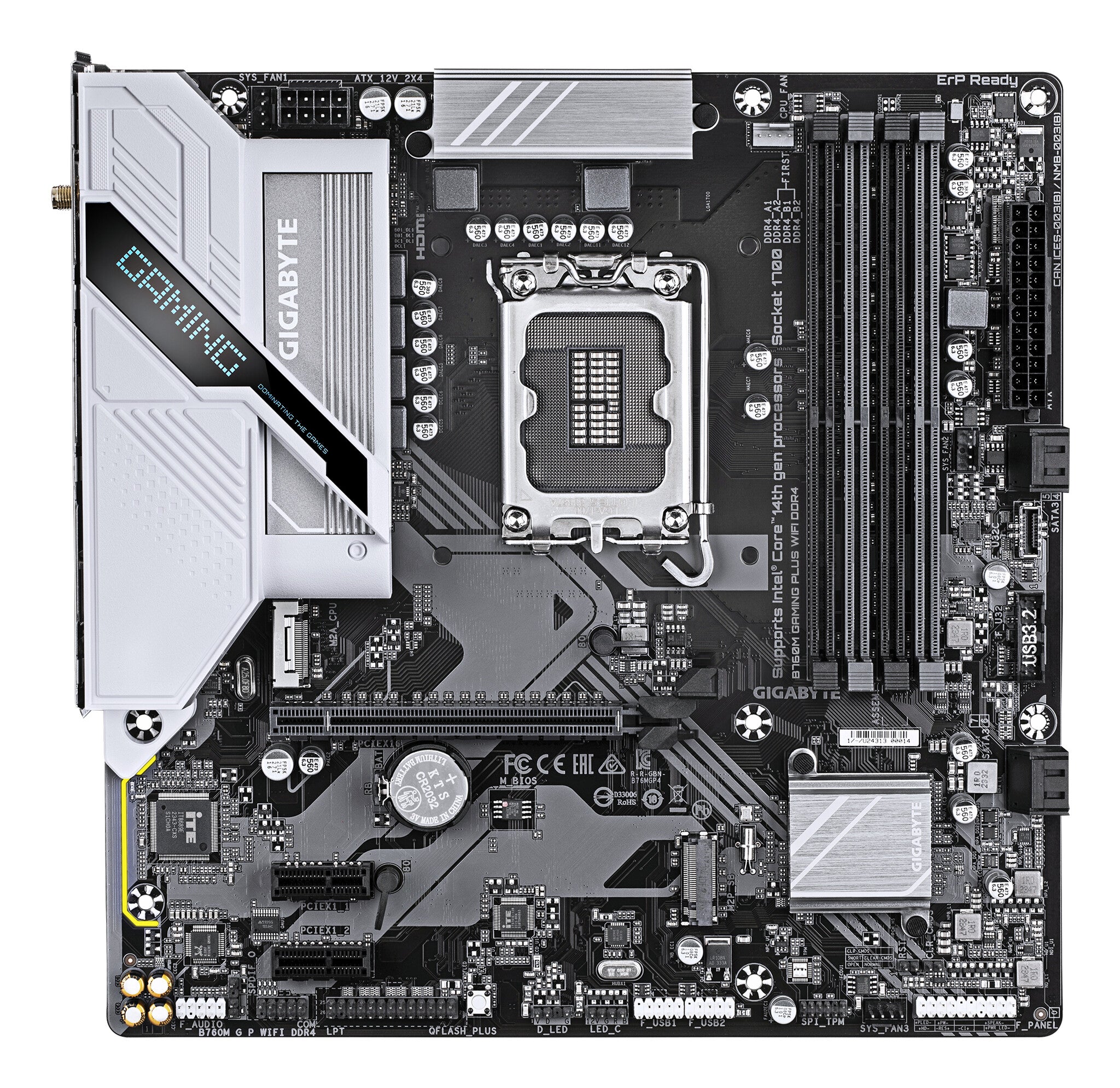

GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard - Supports 14th Gen.

Gigabyte

£121.99

Stock Available: 20

Product Information

Supports Intel Core 14th/ 13th /12th processors
Unparalleled Performance：Hybrid 4+1+1 Phases Digital VRM Solution
Dual Channel DDR4：4*DIMMs XMP Memory Module Support
Next Generation Storage：2*PCIe 4.0 x4 M.2 Connectors
Fast Networks：Wi-Fi 6 802.11ax, GbE LAN
Extended Connectivity：Front USB-C 5Gb/s, DP, HDMI
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card

Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge

Product Specifications

Processor
Maximum internal memory supported by processor	128 GB
Supported processor sockets	LGA 1700
Compatible processor series	Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5 13th Gen, Intel Core i5 14th Gen, Intel Core i7 12th Gen, Intel Core i7 13th Gen, Intel Core i7 14th Gen, Intel Core i9 12th Gen, Intel Core i9 13th Gen, Intel Core i9 14th Gen, Intel® Pentium®
Processor socket	LGA 1700
Processor manufacturer	Intel

Memory
Maximum internal memory per slot	32 GB
Unbuffered memory	Yes
Maximum internal memory	128 GB
Supported memory clock speed (max)	5333 MHz
Supported memory clock speeds	2133,2400,2666,2933,3000,3200,3300,3333,3400,3466,3600,3666,3733,3800,3866,4000,4133,4266,4300,4400,4500,4600,4700,4800,4933,5000,5133,5333 MHz
ECC сompatibility	ECC & Non-ECC
Memory channels	Dual-channel
Memory slots type	DIMM
Number of memory slots	4
Supported memory types	DDR4-SDRAM

Storage controllers
RAID levels	0, 1, 5, 10
RAID support	Yes
Number of storage drives supported	6
Number of HDDs supported	4
Supported storage drive interfaces	M.2, SATA III
Supported storage drive types	HDD & SSD

Graphics
DirectX version	12.0
HDCP	Yes
Maximum resolution	4096 x 2304 pixels
Parallel processing technology support	Not supported

Internal I/O
Number of RGB LED pin headers	2
RGB LED pin header	Yes
Parallel connector	Yes
Serial port headers	1
TPM connector	Yes
Number of EPS power connectors (8-pin)	1
EPS power connector (8-pin)	Yes
Number of chassis fan connectors	3
Number of CPU fan connectors	1
CPU fan connector	Yes
ATX Power connector (24-pin)	Yes
Front panel connector	Yes
Front panel audio connector	Yes
S/PDIF out connector	Yes
Number of SATA III connectors	4
USB 3.2 Gen 1 (3.1 Gen 1) connectors	2
USB 2.0 connectors	2

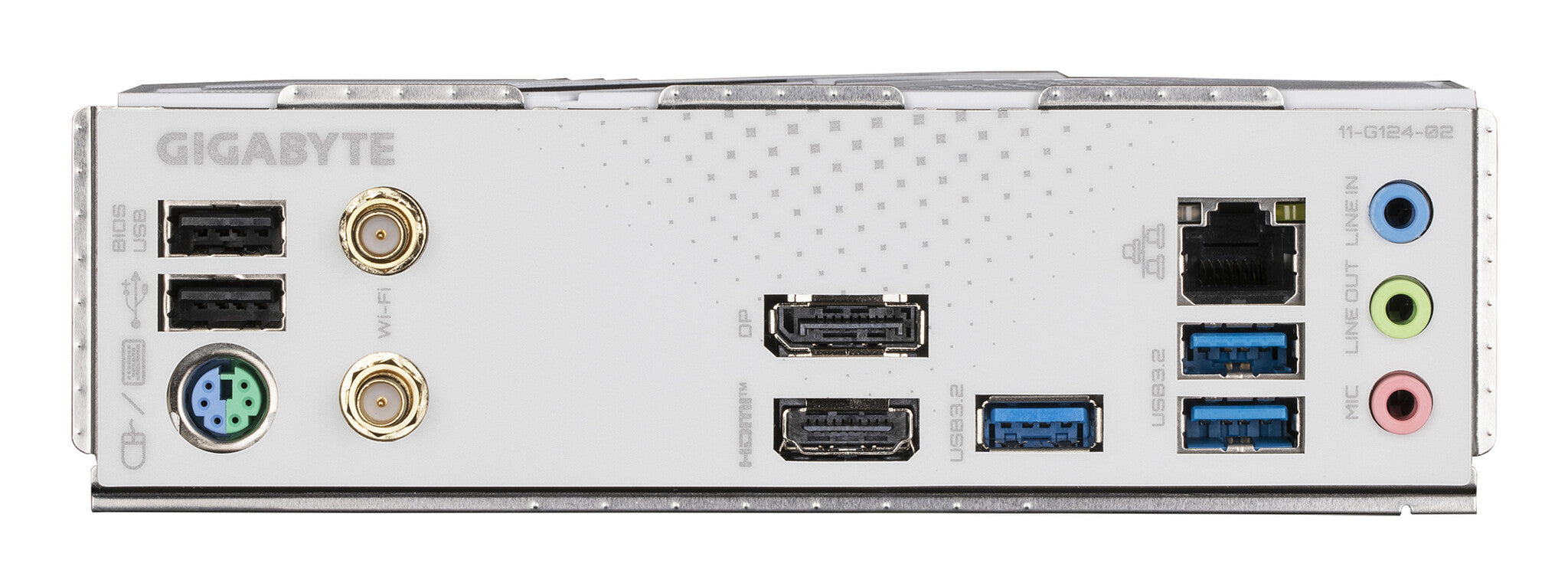

Rear panel I/O ports
WiFi-AP antenna jack	2
Headphone outputs	1
Line-in	Yes
DisplayPort version	1.2
DisplayPorts quantity	1
HDMI version	2.1
HDMI ports quantity	1
PS/2 ports quantity	1
Ethernet LAN (RJ-45) ports	1
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity	3
USB 2.0 ports quantity	2

Network
Bluetooth version	5.3
Bluetooth	Yes
WLAN controller model	Realtek RTL8851BE
Wi-Fi standards	802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi	Yes
LAN controller	Realtek RTL8111H
Ethernet interface type	Gigabit Ethernet
Ethernet LAN	Yes

Features
Windows operating systems supported	Windows 10 x64, Windows 11 x64
Power source type	ATX
PC health monitoring	Fan, Temperature, Voltage, Water cooling
Product colour	Grey
Audio output channels	7.1 channels
Audio chip	Realtek ALC897
Motherboard chipset	Intel B760
Motherboard chipset family	Intel
Motherboard form factor	micro ATX
Component for	PC

Expansion slots
2nd M.2 highest PCI Express generation	4.0
2nd M.2 largest key size	2280
1st M.2 highest PCI Express generation	4.0
1st M.2 largest key size	2280
Number of M.2 (M) slots	2
PCI Express x16 (Gen 4.x) slots	1
PCI Express x1 (Gen 3.x) slots	2

BIOS
System Management BIOS (SMBIOS) version	2.7
Desktop Management Interface (DMI) version	2.7
Clear CMOS jumper	Yes
ACPI version	5.0
BIOS memory size	128 Mbit
BIOS type	UEFI AMI

Battery
Battery type	CR2032
Battery technology	Lithium-Manganese Dioxide (LiMnO2)
Number of battery cells	1
Battery weight	3 g
Lithium weight per battery	0.07 g

Packaging data
Package weight	1.2 kg
Package height	68 mm
Package depth	268 mm
Package width	270 mm

Logistics data
Country of origin	China
Products per shipping (inner) case	1 pc(s)

Weight & dimensions
Height	35 mm
Depth	244 mm
Width	244 mm

Packaging content
Bundled software	Norton® Internet Security (OEM version)LAN bandwidth management software
Antenna included	Yes
Screws included	Yes
Batteries included	Yes

Other features
Weight	1.1 kg

Technical details
Warranty period	3 year(s)

GIGABYTE B760M GAMING PLUS WIFI DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 4+1+1 phases VRM, up to 5333MHz DDR4 (OC), 2xPCIe 4.0 M.2, Wi-Fi 6, 1 GbE LAN, USB 3.2 Gen 1
