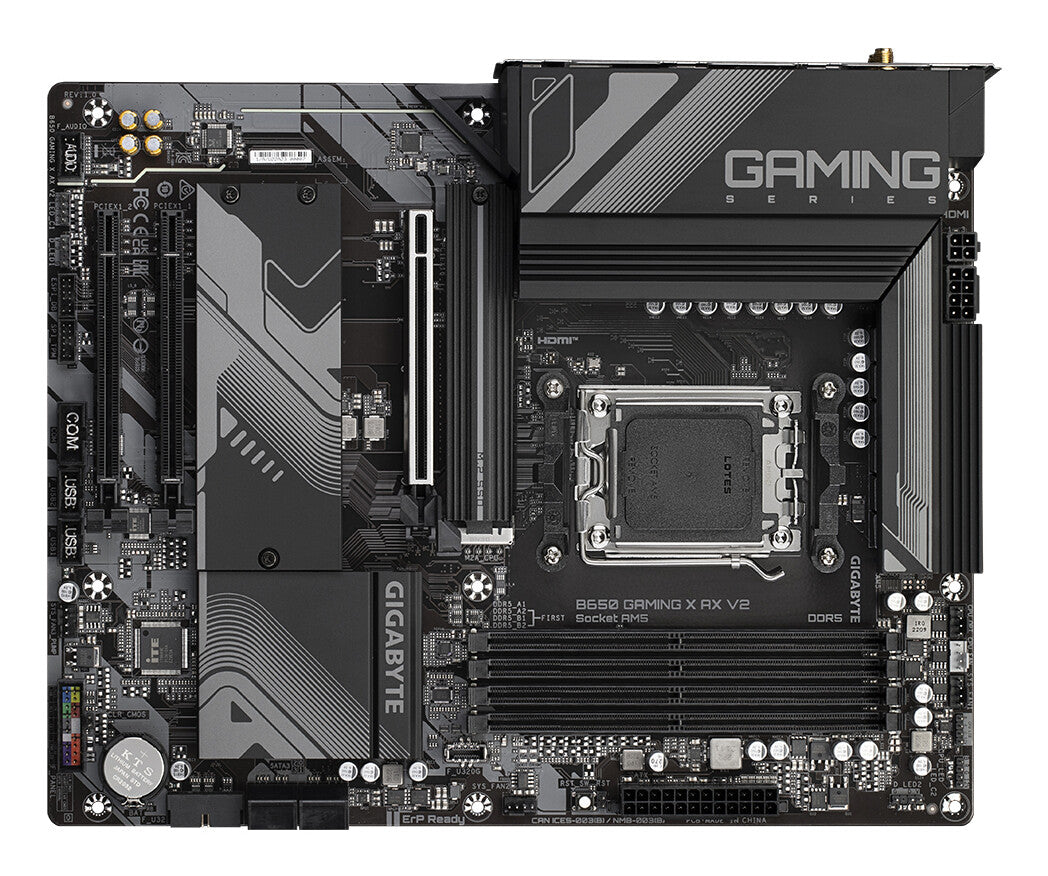

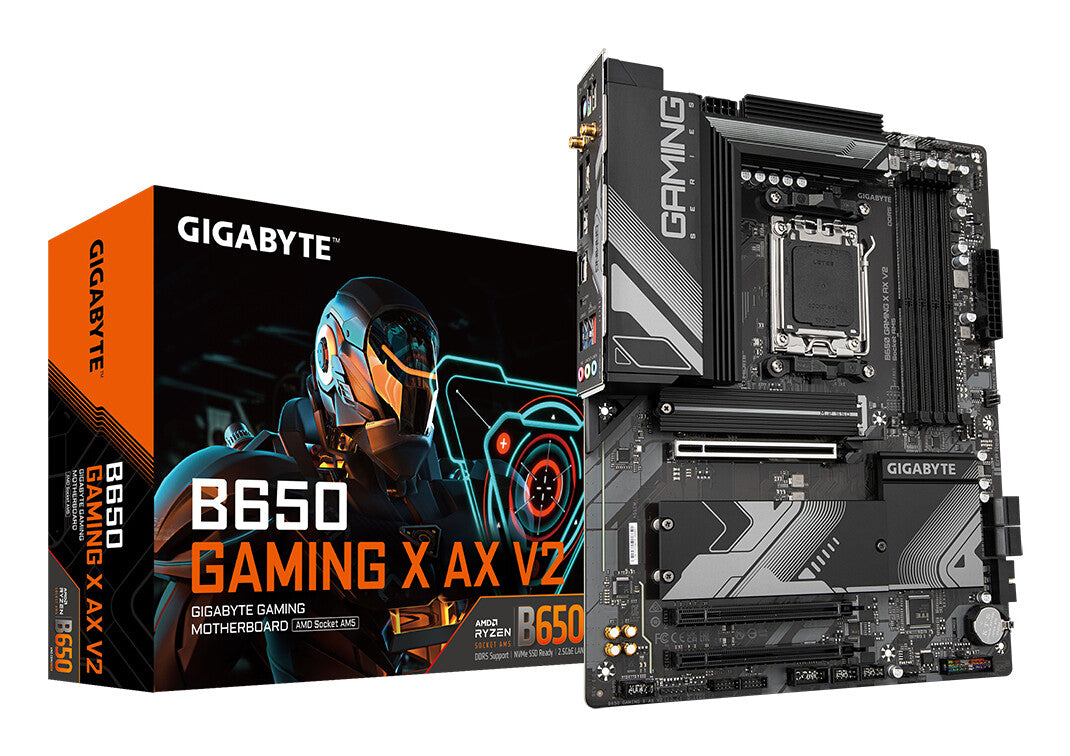

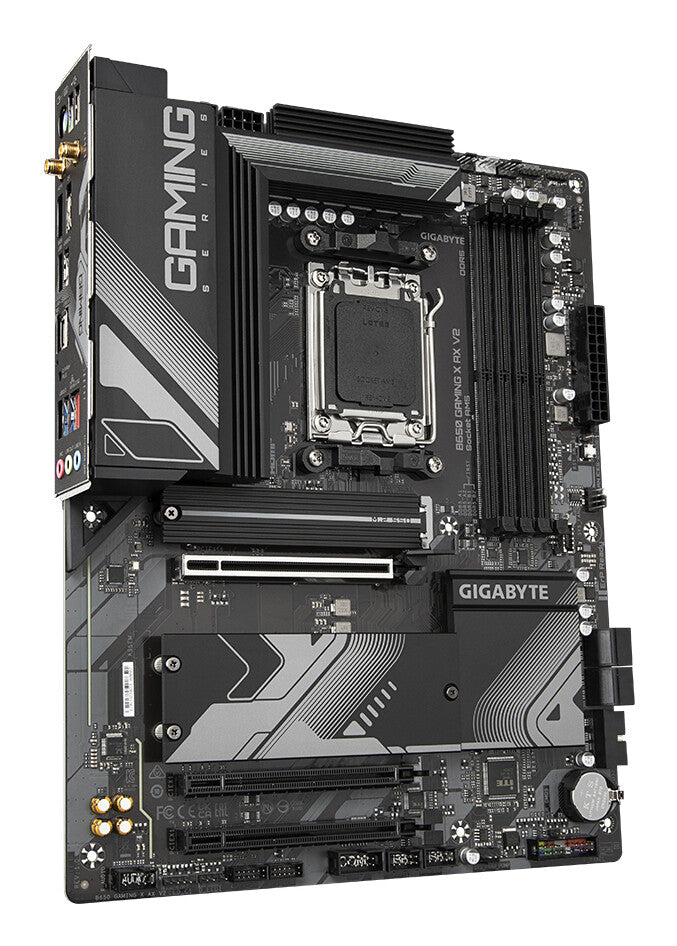

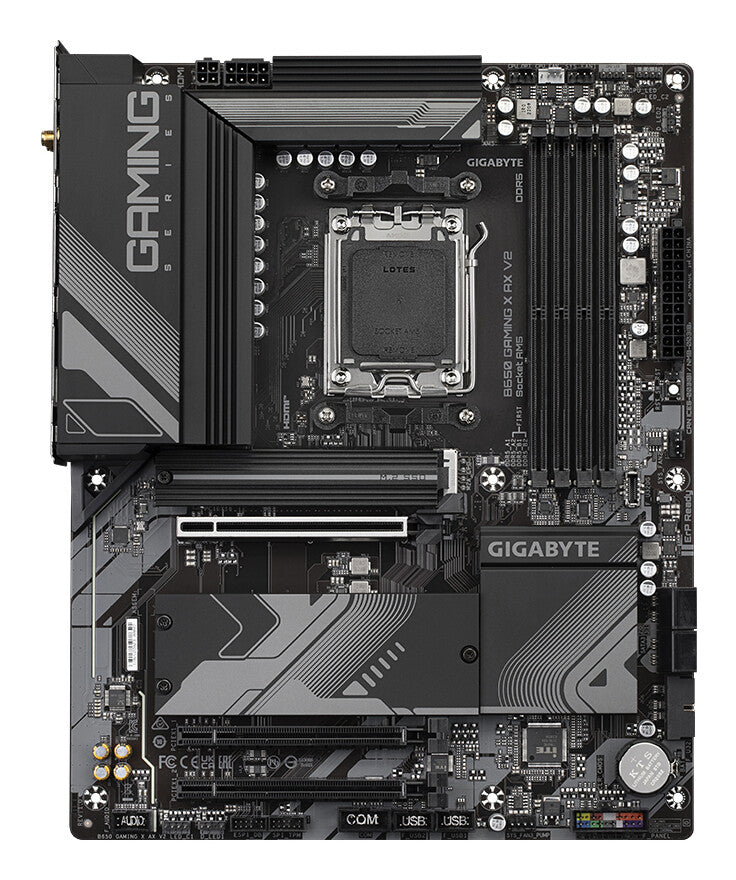

Overview
AMD Socket AM5：Supports AMD Ryzen 7000/ Ryzen 8000/ Ryzen 9000 Series Processors
Unparalleled Performance：Direct 8+2+2 Phases Digital VRM Solution
Dual Channel DDR5：4*SMD DIMMs with AMD EXPO & Intel® XMP Memory Module Support
SuperSpeed Storage：1*PCIe 5.0 x4 + 2*PCIe 4.0 x4 M.2 Connectors
Advanced Thermal Design & M.2 Thermal Guard：To Ensure VRM Power Stability & 25110 M.2 SSD Performance
EZ-Latch：PCIe x16 Slot with Quick Release Design
Fast Networks：2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity：DP, HDMI, Rear USB-C 10Gb/s, Front USB-C 20Gb/s
Smart Fan 6：Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
Q-Flash Plus：Update BIOS Without Installing the CPU, Memory and Graphics Card
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor Processor manufacturer AMD Processor socket Socket AM5 Compatible processor series AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series Supported processor sockets Socket AM5
Memory Supported memory types DDR5-SDRAM Number of memory slots 4 Memory slots type DIMM Memory channels Dual-channel ECC сompatibility Non-ECC Supported memory clock speeds 8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz Supported memory clock speed (max) 8000 MHz Maximum internal memory 256 GB Unbuffered memory Yes Maximum internal memory per slot 64 GB
Show all 104 specifications Show fewer specifications Storage controllers Supported storage drive types HDD & SSD Supported storage drive interfaces M.2, SATA III Number of storage drives supported 7 Number of HDDs supported 4 RAID support Yes RAID levels 0, 1, 10
Graphics Parallel processing technology support Not supported Maximum resolution 4096 x 2160 pixels HDCP Yes DirectX version 12.0 Discrete graphics support Yes
Internal I/O USB 2.0 connectors 2 USB 3.2 Gen 1 (3.1 Gen 1) connectors 1 USB 3.2 Gen 2x2 connectors 1 Number of SATA III connectors 4 Front panel audio connector Yes Front panel connector Yes ATX Power connector (24-pin) Yes CPU fan connector Yes Number of CPU fan connectors 2 Number of chassis fan connectors 3 EPS power connector (8-pin) Yes Number of EPS power connectors (8-pin) 1 Number of water pump connectors 2 Serial port headers 1 12V power connector Yes TPM connector Yes RGB LED pin header Yes Number of RGB LED pin headers 5

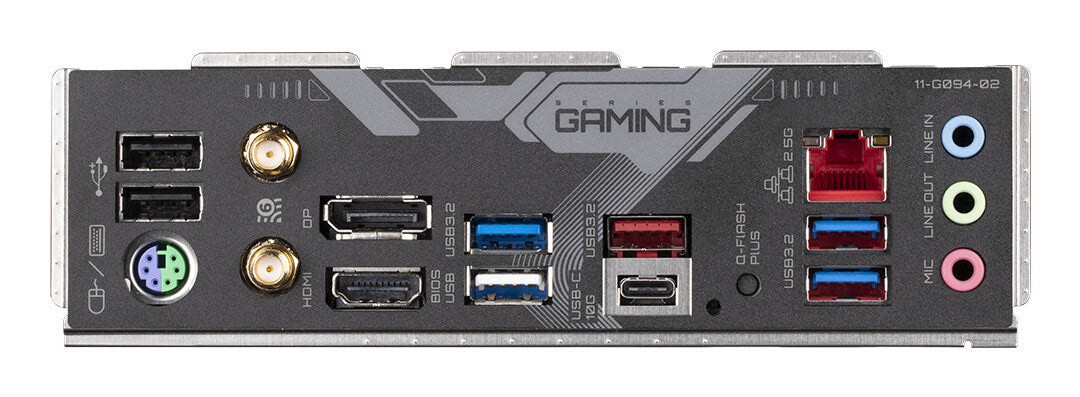

Rear panel I/O ports USB 2.0 ports quantity 3 USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity 3 USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity 1 USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity 1 Ethernet LAN (RJ-45) ports 1 HDMI ports quantity 1 HDMI version 2.1 DisplayPorts quantity 1 DisplayPort version 1.4 Line-in Yes Headphone outputs 1 Microphone in Yes WiFi-AP antenna jack 2
Network Ethernet LAN Yes Ethernet interface type 2.5 Gigabit Ethernet LAN controller Realtek RTL8125 Wi-Fi Yes Top Wi-Fi standard Wi-Fi 6E (802.11ax) Wi-Fi standards 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) WLAN controller model Realtek RTL8852CE Bluetooth Yes Bluetooth version 5.3
Features Component for PC Motherboard form factor ATX Motherboard chipset family AMD Motherboard chipset AMD B650 Audio chip Realtek ALC897 Audio output channels 7.1 channels Product colour Brown PC health monitoring Fan, Temperature, Voltage, Water cooling Power source type ATX Windows operating systems supported Windows 10 x64, Windows 11 x64
Expansion slots PCI Express x16 (Gen 4.x) slots 1 PCI Express x16 (Gen 3.x) slots 2 Number of M.2 (M) slots 3 1st M.2 largest key size 25110 1st M.2 highest PCI Express generation 5.0 2nd M.2 largest key size 25110 2nd M.2 highest PCI Express generation 4.0 3rd M.2 largest key size 25110 3rd M.2 highest PCI Express generation 4.0
BIOS BIOS type UEFI AMI BIOS memory size 256 Mbit ACPI version 5.0 Clear CMOS jumper Yes Desktop Management Interface (DMI) version 2.7 System Management BIOS (SMBIOS) version 2.7
Battery Lithium weight per battery 0.07 g Battery weight 3 g Number of battery cells 1 Battery capacity 220 mAh Battery technology Lithium-Manganese Dioxide (LiMnO2) Battery type CR2032
Weight & dimensions Width 305 mm Depth 244 mm Height 35 mm
Packaging content Batteries included Yes Screws included Yes Antenna included Yes Bundled software Norton Internet Security (OEM version)
