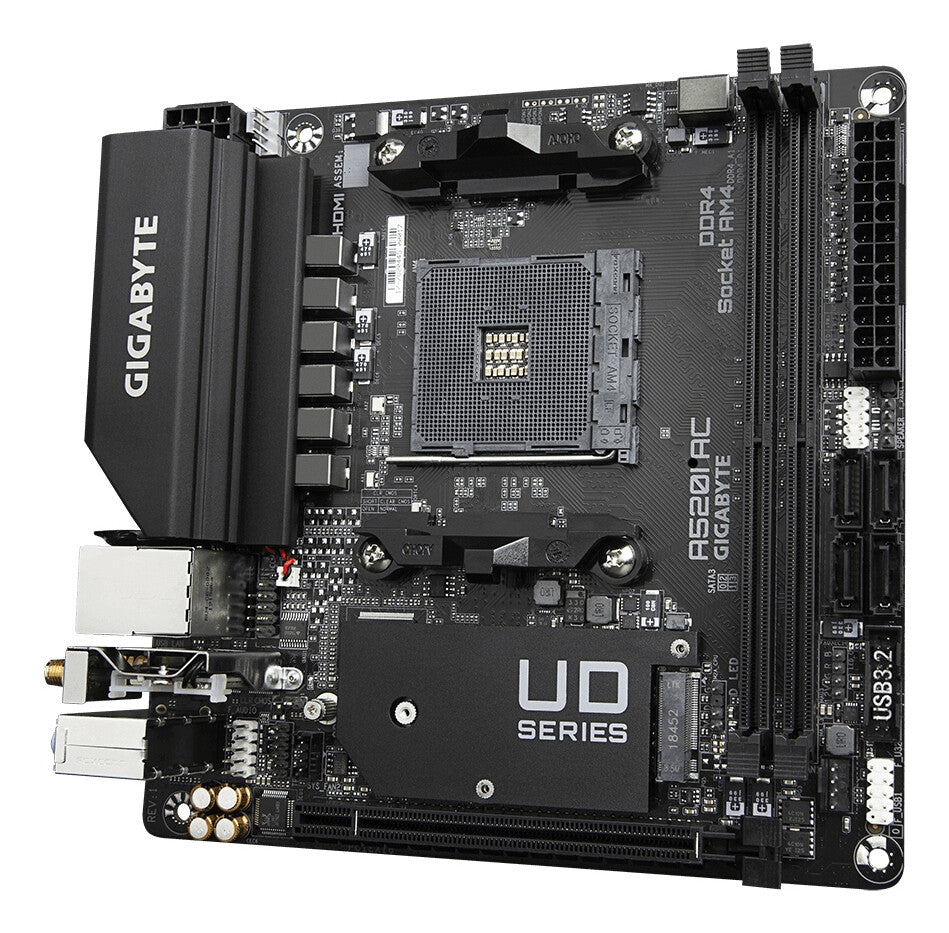

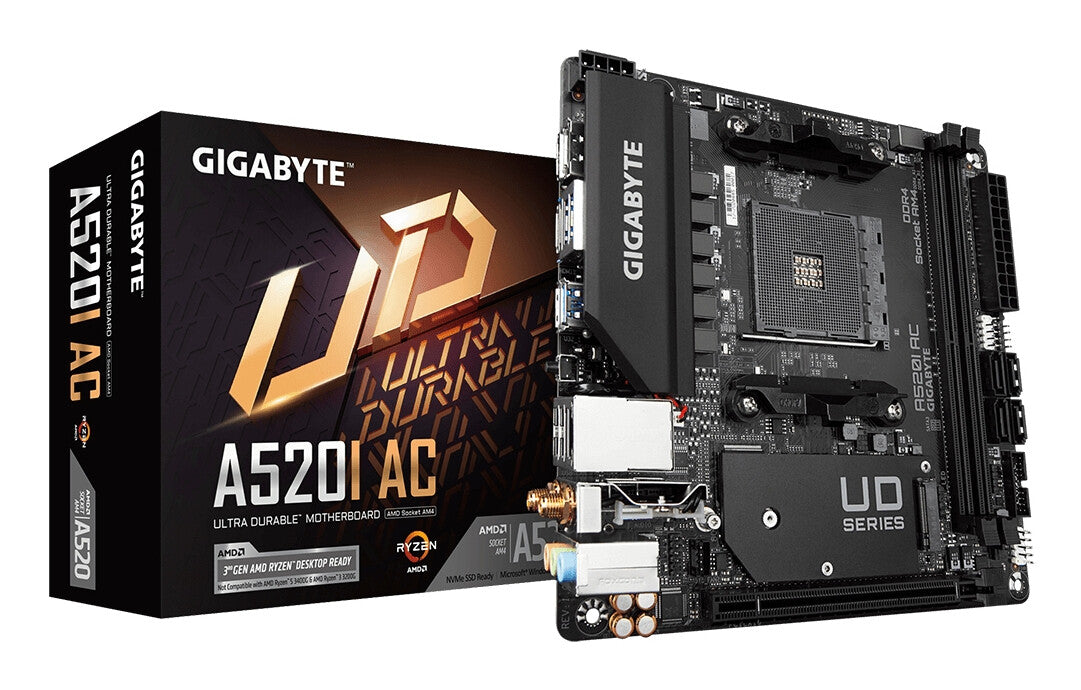

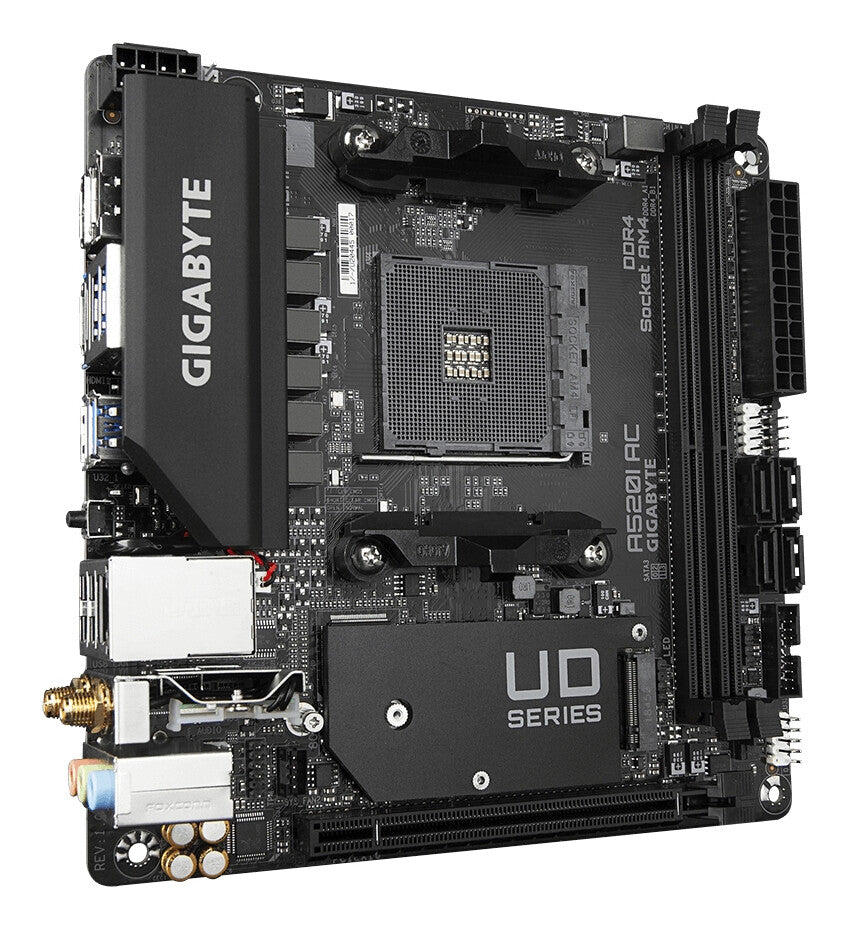

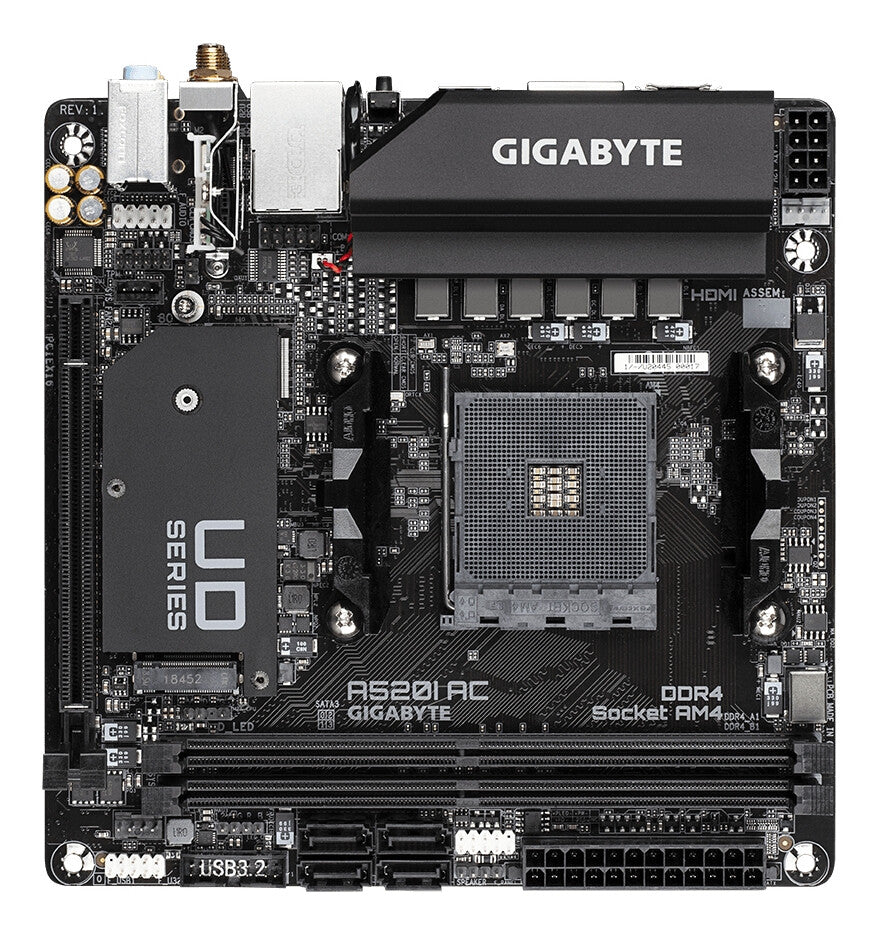

GIGABYTE A520I AC Motherboard
£100.99
inc. VATSpread the cost with Klarna, Clearpay, PayPal or FloatFrom 3 interest-free payments of £33.66 See options
Credit subject to status. 18+, UK residents only. See each provider for terms.
Key specs
- Maximum resolution5120 x 2880 pixels
- Wi-Fi standards802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac)
In stock
FREE delivery
Express £9.99
Couldn't load pickup availability
- 14-day returns Details
- UK manufacturer warranty Details
- Price Match Promise Details
- Rated 4.9/5 by customers on Trustpilot & Feefo Read reviews
Overview
- Supports AMD Ryzen 5000 Series/ Ryzen 5000 G-Series/ Ryzen 4000 G-Series and Ryzen 3000 and Ryzen 3000 G-Series Processors
- Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 6 Phases Digital VRM Solution with 55A DrMOS
- Ultra-Fast NVMe PCIe 3.0 x4 M.2
- Onboard Dual Band 802.11ac WIFI & BT 4.2 with Ultra Durable Antenna
- Realtek GbE LAN with Bandwidth Management
- DisplayPort, Dual HDMI for for Multiple Display
- RGB FUSION 2.0 with Addressable LED & RGB LED Strips Support
- Smart Fan 5 Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP
- Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card
- Anti-Sulfur Resistors Design
Elevate your computing experience with GIGABYTE's renowned motherboard series: AORUS, AERO, and GIGABYTE. Featuring innovative designs and advanced features, these boards offer exceptional performance and reliability. Whether you're a gamer, content creator, or professional, our series cater to your needs, ensuring uncompromising quality and cutting-edge
Specifications
Processor
| Processor manufacturer | AMD |
|---|---|
| Processor socket | Socket AM4 |
| Compatible processor series | AMD Ryzen 3000 Series |
| Supported processor sockets | Socket AM4 |
| Maximum internal memory supported by processor | 64 GB |
Memory
| Supported memory types | DDR4-SDRAM |
|---|---|
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| ECC сompatibility | ECC & Non-ECC |
| Supported memory clock speeds | 2133,2400,2667,2933,3200,3333,3600,4000,4400,4600,4866,5000,5100,5200 MHz |
| Supported memory clock speed (max) | 5300 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 12GB, 16GB, 32GB |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
Show all 85 specificationsShow fewer specifications
Storage controllers
| Supported storage drive interfaces | M.2, SATA III |
|---|---|
| Number of storage drives supported | 5 |
| Number of HDDs supported | 4 |
| RAID support | Yes |
| RAID levels | 0, 1, 10 |
Graphics
| Parallel processing technology support | Not supported |
|---|---|
| On-board graphics card | No |
| Maximum resolution | 5120 x 2880 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Number of displays supported | 3 |
Internal I/O
| USB 2.0 connectors | 1 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Total number of SATA connectors | 4 |
| Audio connector | Yes |
| Front panel audio connector | Yes |
| Front panel connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Power fan connector | Yes |
| CPU fan connector | Yes |
| EPS power connector (8-pin) | Yes |
| Serial port headers | 1 |
| TPM connector | Yes |
| RGB LED pin header | Yes |

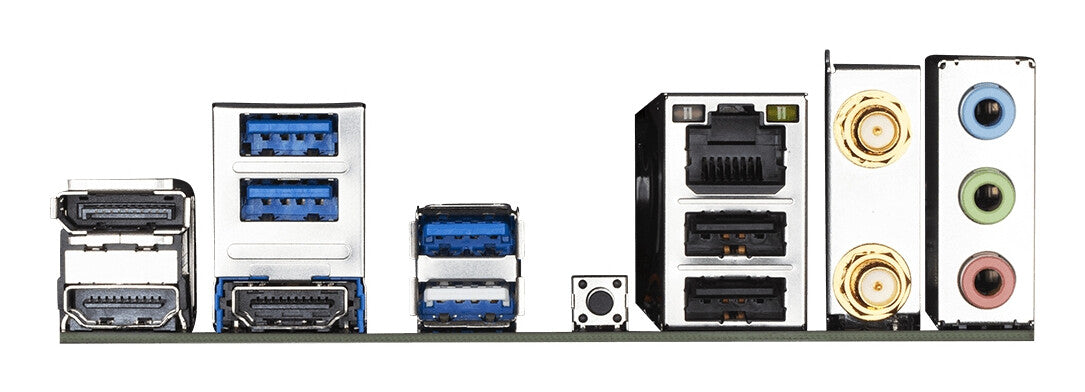

Rear panel I/O ports
| USB 2.0 ports quantity | 2 |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.1 |
| DisplayPorts quantity | 1 |
| DisplayPort version | 1.4 |
| Headphone outputs | 3 |
| WiFi-AP antenna jack | 2 |
Network
| Ethernet LAN | Yes |
|---|---|
| Ethernet interface type | Gigabit Ethernet |
| Wi-Fi | Yes |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Features
| Component for | PC |
|---|---|
| Motherboard form factor | mini ITX |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Audio chip | Realtek ALC887 |
| Audio output channels | 7.1 channels |
| Product colour | Black |
| PC health monitoring | Fan, Temperature, Voltage |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
Expansion slots
| PCI Express x16 slots | 1 |
|---|---|
| Number of M.2 (M) slots | 1 |
BIOS
| BIOS type | UEFI AMI |
|---|---|
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| Clear CMOS jumper | Yes |
| Desktop Management Interface (DMI) version | 2.7 |
| System Management BIOS (SMBIOS) version | 2.7 |
Battery
| Lithium weight per battery | 0.07 g |
|---|---|
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Battery capacity | 220 mAh |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery type | CR2032 |
Weight & dimensions
| Width | 170 mm |
|---|---|
| Depth | 170 mm |
| Height | 35 mm |
Packaging content
| Batteries included | Yes |
|---|---|
| Bundled software | Norton® Internet Security (OEM version), Realtek® 8118 Gaming LAN Bandwidth Control Utility |
Technical details
| Warranty period | 3 year(s) |
|---|
