Gamber-Johnson 7160-0595-20 mobile device dock station Tablet Black
Couldn't load pickup availability
- Compatible with the Panasonic Toughpad FZ-G1 tablet computers with small bumper guards
- Panasonic certified electronics

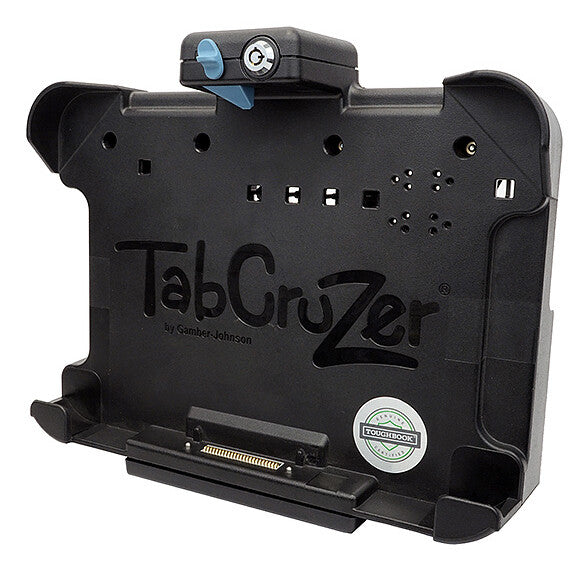

- Docking Station is designed to perfectly fit the G1 tablet without extra accessories, thus preserving the existing cabin space within the vehicle
- Access to all tablet control buttons and ports while tablet is docked
- Easy to use one-handed docking and release, Insert bottom of computer into the docking station, push top of computer against latch button to dock computer
- To remove, push up on latch-button with thumb to disengage and pull computer out of the docking station

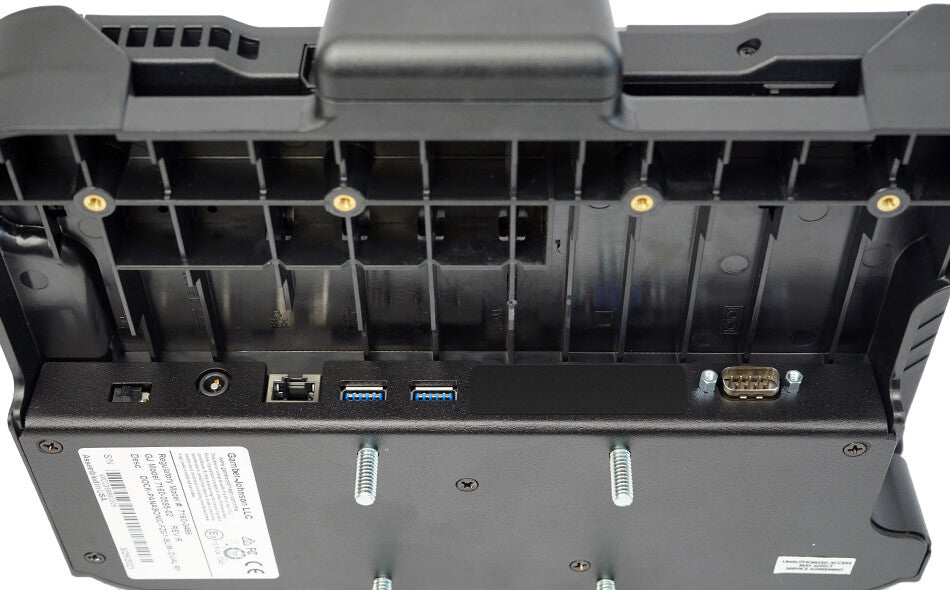

- Upward-facing I/O ports, integrated cable strain relief and cable management system
- Keyed lock for theft deterrence

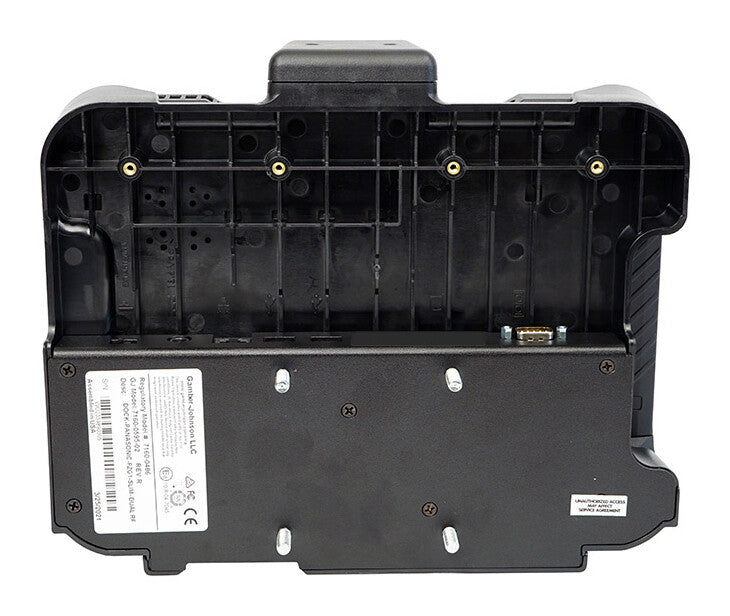

- VESA 75mm mounting pattern
- Rounded edges to enhance personal safety

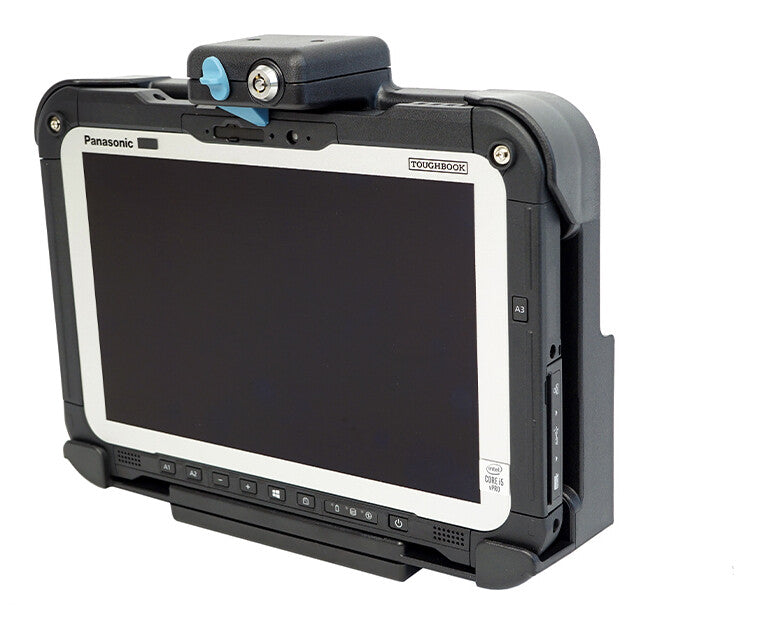

The Toughpad FZ-G1 THIN docking station is the perfect companion to the G1 tablet if you do not require a handstrap for the tablet or connection to an external antenna. This dock features lite port replication to connect peripherals and due to its small footprint, is perfect for conserving cabin space in a smaller vehicle.
| Performance | |
|---|---|
| Maximum VESA mount | 75 x 75 mm |
| VESA mounting | Yes |
| Product colour | Black |
| Compatibility | Toughpad FZ-G1 |
| Brand compatibility | Panasonic |
| Basic device type | Tablet |
| Network | |
|---|---|
| Bluetooth | No |
| Ports & interfaces | |
|---|---|
| DC-in jack | Yes |
| VGA (D-Sub) ports quantity | 1 |
| Number of antenna connectors | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI | No |
| Audio output | No |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| Docking connector type | Panasonic 24-pin |
| Power | |
|---|---|
| DC output voltage | 16 |
| Power source type | DC |
| Weight & dimensions | |
|---|---|
| Weight | 1.13 kg |
| Height | 237 mm |
| Depth | 65 mm |
| Width | 285 mm |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Packaging content | |
|---|---|
| User guide | Yes |
| Technical details | |
|---|---|
| Compliance certificates | C-TICK, CE, Federal Communications Commission (FCC), RoHS, UKCA |
| Warranty period | 3 year(s) |
