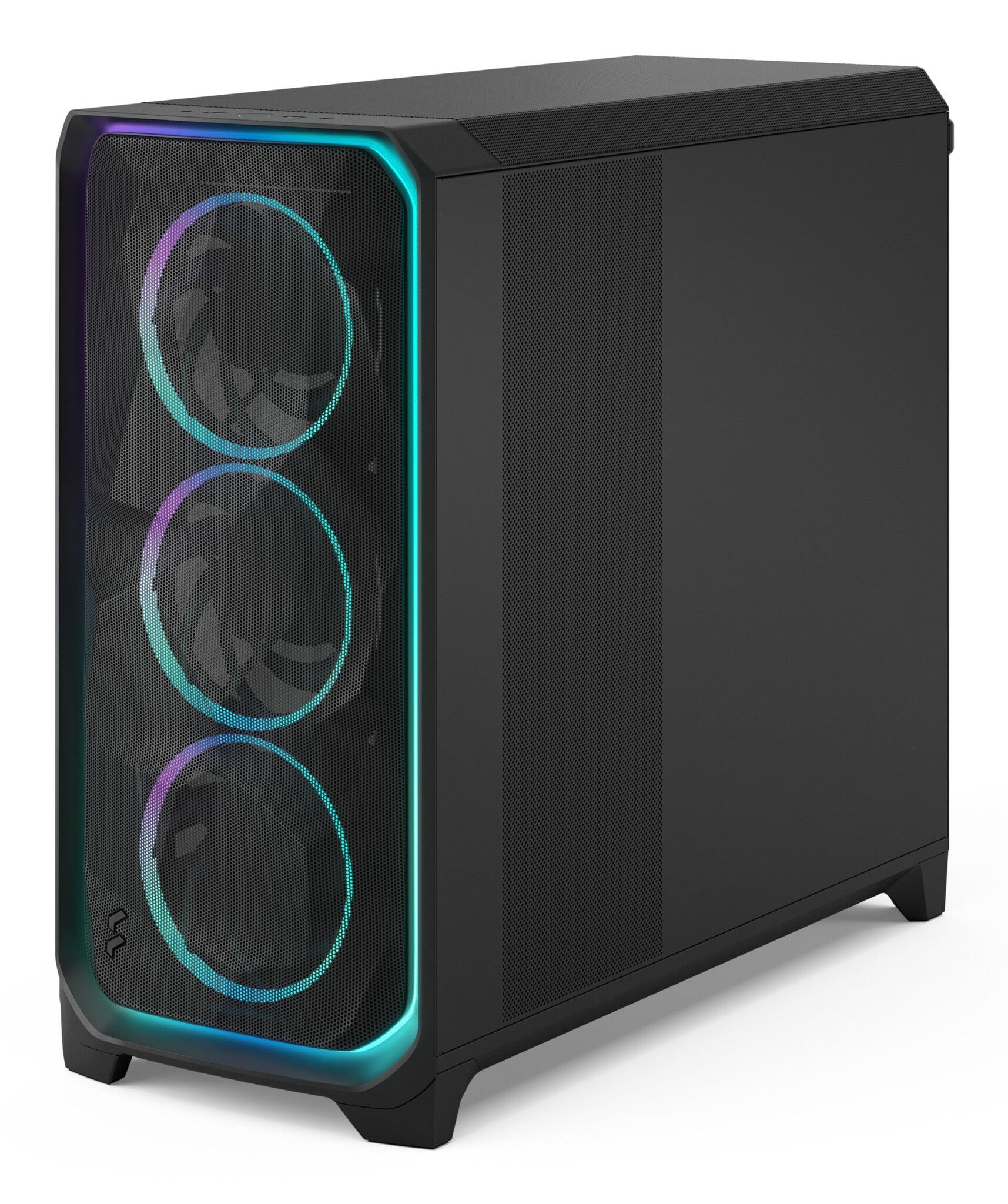

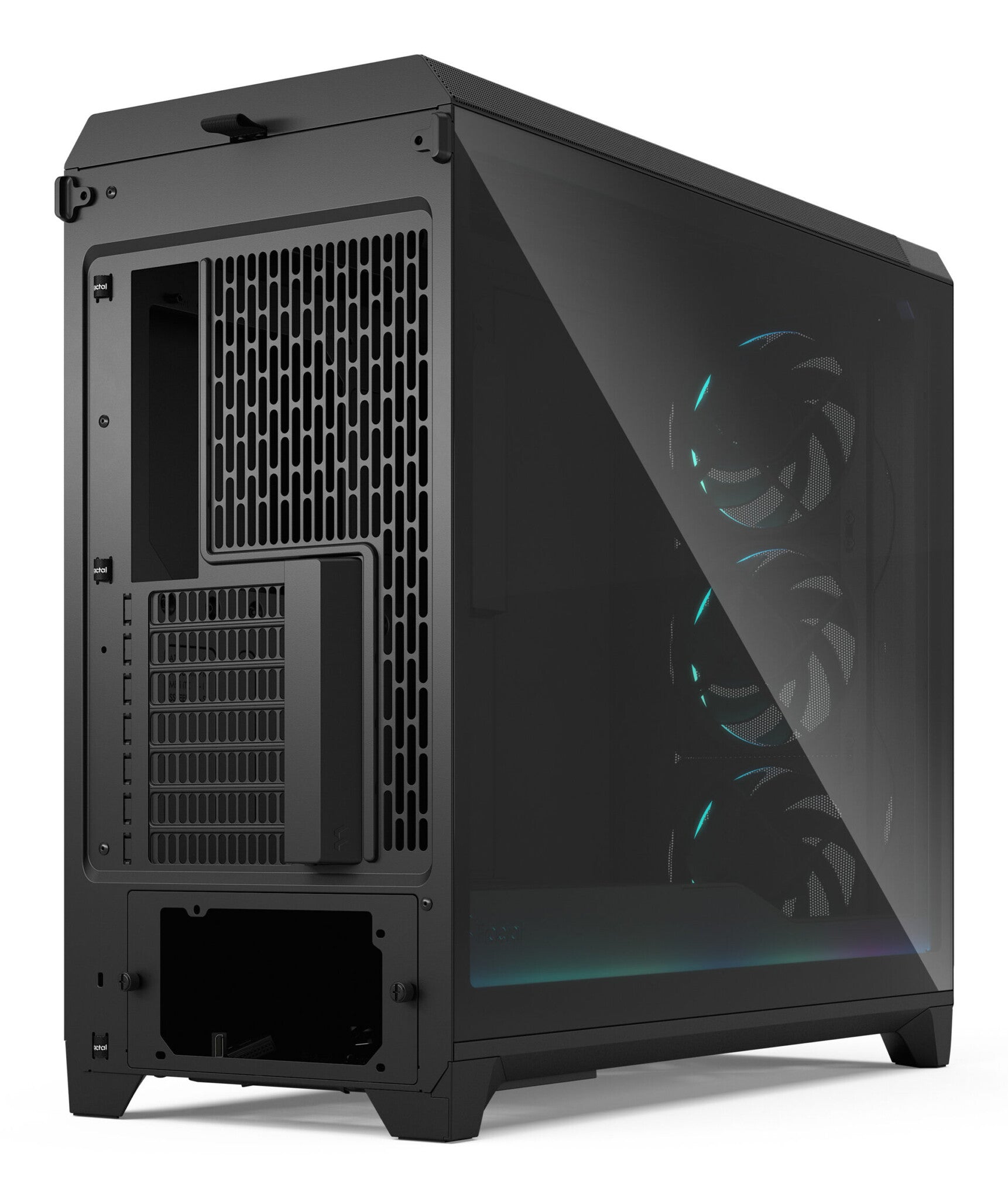

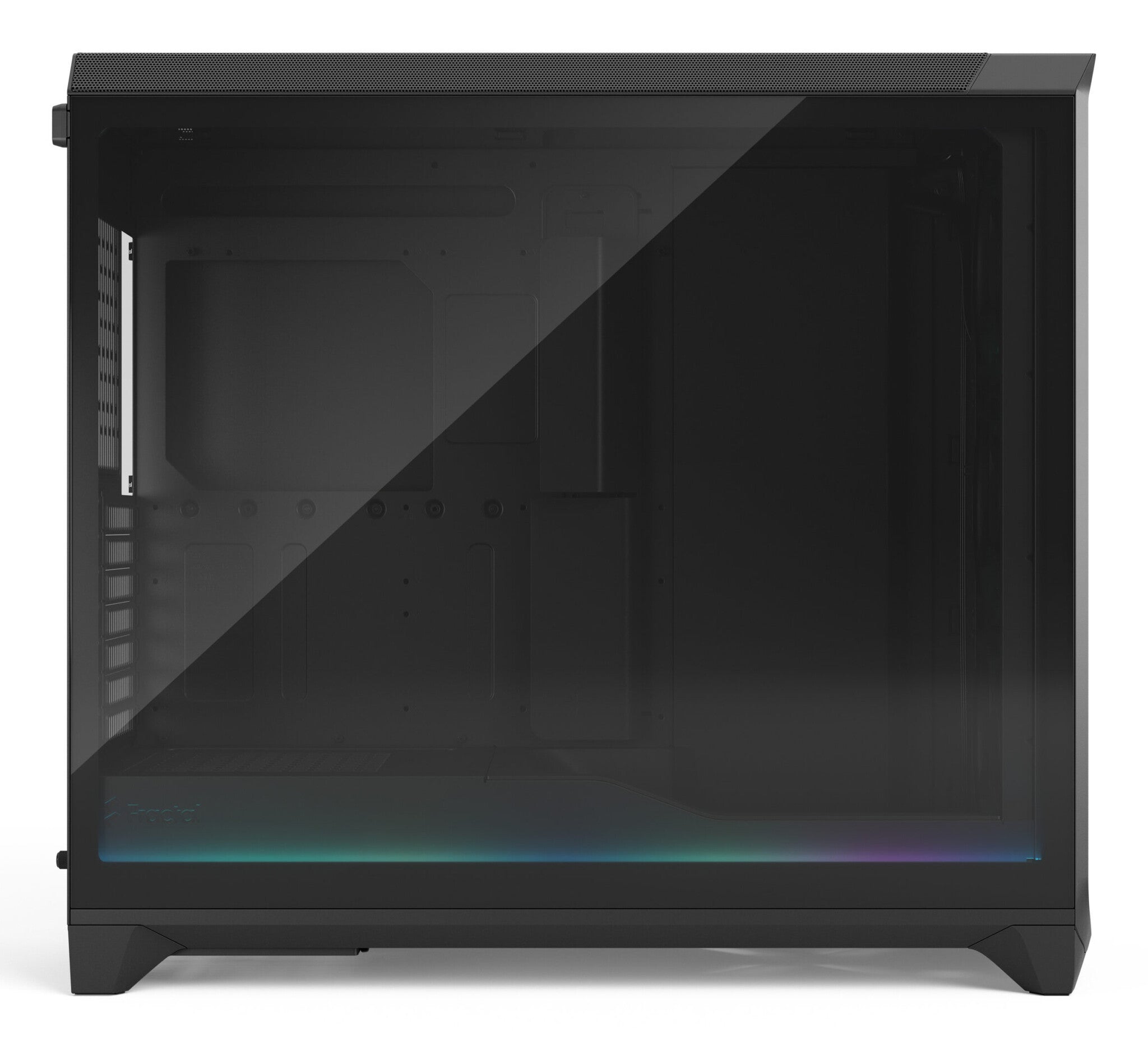

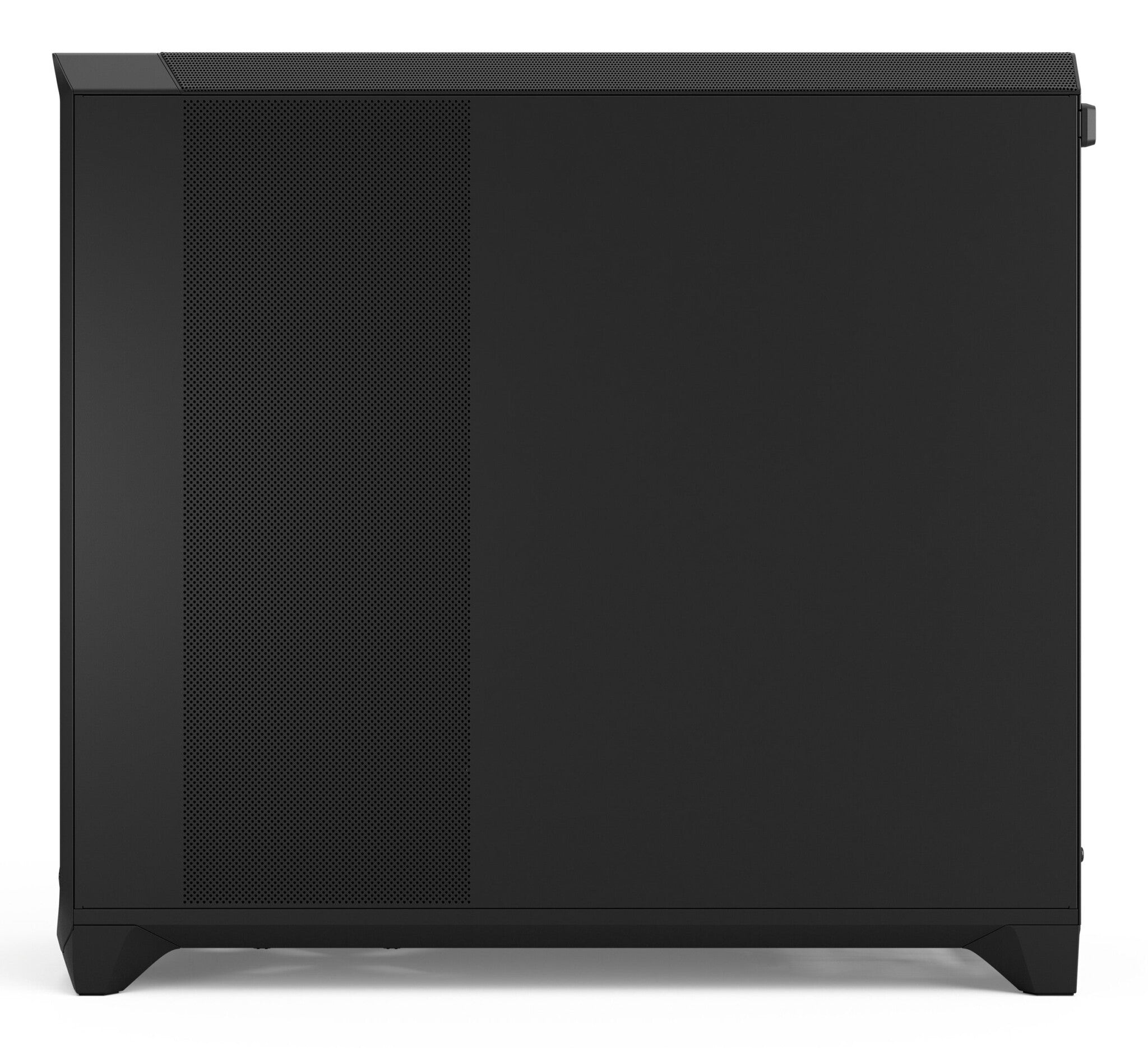

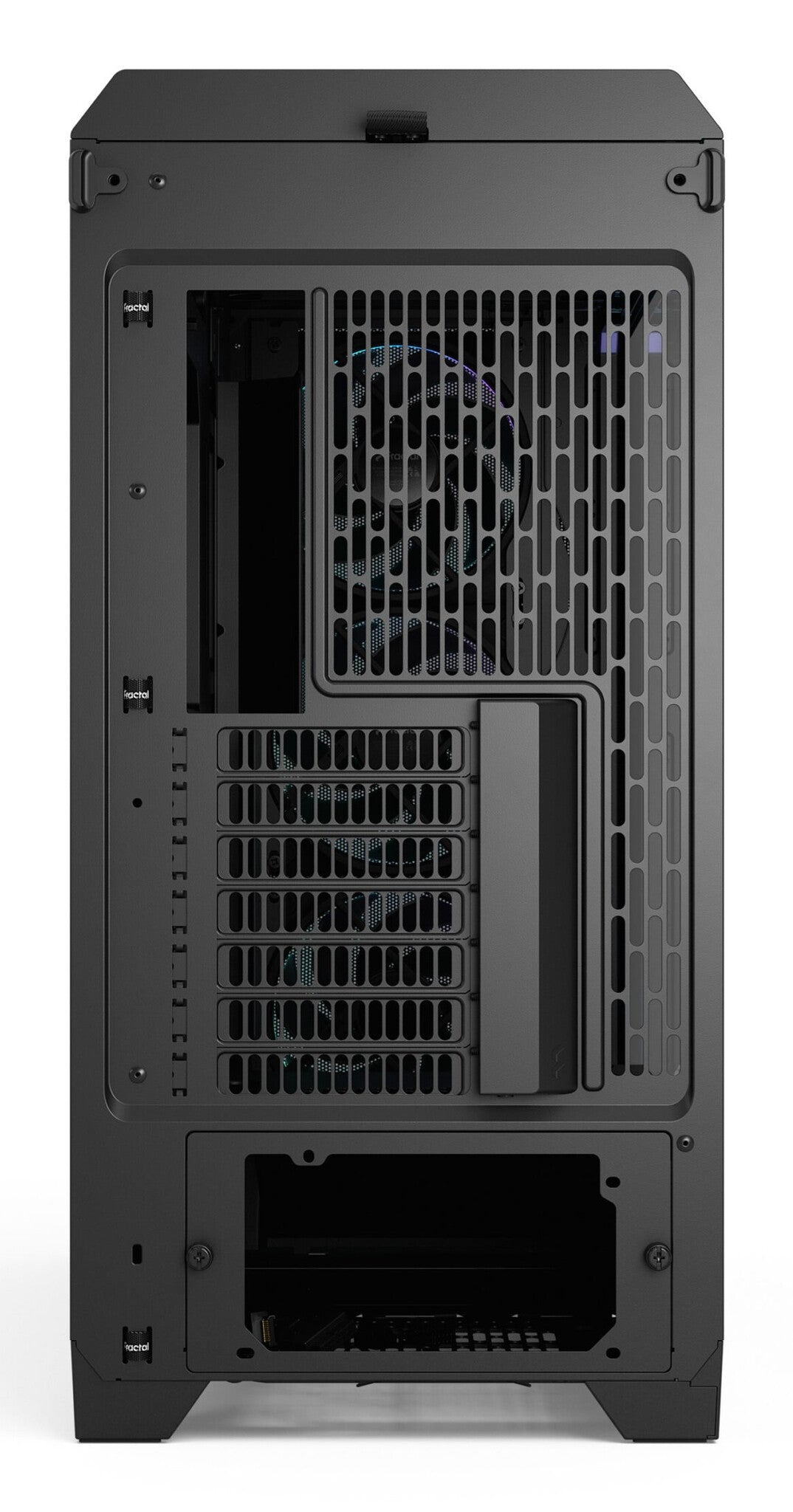

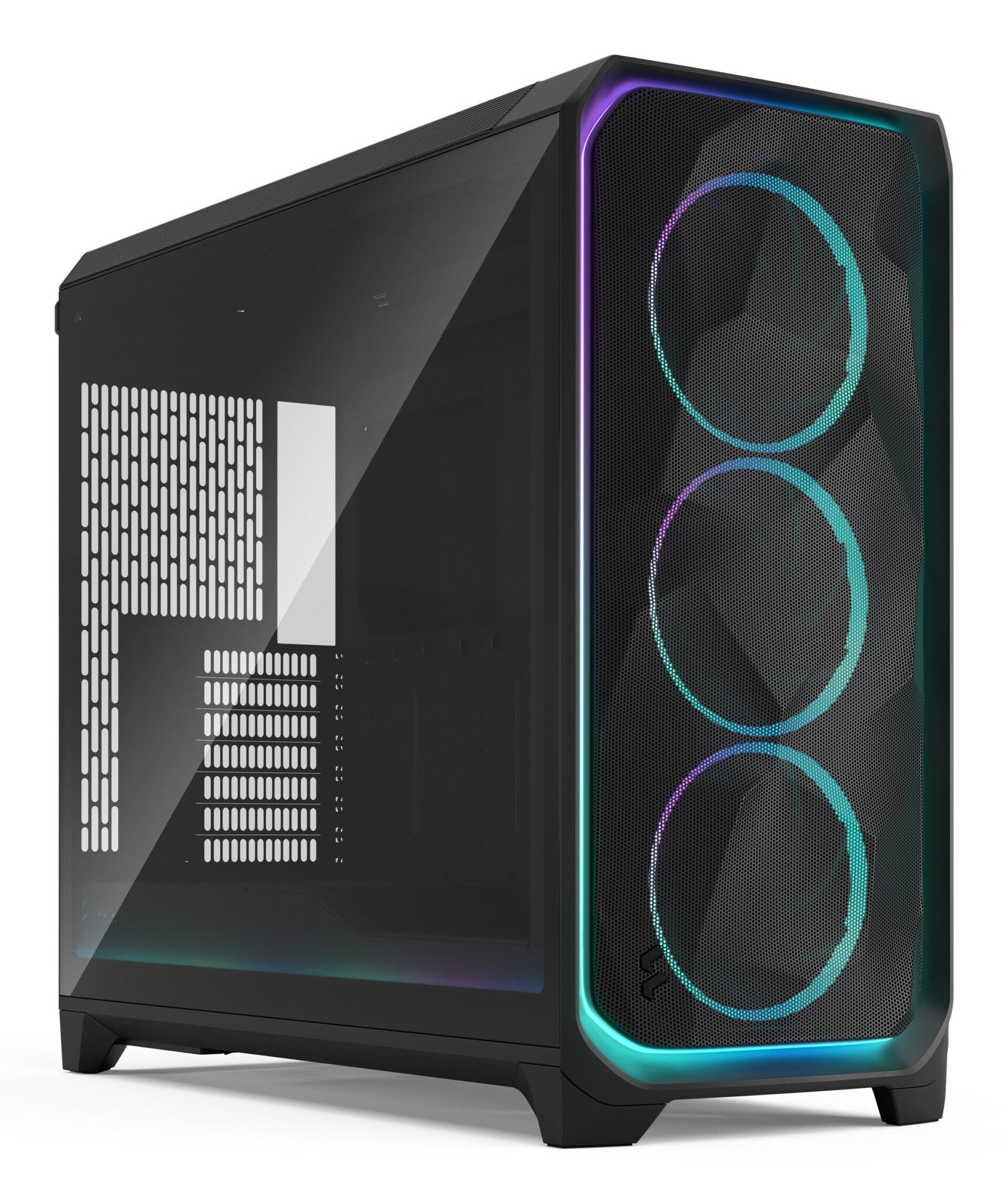

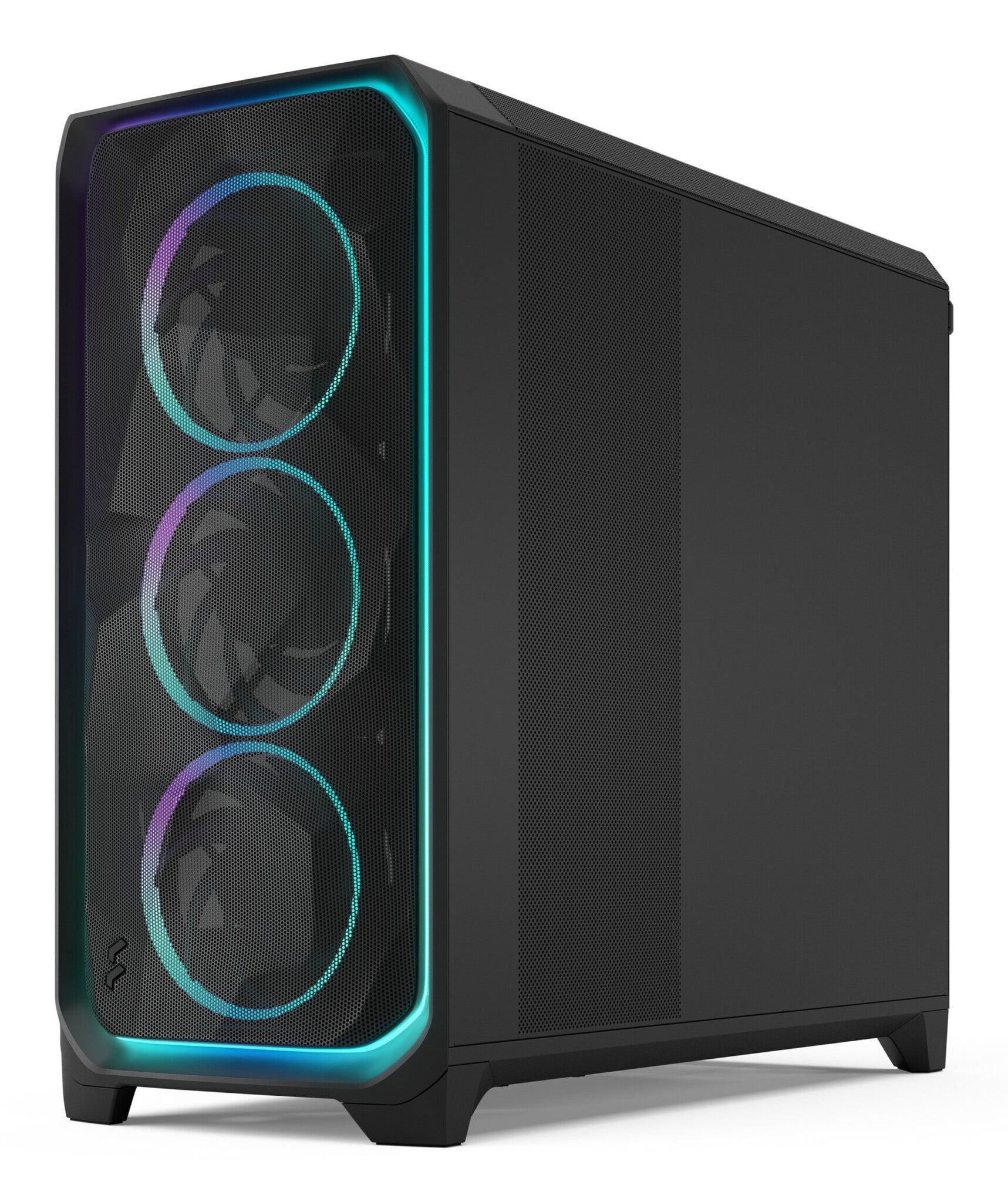

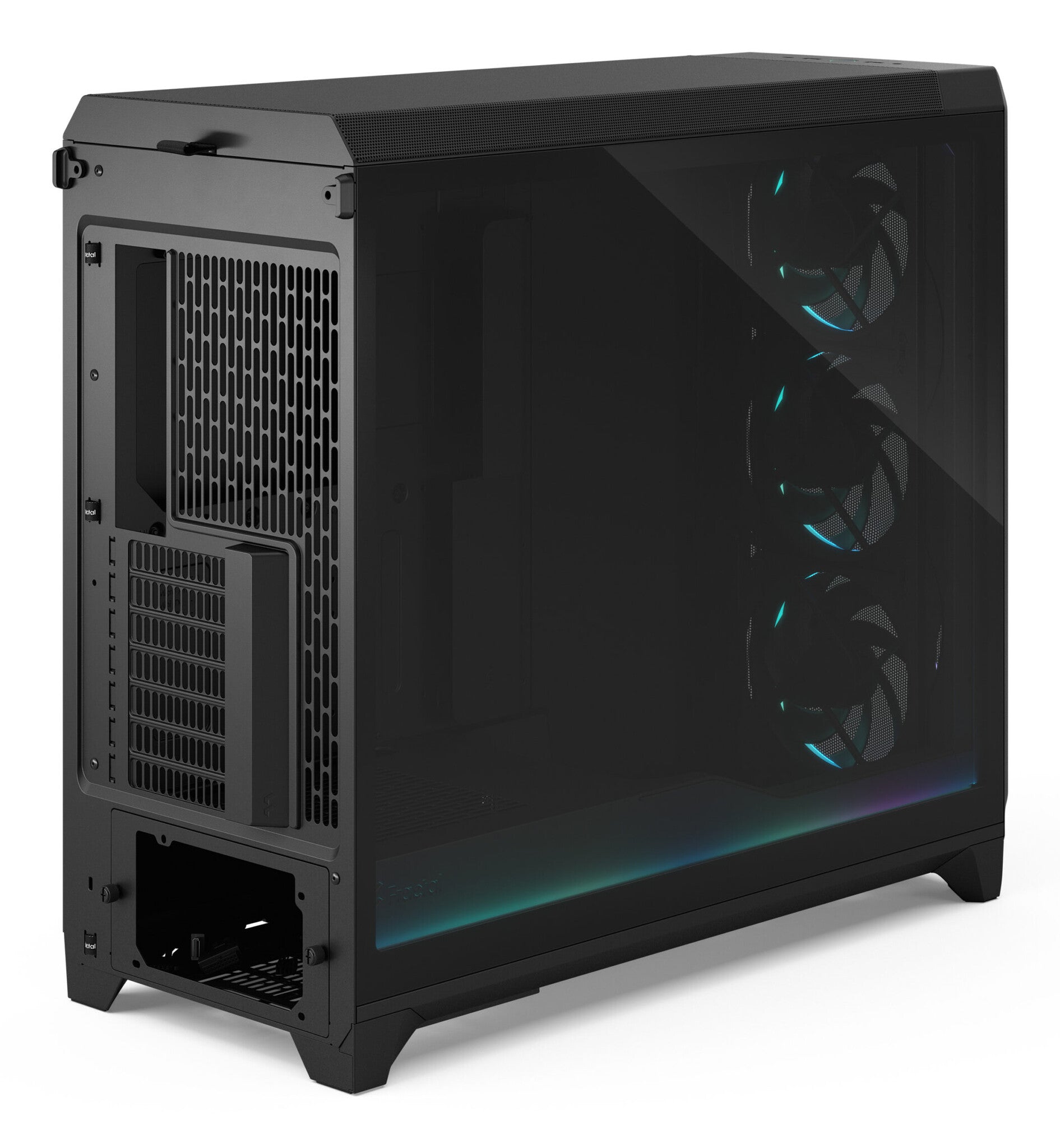

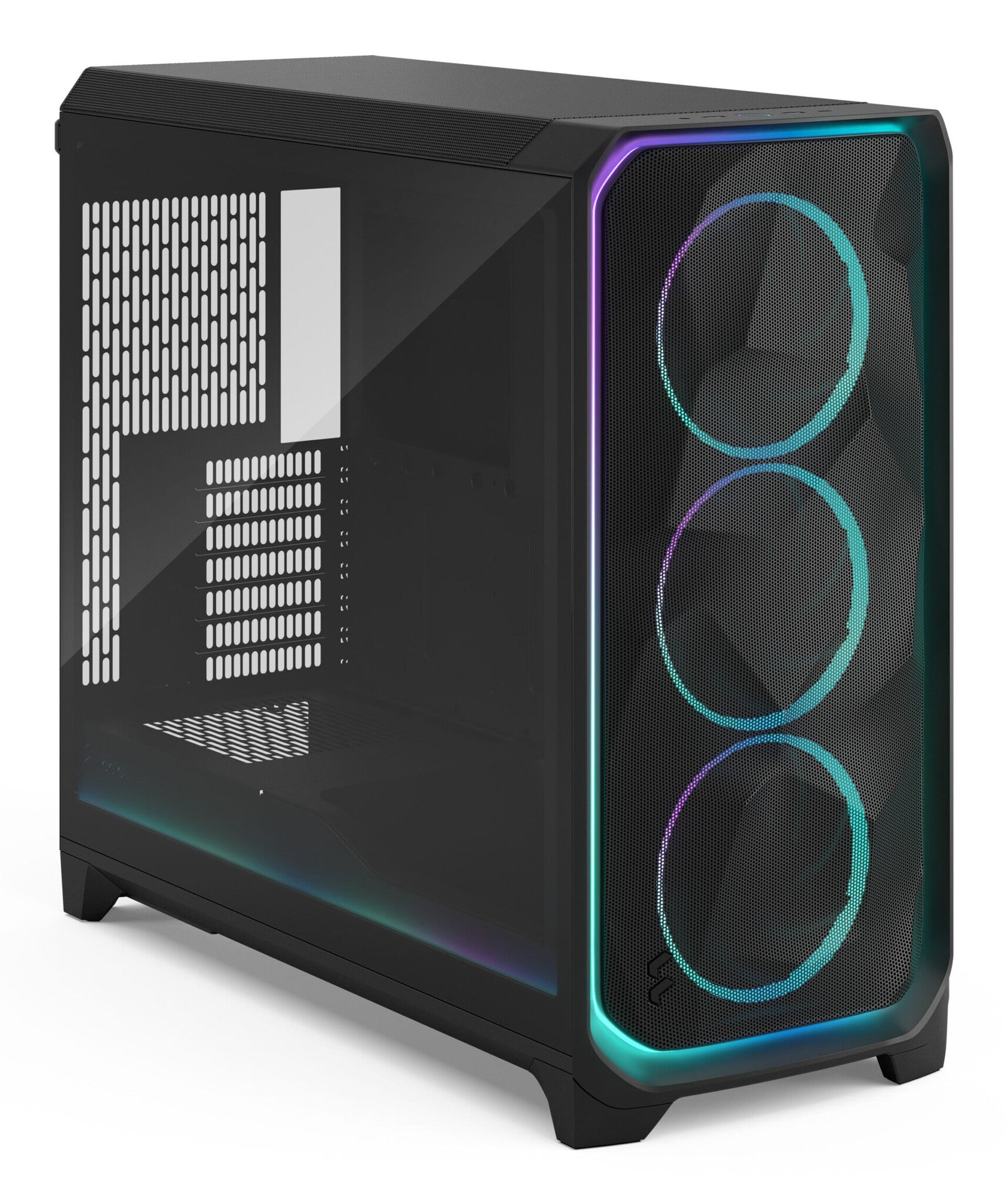

Fractal Design Meshify 3 XL Ambience Pro RGB Black TG Light Tint
Couldn't load pickup availability
- PC Gaming
- ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB
- Supported HDD sizes: 2.5,3.5" SSD form factor: 2.5"
- Number of 2.5" bays: 4 Number of 3.5" bays: 2
- Side window Illumination Multi Tempered glass panel(s) Anti-dust filter
- Steel, Tempered glass
- Black
Experience advanced cooling and expressive, aerodynamic design in a spacious format. An evolution of our mesh performance series, Meshify 3 XL offers performance-boosting engineering upgrades, three powerful Momentum fans, and next-level atmospheric lighting in Ambience Pro RGB versions.
Advanced airflow
Access performance engineering in a spacious format, with ample ventilation and an air guide which helps keep components running cool.
Evolved design

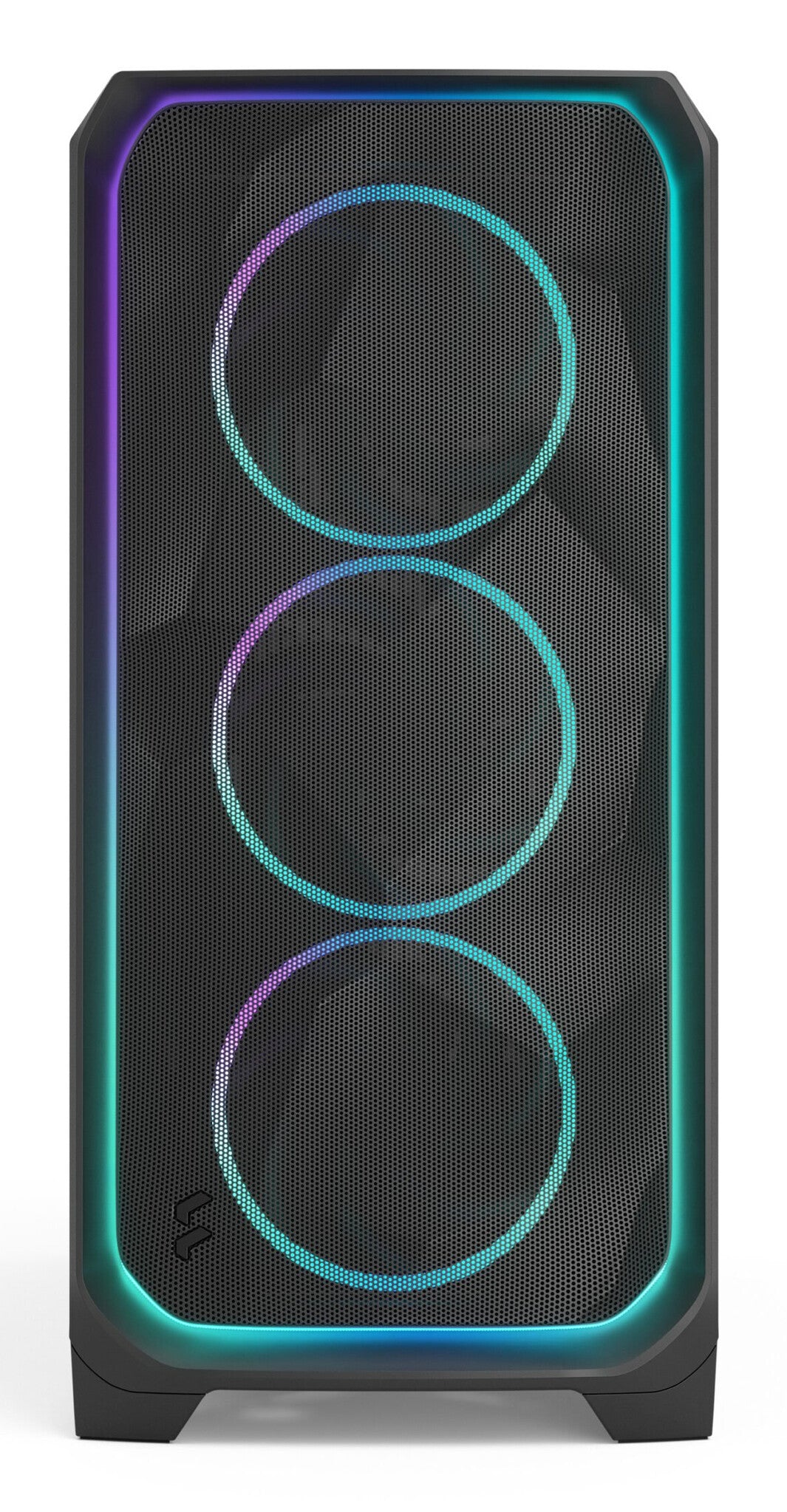

Elevate your space with an aerodynamic design aesthetic featuring a sleek, rockface-inspired mesh front panel.
Designed for gaming
Create a powerful gaming system with space for graphics cards up to 512 mm in length and E-ATX (330 mm) motherboard compatibility.
Ambience Pro RGB Version
Enhanced lighting
Create the right atmosphere with advanced ARGB Gen 2 ambient lighting, including an animated PC startup effect.
Ambience Pro RGB Version
Tailored experience
Customize your lighting and fans easily with a download-free configuration tool, accessed via the included Adjust Pro Hub.
Easily accessible

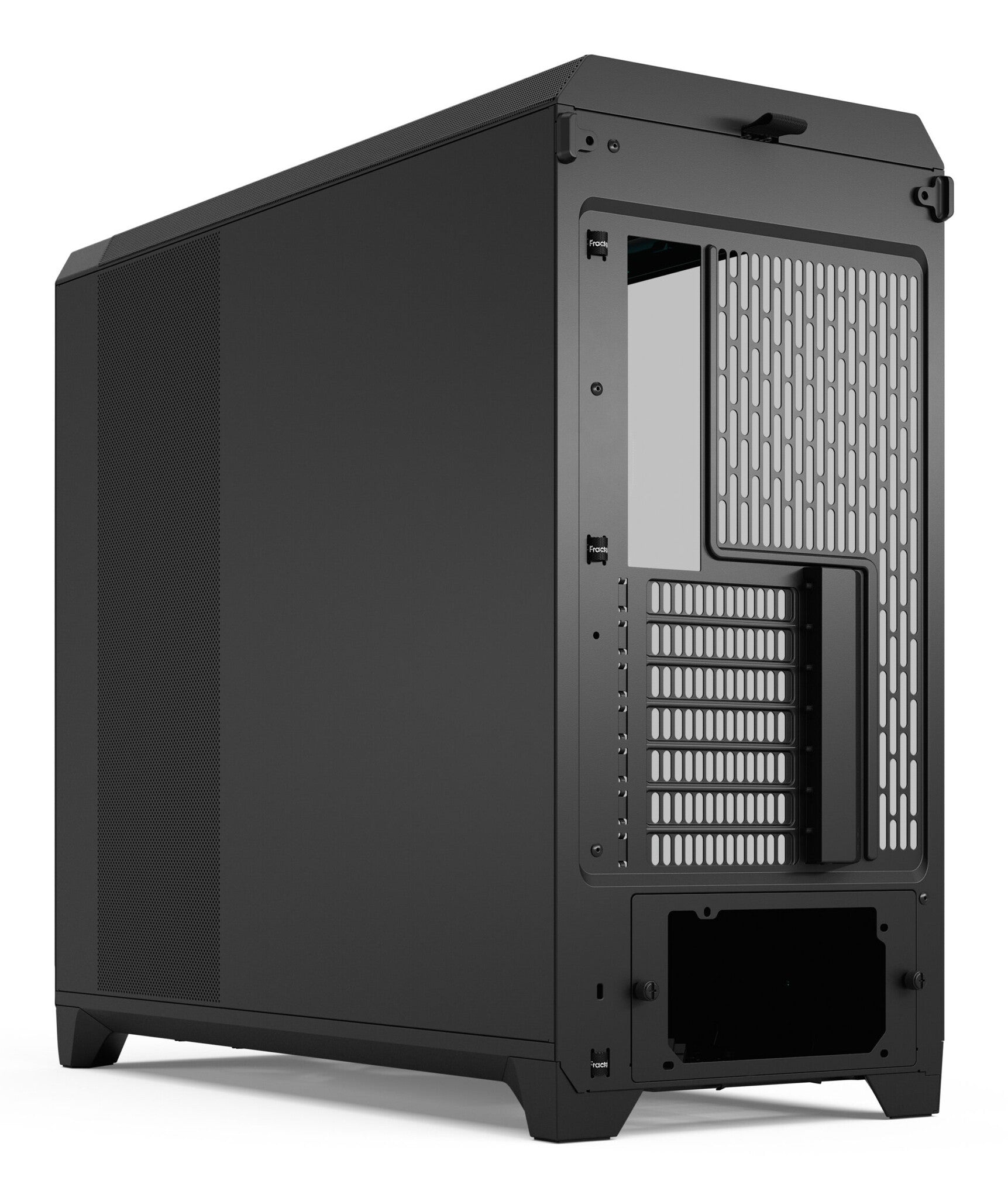

Enjoy a smooth build experience with easily removable panels, including a sliding top panel featuring a fabric tab.
Powerful fans included
Includes three high-performance Momentum 14 fans, featuring LCP blades and true FDB bearings for improved cooling and quieter operation.
Ideal for custom loops
Create a build with advanced cooling, with space for up to a 420 mm top radiator and up to 360 mm front and side radiators.

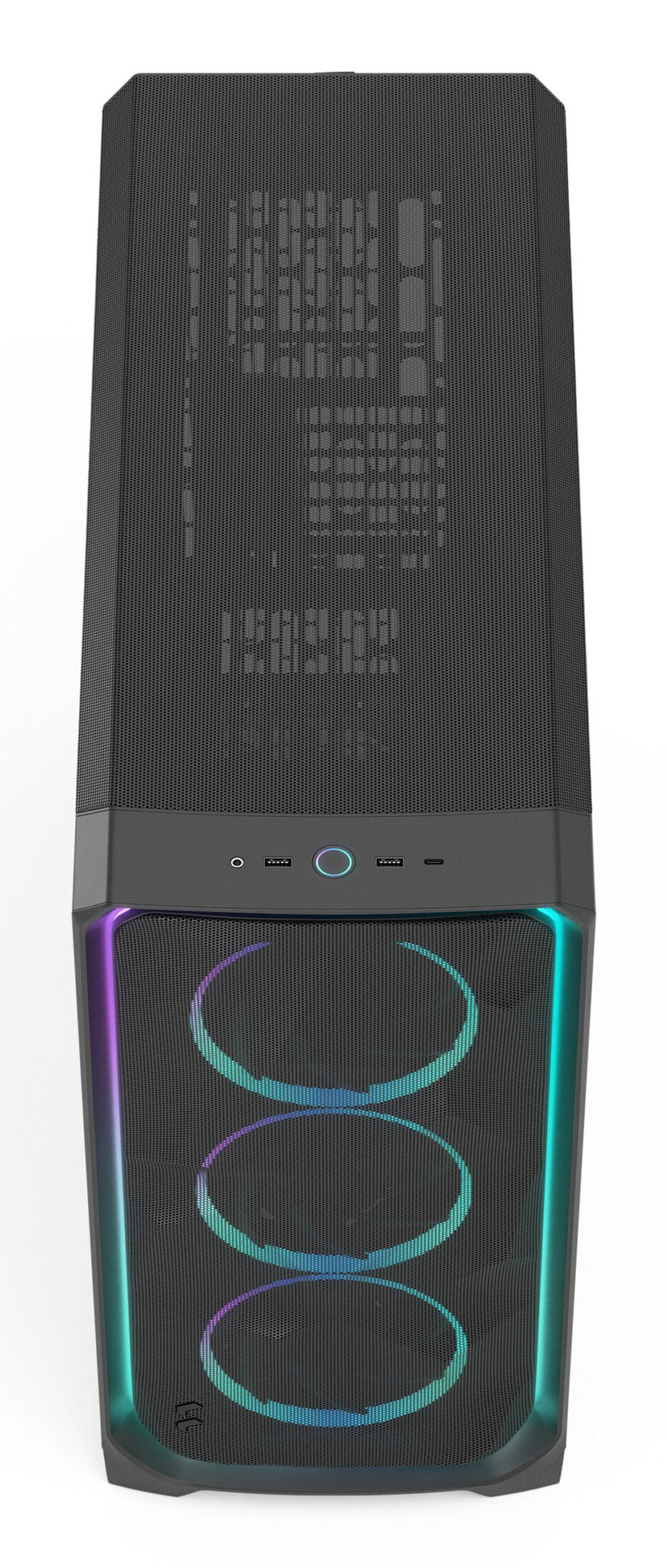

Accessible I/O
Connect your devices easily with a top I/O featuring a 20 Gbps USB Type-C port, two USB-A ports and a combined audio jack.
Clean finish
Achieve a neat and tidy look with a clean interior layout featuring a cable cover and new cable aligners for easy routing.
| Design | |
|---|---|
| Type | PC |
| Material | Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, ITX, micro ATX, SSI CEB, SSI EEB |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 2 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Suitable for | Gaming |
| Illumination | Yes |
| Illumination colour | Multi |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 18.2 cm |
| Maximum graphics card length | 51.2 cm |
| Maximum PSU length | 23 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Combo headphone/mic port | Yes |
| Cooling | |
|---|---|
| Front fans installed | 3x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140,180 mm |
| Number of side fans supported (max) | 3 |
| Side fans diameters supported | 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Liquid cooling capability | Yes |
| Front radiator installed | No |
| Front radiator sizes supported | 280,360 mm |
| Side radiator sizes supported | 360 mm |
| Rear radiator installed | No |
| Rear radiator sizes supported | 120,140 mm |
| Top radiator installed | No |
| Top radiator sizes supported | 360,420 mm |
| General | |
|---|---|
| Product family | Meshify |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| SSD form factor | 2.5" |
| Technical details | |
|---|---|
| Warranty period | 2 year(s) |
| Packaging content | |
|---|---|
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width | 245 mm |
| Depth | 575 mm |
| Height | 515 mm |
| Weight | 11.4 kg |
| Packaging data | |
|---|---|
| LED controller | Yes |
| Package width | 350 mm |
| Package depth | 688 mm |
| Package height | 596 mm |
| Package weight | 13.3 kg |
