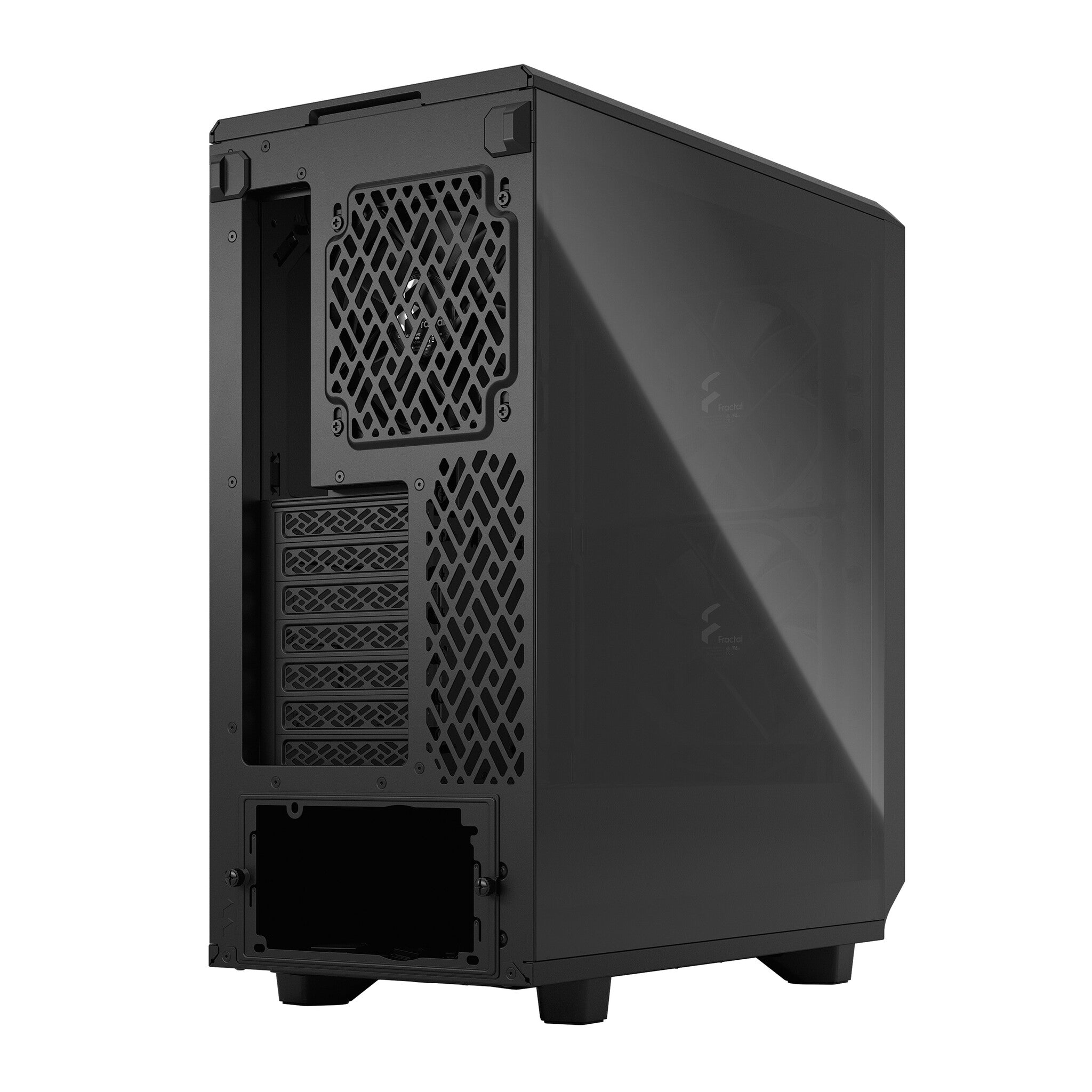

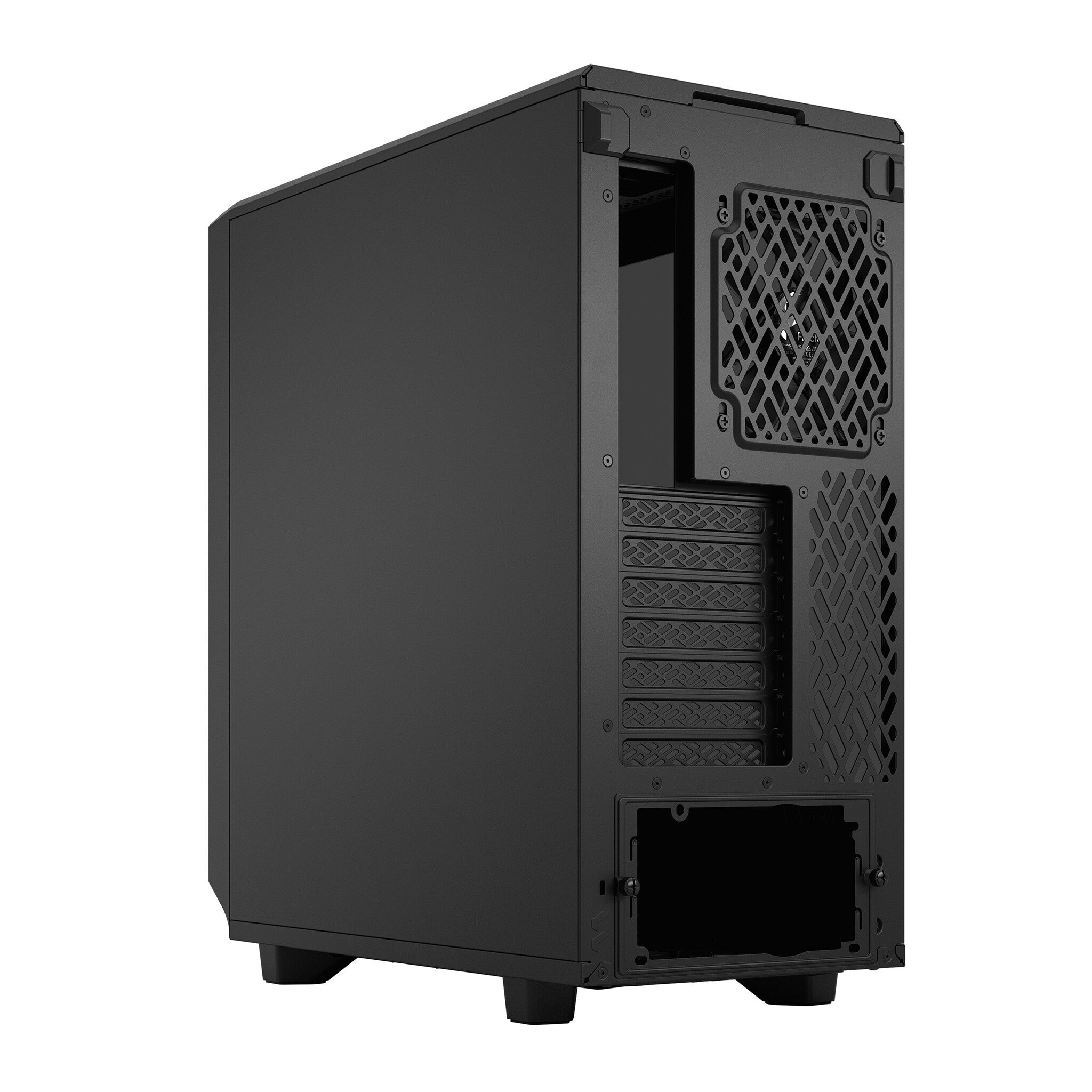

Fractal Design Meshify 2 Compact Tower Black
Couldn't load pickup availability

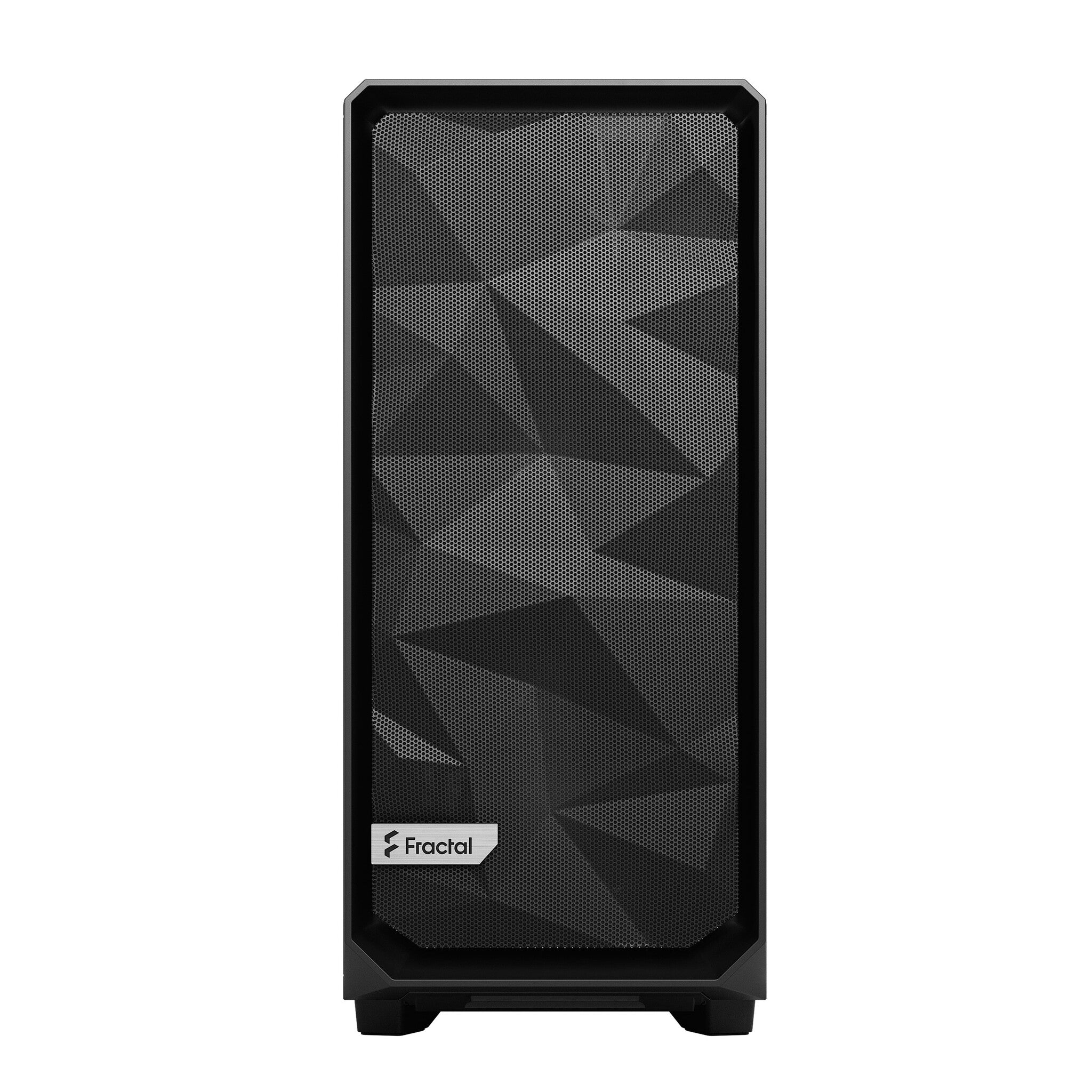

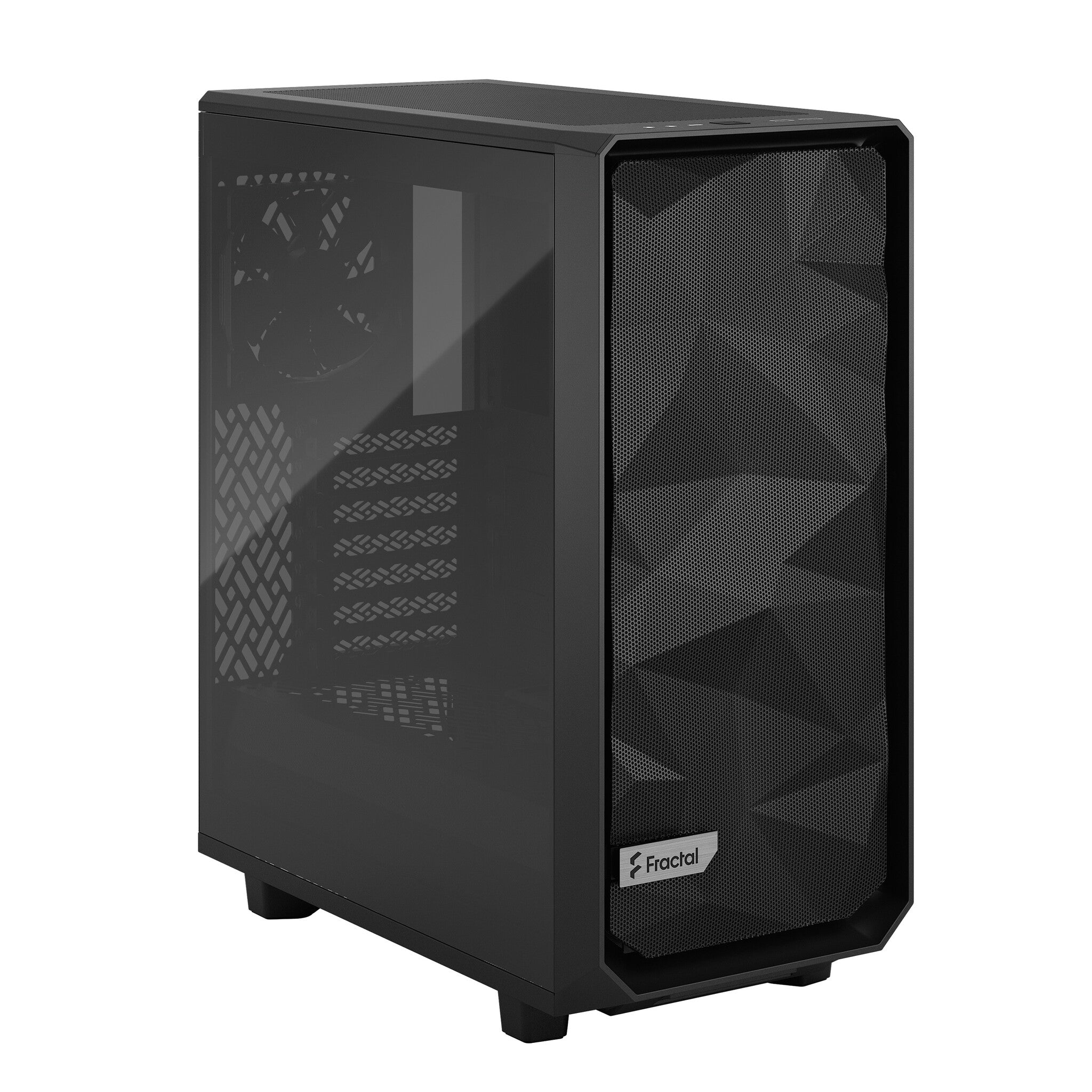

- Iconic angular mesh front provides filtered airflow with a bold, stealth-inspired aesthetic
- Room for GPUs up to 360 mm with a 240 mm radiator in the top, or up to 360/280 mm front radiators with GPUs under 305 mm
- Versatile and space-efficient ATX form-factor design offers the performance and capacity of much larger cases
Removable front filter
- New front panel design with hinged removable mesh and tether-free bezel for easier access to front fan mounts
- Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
- New front nylon filter that can be removed for increased airflow
Robust cooling
- Install up to 7 fans, front radiators up to 360 mm, or top radiators up to 240 mm
- Open interior layout creates a smooth airflow path from intake to exhaust
- Install up to 7x 120 mm or 4x 140 mm fans (1x 120 mm and 2x 140 mm Dynamic X2 fans included)
Fully featured

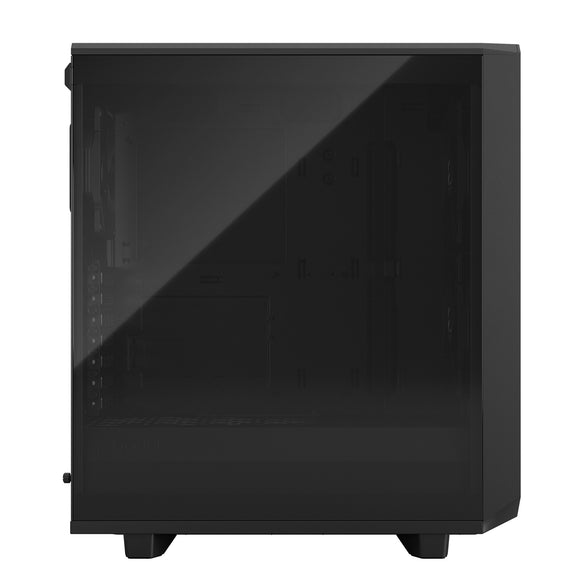

- Seamlessly integrated steel panel with steel frame support and bolt-free top-latching mechanism
- Flexible storage options supporting two 2.5”/3.5” drives and up to four SSDs (two SSD brackets included)
- Improved cable routing with three integrated cable alignment clips and six velcro straps
Top priority access

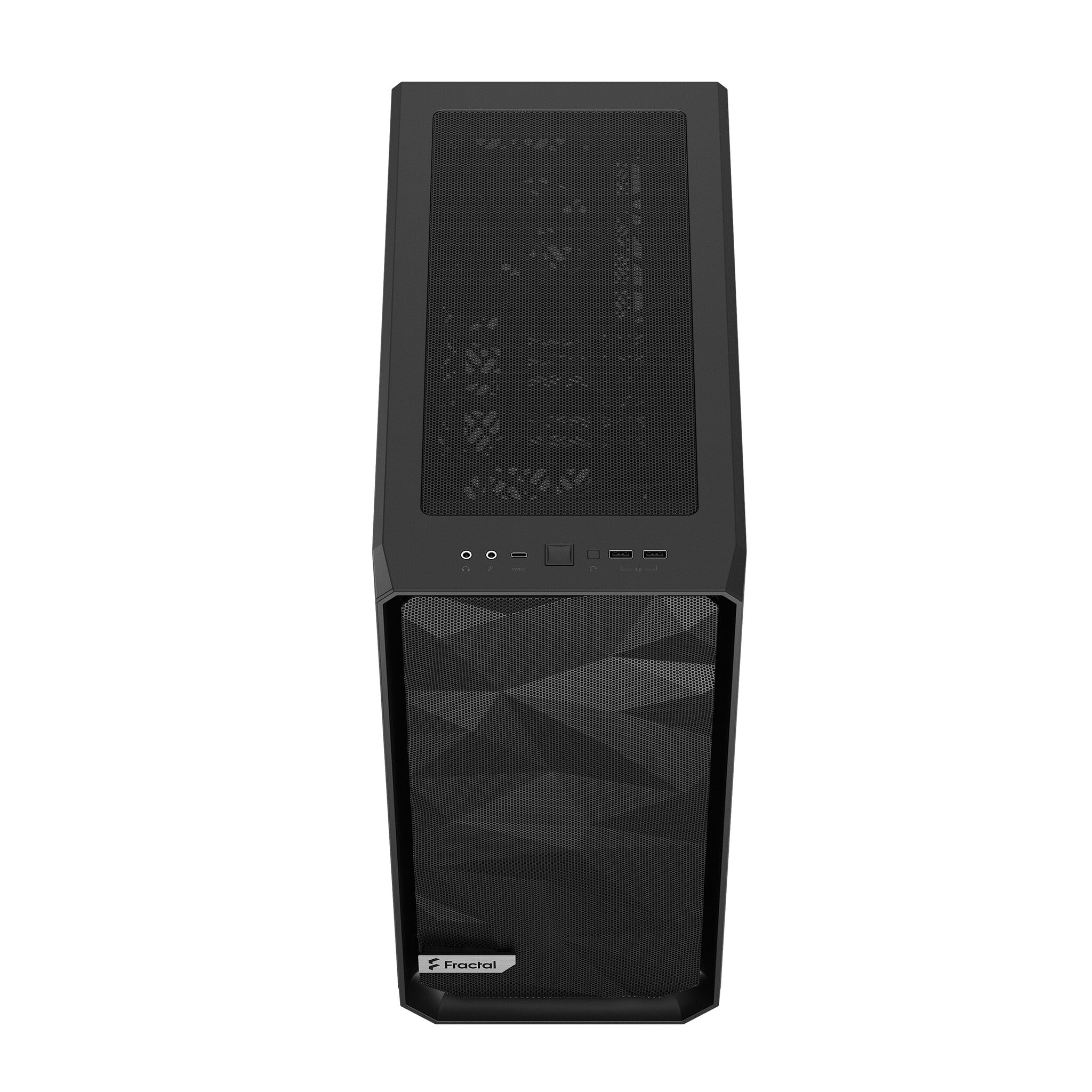

The fully removable top panel opens to provide excellent interior access
Spaciously compact
Clever layout enables the capacity of much larger cases
Type-C interface
USB 3.1 Gen 2 Type-C front I/O offers fast-charging and speeds up to 10 Gbps
Smooth and quiet operation
The sturdy steel drive trays are vibration-damped by cushioning rubber grommets
Full length shroud
A full-length power supply shroud readily conceals the drive cage and excess cabling
| Design | |
|---|---|
| Form factor | Tower |
| Type | PC |
| Material | Steel, Tempered glass |
| Product colour | Black |
| Supported motherboard form factors | ATX, micro ATX, Mini-ITX |
| Number of 3.5" bays | 2 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 2 |

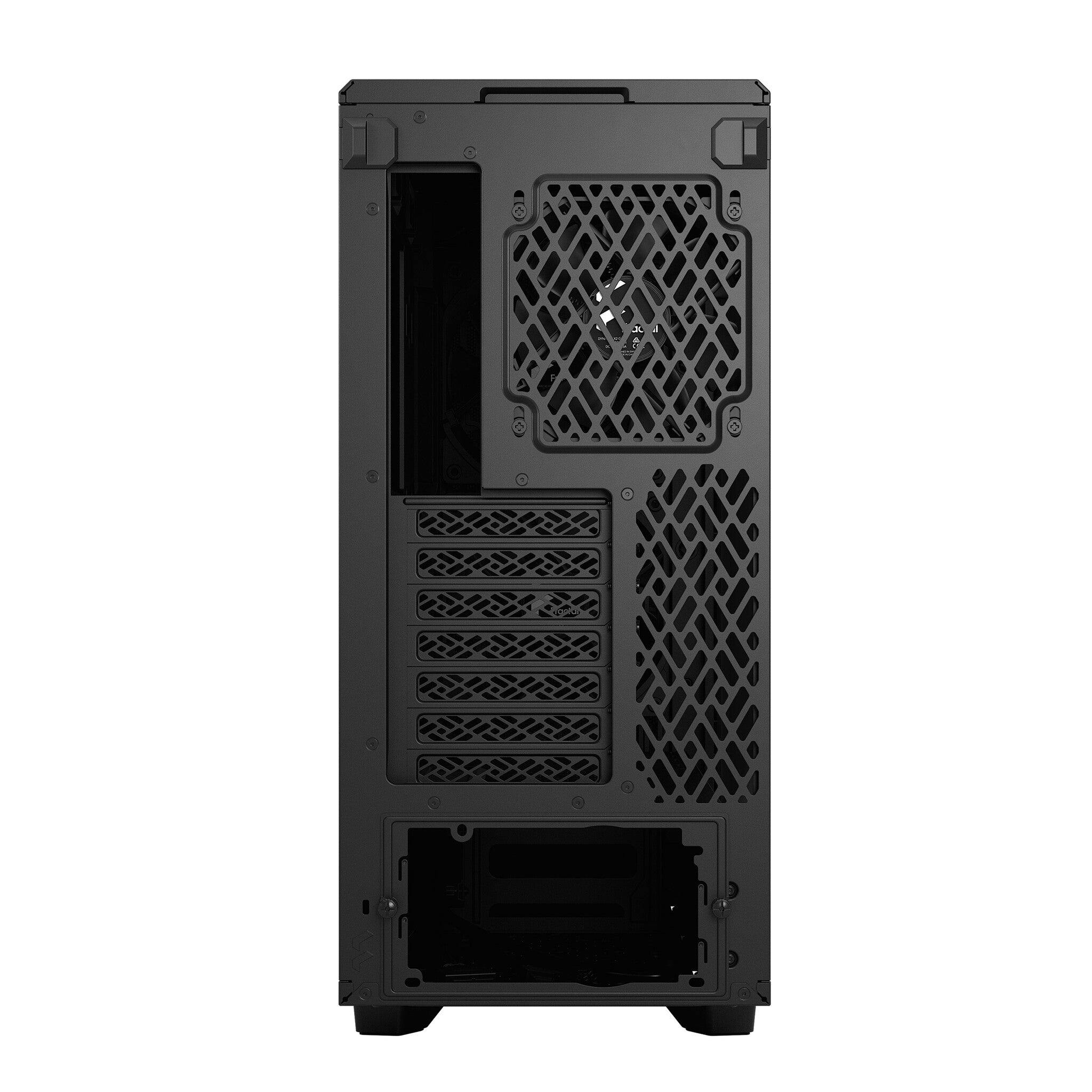

| Number of expansion slots | 7 |

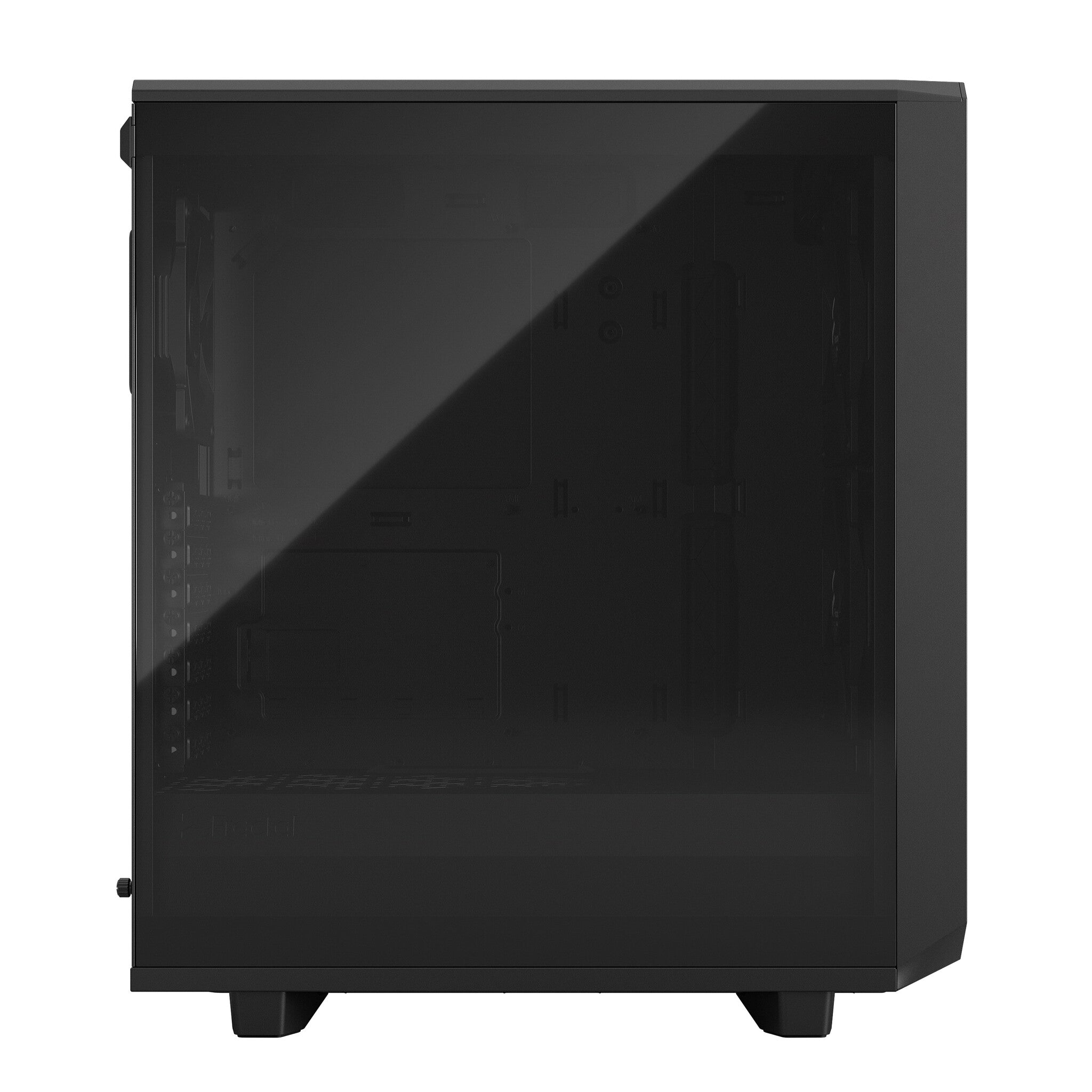

| Side window | Yes |
| Suitable for | Gaming |
| Illumination | No |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 16.9 cm |
| Maximum graphics card length | 36 cm |
| Maximum PSU length | 20 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Power supply location | Bottom |
| Supported power supply form factors | ATX |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Audio input | Yes |
| Audio output | Yes |
| Cooling | |
|---|---|
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 120 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120 mm |
| Number of top fans supported (max) | 2 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 1 |
| Bottom fans diameters supported | 120 mm |
| Liquid cooling capability | Yes |
| Front radiator installed | No |
| Front radiator sizes supported | 280,360 mm |
| Rear radiator installed | No |
| Rear radiator sizes supported | 120 mm |
| Top radiator installed | No |
| Top radiator sizes supported | 240 mm |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Weight & dimensions | |
|---|---|
| Width | 210 mm |
| Depth | 424 mm |
| Height | 475 mm |
| Weight | 8.1 kg |
| Packaging data | |
|---|---|
| Package width | 320 mm |
| Package depth | 542 mm |
| Package height | 554 mm |
| Package weight | 9.8 kg |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84733080 |
| Other features | |
|---|---|
| Volume | 39.4 L |
