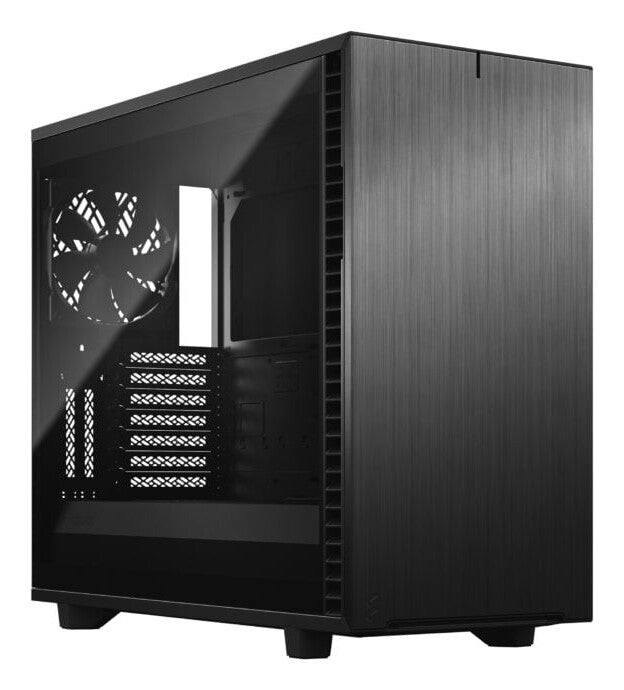

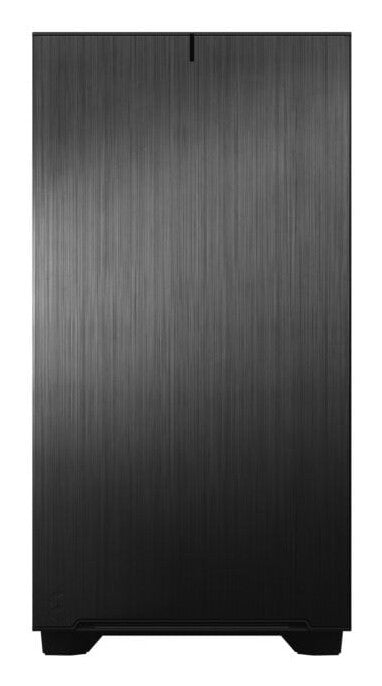

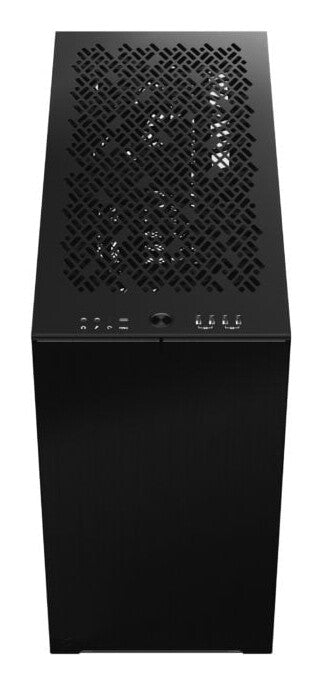

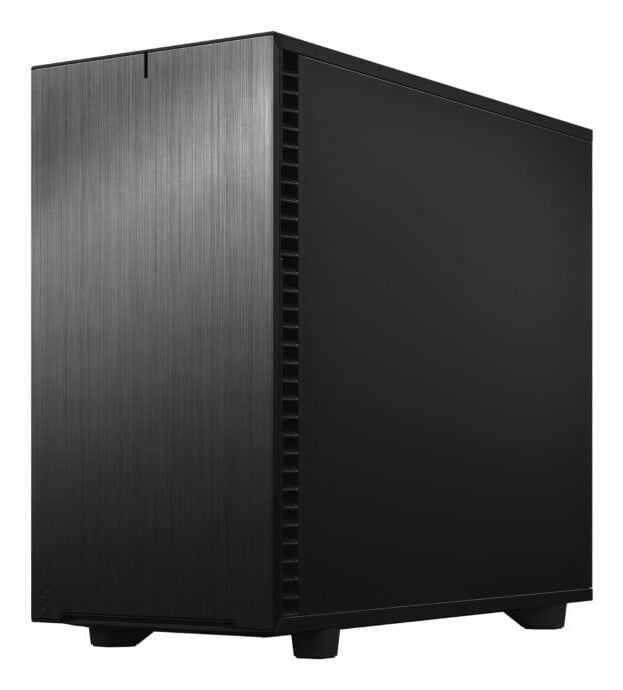

Fractal Design Define 7 Midi Tower Black
Couldn't load pickup availability
- Spacious and extensively adaptable dual-layout interior easily accommodates large motherboards up to and including 285 mm E-ATX
- Support for radiators up to 360 mm in front, 420 mm up top, or 280 mm in the base in the default Open Layout
- Convert to Storage Layout for up to 14 HDDs along with 4 dedicated SSD mounts and one ODD bay (6 HDD/SSD + 2 SSD brackets + 1 multi-bracket included)
- The single 5.25” ODD bay can be converted to an additional 140 mm front fan mount with filtered louver covering
- Silence-optimized construction with industrial sound-damped front, top, and side panels
- Top panel effortlessly swaps from sound-damped solid steel to filtered ventilation
- New chassis design opens up to fully expose the case interior for totally unhindered installation and cable routing
- Anodized aluminum front panel with reversible dual-handed hinges opens and closes easily with magnetic latching
- Outstanding cooling capacity with a total of 9 x 120/140 mm fan mounts and three preinstalled Dynamic X2 GP-14 fans
Re-defining versatility.
The Define 7 is the latest pinnacle of the renowned Define series, setting a new standard for what you should expect from a mid-tower case when it comes to modularity, flexibility and ease of use. The dual-layout interior, industrial sound damping, and classic styling make it an easy choice for any design-conscious PC builder in need of a versatile and dependable case that accommodates ambitious builds and leaves you room to grow.
| Design | |
|---|---|
| Form factor | Midi Tower |
| Type | PC |
| Product colour | Black |
| Supported motherboard form factors | ATX, EATX, Mini-ITX |
| Number of 5.25" bays | 1 |
| Number of 3.5" bays | 6 |
| Number of 2.5" bays | 4 |
| Number of internal 3.5" bays | 6 |
| Number of internal 5.25" bays | 1 |
| Number of storage drives supported | 18 |
| Full-Height riser expansion slots | 2 |
| Full-Height expansion slots | 7 |
| Number of expansion slots | 7 |
| Side window | Yes |
| Tempered glass panel(s) | Yes |
| Anti-dust filter | Yes |
| Cable management | Yes |
| Reset button | Yes |
| On/off button | Yes |
| Maximum CPU cooler height | 18.5 cm |
| Maximum PSU length | 25 cm |
| Power supply | |
|---|---|
| Power supply included | No |
| Ports & interfaces | |
|---|---|
| USB 2.0 ports quantity | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Cooling | |
|---|---|
| Front fans installed | 2x 140 mm |
| Number of front fans supported (max) | 3 |
| Front fans diameters supported | 120,140 mm |
| Rear fans installed | 1x 140 mm |
| Number of rear fans supported (max) | 1 |
| Rear fans diameters supported | 120,140 mm |
| Number of top fans supported (max) | 3 |
| Top fans diameters supported | 120,140 mm |
| Number of bottom fans supported (max) | 2 |
| Bottom fans diameters supported | 120,140 mm |
| Front radiator sizes supported | 280,360 mm |
| Bottom radiator sizes supported | 240,280 mm |
| Rear radiator sizes supported | 120 mm |
| Top radiator sizes supported | 360,420 mm |
| General | |
|---|---|
| Product family | Define |
| Storage | |
|---|---|
| Supported HDD sizes | 2.5,3.5" |
| Packaging content | |
|---|---|
| Number of mounting brackets | 14 |
| Radiator bracket included | Yes |
| Manual | Yes |
| Weight & dimensions | |
|---|---|
| Width | 240 mm |
| Depth | 547 mm |
| Height | 475 mm |
| Weight | 13.5 kg |
| Packaging data | |
|---|---|
| Package width | 363 mm |
| Package depth | 558 mm |
| Package height | 641 mm |
| Package weight | 16 kg |
| Other features | |
|---|---|
| Screws included | Yes |
