Epson TM-T88IV (082): Serial, PS, EDG
Couldn't load pickup availability
- 203 x 203 DPI
- Colour
- Print speed: 200 mm/sec
- Built-in barcodes: CODE 39, CODE 93, UPC-A, UPC-E
- Connectivity technology: Wired
- 1.8 kg

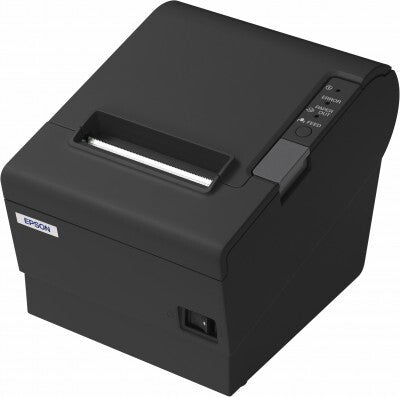

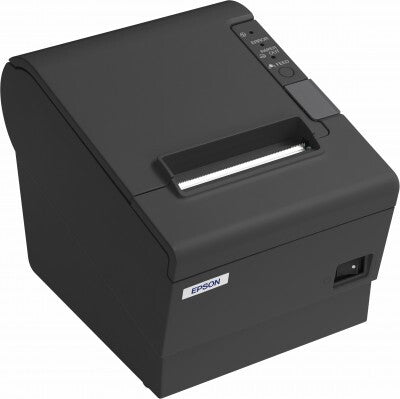

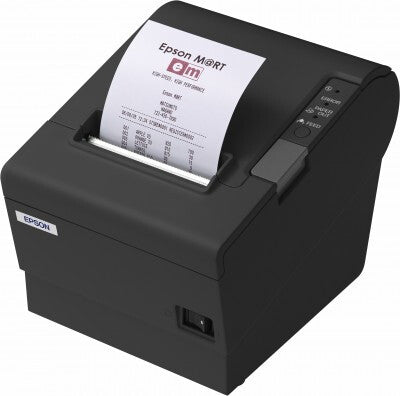

The TM-T88IV POS thermal printer is the latest addition to Epson's innovative, industry-leading TM-T88 POS printer series. Designed specifically for high-volume retail and hospitality environments, the TM-T88IV delivers more speed and more reliability than ever before. It offers 25% faster printing of text and graphics than the TM-T88III, two-color capability, new ease-of-use features and both wired and wireless interfaces.
Product Features:
-High-speed printing of up to 7.9"/sec. - 25% faster than the TM-T88III.
-Same fast print speed for both text and graphics.
-Two-color printing of receipts including logos and all other graphics.

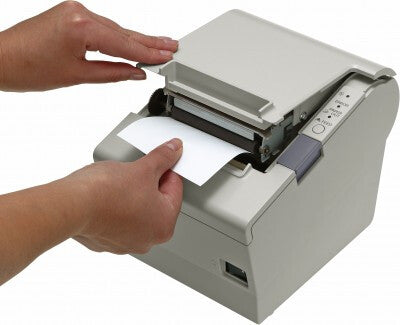

-Ease-of-use features including drop-in paper loading, long-lasting autocutter and Auto Status Back messages.
-Improved cover design for increased spill resistance.
-Wide range of Connect-It interfaces.
| Printing | |
|---|---|
| Print speed | 200 mm/sec |
| Maximum resolution | 203 x 203 DPI |
| Colour | Yes |
| Paper handling | |
|---|---|
| Media thickness | 0.06 - 0.07 mm |
| Supported paper width | 80 mm |
| Maximum roll diameter | 8.3 cm |
| Autocutter durability | 1.5 million cuts |
| Autocutter | Yes |
| Ports & interfaces | |
|---|---|
| Optional connectivity | Ethernet |
| Standard interfaces | Serial |
| RS-232 ports | 1 |
| Connectivity technology | Wired |
| Performance | |
|---|---|
| Certification | VCCI class A, FCC class A, CE marking, AS / N2S 3548 class B, RoHS |
| Mean time between failures (MTBF) | 360000 h |
| Character pitch | 20 cpi |
| Built-in barcodes | CODE 39, CODE 93, UPC-A, UPC-E |
| Flash memory | 0.256 MB |
| Power | |
|---|---|
| Power requirements | 24 VDC ± 7% |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 5 - 45 °C |
| Weight & dimensions | |
|---|---|
| Weight | 1.8 kg |
| Packaging data | |
|---|---|
| Package weight | 2.66 kg |
| Package height | 241 mm |
| Package depth | 257 mm |
| Package width | 193 mm |
| Quantity per pack | 1 pc(s) |
| Logistics data | |
|---|---|
| Products per master (outer) case | 4 pc(s) |
| Master (outer) case height | 255 mm |
| Master (outer) case length | 490 mm |
| Master (outer) case width | 400 mm |
| Products per pallet | 128 pc(s) |
| Pallet gross height | 183.7 cm |
| Pallet gross length | 120 cm |
| Pallet gross width | 80 cm |
| Products per pallet layer | 16 pc(s) |
| Products per pallet layer (UK) | 24 pc(s) |
| Products per pallet (UK) | 192 pc(s) |
| Pallet length (UK) | 120 cm |
| Pallet width (UK) | 100 cm |
| Pallet height (UK) | 2.25 m |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 145 x 195 x 148 mm |
| Compatibility | PS-180 |
| Safety | UL, C-UL, TüV (EN 60950) |
| Country of origin | China |
