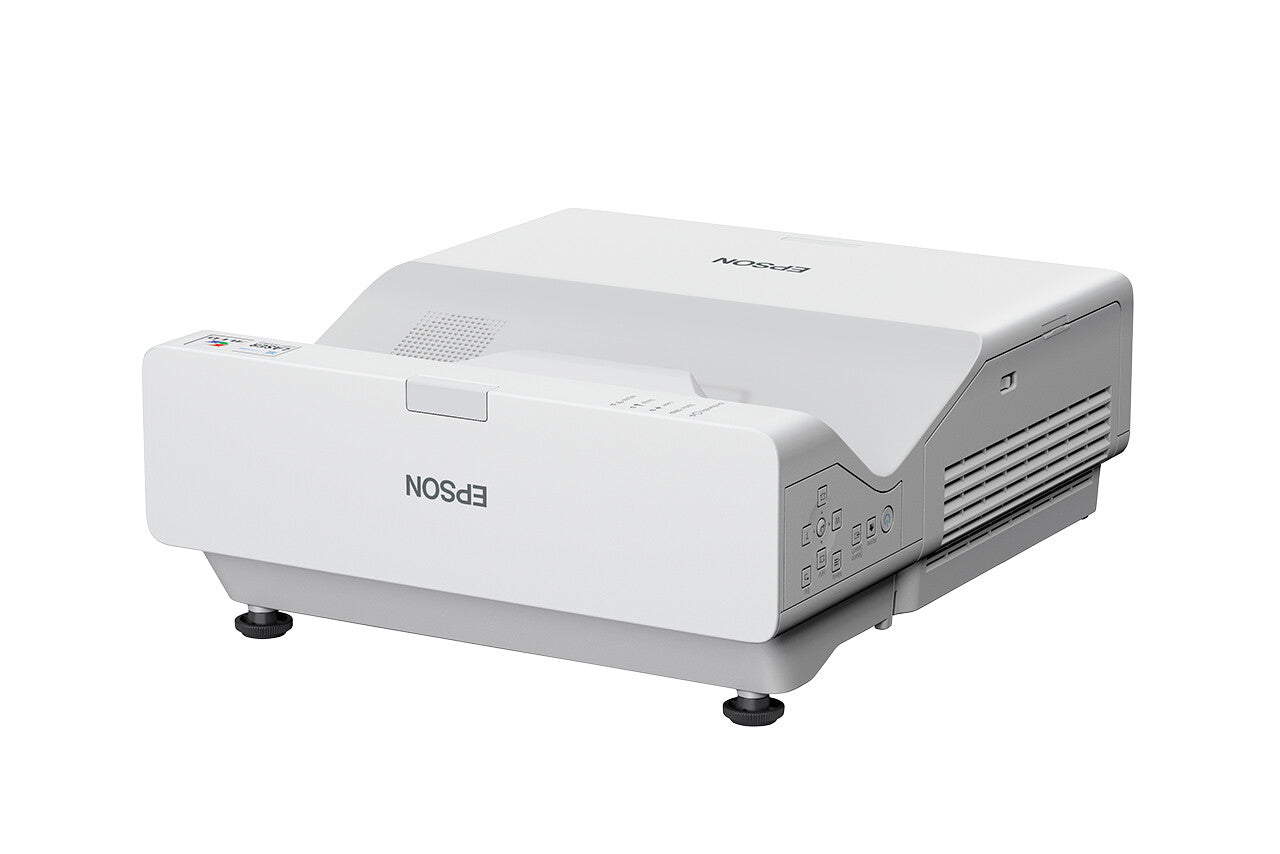

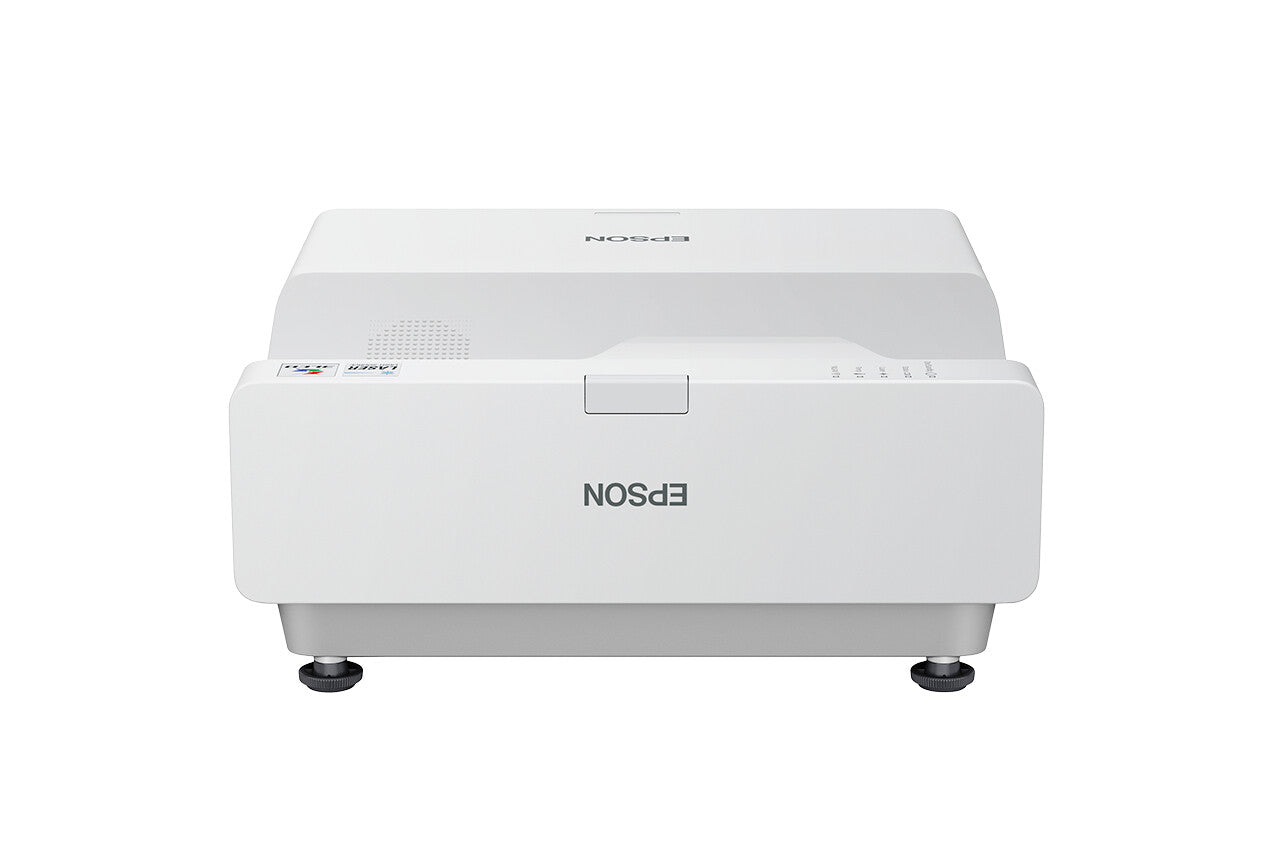

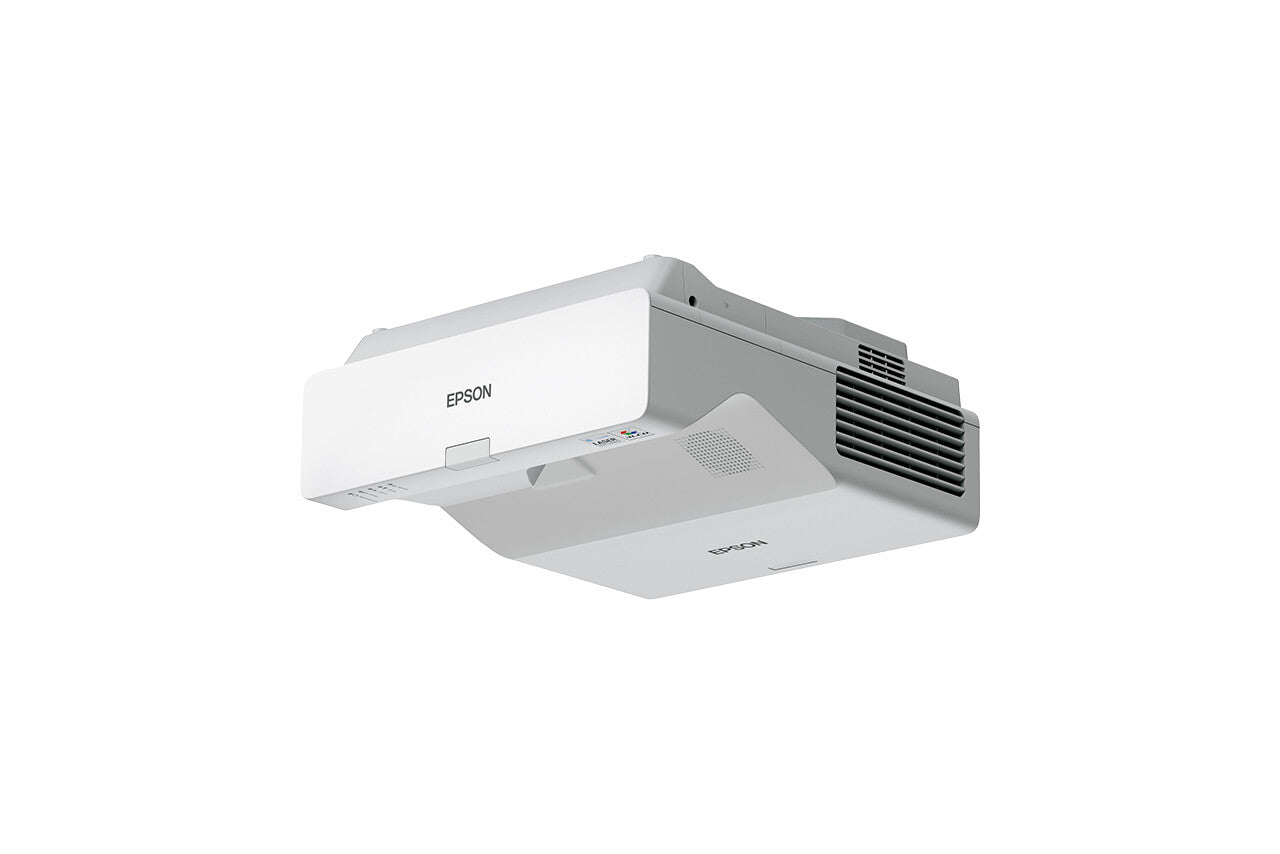

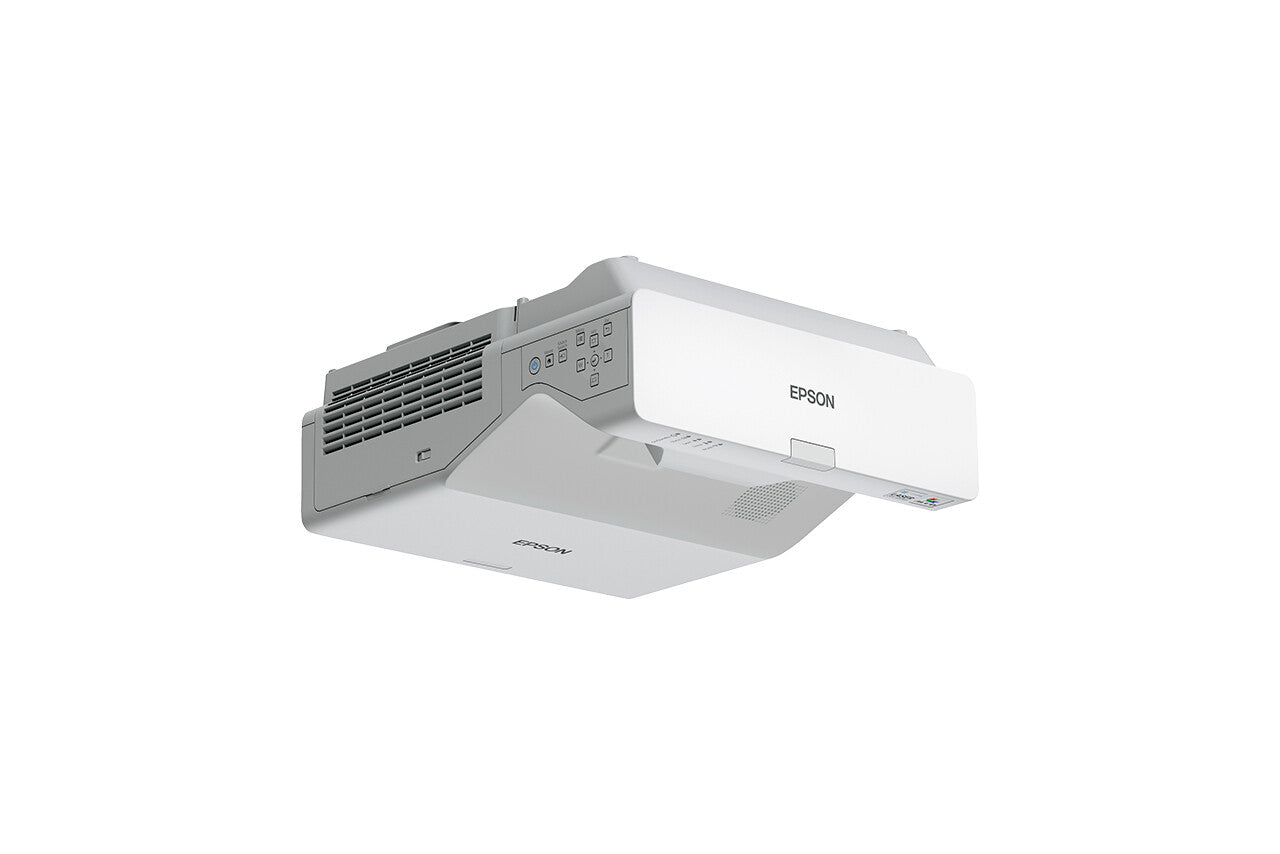

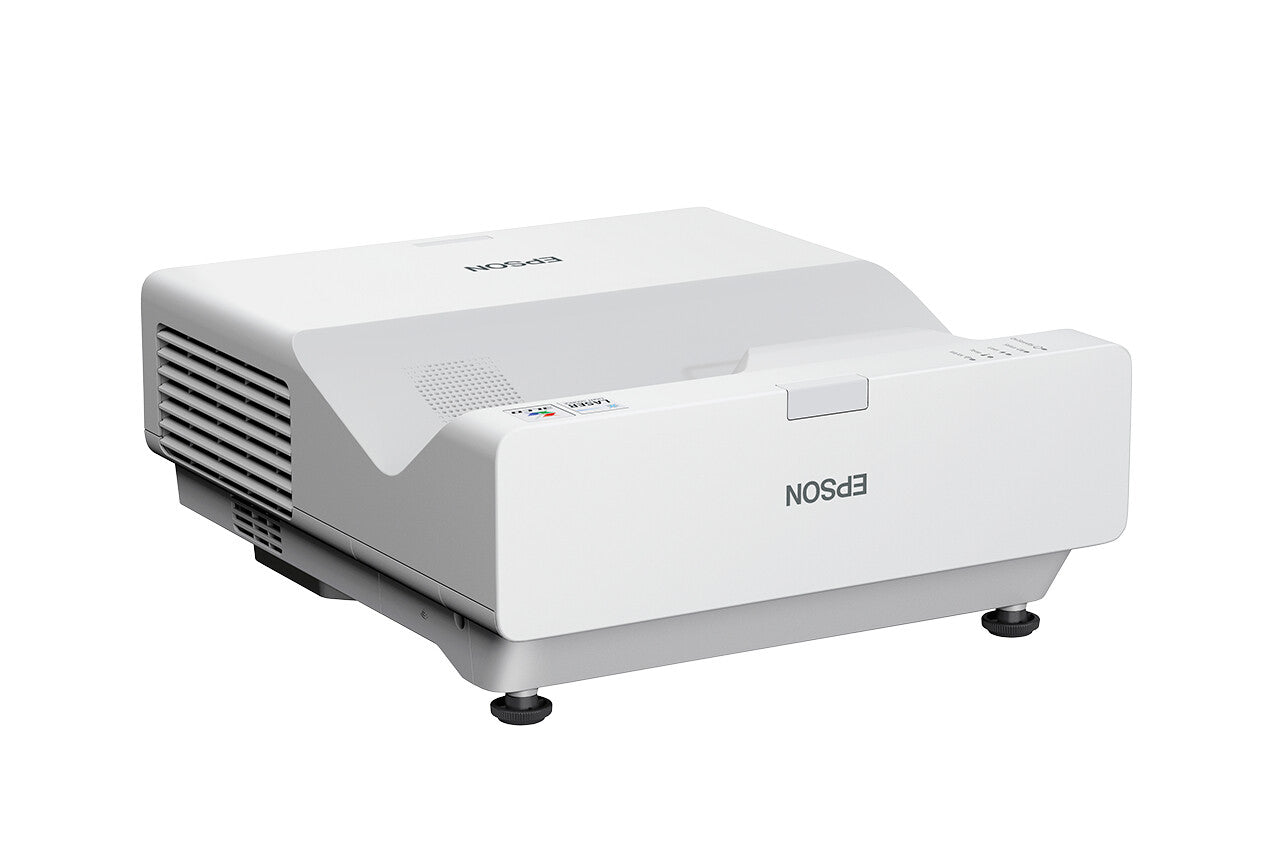

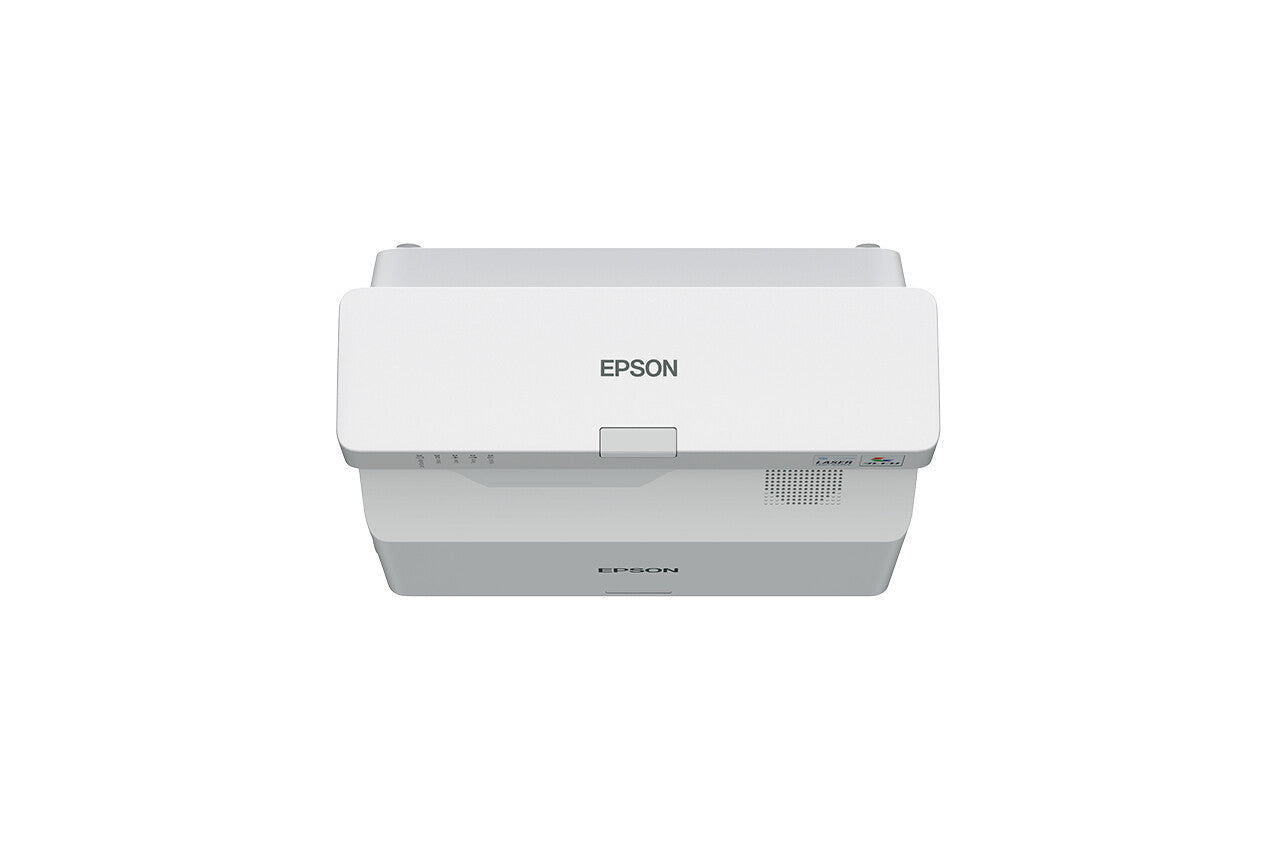

Epson EB-770Fi
Couldn't load pickup availability
- Interactive FHD display for any room: 49-100" UST display for unrestricted viewing (no shadows/reflections)
- Bright and energy efficient laser: 4,100lm CLO with 3LCD technology for brighter colours at only 205W
- Effortless connectivity options: Auto-on, wired / wireless display with USB 2A output for smart sticks
- Simple to use and built to last: Virtually maintenance free with 5-year, 12,000hr warranty
- Document camera compatibility: Create and record a live, totally immersive lesson or presentation
Agile USTi laser display
Whatever the size of class or meeting room, unrestricted and interactive learning sessions are possible with this bright, compact and affordable touch-display solution.
The EB-770Fi's bright image, scalable up to 100", is clearly visible from every angle and at a distance, and content can easiliy be shared or streamed directly from multiple devices for the ultimate collaborative experience.

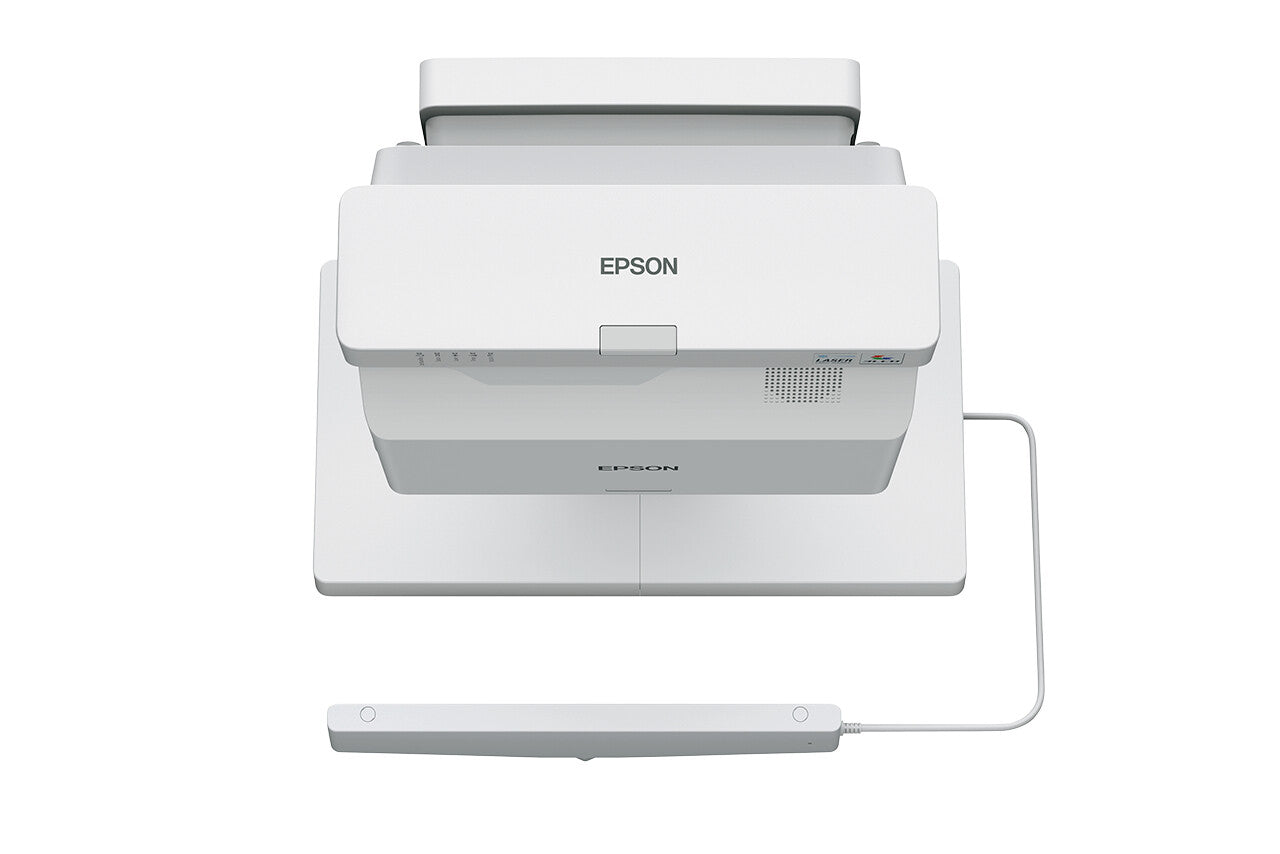

Interactive display
The EB-770Fi is a step up from the EB-770F, with added interactive features.

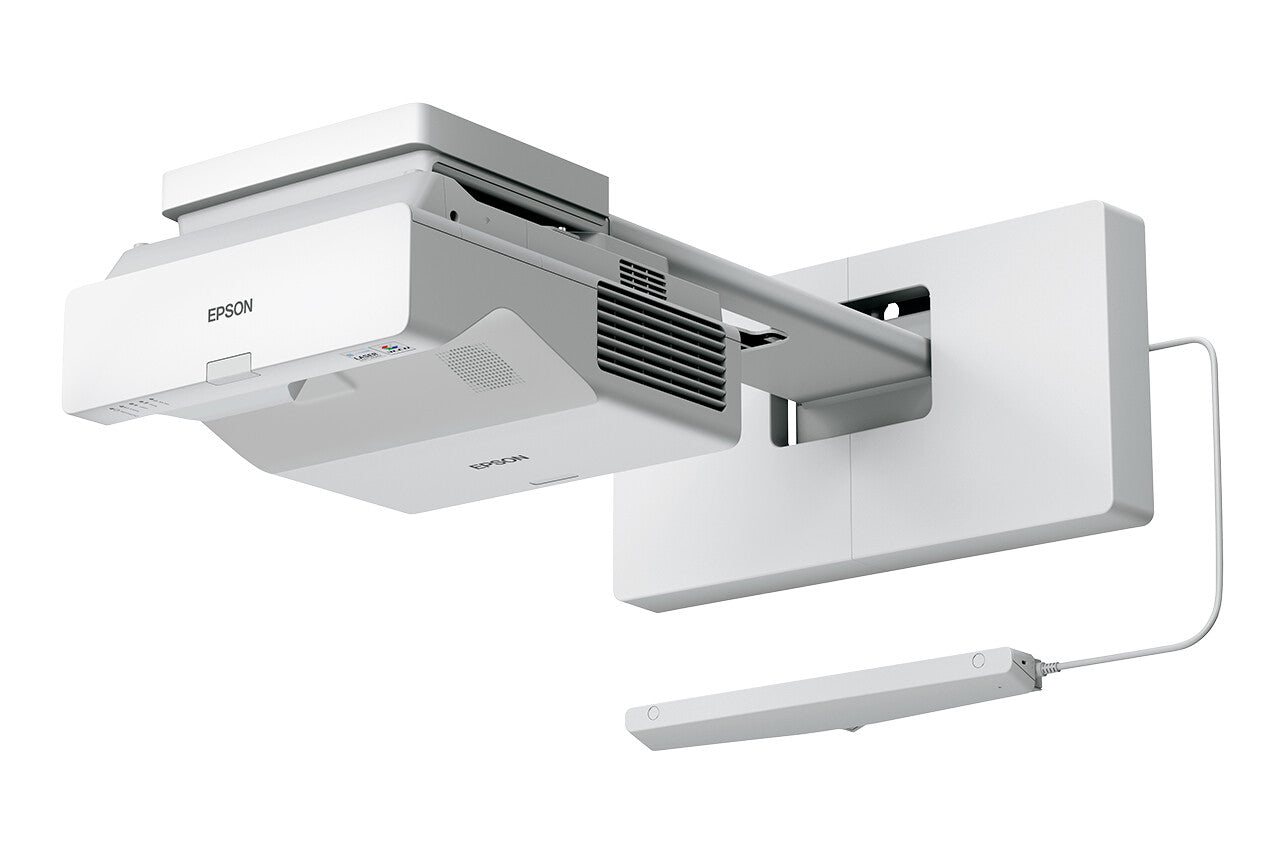

Two digital pens to be used on the display simultaeously (finger touch available through optional accessory FT01). Presentations can be controlled and brought to life with on-screen annotations, while a variety of convenient built-in tools support productivity. An optional Epson visualiser camera can be contolled via the display, projecting documents or objects from a desk for everyone to see in incredible detail.
Bright display up to 100"
With a 4,100 lumens laser-light source, combined with 3LCD technology, it produces a large, bright and vibrant display up to 100", clearly visible from all angles and at a distance.
Effortless connectivity
Versatile wired and wireless connectivity options, including screen mirroring via Miracast™, allows participants to effortlessly share content from their PCs or mobile devices.
The experience is immersive and user-friendly

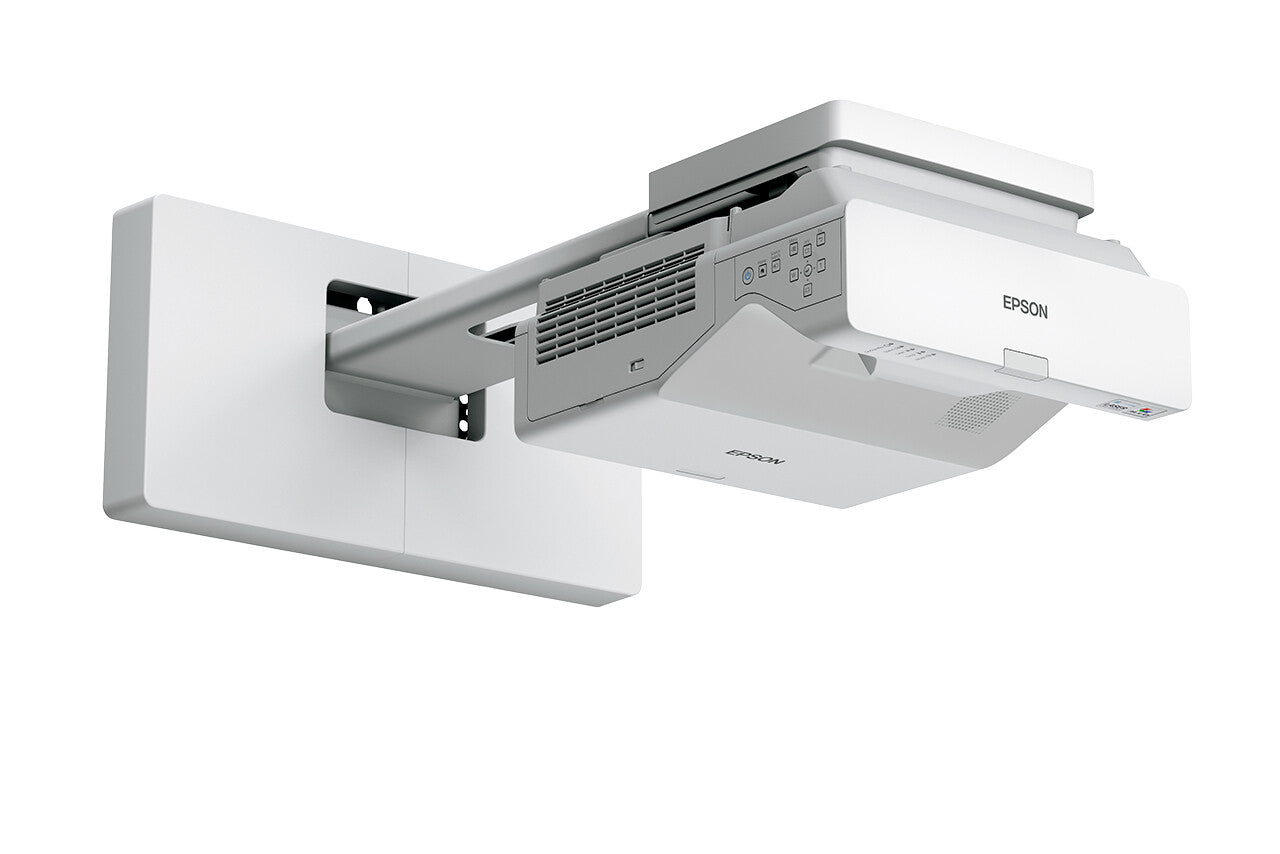

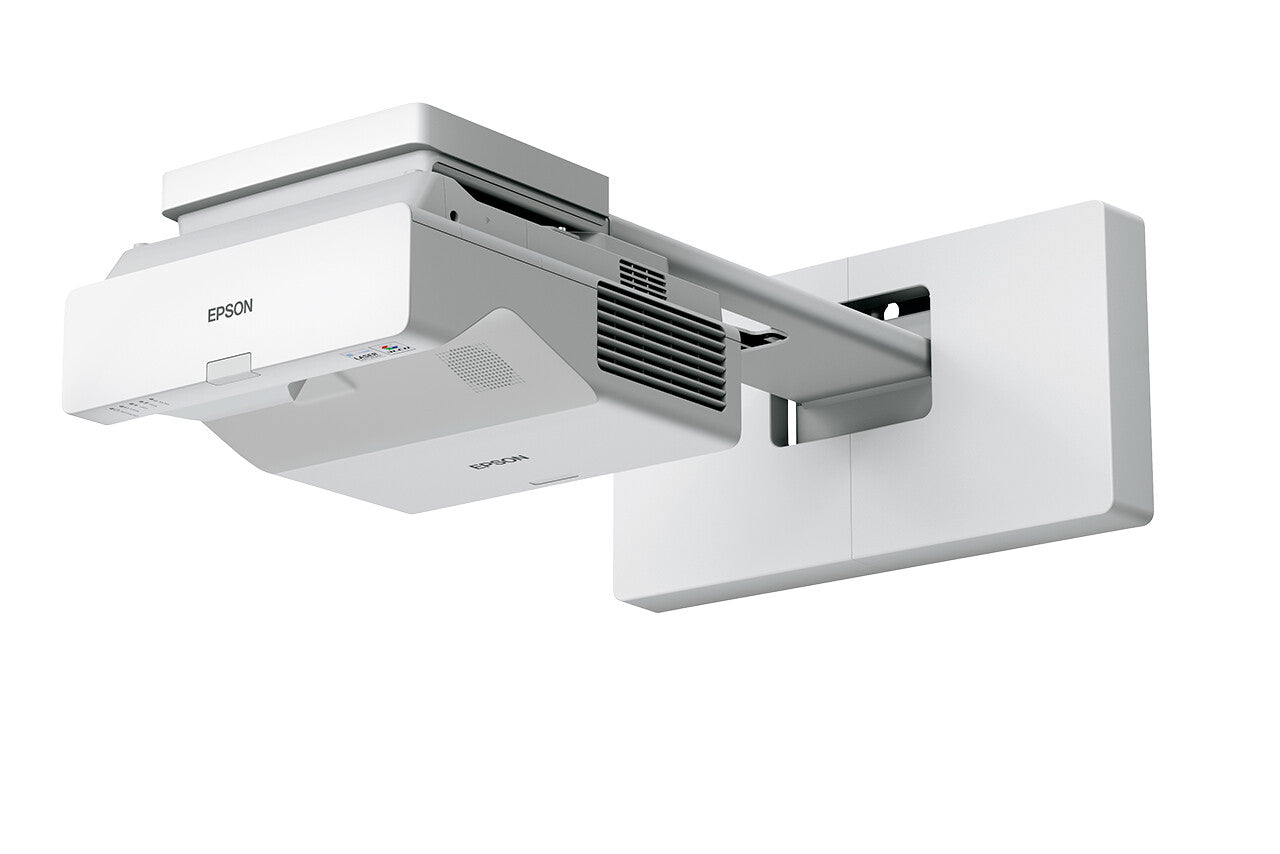

The ultra short throw lens allows safe, unobtrusive positioning above the display, enabling presenters free access to interact without casting shadows.
Unlike a flat-panel display, there is no heavy, breakable, glass panel to create disruptive, reflected blind spots from certain angles; and presenters are not subjected to LCD panel direct blue light radiation.
| Projector | |
|---|---|
| Projector brightness | 4100 ANSI lumens |
| Projection technology | 3LCD |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2500000:1 |
| Native aspect ratio | 16:9 |
| Screen size compatibility | 1524 - 2540 mm (60 - 100") |
| Contrast ratio (dynamic) | 5000000:1 |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 2800 ANSI lumens |
| Vertical scan range | 192 - 240 Hz |
| Keystone correction, vertical | ±3° |
| Keystone correction, horizontal | ±3° |
| Heat dissipation | 895 BTU/h |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 3.7 mm |
| Fixed focal length | 3.7 mm |
| F-number (relative aperture) | 1.6 |
| Zoom capability | Yes |
| Zoom ratio | 1.35:1 |
| Throw ratio | 0.25 - 0.35:1 |
| Video | |
|---|---|
| Analog signal format system | Not supported |
| Full HD | Yes |
| 3D | No |
| Video colour modes | Blackboard, Cinema, DICOM simulation mode, Dynamic, Presentation, sRGB |
| Video processing | 10 bit |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 3 |
| DVI port | No |
| USB 2.0 ports quantity | 4 |
| USB 2.0 Type-A ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 2 |
| Microphone in | Yes |
| Serial interface type | RS-232C |
| Network | |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Storage | |
|---|---|
| Card reader integrated | No |
| Features | |
|---|---|
| Interactive | Yes |
| Interactive input supported | Interactive pen/Touch |
| Noise level | 37 dB |
| Noise level (economic mode) | 27 dB |
| Country of origin | Philippines |
| Password protection | Yes |
| Multimedia | |
|---|---|
| Built-in speaker(s) | Yes |
| RMS rated power | 16 W |
| Design | |
|---|---|
| Product type | Ultra short throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling, Desktop, Wall |
| Cable lock slot type | Kensington |
| Cable lock slot | Yes |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 197 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (PowerSave) | 199 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| AC adapter output voltage | 100 - 240 V |
| Operational conditions | |
|---|---|
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Weight | 6 kg |
| Width | 356 mm |
| Depth | 395 mm |
| Height | 133 mm |
| Package width | 450 mm |
| Package depth | 485 mm |
| Package height | 325 mm |
| Package weight | 9.15 kg |
| Packaging content | |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, USB |
| Bundled software | Easy Interactive Tools, EasyMP Multi PC Projection, Epson Classroom Connect, Epson Projector Management |
| Technical details | |
|---|---|
| Other features | 21:9 aspect ratio support, A/V mute, Arc Correction, Auto Power On, Auto source search, Built-in speaker, CEC compatible, Digital zoom, Direct Power on/off, Document Camera Compatible, Dual Pen Support, Easy OSD pre-setting, Email notification, Finger-touch support, Home Screen, Horizontal and vertical keystone correction, Image Shift, Instant on/off, Interactive, Interactive Home Screen, Interactive OSD menu, Mail notification function, Microphone input, Network administration, Network projection, OSD copy function, PC Interactive, PC free annotation, Projection App for Chromebook, Quick Corner, Schedule Function, Screen Mirroring, Screen share, Split-Screen-Function, Ultra-wide display (16:6), Web Control, Web Remote, Whiteboard sharing function, Wireless LAN capable, iProjection App, iProjecton set-up by scanning a code |
| Logistics data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Pallet height (UK) | 2.1 m |
| Pallet length (UK) | 120 cm |
| Products per pallet (UK) | 24 pc(s) |
| Products per pallet layer (UK) | 4 pc(s) |
| Products per pallet layer | 2 pc(s) |
| Pallet gross height | 2.1 m |
| Pallet gross width | 80 cm |
| Pallet gross length | 120 cm |
| Products per pallet | 12 pc(s) |
| Other features | |
|---|---|

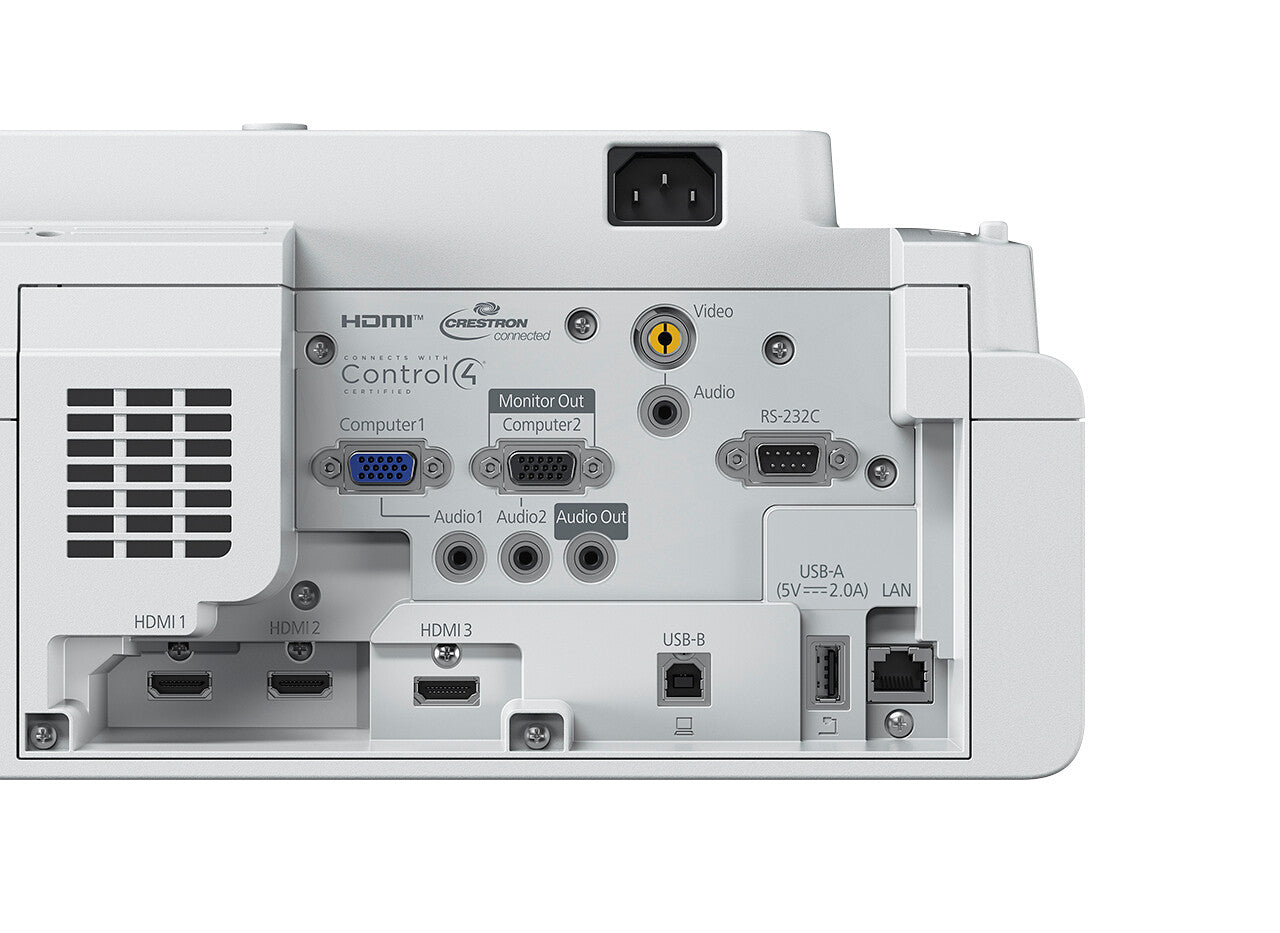

| Interface | USB 2.0-A (2x), USB 2.0 Type B (Service Only) (2x), RS-232C, Ethernet interface (100 Base-TX / 10 Base-T), Wireless LAN IEEE 802.11a/b/g/n/ac, Wi-Fi Direct, VGA in (2x), VGA out, HDMI in (3x), Composite in, Miracast, Jack plug out, Jack plug in (3x), Microphone input, Sync. in, Sync. out, Multi-Touch interface (optional) |
| Security features | Kensington lock, Control panel lock, Password lock, Padlock, Security cable hole, Wireless LAN unit lock, Wireless LAN security, Password protection |
| Supported network protocols | HTTPS, IPv4, IPv6, SNMP, ESC/VP.net, PJLink |
| Option type | Air filter, Ceiling mount, Connection and control box, External Speaker, Finger Touch Unit, Finger Touch Unit Wall Bracket, Pen tip(Felt), Pen tip(Teflon), Safety wire set, Visualiser camera, WP System - ELPWP10, Wall mount, Wireless LAN unit, Wireless transmitter - ELPWT01 |
| Box contents | 2 x Pen tip(Teflon), 4 x Pen tip(Felt), Corner markers for auto screen adjustment, Interactive pens, Pen Holder/Stand, Power cable, Projector feet, Quick Start Guide, Remote control incl. batteries, USB cable, Warranty document |
| Control panel | 0.62 inch with C2 Fine |
