£317.99

Stock Available: 0
  • Affordable: Cost effective alternative to other passbook printers
  • Fast performance: Prints up to 540 characters per second with 6+1 copies
  • Reliable: Significantly increased mean time between failure rate of 35,000 hours
  • Compatible consumables: Same long-lasting ribbons compatible with all models
  • Design: Improved, modern design

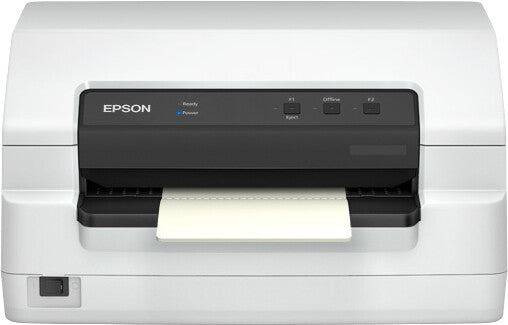

A 24-pin dot matrix passbook printer, designed as an economic solution, offering reliability, as well as fast printing and a modern design.

The PLQ-35 is a dot matrix printer that is affordable, ultra-reliable and has the capability to handle passbooks. The product is able to replicate previous emulations, which reduces the need for retraining.

When an economic solution is needed to replace existing passbook printers, the PLQ-35 is the ideal choice. With a 150% improved mean time between failures of 35,000 hours and reliable dot matrix technology, you can depend on these printers to deliver high-quality output with minimal intervention.

In addition, when time is of the essence, the PLQ-35 delivers fast printing of up to 540 characters per second (High-Speed-Draft, 10cpi), utilising 24-pins and 94 columns. Additionally, up to 6 copies can be produced simultaneously with the original.

The printer’s performance is matched by its cost-effectiveness. The ribbon is compatible across all of the Epson Passbook range and represents a budget friendly printing solution. Keep costs of business down, while keeping inline with current demands for CSR and organisational waste.

Printing
Number of characters 14
Character sets ISO 8859-15, Italic, PC437, PC708, PC720, PC850, PC858, PC864, PCAPTEC, PCAR864, Roman 8
Bitmap fonts Courier, Draft, OCR-B, Orator, Orator-S, Prestige, Roman, Sans Serif, Script, Script C
Built-in barcodes CODABAR (NW-7), Code-128 Codabar Library, Code-39 Library, EAN13, EAN8, Industrial 2/5, Interleaved 2/5, Matrix 2/5, POSTNET, UPC-A, UPC-E
Maximum number of copies 6 copies
Character pitch 10,12,15 cpi
Normal print speed 10 cps
Maximum print speed (NLQ) 10 cps
Maximum print speed (LQ) 10 cps
Maximum print speed (draft) 10 cps
Maximum print speed 10 cps
Maximum printing width (columns) 94
Paper handling
Single sheet thickness range 0.065 - 0.19 mm
Multi-part paper thickness range 0.12 - 0.53 mm
Features
Sound pressure level (quiet mode) 52 dB
Sound pressure level (printing) 55 dB
Buffer size 128 KB
Ports & interfaces
Optional connectivity Serial (RS-232)
Standard interfaces RS-232, USB
Endurance
Mean time between failures (MTBF) 35000 h
Print head life 400 million characters
Print head 24-pin
Power
AC input frequency 50 - 60 Hz
Power consumption (standby) 0.7 W
AC input voltage 220 - 240 V
Power consumption (typical) 61 W
Operational conditions
Operating relative humidity (H-H) 10 - 85%
Operating temperature (T-T) 5 - 38 °C
Weight & dimensions
Weight 7.8 kg
Height 203 mm
Depth 280 mm
Width 384 mm
