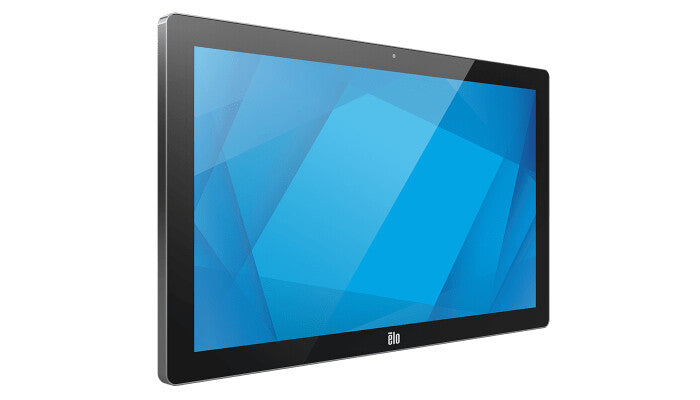

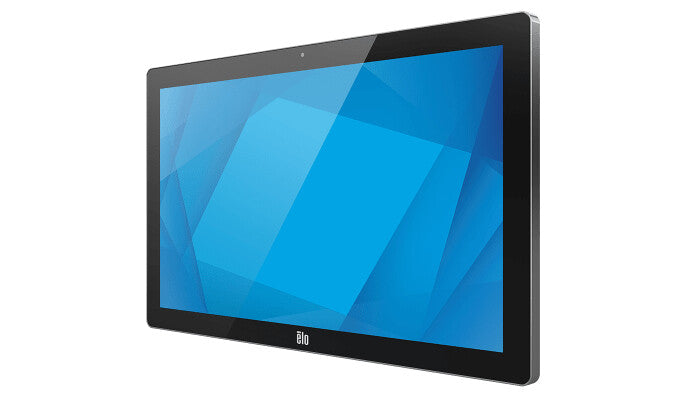

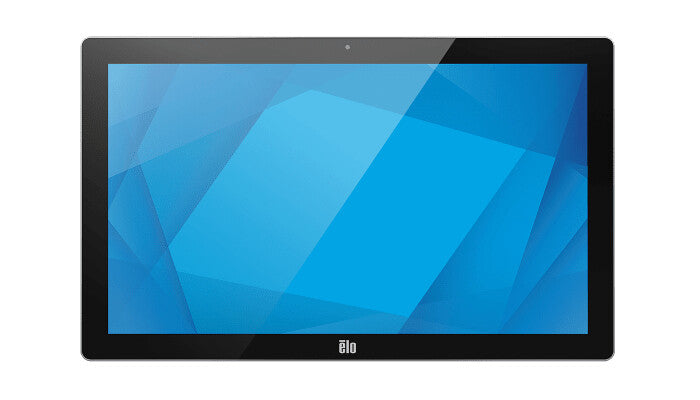

Elo Touch Solutions I-Series 5 Steel Digital signage flat panel 54.6 cm (21.5") LED Wi-Fi 250 cd/m² Full HD Stainless steel Touchscreen Built-in processor Android
£1,397.99
Couldn't load pickup availability
- Indoor Digital signage flat panel Stainless steel
- 54.6 cm (21.5") 1920 x 1080 pixels LED 250 cd/m²
- Touchscreen 60 Hz 14 ms
- Ethernet LAN Wi-Fi
- Built-in speaker(s) 1.5 W
Designed intentionally for demanding environments.
Elo has designed and engineered the I-Series Steel to help ensure optimal versatility for seamless integration into almost any environment.
Fully integrated power-over-ethernet (POE).
With POE, you can say goodbye to your power adapter and the expense of power drops. All you need is a POE-capable network and an ethernet cable and you are ready to power on.

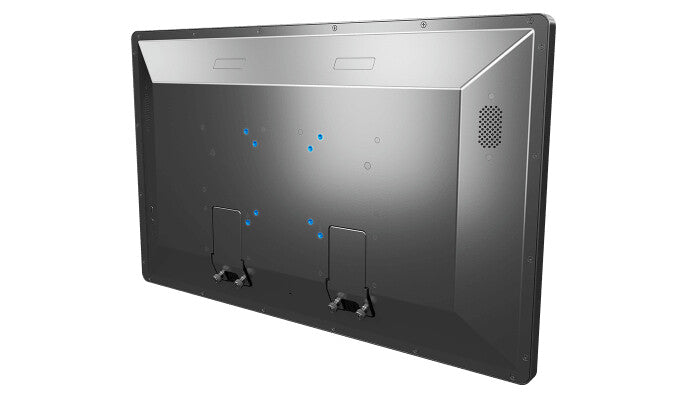

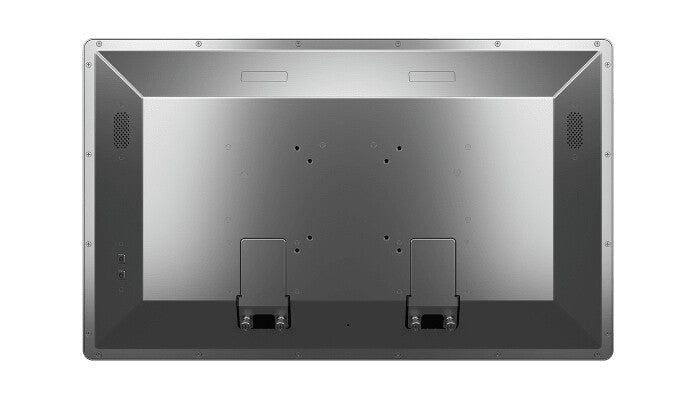

Integrated VESA for ease of mounting.
The industrial-grade I-Series Steel can be mounted in landscape and portrait, providing optimal flexibility for mounting to a wall, pole, arm or any third party compatible VESA mount.
| Display | |
|---|---|
| Display diagonal | 54.6 cm (21.5") |
| Display technology | LED |
| Panel type | TFT-LCD |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 250 cd/m² |
| HD type | Full HD |
| Touchscreen | Yes |
| Touchscreen technology | Projected capacitive system |
| Multi-touch | Yes |
| Number of simultaneous touchpoints | 10 |
| Response time | 14 ms |
| Contrast ratio (typical) | 100:1 |
| Viewing angle, horizontal | 178° |
| Viewing angle, vertical | 178° |
| Display number of colours | 16.7 million colours |
| Active display area (W x H) | 476 x 268 mm |
| Number of displays | 1 |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| USB ports quantity | 2 |
| USB connector type | USB Type-A, USB Type-C |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 1000 Mbit/s |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax) |
| Wi-Fi | Yes |
| DC-in jack | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 1.5 W |
| Design | |
|---|---|
| Product design | Digital signage flat panel |
| Product colour | Stainless steel |
| Placement supported | Indoor |
| Orientation | Horizontal/Vertical |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 100 mm |
| Performance | |
|---|---|
| Purpose | Commercial |
| Number of microphones | 2 |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 15.2 W |
| Power consumption (sleep) | 2 W |
| Power consumption (off) | 0.2 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Computer system | |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor cores | 8 |
| Internal memory | 8 GB |
| Internal storage capacity | 64 GB |
| Operating system installed | Android |
| Operating system version | Android 14 |
| Weight & dimensions | |
|---|---|
| Display width | 533 mm |
| Display depth | 324 mm |
| Display height | 386.8 mm |
| Display weight | 5.2 kg |
| Packaging data | |
|---|---|
| Package width | 613 mm |
| Package depth | 173 mm |
| Package height | 415 mm |
| Package weight | 8.2 kg |
| Packaging content | |
|---|---|
| Cables included | Power |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 50 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Certificates | |
|---|---|
| Certification | UL/cUL (US) FCC (US) IC (Canada) CE (Europe) CB (International) VCCI, MIC (Japan) RCM (Australia) |
| Other features | |
|---|---|
| Megapixel (approx.) | 8 MP |
| Aspect ratio | 16:9 |
| Bluetooth version | 5.2 |
| Bluetooth | Yes |
