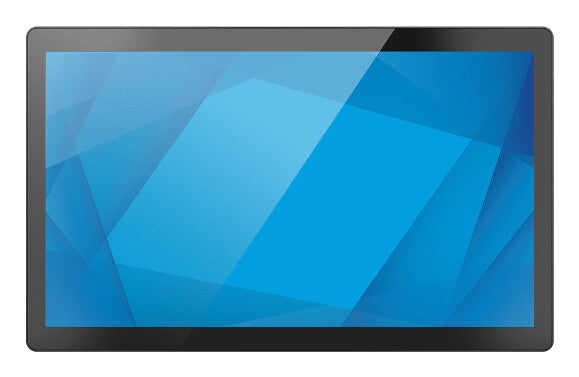

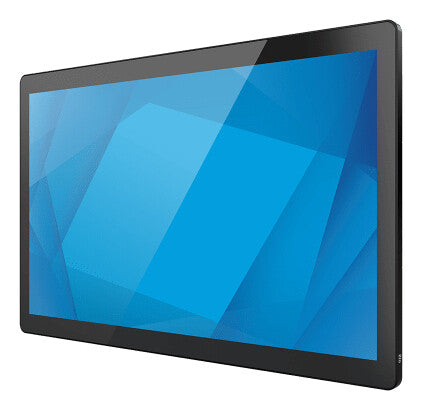

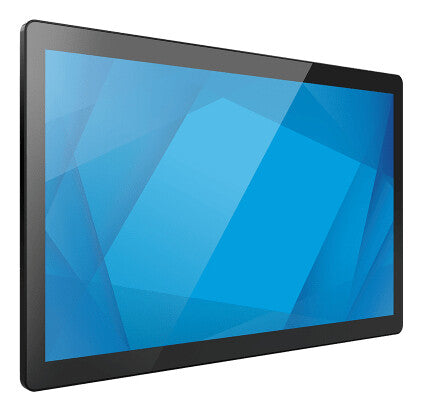

Elo Touch Solutions I-Series 3.0 Intel® Celeron® 7305L 43.2 cm (17") 1280 x 1024 pixels Touchscreen All-in-One PC 8 GB DDR5-SDRAM 128 GB SSD Wi-Fi 6 (802.11ax) Black
Couldn't load pickup availability
- 10-touch TouchPro PCAP
- Fanless, IP54 rated design
- Full HD IPS Touchscreen
- Easy to clean edge-to-edge glass
- 50,000 MTBF
Modular design. Endless versatility.
Available in sizes ranging from 15 to 24 inches, including with and without stand options, you can easily configure the I‑Series to fit the needs of your business - from signage and point-of-sale to self-service, automation controls and more.
Universal VESA Mount
Conveniently mount the I‑Series with the built‑in VESA mount.
Expand with Edge Connect
Seamlessly attach a variety of peripherals to the edge of the touchscreen.
Reliable, security and performance.
Built with the reliability-tested performance and security of Intel 12th Generation processors, integrated Trusted Platform Modules, Intel vPro™ and the Windows 10 operating system, the I‑Series 3 delivers the dependability businesses need.
Support for Linux.
For added flexibility, the I‑Series 3 offers no OS models, all pretested with Linux SuSE, Ubuntu and Red Hat operating systems.
Bridge the gap between Windows and Android.
Transitioning to Android in the future? Elo Bridge is the perfect solution. Simply choose the Elo Windows device that fits your needs today, and when you are ready to transition to Android, you can use Elo Bridge to migrate your fleet of devices.
| Display | |
|---|---|
| Screen shape | Flat |
| Viewing angle, horizontal | 170° |
| Viewing angle, vertical | 160° |
| Response time | 25 ms |
| Panel type | TFT |
| Display surface | Anti-glare |
| Display brightness | 250 cd/m² |
| Native aspect ratio | 5:4 |
| Touch technology | Multi-touch |
| LED backlight | Yes |
| HD type | Not supported |
| Touchscreen | Yes |
| Display resolution | 1280 x 1024 pixels |
| Display diagonal | 43.2 cm (17") |
| Processor | |
|---|---|
| Processor base power | 15 W |
| Processor cache type | Smart Cache |
| Processor cache | 8 MB |
| Efficient-core Max Turbo Frequency | 1.1 GHz |
| Performance-core Max Turbo Frequency | 1.1 GHz |
| Efficient cores | 4 |
| Performance cores | 1 |
| Processor frequency | 1.1 GHz |
| Processor boost frequency | 1.1 GHz |
| Processor threads | 5 |
| Processor cores | 5 |
| Processor model | 7305L |
| Processor family | Intel® Celeron® |
| Processor manufacturer | Intel |
| Memory | |
|---|---|
| Memory layout (slots x size) | 1 x 8 GB |
| Memory clock speed | 4800 MHz |
| Memory slots type | SO-DIMM |
| Memory slots | 2 |
| Maximum internal memory | 32 GB |
| Internal memory type | DDR5-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| Optical drive type | No |
| SSD form factor | M.2 |
| SSD interface | M.2 |
| NVMe | Yes |
| SSD capacity | 128 GB |
| Number of SSDs installed | 1 |
| Total SSDs capacity | 128 GB |
| Number of storage drives supported | 1 |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 128 GB |
| Graphics | |
|---|---|
| On-board graphics card model | Intel® UHD Graphics |
| On-board graphics card | Yes |
| Discrete graphics card model | Not available |
| Discrete graphics card | No |
| Audio | |
|---|---|
| RMS rated power | 4 W |
| Number of speakers | 2 |
| Built-in speaker(s) | Yes |
| Camera | |
|---|---|
| Built-in camera | No |
| Network | |
|---|---|
| Bluetooth version | 5.3 |
| Bluetooth | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi | Yes |
| Ports & interfaces | |
|---|---|
| Headphone outputs | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 1 |
| Design | |
|---|---|
| Panel mounting interface | 75 x 75 mm |
| Wall mountable | Yes |
| VESA mounting | Yes |
| Product colour | Black |
| Performance | |
|---|---|
| Trusted Platform Module (TPM) version | 2.0 |
| Trusted Platform Module (TPM) | Yes |
| Market positioning | Business |
| Product type | All-in-One PC |
| Software | |
|---|---|
| Operating system installed | No |
| Power | |
|---|---|
| Power consumption (typical) | 33 W |
| Power consumption (standby) | 5 W |
| Power consumption (off) | 0.5 W |
| AC adapter output voltage | 24 V |
| AC adapter input voltage | 100 - 240 V |
| AC adapter frequency | 50 - 60 Hz |
| AC adapter power | 180 W |
| Pen | |
|---|---|
| Pen included | No |
| General | |
|---|---|
| Product family | I-Series |
| Weight & dimensions | |
|---|---|
| Package weight | 7.9 kg |
| Package height | 345 mm |
| Package depth | 487 mm |
| Package width | 497 mm |
| Weight (with stand) | 6.7 kg |
| Height (with stand) | 356 mm |
| Depth (with stand) | 197.5 mm |
| Width (with stand) | 359.5 mm |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 5 - 95% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | UL/cUL, FCC, IC, CE, CB |
| Compliance certificates | CB, CCC, Federal Communications Commission (FCC), Norma Oficial Mexicana (NOM), RCM, RoHS, State Radio Regulation of China (SRRC), UKCA, VCCI |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Power cord included | Yes |
| Quick start guide | Yes |
| Other features | |
|---|---|
| Autonomy mode | No |
| Warranty period | 33 year(s) |
| Mean time between failures (MTBF) | 50000 h |
| 3D | No |
