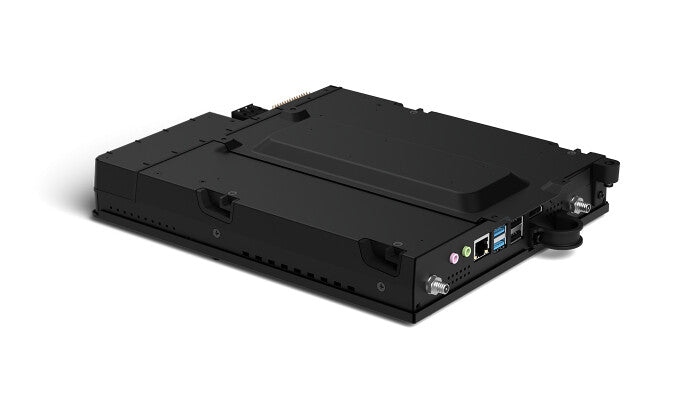

Elo Touch Solutions ECMG4 2.7 GHz Intel® Core™ i5 256 GB SSD 8 GB
Couldn't load pickup availability
- ECMG4 available with Intel® Core™ 7th Generation CPUs and enhanced graphics engine - ideal for engagement and interactive experiences
- Open and configurable platform ideal for pairing with a bring-your-own-device content sharing software to offer employees and corporations countless business benefits
- No external cables required - AC power, video and USB signals pass between the computer module and the Elo IDS display via an internal docking connector
We are pleased to announce the new family of Elo Computer Modules (ECM) featuring the Intel® Core™ 7th Generation CPUs and enhanced graphics engine. Offered with Intel i5 processors for Microsoft Windows® 10 or no operating system, the ECMs can help enable customer engagement and immersive brand experiences by adding a new exciting dimension to traditional broadcast digital signage - the power of touch. The commercial grade computer modules transform Elo's 6553L into a powerful platform with compatibility to most content management servers.
Smaller Form Factor
With dimensions of 11.07x8.2x1.7 the new ECMG4 form factor is 47% smaller than the previous model, delivering a lower cost, lower energy consumption computer module that's easier to install and maintain.
Easy Installation
The Elo IDS Computer Modules slide into the back of the touchscreen display to deliver the industry's thinnest commercial grade all-in-one large format touchcomputers. Field installation is easy with no external cables required. AC power, video and USB signals pass between the computer module and the Elo IDS touch display via an internal docking connector.
Collaboration Ready
Pair the flexibility of Elo’s 6553L Interactive Board with a seamless, bring-your-own-device, content sharing software to offer employees and corporations countless business benefits. Elo’s ECMG4 comes conferencing ready with the DisplayNote Montage Software included. From increased efficiency to controlled costs – start connecting teams and information in real time to empower better, faster, more reliable decision making and improving the way collaboration works.
Built-to-Last
The Elo Computer Modules deliver the quality and reliability Elo is known for and are backed by our 3-year standard warranty with an optional extension to 4 or 5-years. We design and build the complete solution, with touch integrated from the start.
| Processor | |
|---|---|
| Conflict-Free processor | Yes |
| Configurable TDP-down frequency | 1.7 GHz |
| Bus type | DMI3 |
| Processor threads | 4 |
| System bus rate | 8 GT/s |
| Processor cache type | Smart Cache |
| Processor cache | 6 MB |
| Processor boost frequency | 3.3 GHz |
| Processor cores | 4 |
| Processor model | i5-7500T |
| Processor generation | 7th gen Intel® Core™ i5 |
| Processor family | Intel® Core™ i5 |
| Processor frequency | 2.7 GHz |
| Memory | |
|---|---|
| Memory clock speed | 2400 MHz |
| Memory slots | 2x SO-DIMM |
| Memory layout (slots x size) | 1 x 8 GB |
| Maximum internal memory | 64 GB |
| Internal memory type | DDR4-SDRAM |
| Internal memory | 8 GB |
| Storage | |
|---|---|
| SSD capacity | 256 GB |
| Card reader integrated | No |
| Number of storage drives installed | 1 |
| Storage media | SSD |
| Total storage capacity | 256 GB |
| Graphics | |
|---|---|
| Discrete graphics card | No |
| On-board graphics card model | Intel® HD Graphics 630 |
| On-board graphics card | Yes |
| Network | |
|---|---|
| Bluetooth version | 5.0 |
| Bluetooth | Yes |
| Ethernet LAN | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wi-Fi | Yes |

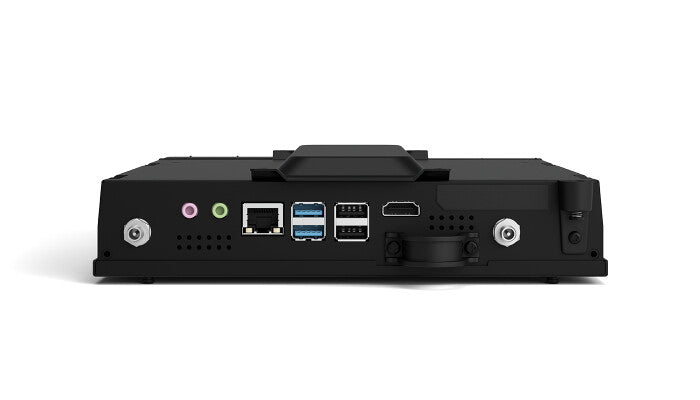

| Ports & interfaces | |
|---|---|
| Microphone in | Yes |
| Line-out | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| HDMI ports quantity | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| Performance | |
|---|---|
| Number of antenna connectors | 2 |
| BIOS type | AMI |
| Product colour | Black |
| Motherboard chipset | Intel® H110 |
| Software | |
|---|---|
| Operating system installed | Windows 10 |
| Processor special features | |
|---|---|
| Intel TSX-NI version | 1.00 |
| Intel Virtualization Technology (VT-x) | Yes |
| Intel Secure Key Technology version | 1.00 |
| Intel Identity Protection Technology version | 1.00 |
| Intel Software Guard Extensions (Intel SGX) | Yes |
| Intel Clear Video Technology | Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
| Intel Stable Image Platform Program (SIPP) | Yes |
| Intel 64 | Yes |
| Intel TSX-NI | Yes |
| Embedded options available | Yes |
| Intel VT-x with Extended Page Tables (EPT) | Yes |
| Intel Enhanced Halt State | Yes |
| Intel Trusted Execution Technology | Yes |
| Idle States | Yes |
| Execute Disable Bit | Yes |
| Enhanced Intel SpeedStep Technology | Yes |
| Operational conditions | |
|---|---|
| Storage relative humidity (H-H) | 10 - 90% |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -30 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | UL/cUL, CB, FCC, CE, AS, NZS, VCCI |
| Weight & dimensions | |
|---|---|
| Package weight | 3.3 kg |
| Package height | 520 mm |
| Package depth | 350 mm |
| Package width | 730 mm |
| Weight | 2.1 kg |
| Height | 208.2 mm |
| Depth | 43 mm |
| Width | 281.1 mm |
| Logistics data | |
|---|---|
| Harmonized System (HS) code | 84713000 |
