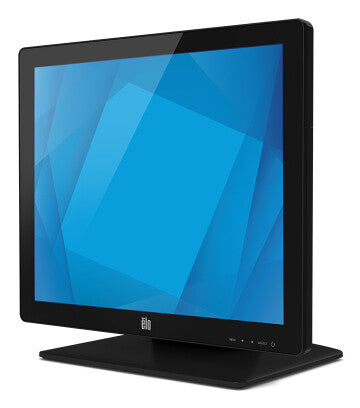

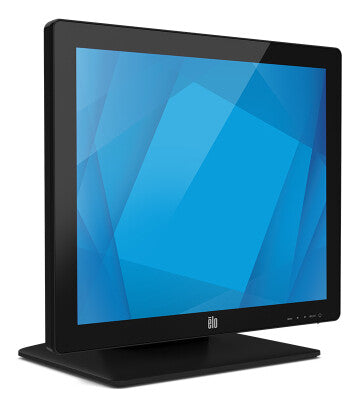

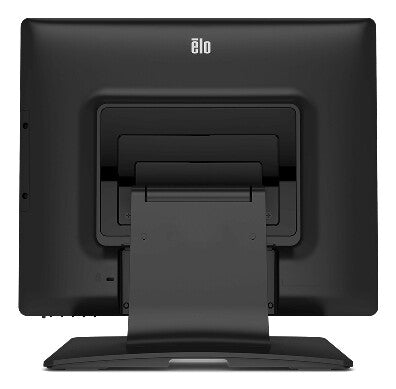

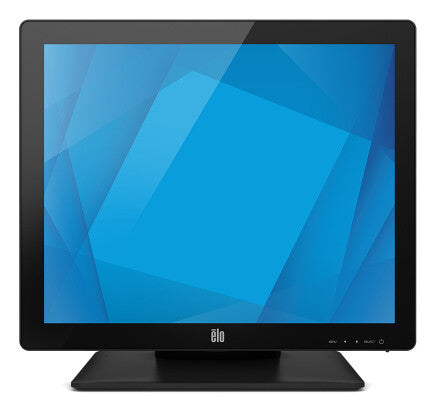

Elo Touch Solutions 1717L 43.2 cm (17") LCD 225 cd/m² Black Touchscreen
Couldn't load pickup availability
- Indoor Black
- 43.2 cm (17") 1280 x 1024 pixels LCD 225 cd/m²
- Touchscreen 60 Hz 5 ms
The 1717L touchmonitor is built to withstand the rigors of continuous public use with a rugged "built for touch" design. Its stylish, thin and modern look is coupled with a retail-focused feature set and is an attractive solution for commercial touchmonitor needs. It is well suited for high use public venues where point-of-sale, point-of-information, point-of-service, shelf-level and countertop interactive digital signage and loyalty systems systems are found.
The 1717L is offered with AccuTouch five-wire resistive technology, IntelliTouch surface acoustic wave, or iTouch pure glass surface acoustic wave technology. AccuTouch is widely used in retail and hospitality environments based on its proven ability to survive splashing liquids, food and grease. IntelliTouch and iTouch pure glass surface acoustic wave technology delivers the ultimate in optical quality for dry retail and hospitality applications.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments.
The 1717L touchmonitor is environmentally friendly, lightweight and uses less power with state-of-the-art LED backlights in the display panel.
| Display | |
|---|---|
| Display diagonal | 43.2 cm (17") |
| Display technology | LCD |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 225 cd/m² |
| Touchscreen | Yes |
| Native aspect ratio | 5:4 |
| Response time | 5 ms |
| Contrast ratio (typical) | 800:1 |
| Display number of colours | 16.78 million colours |
| Native refresh rate | 60 Hz |
| Ports & interfaces | |
|---|---|
| USB port | Yes |
| Audio | |
|---|---|
| Built-in speaker(s) | No |
| Design | |
|---|---|
| Product colour | Black |
| Placement supported | Indoor |
| Screen shape | Flat |
| VESA mounting | Yes |
| Panel mounting interface | 75 x 75 mm |
| Performance | |
|---|---|
| Purpose | Commercial |
| Mean time between failures (MTBF) | 50000 h |
| Power | |
|---|---|
| Power consumption (typical) | 10 W |
| Power consumption (sleep) | 1.4 W |
| Power consumption (off) | 0.3 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Weight & dimensions | |
|---|---|
| Display width | 392 mm |
| Display height | 48.6 mm |
| Display weight | 5.4 kg |
| Width (with stand) | 392 mm |
| Depth (with stand) | 327.7 mm |
| Height (with stand) | 54.5 mm |
| Packaging data | |
|---|---|
| Package width | 511 mm |
| Package depth | 233 mm |
| Package height | 510 mm |
| Package weight | 8.3 kg |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 20 - 80% |
| Storage temperature (T-T) | -20 - 60 °C |
| Storage relative humidity (H-H) | 10 - 90% |
| Features | |
|---|---|
| Wall mountable | Yes |
| Other features | |
|---|---|
| Aspect ratio | 5:4 |
