Eaton PDUMH32HVATNET 7.7kW Single-Phase Switched Automatic Transfer Switch PDU, Two 200-240V IEC309 32A Blue Inputs, 16-C13 2-C19 Outlets, 2U, TAA

Eaton · MPN: PDUMH32HVATNET
£1,190.99
inc. VAT
Spread the cost with Klarna, Clearpay, PayPal, Float or SnapFrom 3 interest-free payments of £396.99 See options

Credit subject to status. 18+, UK residents only. See each provider for terms.

Out of stock

FREE delivery

Express £9.99

Overview
  • Single-phase IEC309 200-240V 32A Blue (2P+E) input
  • 16 C13 and 2 C19 230V switched outlets in 2 breakered load banks
  • Compatible with Eaton Tripp Lite power cords to simplify deployment and enhance reliability
  • Automatic transfer switching within 1–5 ms
  • Ethernet network interface for remote access

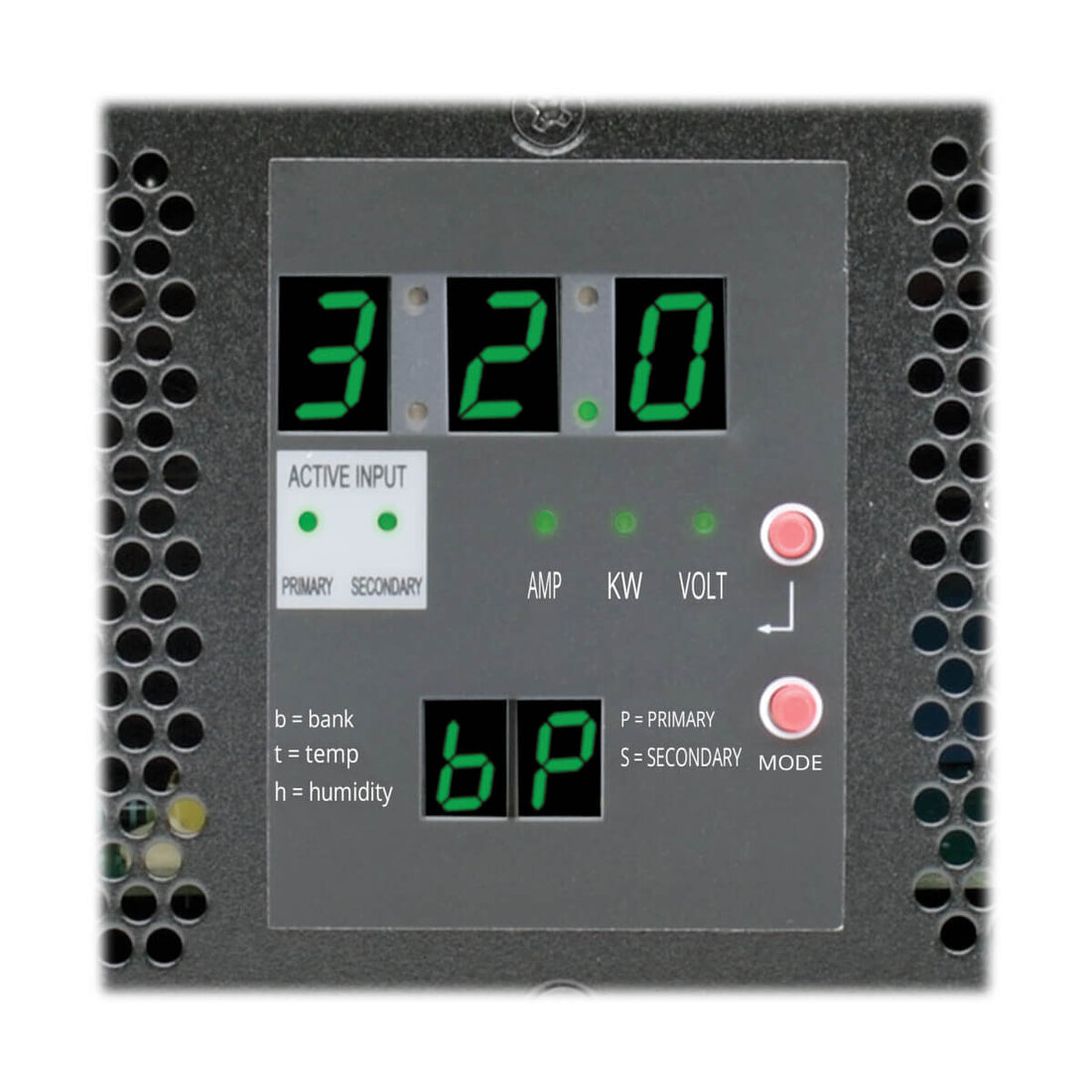

  • Digital LED display for real-time status and current monitoring

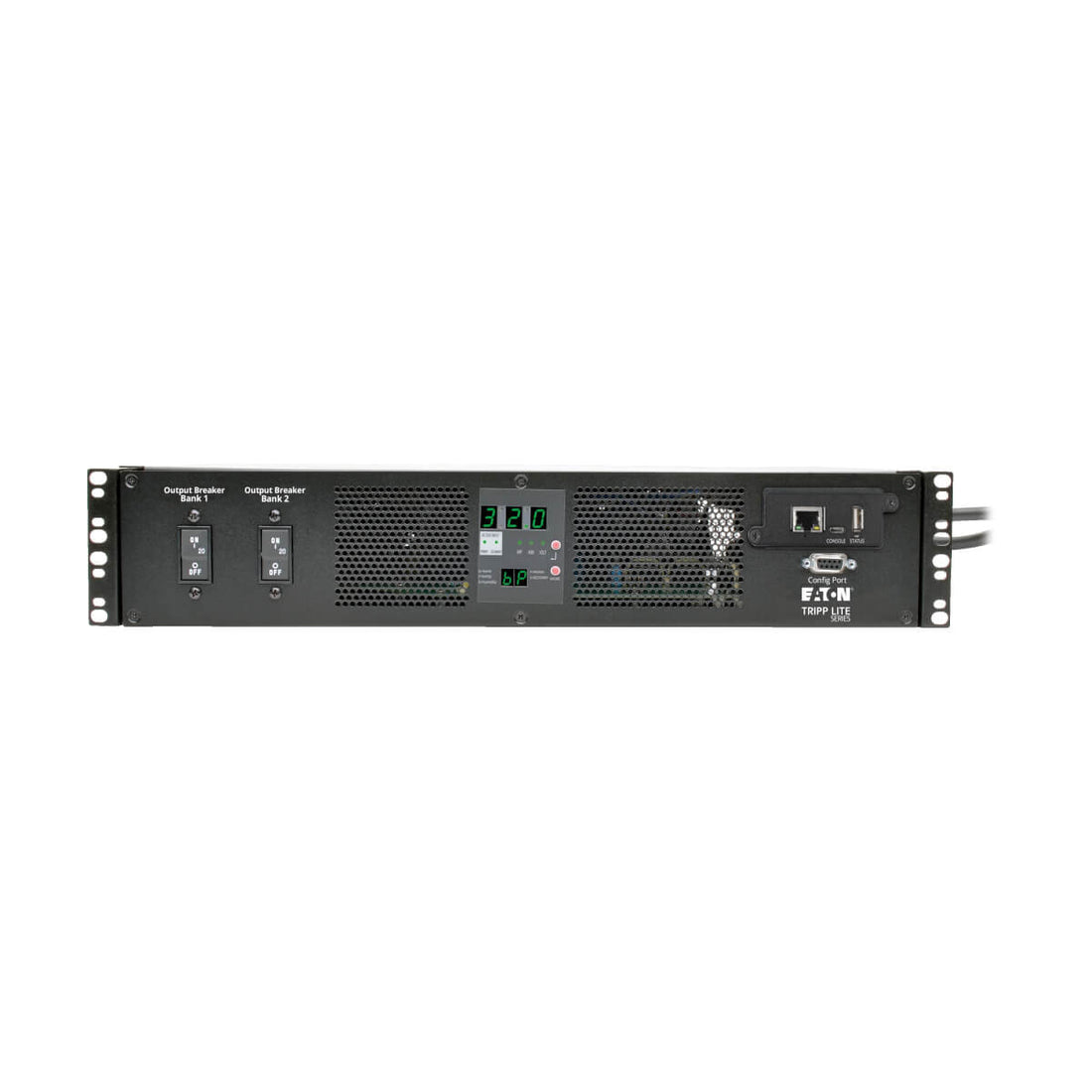

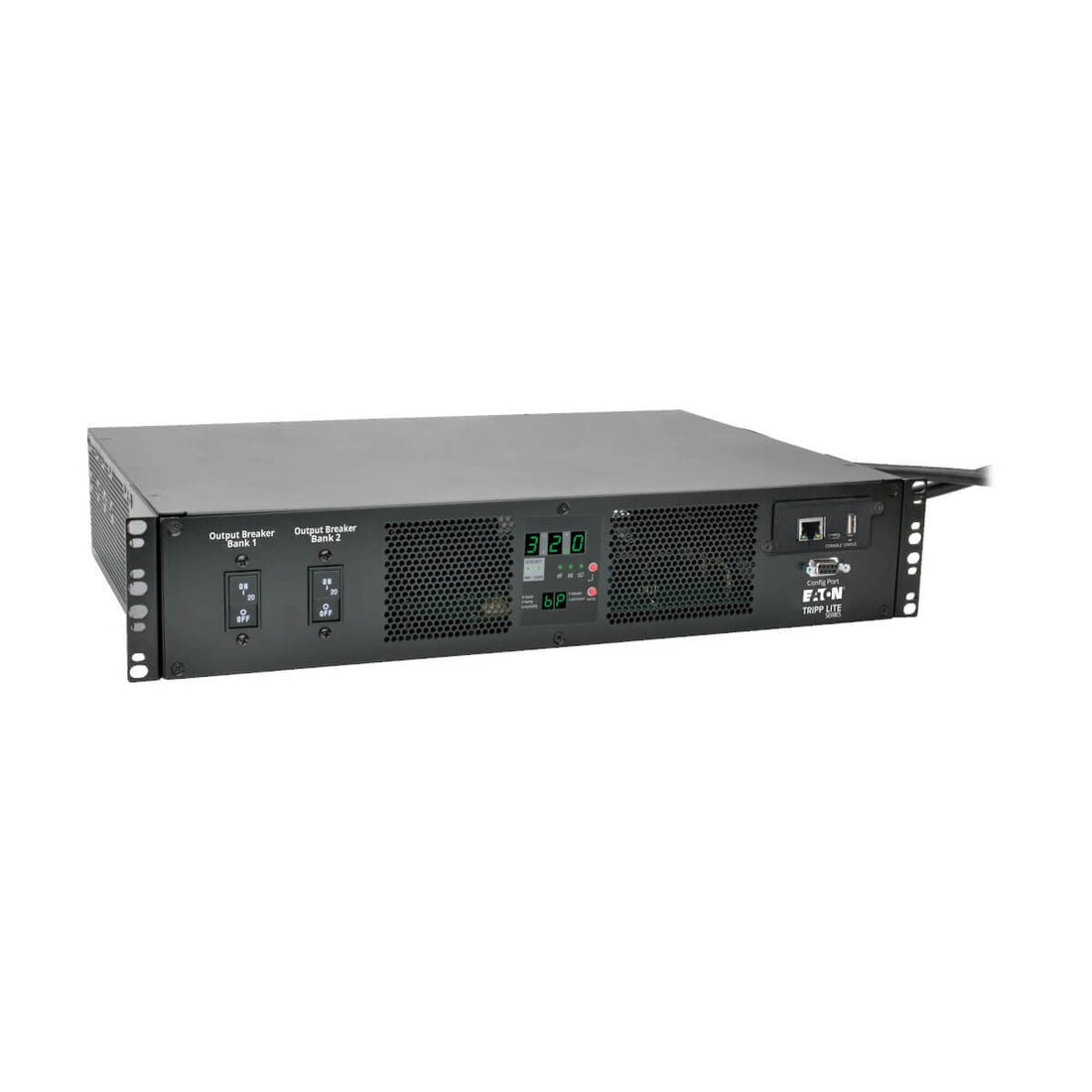

The PDUMH32HVATNET 7.7kW Single-Phase 200-240V Switched Automatic Transfer Switch / ATS PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 2U of space in EIA-standard racks and features 18 switched outlets (16 C13 and two C19) in two load banks, each bank protected by a 20A circuit breaker.

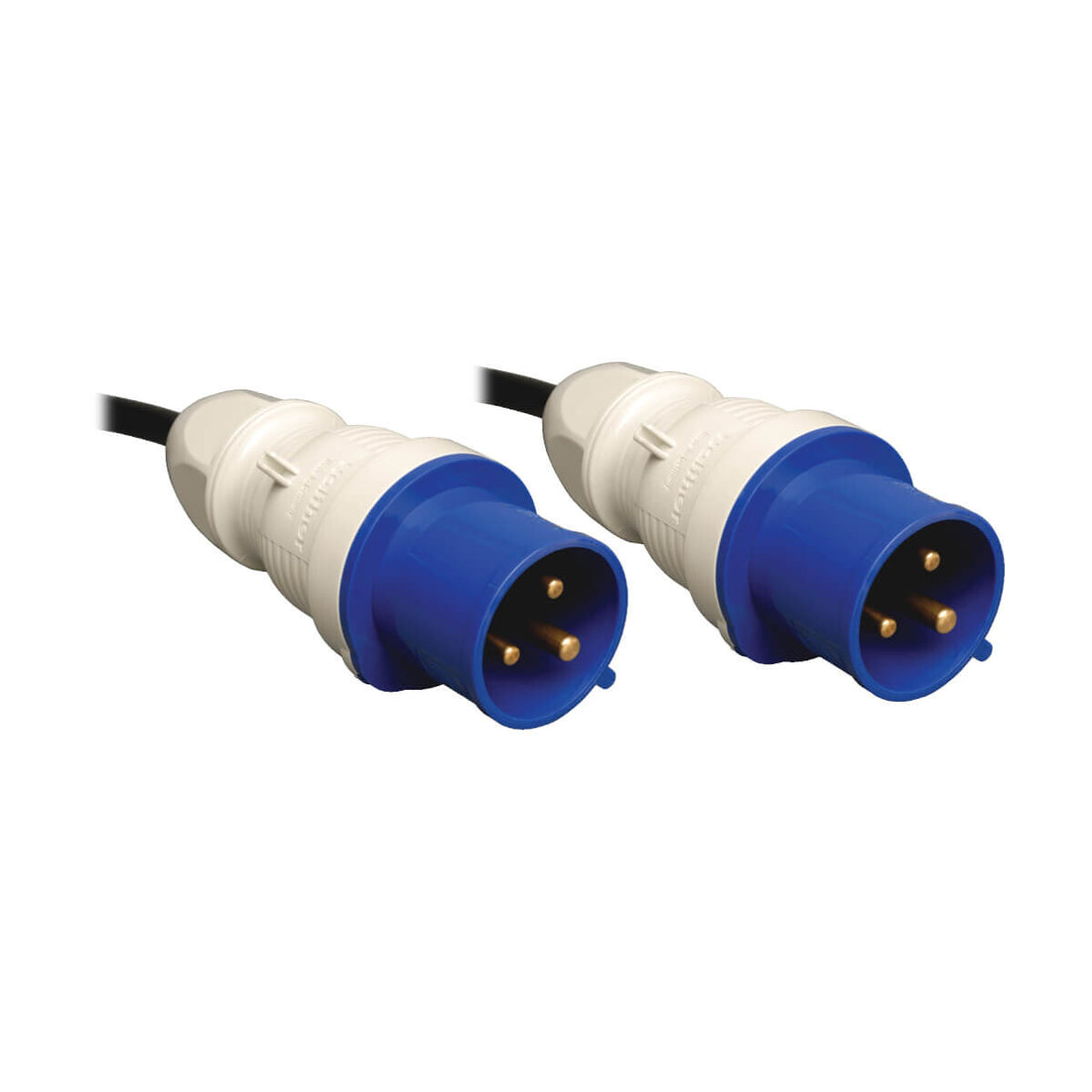

Dual 3-meter input cords with IEC309 32A Blue (2P+E) plugs connect to separate primary and secondary single-phase 230V power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1–5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

Built-in LX Platform network management interface. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separate) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

Specifications

Design

PDU typesSwitched
TypeSingle-phase
Rack capacity2U
MountingHorizontal
Housing materialMetal
Product colourBlack
DisplayLCD

Ports & interfaces

AC outlets quantity18 AC outlet(s)
Power plugIEC309
AC outlet typesC13 coupler, C19 coupler
Ethernet LAN (RJ-45) ports1
Show all 27 specificationsShow fewer specifications

Features

LED indicatorsYes
Cable length3 m

Management features

Supported network protocolsHTTP, HTTPS, PowerAlert®, SMTP, SNMPv1, SNMPv2, SNMPv3, Telnet, SSH, FTP, DHCP, BOOTP, NTP

Power

Nominal input voltage200-240 V
AC input frequency50 - 60 Hz
Maximum current32 A
Nominal output voltage200-240 V
Maximum power7700 W

Certificates

Compliance certificatesRoHS

Operational conditions

Storage temperature (T-T)-15 - 50 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width444 mm
Depth317 mm
Height88 mm
Weight6.21 kg

Packaging content

ManualYes
