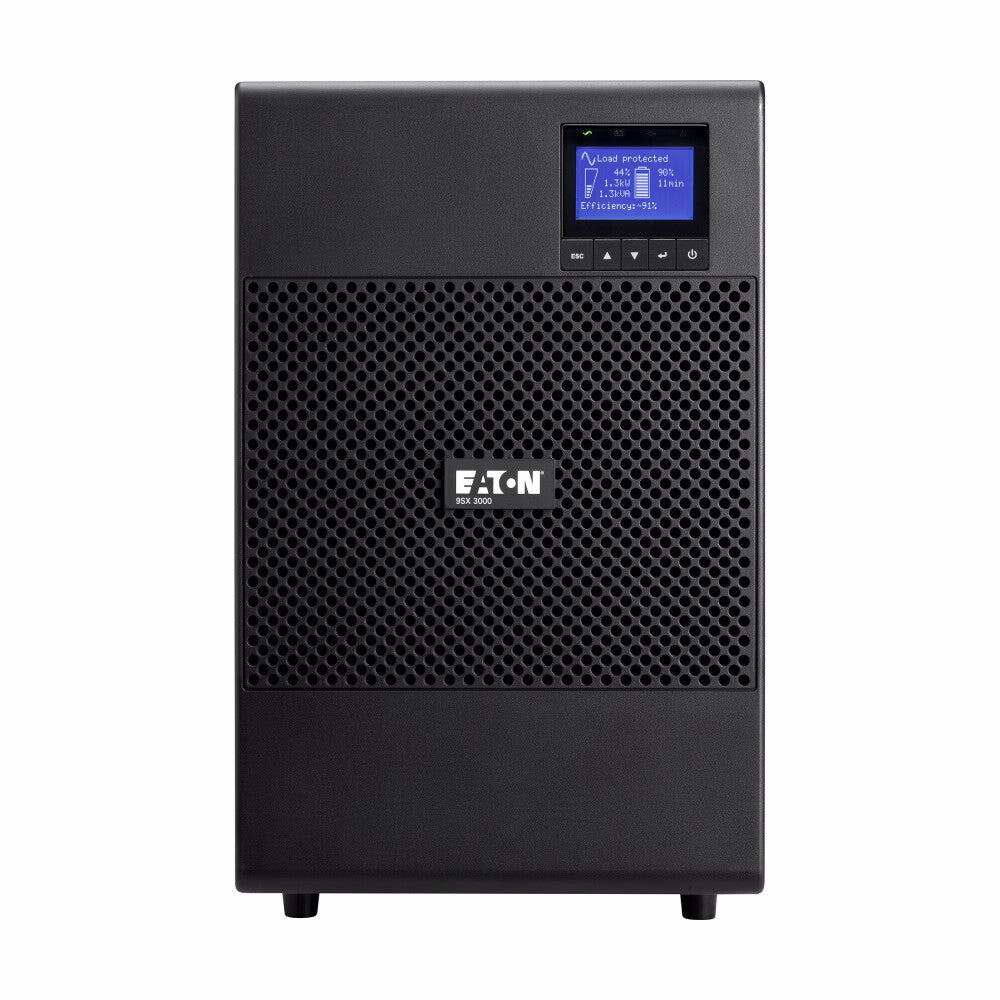

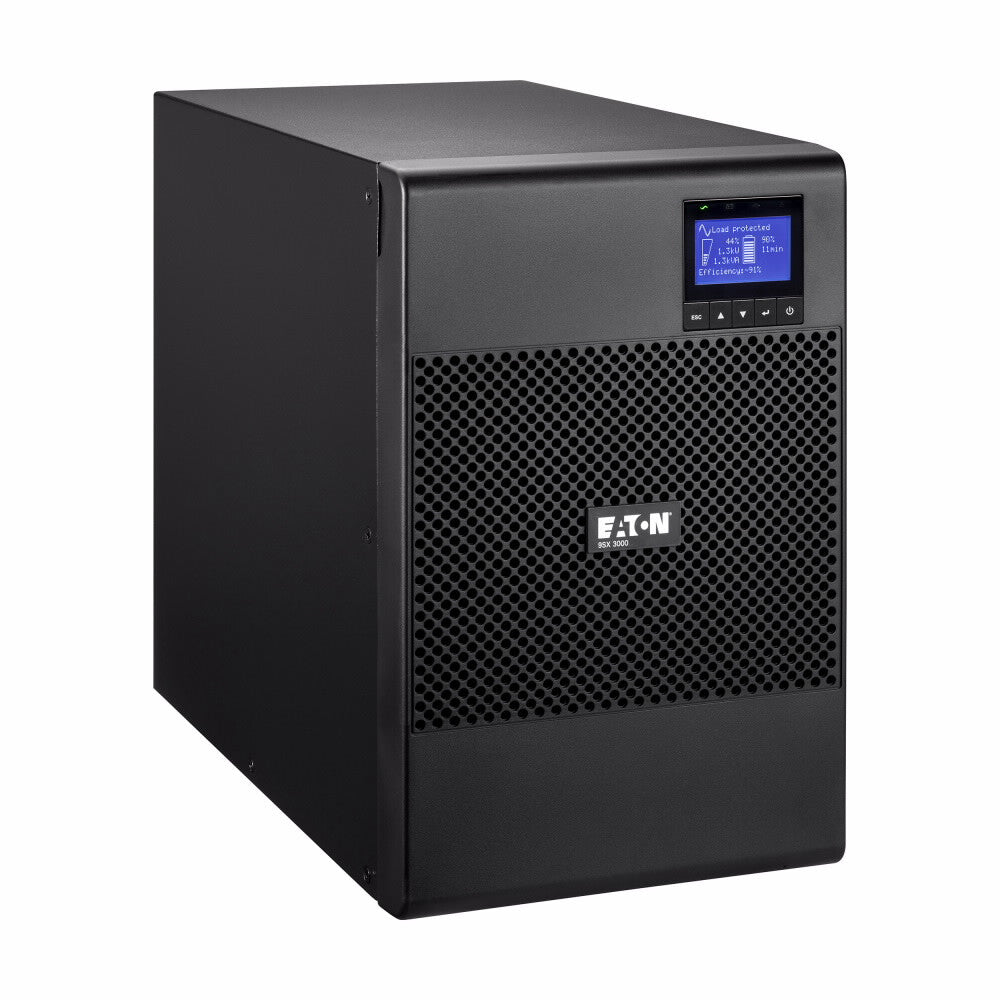

Eaton 9SX3000IBS uninterruptible power supply (UPS) Double-conversion (Online) 3 kVA 2700 W 9 AC outlet(s)
iFrame
£2,099.99
Couldn't load pickup availability
- Double-conversion (Online)
- 3 kVA 2700 W
- Waveform: Sine
- 9 AC outlet(s)
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Tower Black

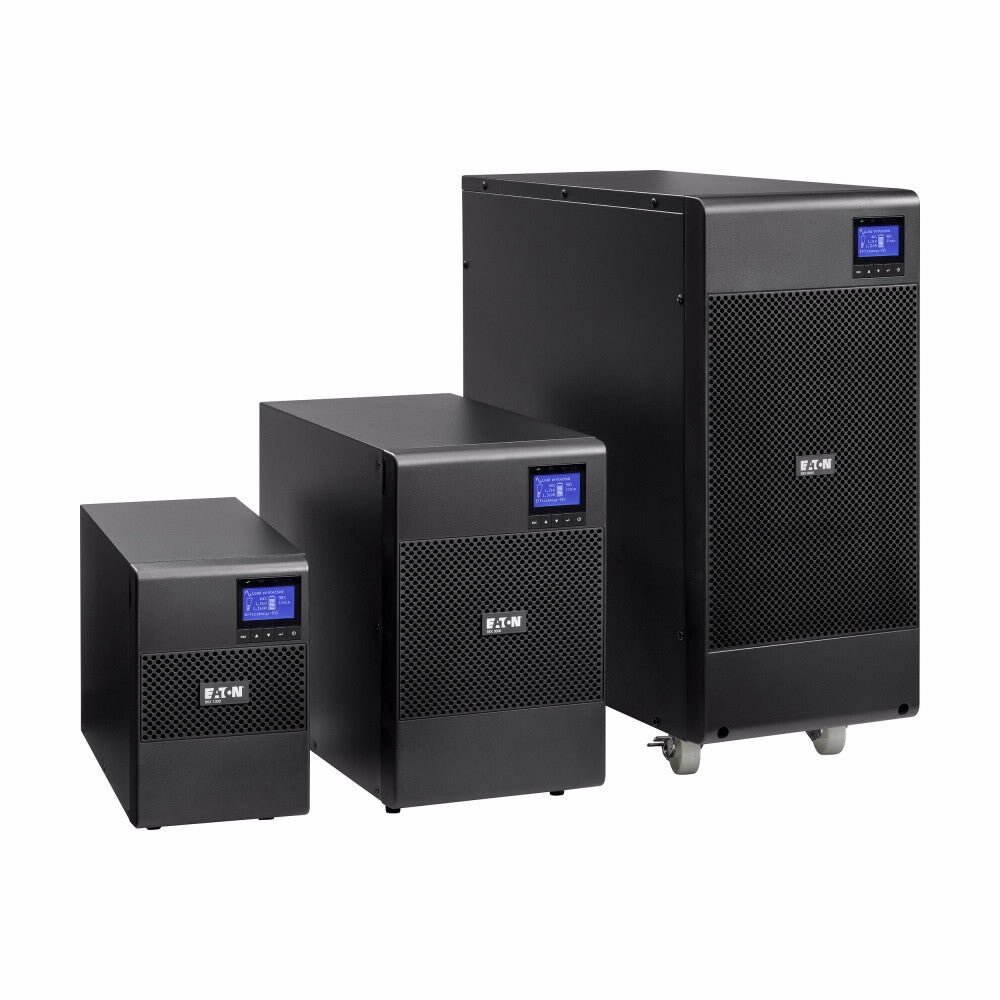

The Eaton 9SX UPS offers high availability, flexibility and advanced protection for infrastructure, industrial, medical, IT, networking, storage and telecom. Delivering on-line double conversion protection in convenient tower, rack or RT format.
| Features | |
|---|---|
| Power protection features | Overdischarge |
| Noise level | 45 dB |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| ECO mode | Yes |
| Output power factor | 0.9 |
| Input power factor | 0.99 |
| Power factor | 0.9 |
| Efficiency (ECO mode) | 97.4% |
| Efficiency | 92.4% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 140 V |
| Waveform | Sine |
| Output power | 2700 W |
| Output power capacity | 3 kVA |
| UPS topology | Double-conversion (Online) |

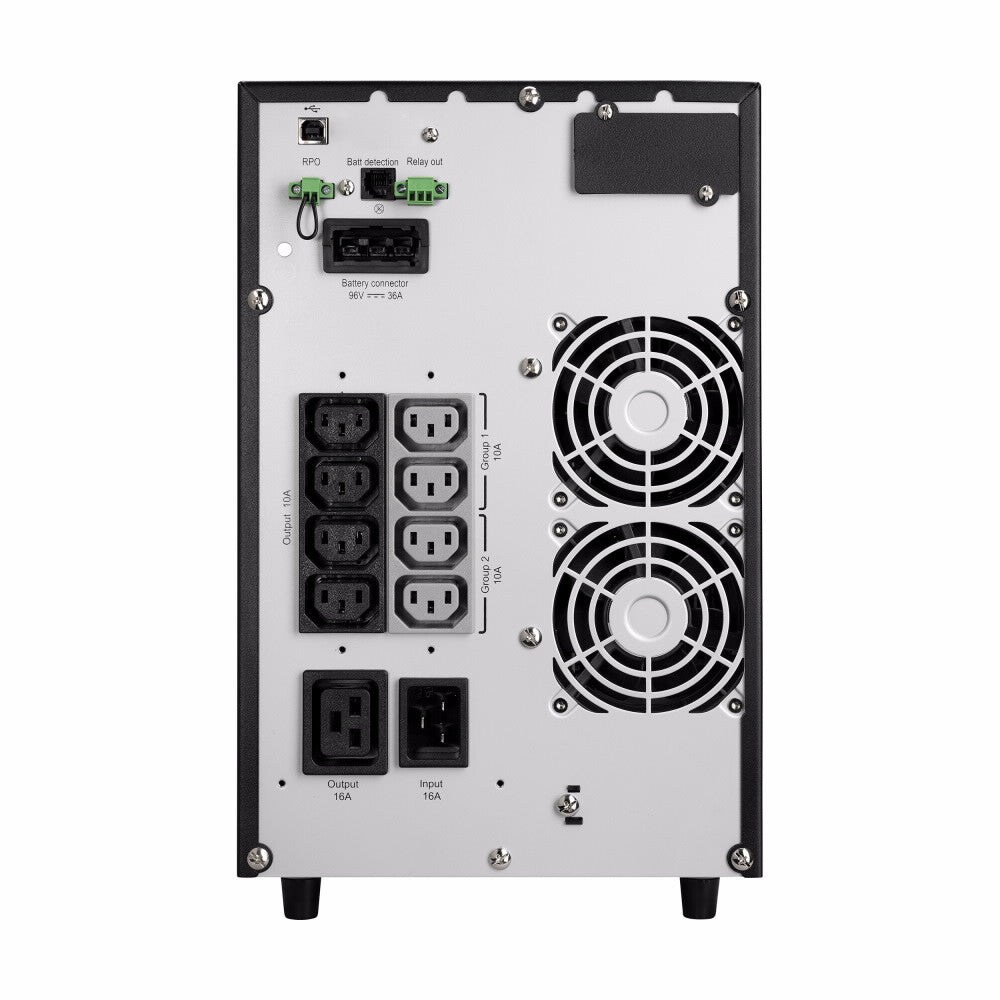

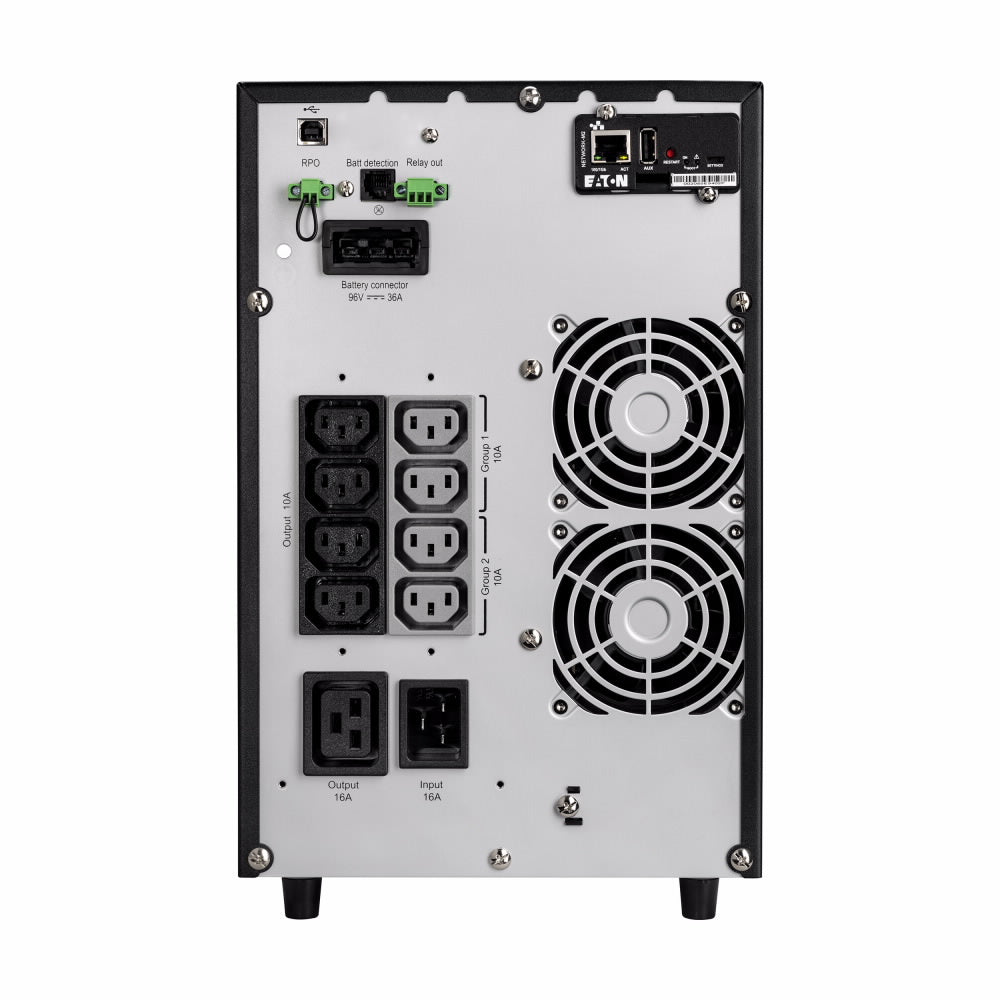

| Ports & interfaces | |
|---|---|
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB 2.0 ports quantity | 1 |
| USB port type | USB Type-B |
| USB port | Yes |
| AC outlets quantity | 9 AC outlet(s) |
| Power plug | C20 coupler |
| AC outlet types | C13 coupler, C19 coupler |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Typical backup time at full load | 6 min |
| Battery voltage | 12 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Cable length | 1.8 m |
| Product colour | Black |
| Form factor | Tower |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 96% |
| Operating temperature (T-T) | 0 - 40 °C |
| Sustainability | |
|---|---|
| Sustainability compliance | Yes |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | Input power cable, Serial, USB cable |
| Rack mount kit | No |
| Certificates | |
|---|---|
| Certification | TUVcULus CSA 22.2FCC 15 / BCISPR22 BIEC/EN 62040-1UL 1778IEC/EN 62040-2EAC |
| Compliance certificates | CE |
| Weight & dimensions | |
|---|---|
| Weight | 33.8 kg |
| Height | 490 mm |
| Depth | 575 mm |
| Width | 320 mm |
