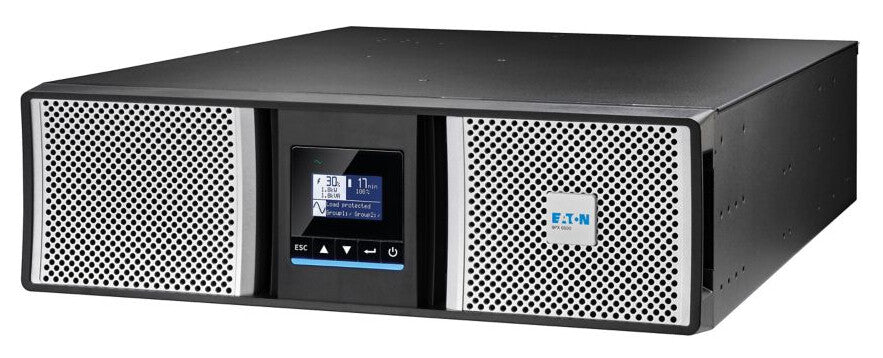

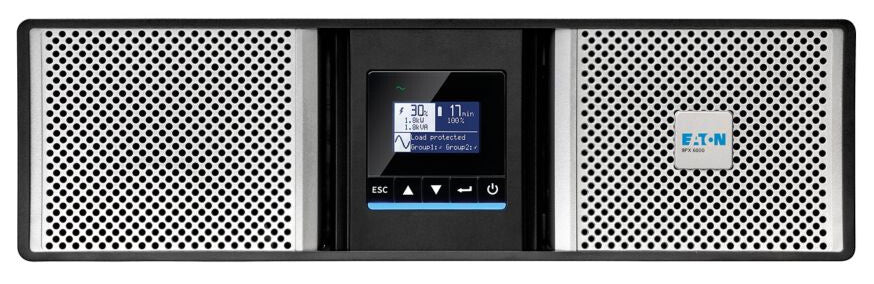

Eaton 9PX6KIRTNG2 uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W
iFrame
£3,889.99
Couldn't load pickup availability
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Pure sine
- Sealed Lead Acid (VRLA) 12 V 5 Ah
- Rackmount/Tower Black, Silver

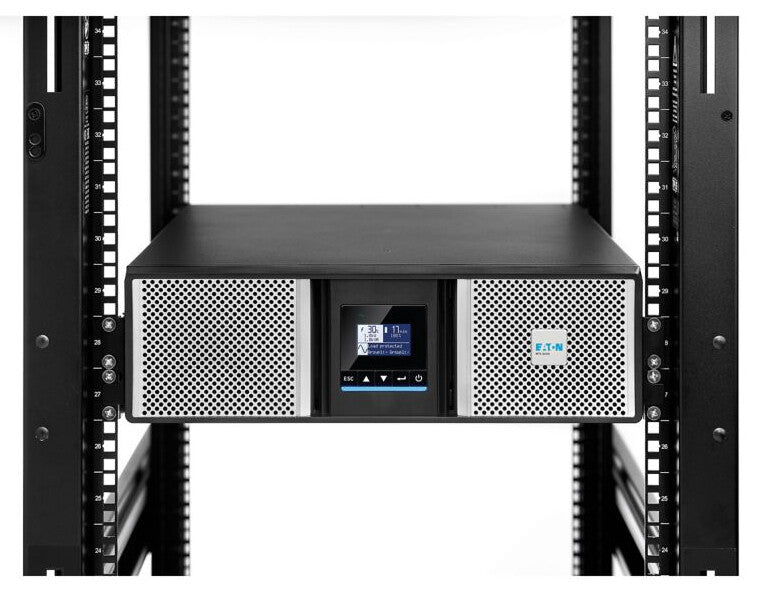

Eaton 9PX Gen2 UPS Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included
| Features | |
|---|---|
| Noise level | 40 dB |
| Power factor | 0.99 |
| Efficiency | 0.965% |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 40/70 Hz |
| Input operation voltage (max) | 276 V |
| Input operation voltage (min) | 176 V |
| Waveform | Pure sine |
| Output power | 6000 W |
| Output power capacity | 6 kVA |
| UPS topology | Double-conversion (Online) |
| Ports & interfaces | |
|---|---|
| RS-232 ports | 1 |
| USB 2.0 ports quantity | 1 |
| USB port | Yes |
| Power plug | Terminal |

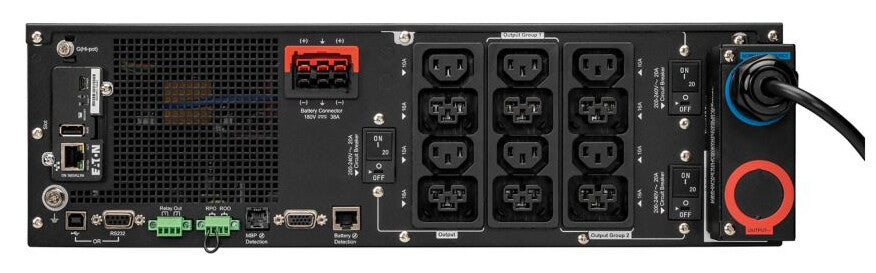

| AC outlet types | C13 coupler, Terminal |
| Battery | |
|---|---|
| Automatic battery test | Yes |
| Battery voltage | 12 V |
| Battery capacity | 5 Ah |

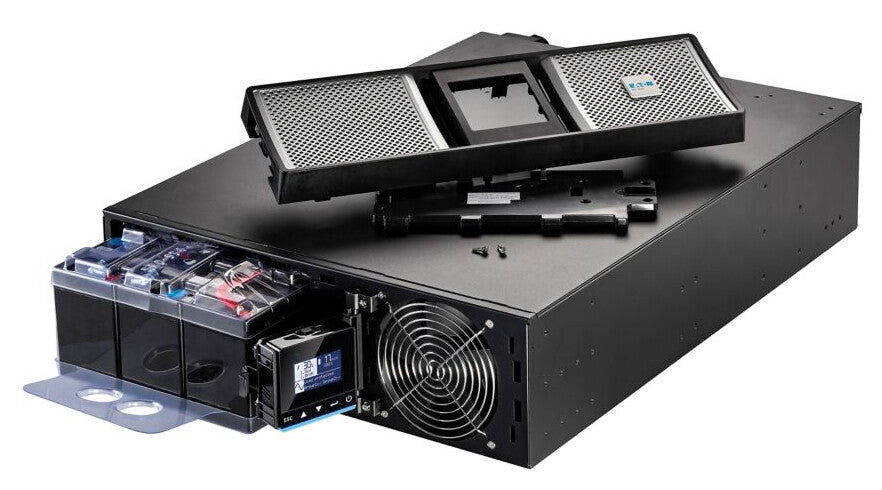

| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| LED indicators | Yes |

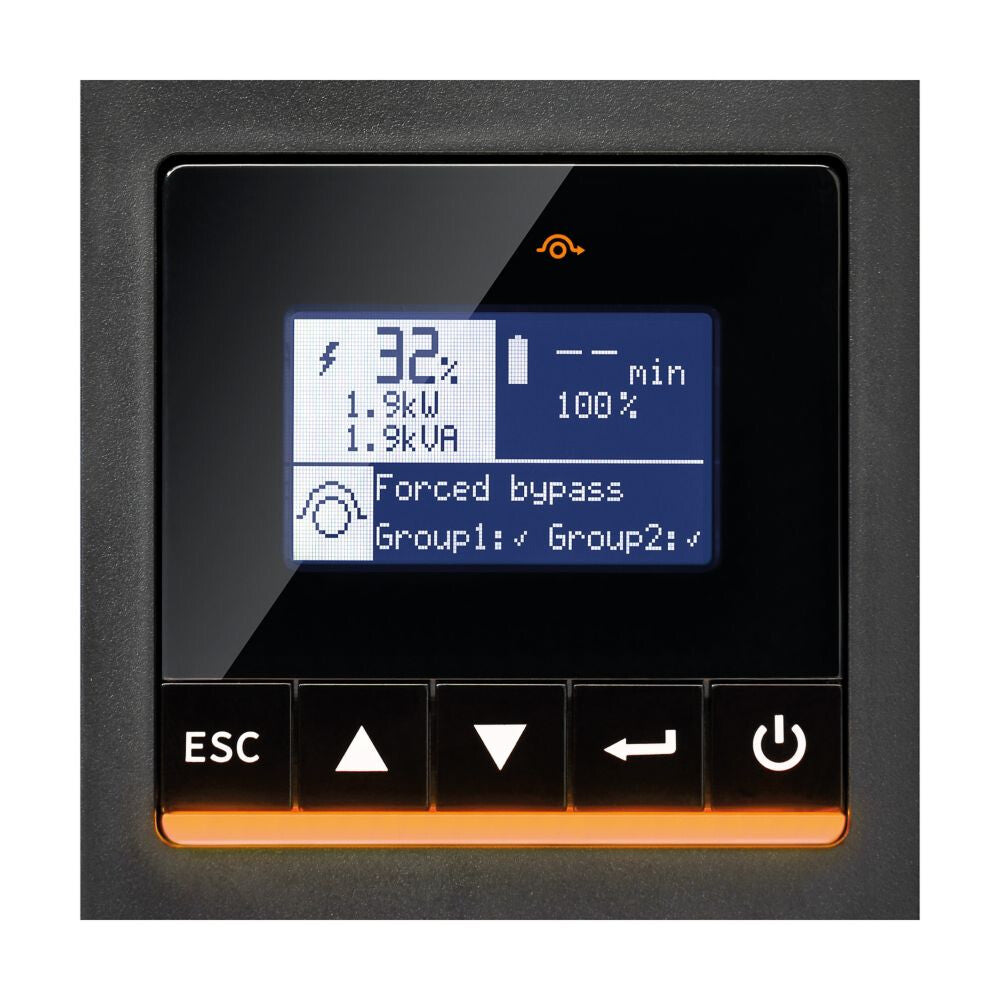

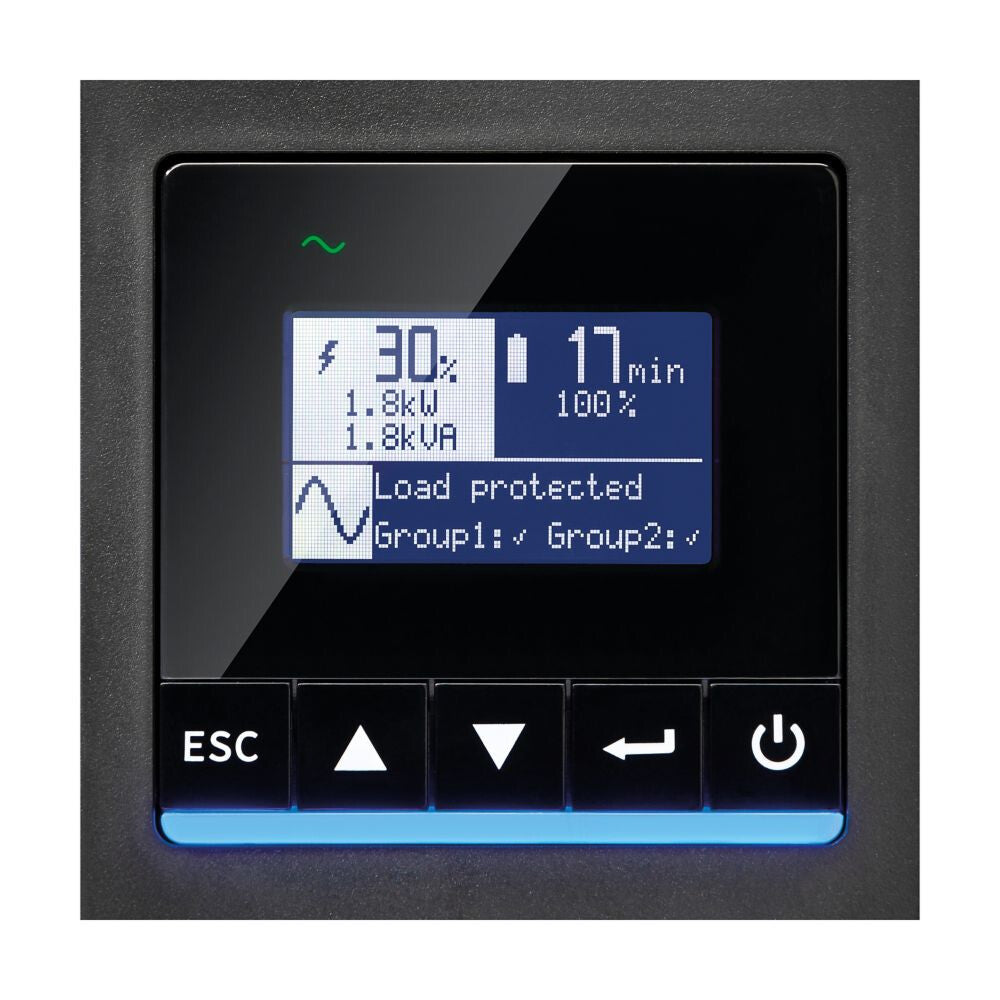

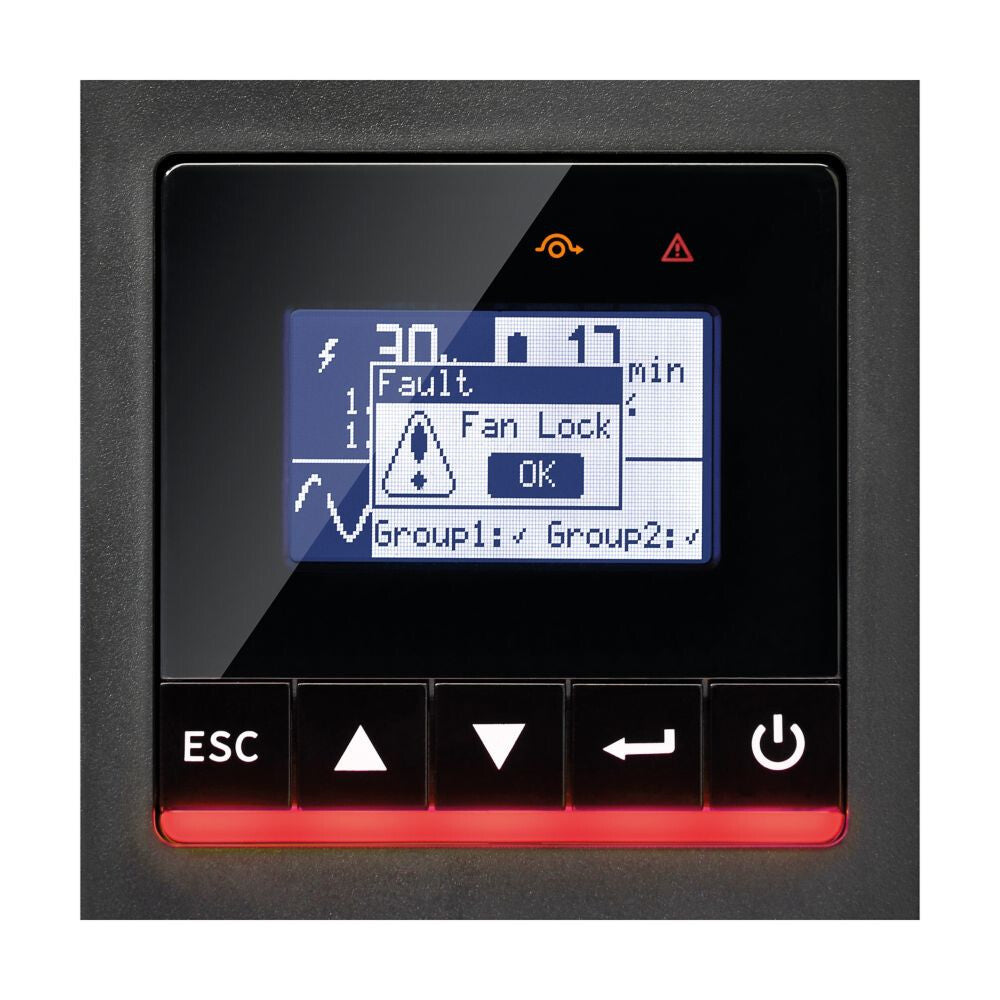

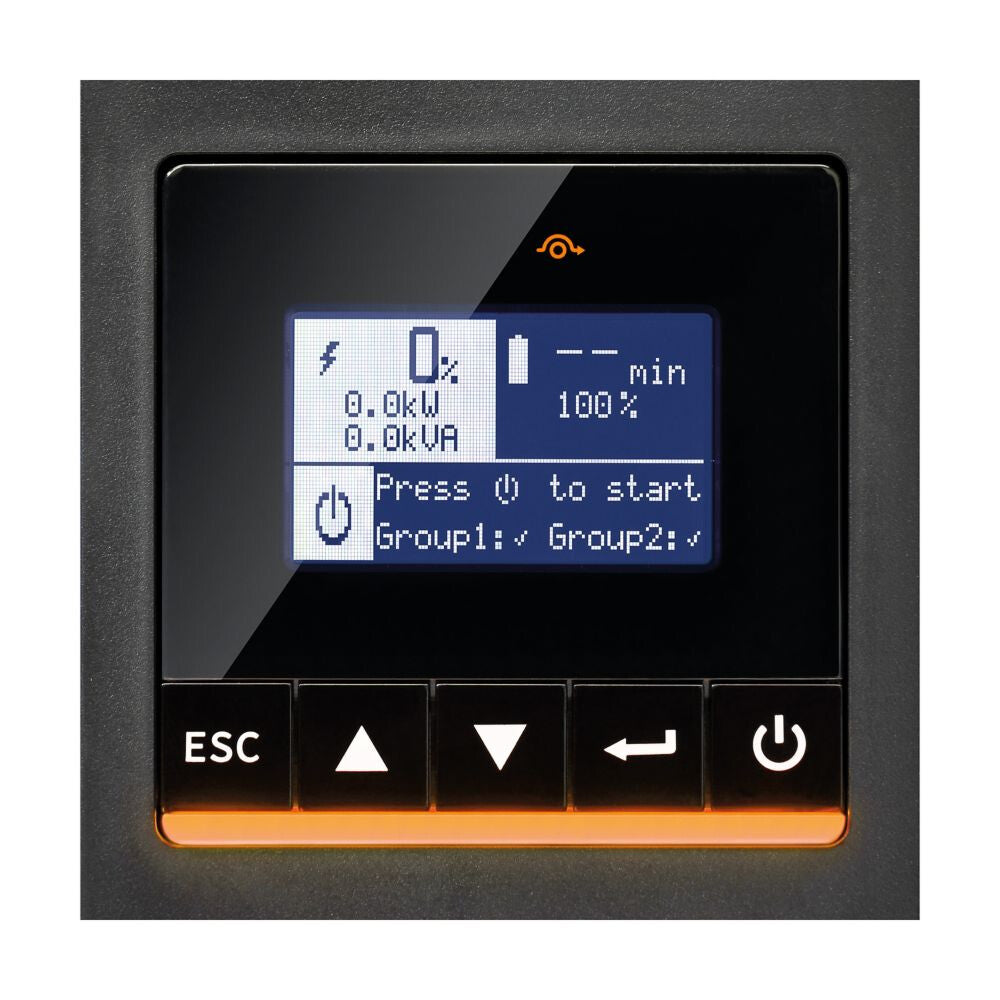

| Display type | LCD |
| Control type | Buttons |
| Rack capacity | 3U |
| Product colour | Black, Silver |

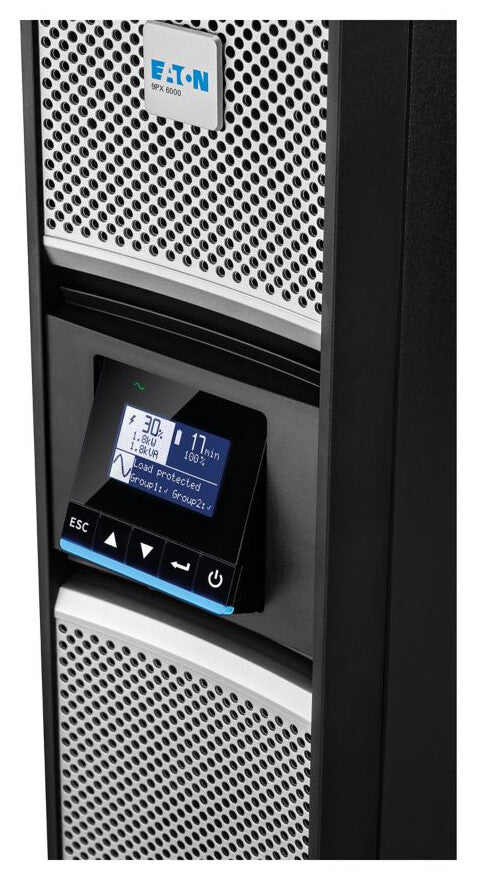

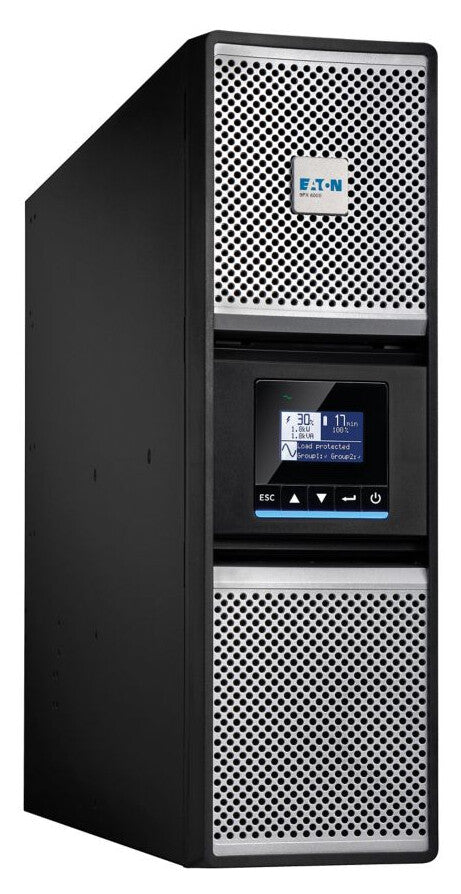

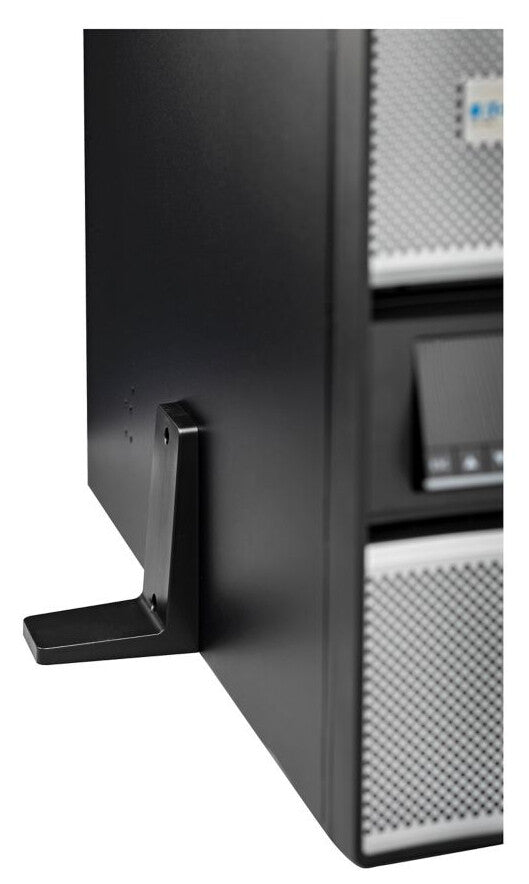

| Form factor | Rackmount/Tower |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 0 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
|---|---|
| Certification | IEC/EN 62040-1, IEC/EN 62040-2, IEC/EN 62040-3, ENERGY STAR certified, CE, cULus, UKCA, Cm, Ukr, RCM |
| Compliance certificates | CE, UKCA, cULus |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Rack mount kit | Yes |
| Weight & dimensions | |
|---|---|
| Weight | 43.1 kg |
| Height | 130 mm |
| Depth | 684 mm |
| Width | 440 mm |
| Packaging data | |
|---|---|
| Bundled software | Eaton Brlightlayer Software suite |
| Management card included | Yes |
| Other features | |
|---|---|
| Nominal output voltage | 230 V |
| Nominal input voltage | 400 V |
