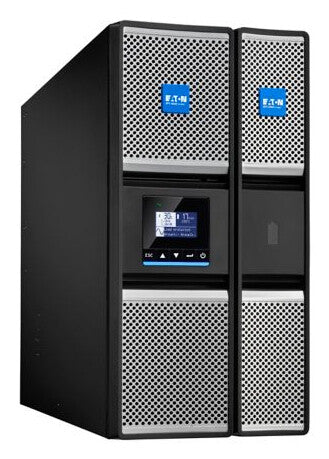

Eaton 9PX6KIRTNG2-L uninterruptible power supply (UPS) Double-conversion (Online) 6 kVA 6000 W
£6,718.99
Couldn't load pickup availability
- Double-conversion (Online)
- 6 kVA 6000 W
- Waveform: Pure sine
- Lithium-Ion (Li-Ion) 6 Ah
- Rackmount/Tower Black, Silver
Eaton 9PX Gen 2 Lithium UPS Netpack, 6000 VA, 6000 W, Input: Hardwired, Outputs: (6) C13, (6) C39, Hardwired, Rack/tower, 3U, Gigabit Network card included, Rack-mounting kit included
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 6 kVA |
| Output power | 6000 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Efficiency | 96.5% |
| Output power factor | 1 |
| Emergency Power Off (EPO) | Yes |
| Noise level | 40 dB |
| Ports & interfaces | |
|---|---|

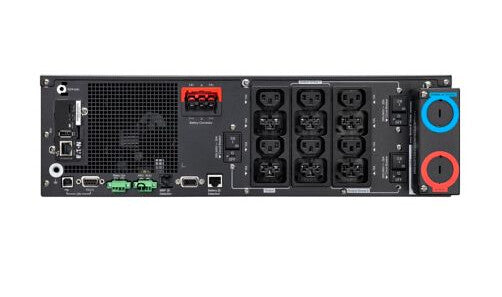

| AC outlet types | C13 coupler, C39 coupler, Hardwire |
| Power plug | Hardwire |
| Number of output IEC jumpers | 2 |
| USB port | Yes |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| Network card slot | Yes |
| Emergency Power Off (EPO) connector | Yes |
| Battery | |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 6 Ah |
| Design | |
|---|---|

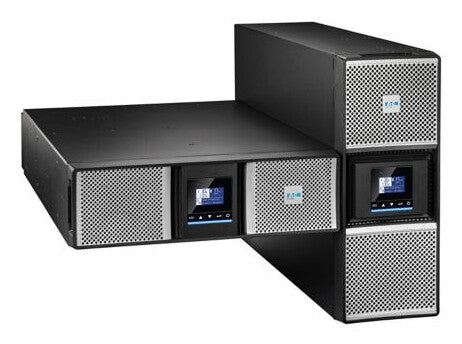

| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |

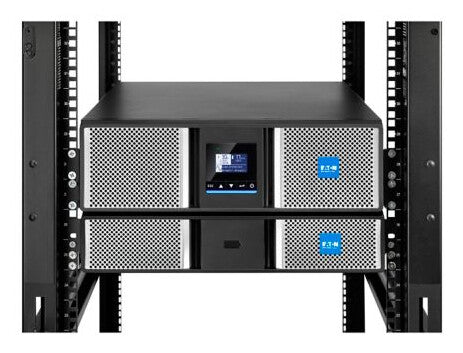

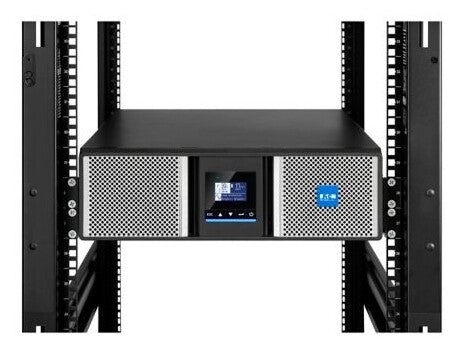

| Rack capacity | 3U |
| Control type | Buttons |
| Display type | LCD |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|
| Batteries included | Yes |
| Rack mount kit | Yes |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, cULus, UKCA, RCM |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 ENERGY STAR certified CE cULus UKCA Cm Ukr RCM |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 684 mm |
| Height | 130 mm |
| Weight | 38 kg |
| Packaging data | |
|---|---|
| Management card included | Yes |
| Bundled software | Eaton Brlightlayer Software suite |
| Logistics data | |
|---|---|
| Warranty period | 5 year(s) |
| Other features | |
|---|---|
| Nominal output voltage | 230 V |
