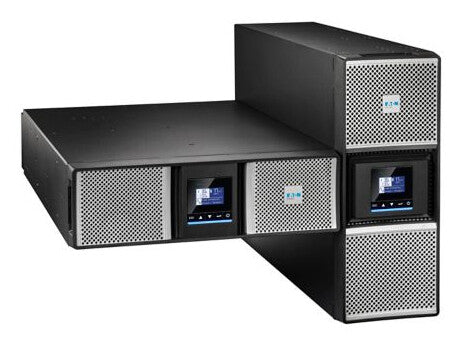

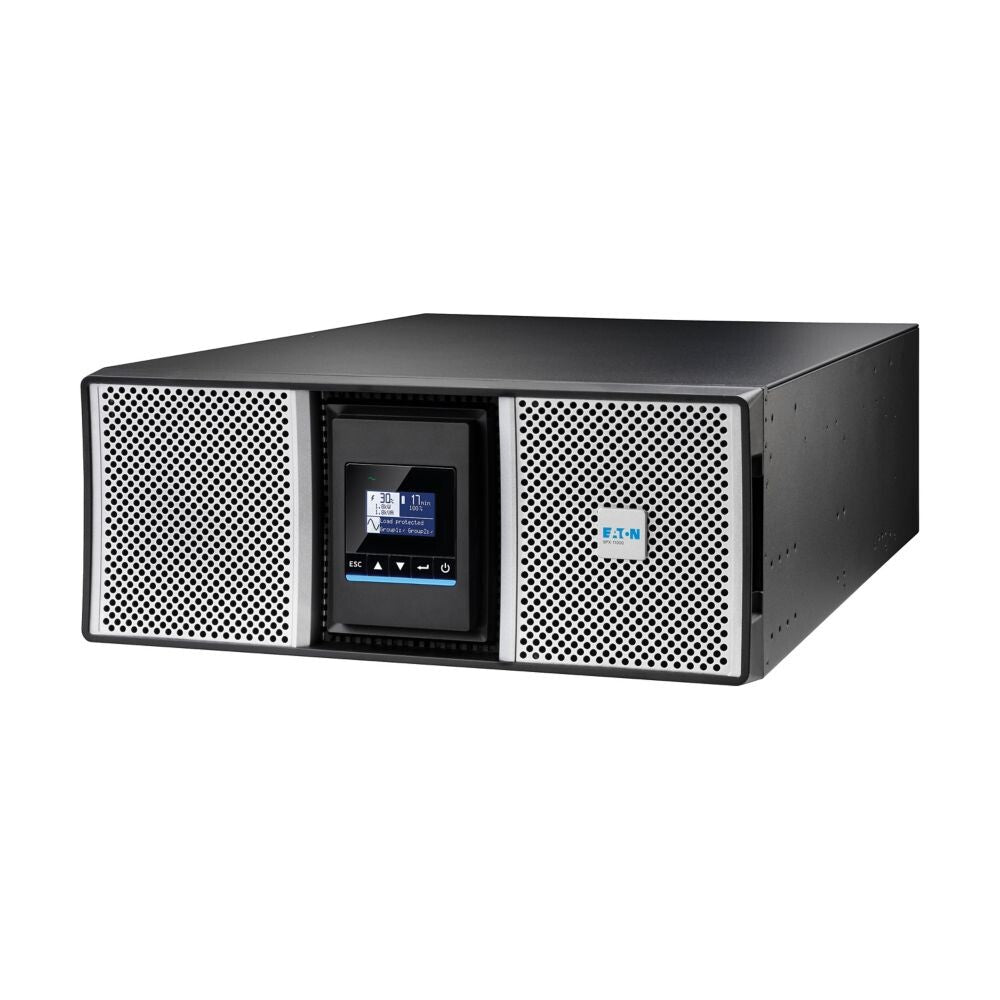

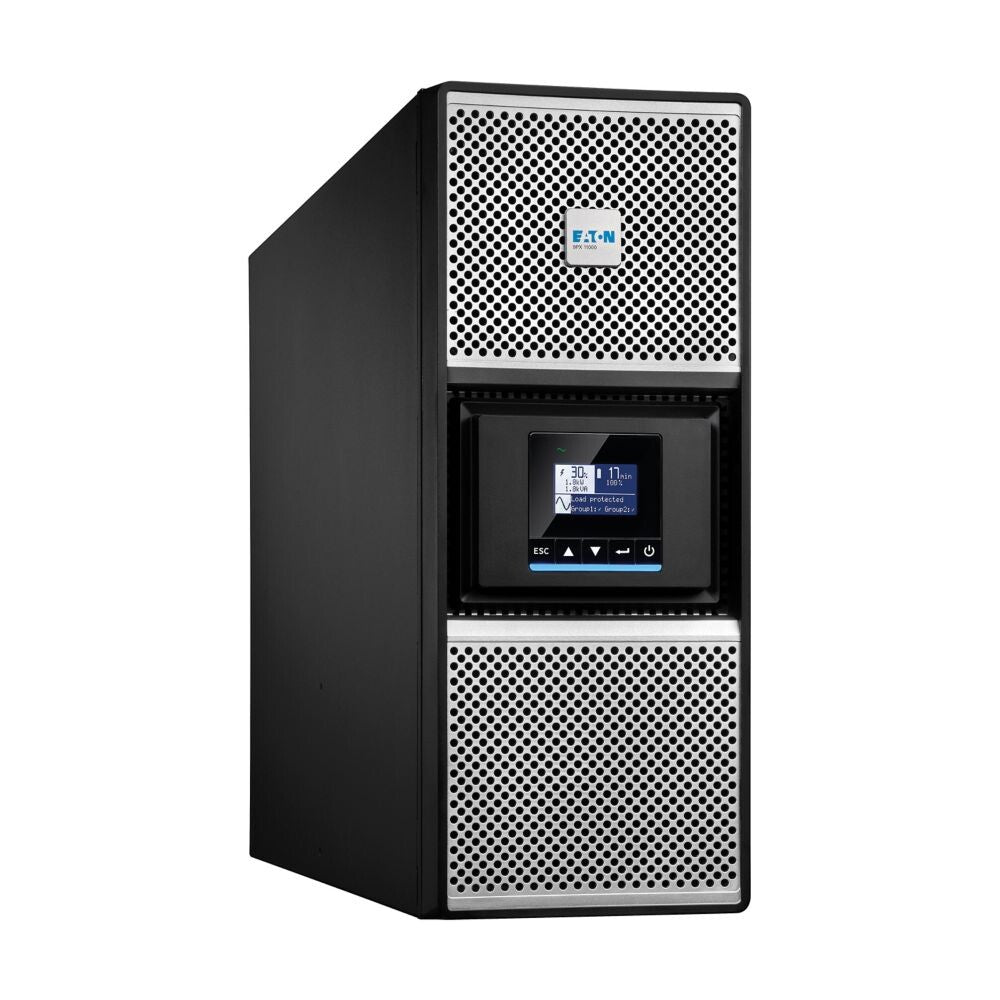

Eaton 9PX 8000i RT4U HotSwap Netpack G2 uninterruptible power supply (UPS) Double-conversion (Online) 8 kVA 8000 W
£6,464.99
Couldn't load pickup availability
- Double-conversion (Online)
- 8 kVA 8000 W
- Waveform: Sine
- Sealed Lead Acid (VRLA) 12 V 9 Ah
- Rackmount/Tower Black, Silver
Eaton 9PX Gen2 UPS HotSwap Netpack, 8000 VA, 8000 W, Input: Hardwired, Outputs: (4) C39, Hardwired, Rack/tower, 4U, Gigabit Network card included, Rack-mounting kit included, Maintenance bypass included
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 8 kVA |
| Output power | 8000 W |
| Waveform | Sine |
| Input operation voltage (min) | 100 V |
| Input operation voltage (max) | 276 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 200 V |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Power consumption (average operating) | 214 W |
| Heat dissipation | 728 BTU/h |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 97.3% |
| Efficiency (ECO mode) | 99.5% |
| Input power factor | 0.99 |
| Noise level | 37 dB |
| Ports & interfaces | |
|---|---|

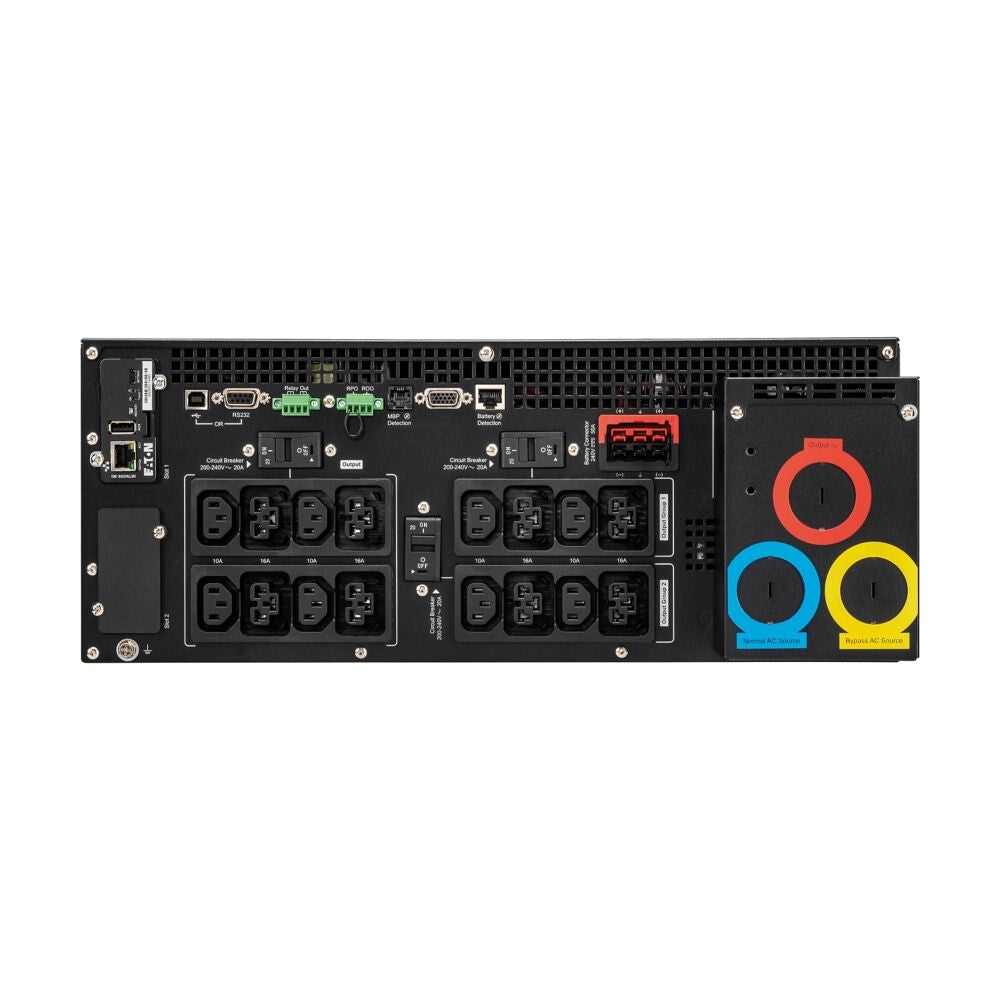

| AC outlet types | C13 coupler, C19 coupler |
| USB port | Yes |
| RS-232 ports | 1 |
| Battery | |
|---|---|

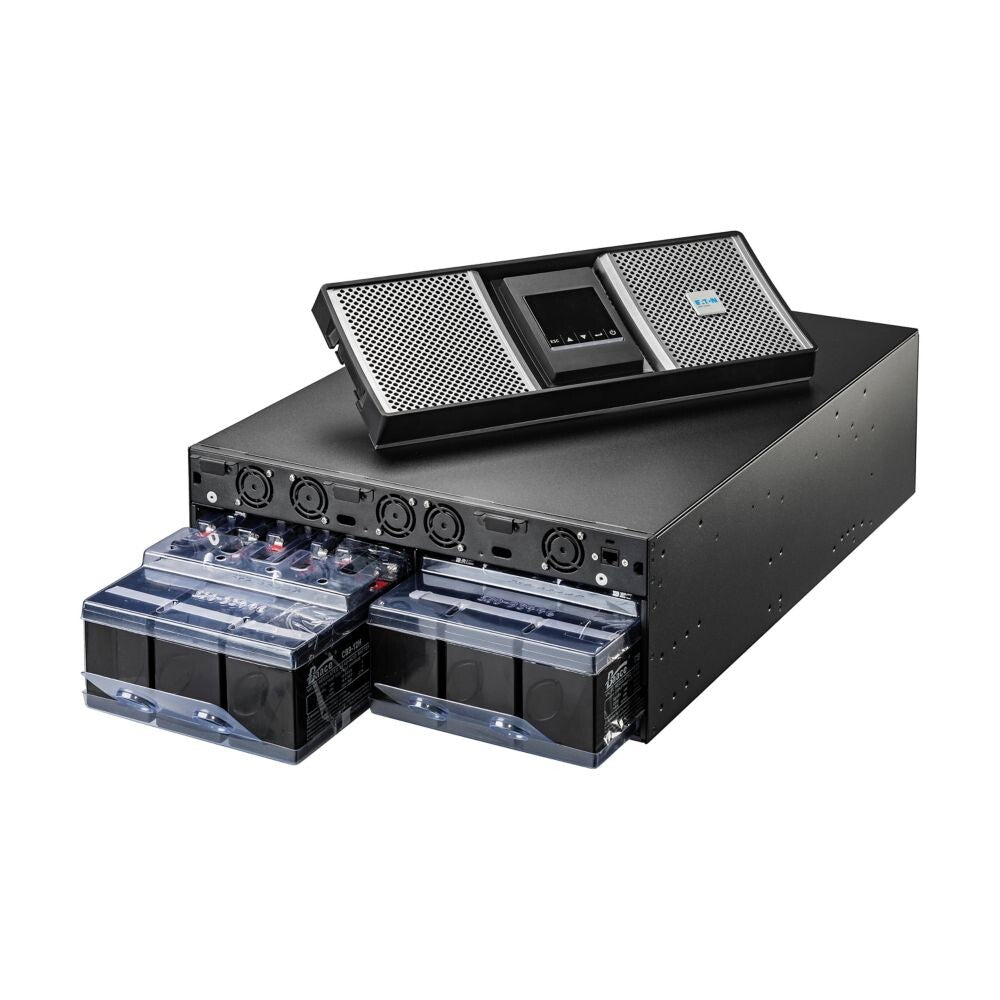

| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Typical backup time at half load | 15.2 min |
| Automatic battery test | Yes |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black, Silver |
| Rack capacity | 4U |
| Cable length | 1.8 m |
| Display type | LCD |
| LED indicators | Yes |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR |
| Packaging content | |
|---|---|

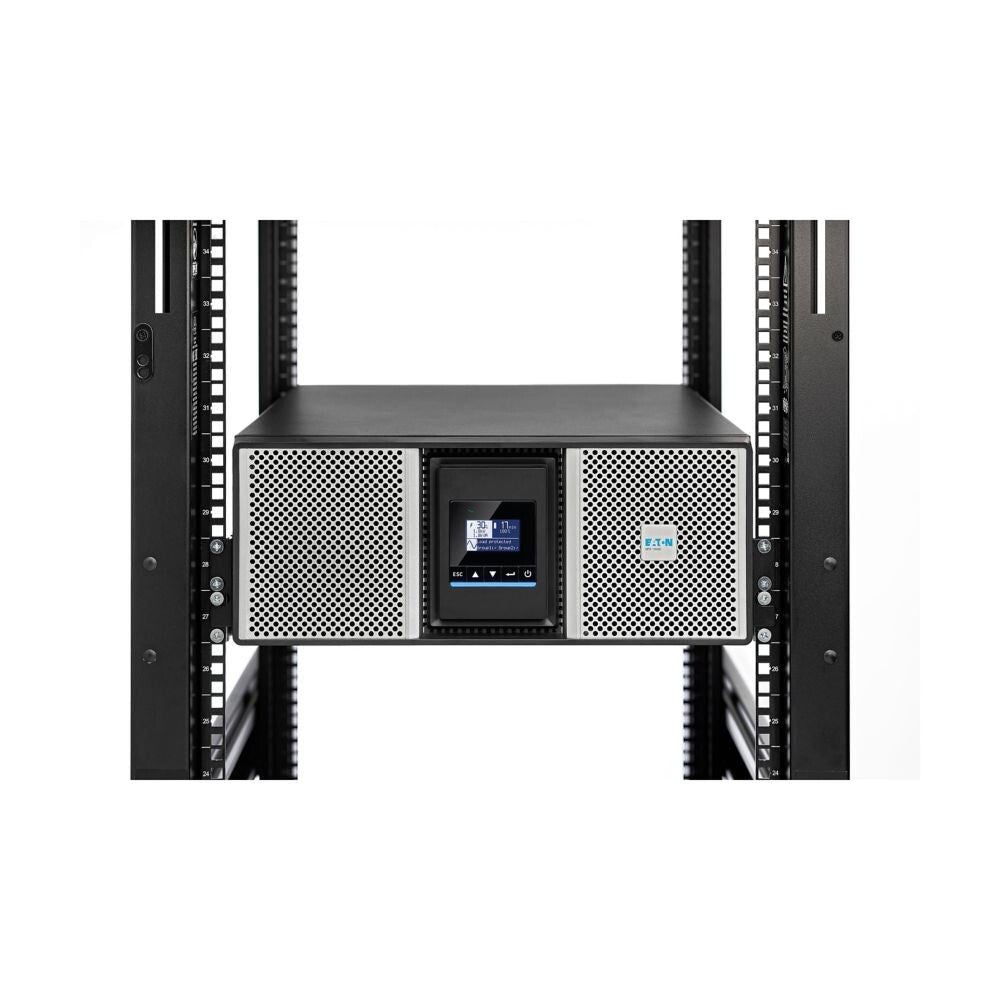

| Rack mount kit | Yes |
| Cables included | Output power cable, USB cable |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | BSMI, CE, Electromagnetic Compatibility (EMC), KCC, Low Voltage Directive (LVD), RCM, REACH, RoHS, UKCA, WEEE, cULus |
| Certification | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3 |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 725 mm |
| Height | 174 mm |
| Weight | 83.4 kg |
