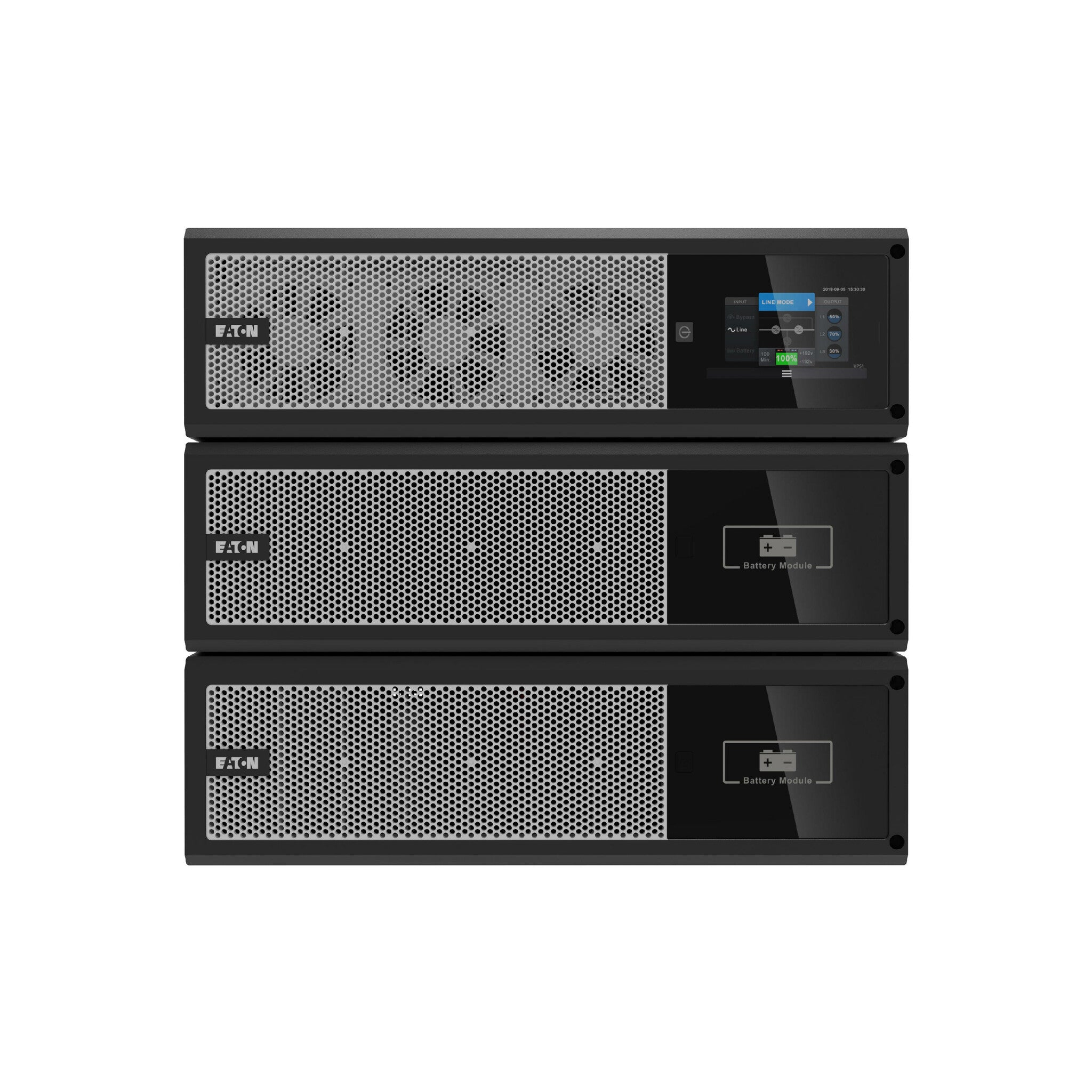

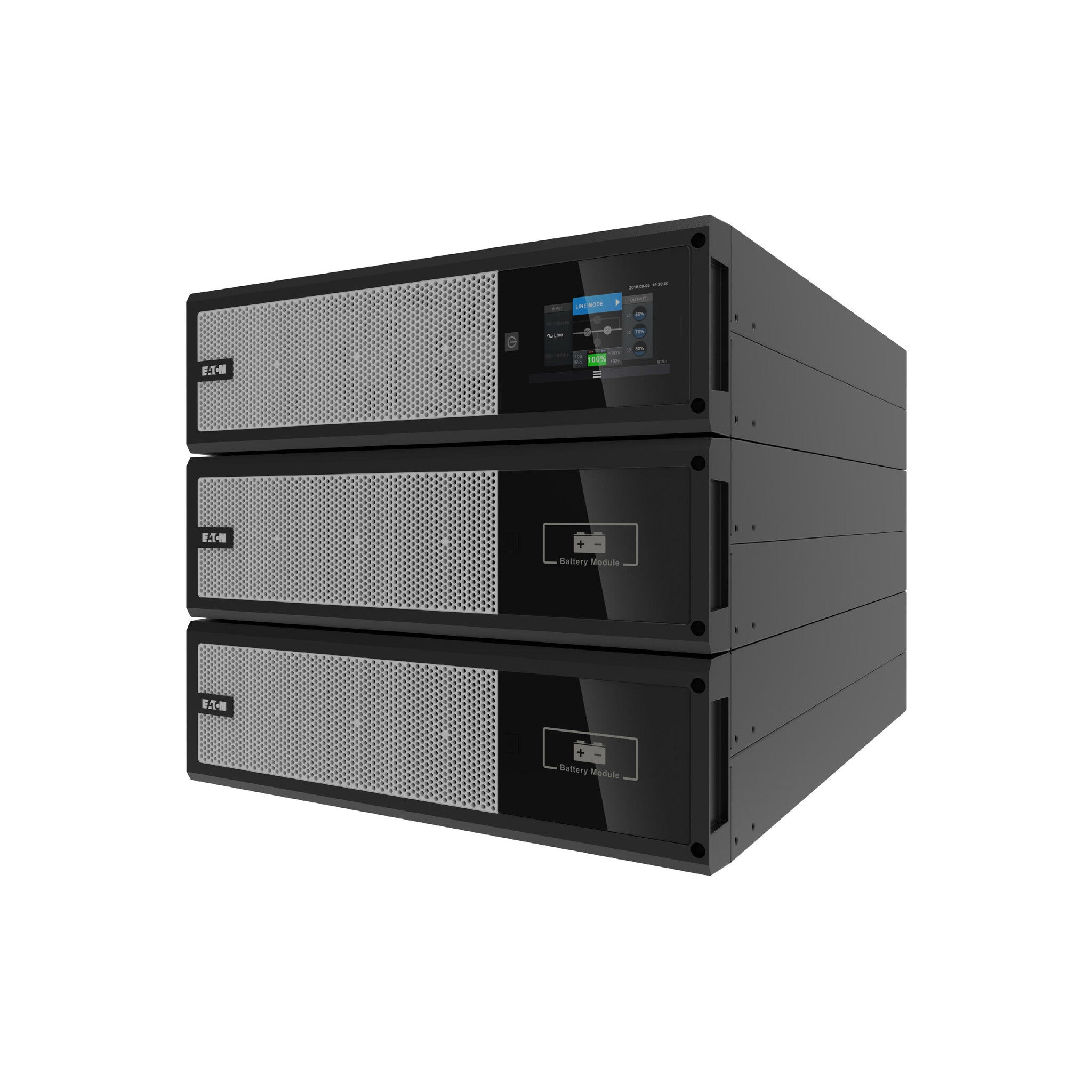

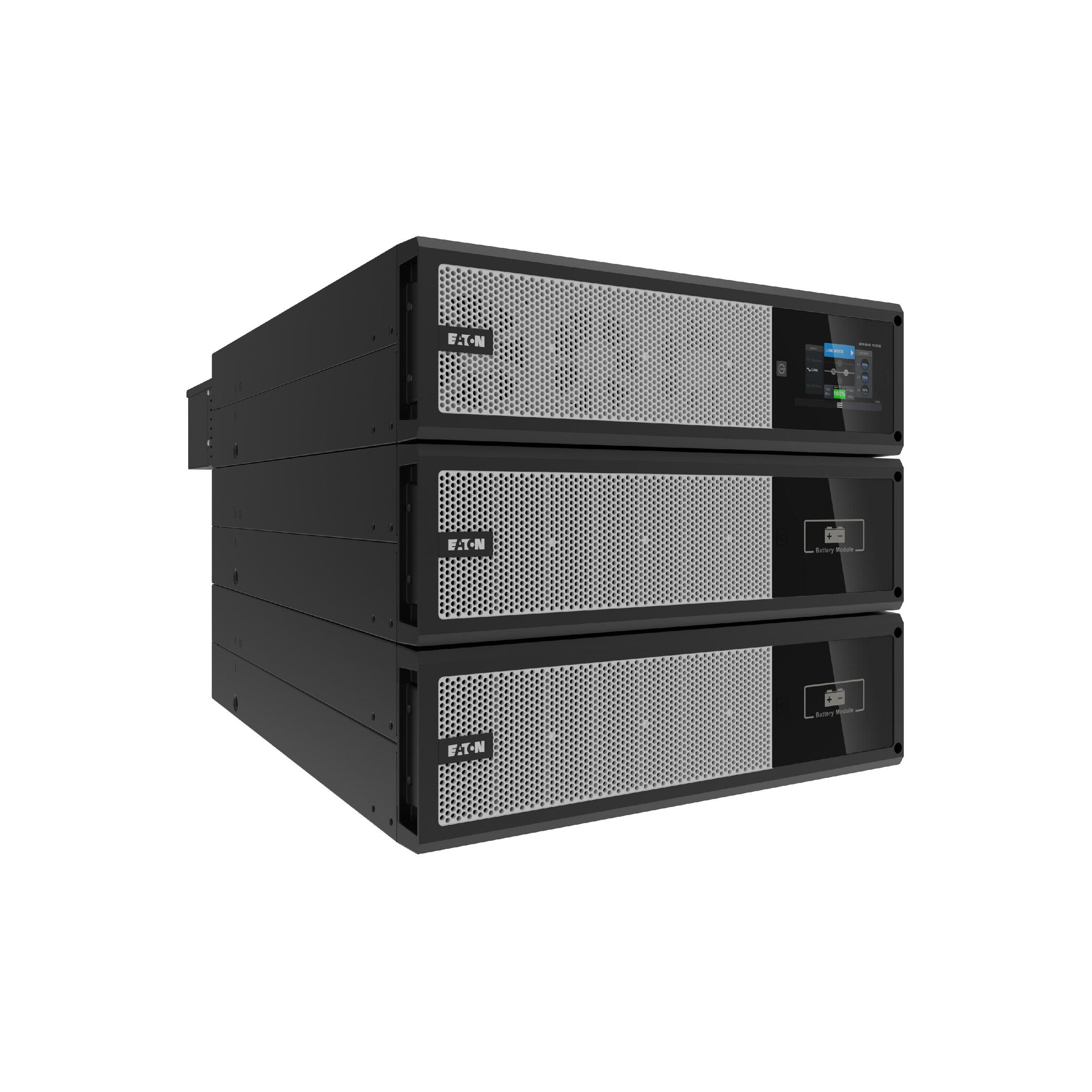

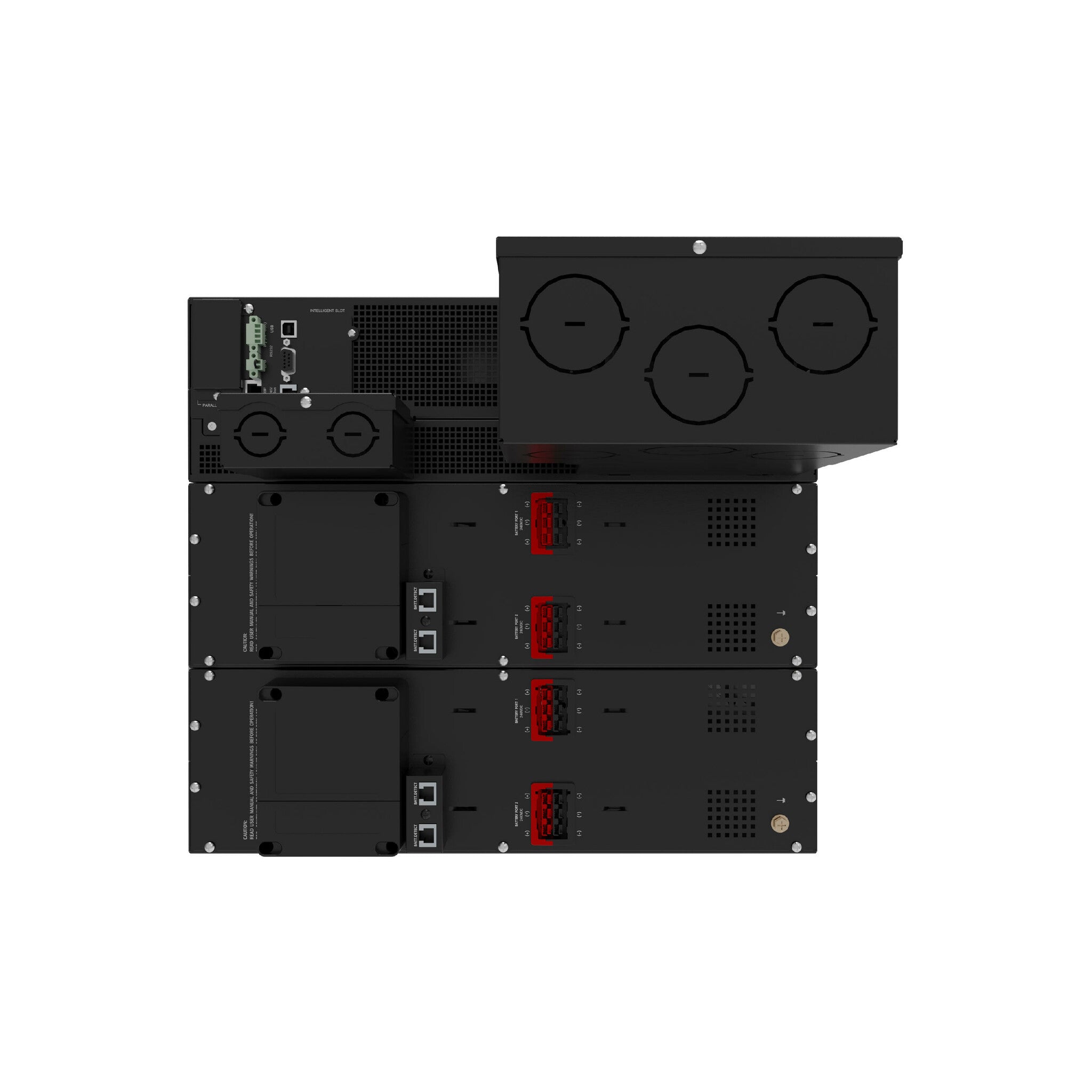

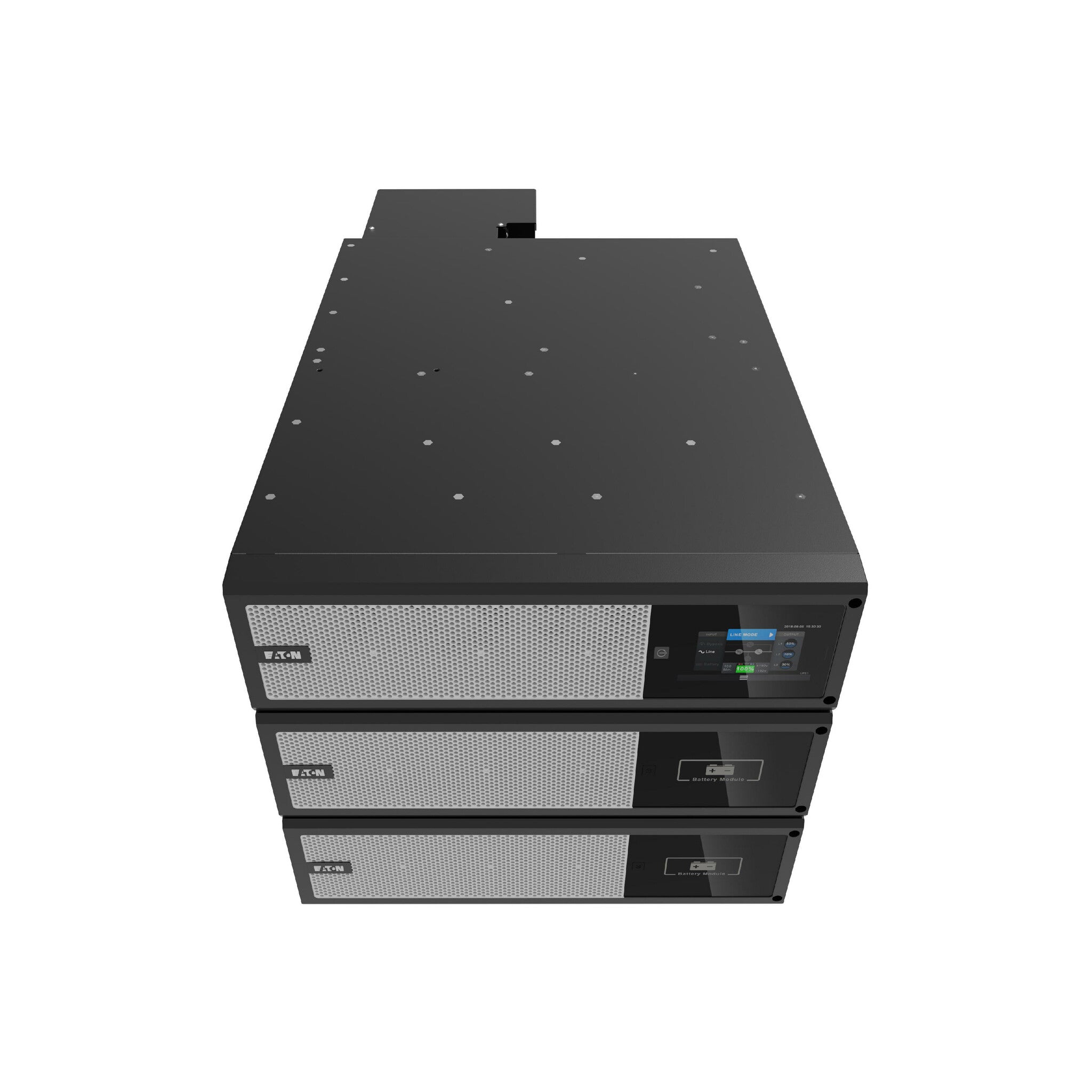

Eaton 93PX uninterruptible power supply (UPS) Double-conversion (Online) 20 kVA 20000 W
£10,675.99
Couldn't load pickup availability
- Double-conversion (Online)
- 20 kVA 20000 W
- Sealed Lead Acid (VRLA)
- Tower Black
Eaton 93PX 20 kW RT9U Netpack. Includes 15 kW PM, 1 set of EBM, Network card and rail kits.
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 20 kVA |
| Output power | 20000 W |
| Input operation voltage (min) | 220 V |
| Input operation voltage (max) | 415 V |
| Input frequency | 50/60 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 415 V |
| Output frequency | 50/60 Hz |
| Number of input phases | 3 |
| Number of output phases | 3 |
| Efficiency | 0.96% |
| Efficiency (On-line mode) | 99% |
| Efficiency (ECO mode) | 99% |
| ECO mode | Yes |
| Input current Total Harmonic Distortion (THD) | 1% |
| Audible alarm(s) | Yes |
| Potential-free output | Yes |
| Auto shut-off | Yes |
| Ports & interfaces | |
|---|---|
| AC outlet types | Hardwire |
| RS-232 ports | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Typical backup time at full load | 0 min |
| Typical backup time at half load | 0 min |
| Hot-swap battery | No |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Rack capacity | 9U |
| Modular | Yes |
| Display type | LCD |
| Packaging content | |
|---|---|
| Manual | Yes |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | IEC/EN 62040-2 IEC/EN 62040-1 EN 62040-3 |
| Weight & dimensions | |
|---|---|
| Width | 600 mm |
| Depth | 820 mm |
| Height | 128 mm |
| Weight | 157.9 kg |
| Other features | |
|---|---|
| Input connection type | Fixed |
| Output connection type | Fixed |
