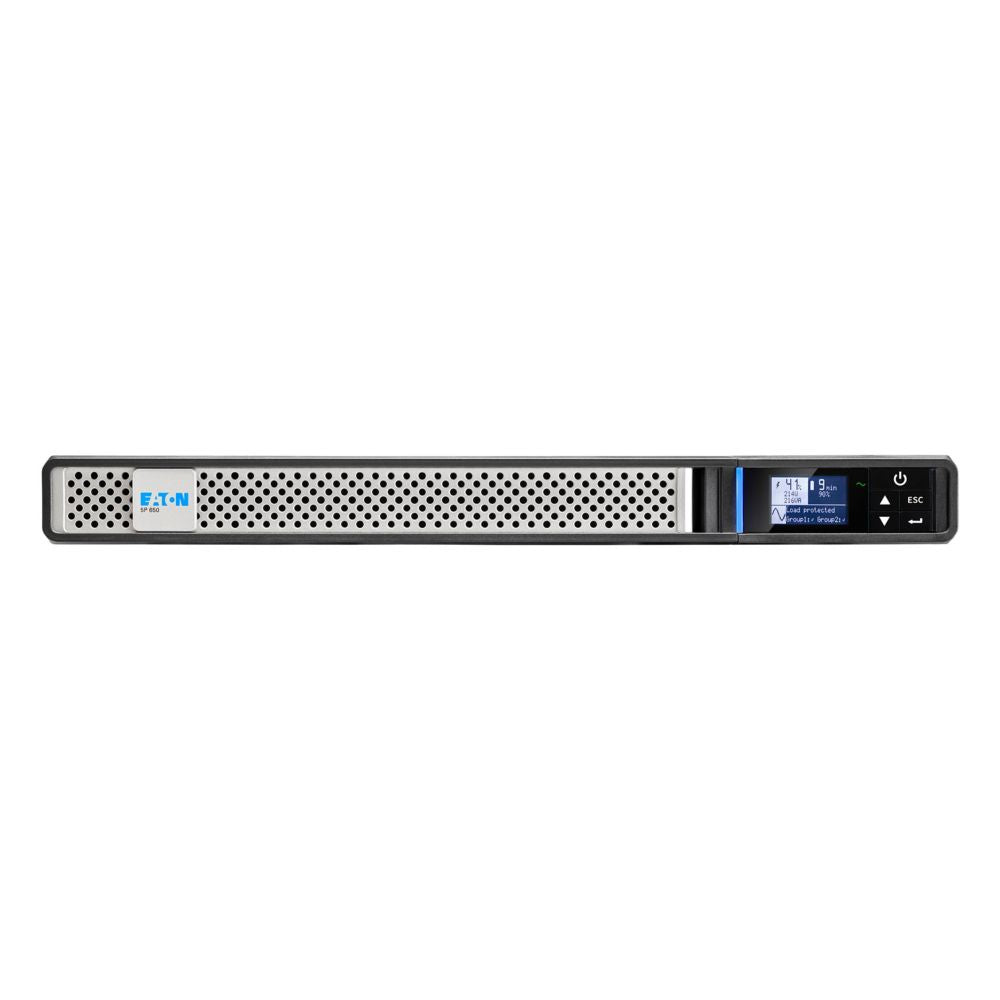

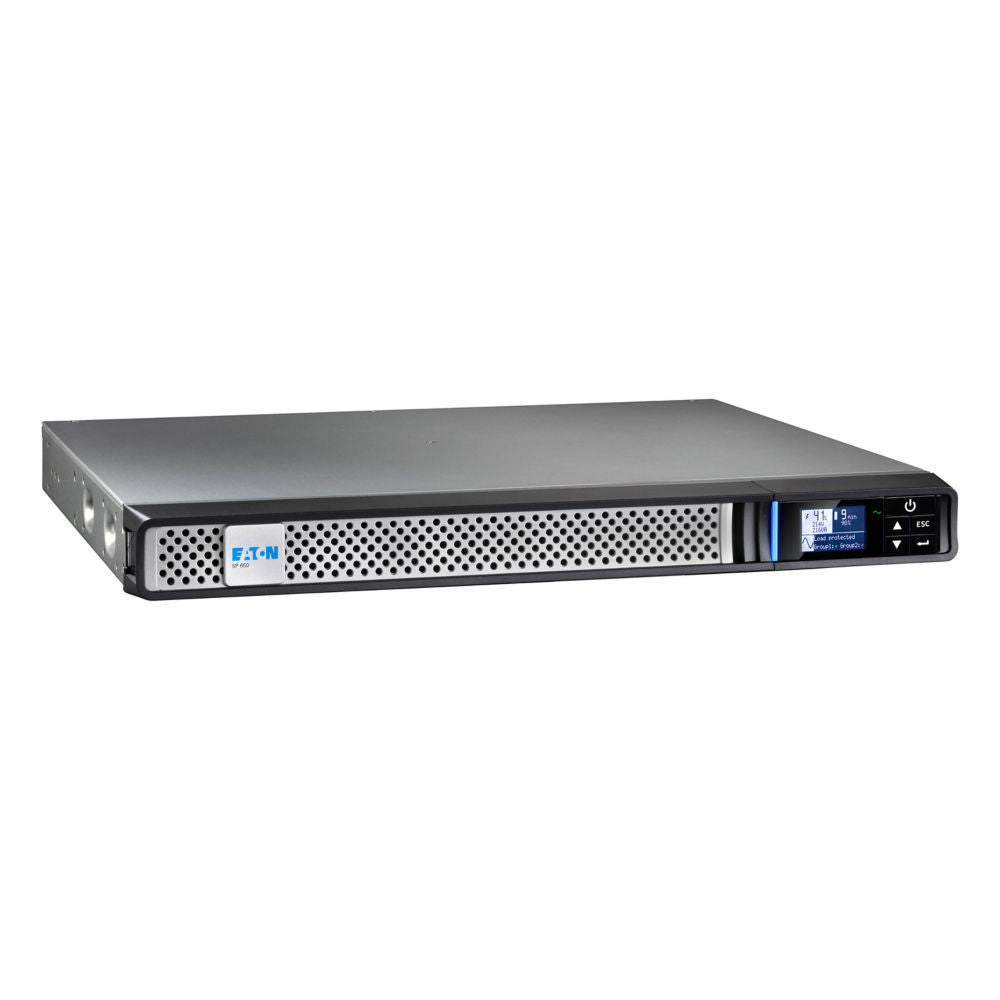

Eaton 5P650IRNG2 uninterruptible power supply (UPS) Line-Interactive 0.65 kVA 520 W 4 AC outlet(s)
£661.99
Couldn't load pickup availability
- Line-Interactive
- 0.65 kVA 520 W
- Waveform: Sine
- 4 AC outlet(s)
- Sealed Lead Acid (VRLA) 6 V 9 Ah
- Rackmount Black, Silver

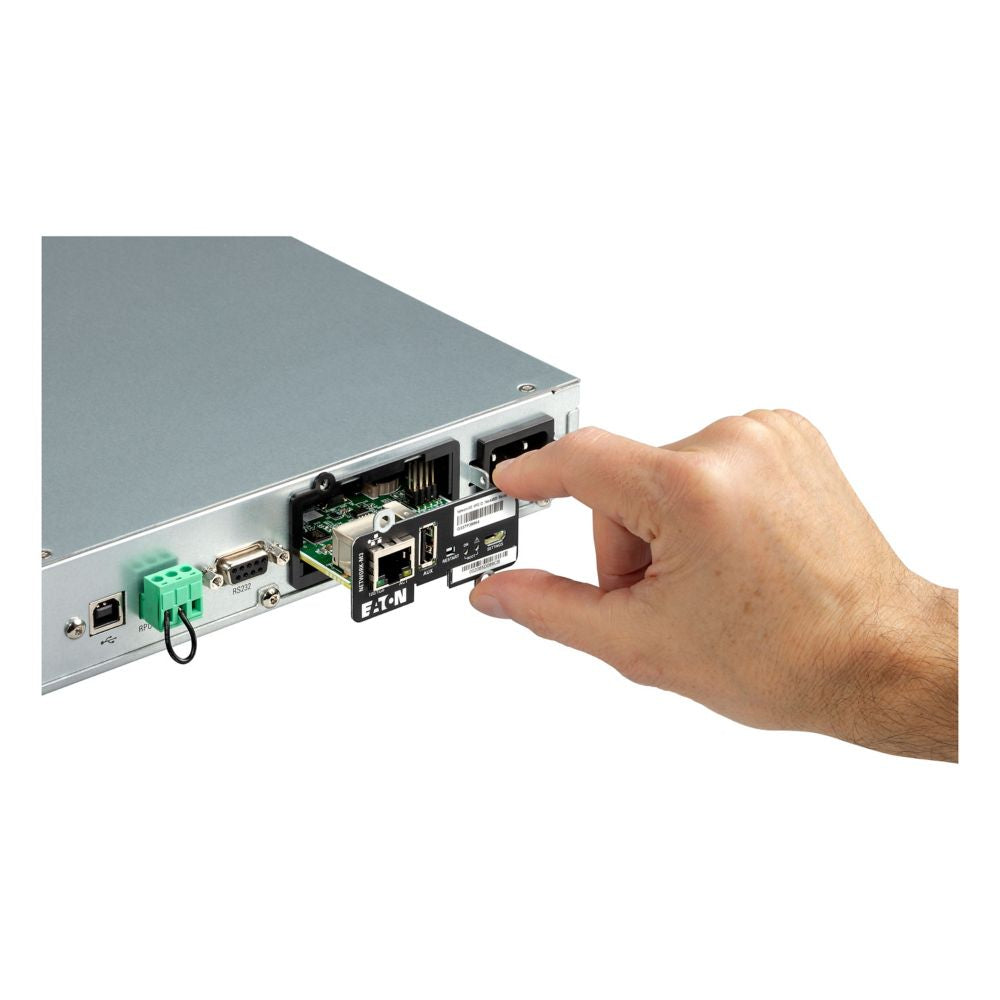

The Eaton 5P UPS Gen 2, compact and efficient solution for IT and edge environments that delivers 22% more power than its predecessor, available in 1U rack form factor. It also includes a network card for monitoring and management.
Its intelligent design ensures a stable output and energy savings
Advanced load segment control prioritizes critical equipment and optimizes battery runtime
Italso enables fleet management, remote UPS setting and remote firmware upgrade
| Features | |
|---|---|
| Noise level | 35 dB |
| Power factor | 0.8 |
| Efficiency | 97% |
| Number of output phases | 1 |
| Number of input phases | 1 |
| Heat dissipation | 461 BTU/h |
| Automatic Voltage Regulation (AVR) | Yes |
| Output frequency | 50/60 Hz |
| Output operation voltage (max) | 240 V |
| Output operation voltage (min) | 200 V |
| Input frequency | 47/70 Hz |
| Input operation voltage (max) | 294 V |
| Input operation voltage (min) | 150 V |
| Waveform | Sine |
| Output power | 520 W |
| Output power capacity | 0.65 kVA |
| UPS topology | Line-Interactive |
| Ports & interfaces | |
|---|---|
| Network card slot | Yes |
| RS-232 ports | 1 |
| Serial ports quantity | 1 |
| Serial interface type | RS-232 |
| Serial interface | Yes |
| USB port type | USB Type-B |
| USB port | Yes |

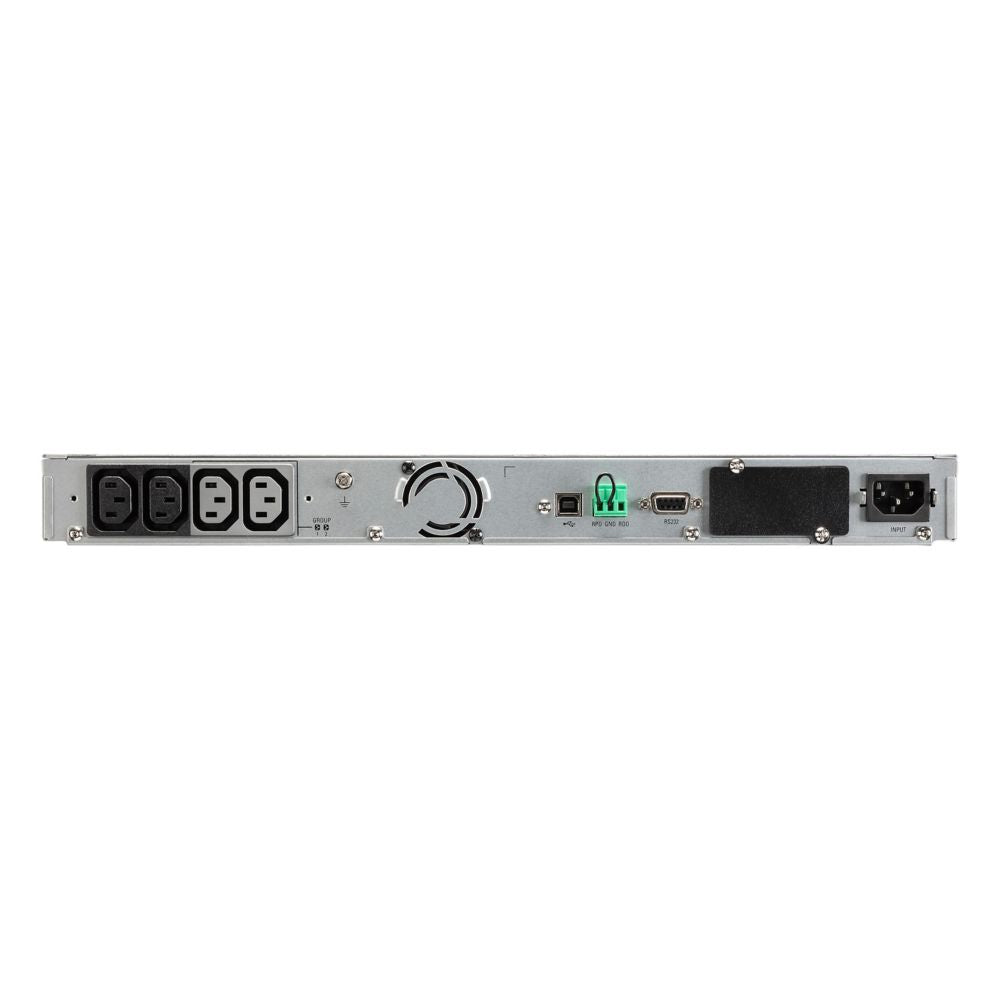

| AC outlets quantity | 4 AC outlet(s) |
| Power plug | C14 coupler |
| AC outlet types | C13 coupler |
| Battery | |
|---|---|
| Hot-swap battery | Yes |
| Typical backup time at half load | 7 min |
| Number of battery cells | 2 |
| Battery voltage | 6 V |
| Battery capacity | 9 Ah |
| Battery technology | Sealed Lead Acid (VRLA) |
| Design | |
|---|---|
| Display type | LCD |
| Product colour | Black, Silver |
| Form factor | Rackmount |
| Operational conditions | |
|---|---|
| Operating altitude | 0 - 3000 m |
| Operating relative humidity (H-H) | 0 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Quick installation guide | Yes |
| Cables included | USB cable |
| Rack mount kit | Yes |
| Certificates | |
|---|---|
| Certification | IEC/EN 62040-1IEC/EN 62040-2IEC/EN 62040-3UL 1778CSA-C22.2CEUKCACmUkrKCCcTUVusBIS |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD), RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 8.68 kg |
| Height | 43.2 mm |
| Depth | 361 mm |
| Width | 438 mm |
