Eaton 3P Ellipse UPS uninterruptible power supply (UPS) Standby (Offline) 1.7 kVA 1040 W 8 AC outlet(s)
£187.99
Couldn't load pickup availability
- Convenient extra-flat design for easy installation in any office environment
- High performance surge-protection device compliant with IEC 61643-11 standard
- 8 outlets to connect your PC + peripherals
- 2 USB charging ports
- Card slot for optional Cloud connection
- HID-compliant USB port (cable supplied), for automatic integration with major operating systems (Windows/Mac OS/Linux)

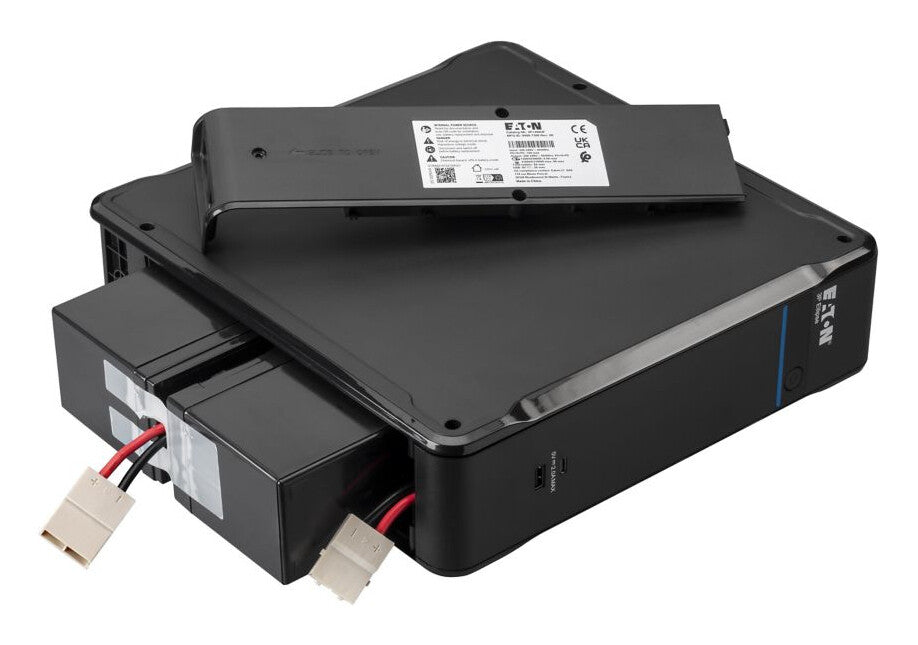

- Easy to replace battery helps to extend UPS service life
| Features | |
|---|---|
| UPS topology | Standby (Offline) |
| Output power capacity | 1.7 kVA |
| Output power | 1040 W |
| Waveform | Stepwise |
| Input operation voltage (min) | 161 V |
| Input operation voltage (max) | 284 V |
| Input frequency | 46/70 Hz |
| Output operation voltage (min) | 161 V |
| Output operation voltage (max) | 284 V |
| Output frequency | 50/60 Hz |
| Power consumption (average operating) | 32.2 W |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency | 97% |
| Efficiency (ECO mode) | 97% |
| Output power factor | 0.6 |
| Noise level | 25 dB |
| Surge protection | Yes |
| Auto shut-off | Yes |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| AC outlets quantity | 8 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 2 |
| Battery | |
|---|---|
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Design | |
|---|---|
| Form factor | Tower |
| Product colour | Black |
| Control type | Buttons |
| Display type | LED |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Packaging content | |
|---|---|
| Cables included | USB cable |
| Quick installation guide | Yes |
| Certificates | |
|---|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Compliance certificates | CB, CE, RoHS, WEEE |
| Certification | IEC/EN 62040-1 IEC/EN 62040-2 IEC/EN 62040-3 CE UKCA Ukr Cm |
| Weight & dimensions | |
|---|---|
| Width | 81 mm |
| Depth | 312 mm |
| Height | 305 mm |
| Weight | 7.8 kg |
| Packaging data | |
|---|---|
| Package type | Box |
| Other features | |
|---|---|
| Input connection type | C14 |
| Relative humidity | 0 - 95% |
| Nominal input voltage | 220-240 V |
